Maui blind-corner wall cabinets use one door to access upper-cabinet storage extending into a corner. The universal design supports left- or right-hand layouts. Available in Polar White or Slate as ready-to-assemble (RTA) cabinetry.
Plan the corner using the manufacturer’s full-overlay installation drawing. It shows a 30-inch cabinet box with a wall pull of 0 to 3¾ inches and a total wall span of 30 to 33¾ inches. Set the pull to suit the actual corner, adjoining cabinet fronts and door clearances.
The manufacturer’s layout also shows a separate 3-inch filler between the adjoining cabinet fronts. The filler is sold separately and trimmed to fit. Confirm the exact model-specific layout and wall conditions before fastening.
Cabinet box: 30 inches wide × 12 inches deep.
30-inch height: WBC30-3330U, one door and two adjustable shelves.
36-inch height: WBC30-3336U, one door and two adjustable shelves.
42-inch height: WBC30-3342U, one door and three adjustable shelves.

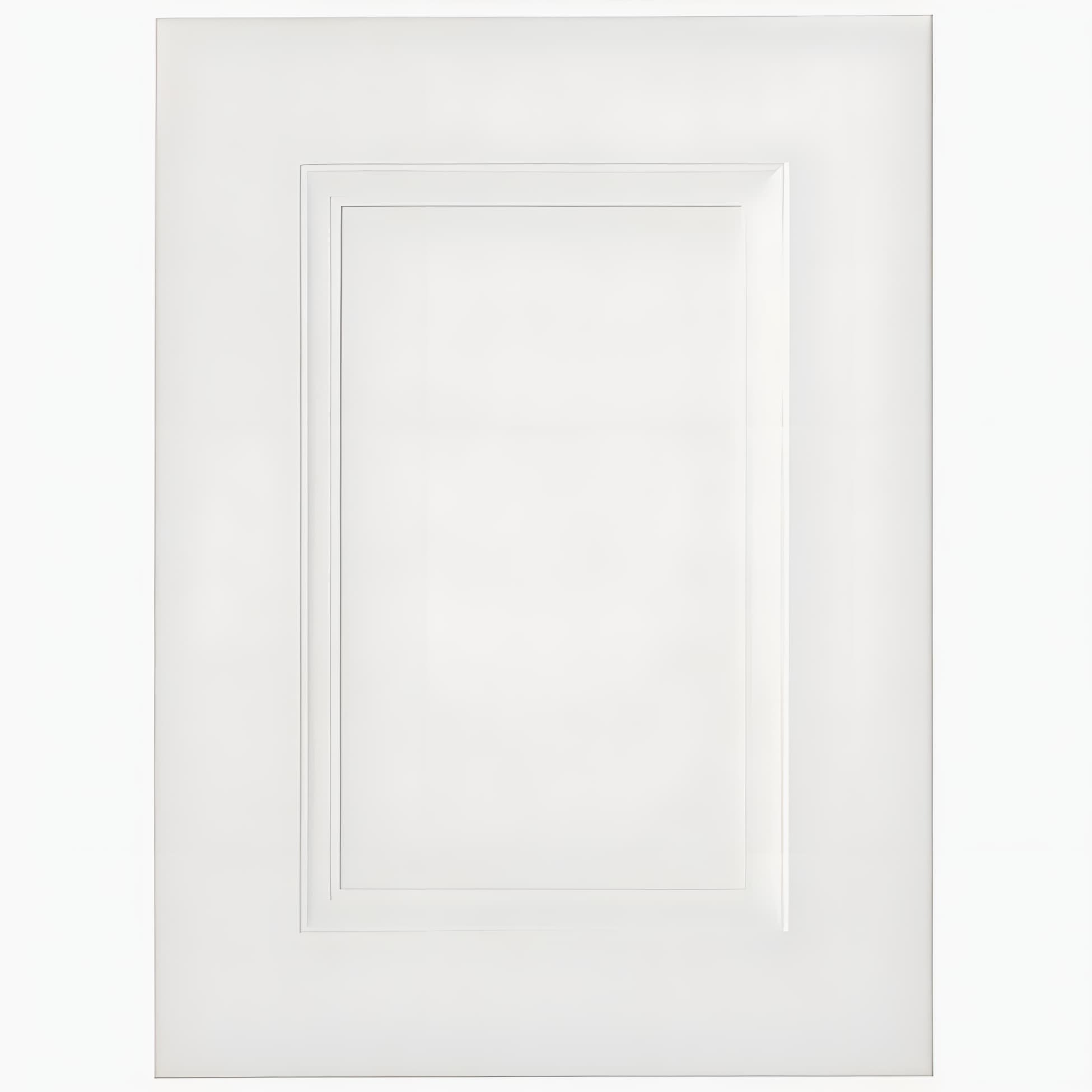

Maui has full-overlay, five-piece door fronts. Polar White uses HDF (high-density fiberboard) doors and drawer fronts; Slate uses birch doors and drawer fronts. Maui construction includes plywood cabinet panels, solid-birch face frames and adjustable soft-close concealed hinges.
The left and right size options use the same universal manufacturer model for each height and finish; handing is established during assembly. The 30-inch box width is not the full installation-space calculation. Check wall pull and neighboring door clearances against the manufacturer drawing. A 3-inch filler is sold separately and trimmed to suit the layout.
Choose the finish when ordering: manufacturer suffix MWH identifies Polar White and MSL identifies Slate. Cabinet dimensions are separate from shipping-carton estimates.
Compare Fillers 3 inch; Wall Diagonal Corner; Wall Cabinets Single Door; Wall Cabinets Double Door. Browse the Maui collection or contact MDI for help with your layout.
