Maui Universal Oven Cabinets combine a flexible appliance enclosure with two upper doors and one bottom drawer. Choose Polar White or Slate. These ready-to-assemble cabinets ship unassembled.
OVD3384U: 33 inches wide × 84 inches high × 24 inches deep.
OVD3390U: 33 inches wide × 90 inches high × 24 inches deep.
OVD3396U: 33 inches wide × 96 inches high × 24 inches deep.
The 84- and 90-inch models have no adjustable upper shelf; the 96-inch model has one adjustable upper shelf.

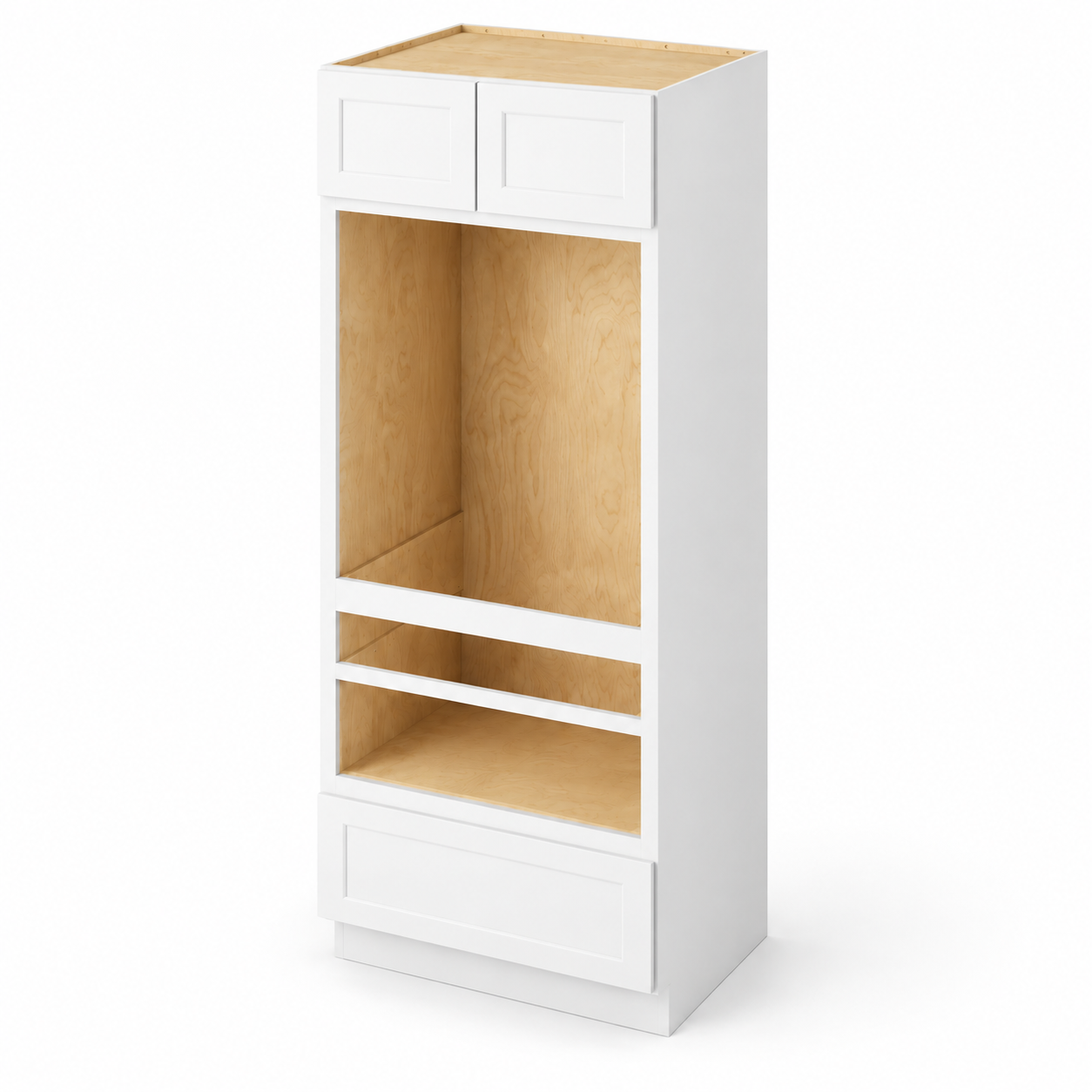

These are installed cabinet dimensions, not appliance cutout dimensions. The product image illustrates the 84-inch cabinet in Polar White; upper-door height varies with cabinet height. Part-number suffixes are -MWH for Polar White and -MSL for Slate.
The separately sold OVD33D Universal Oven Drawer Kit adds two drawers for a compatible smaller-appliance layout. The cabinet as listed includes one bottom drawer; the two-drawer kit is not included. Request OVD33D-MWH for Polar White or OVD33D-MSL for Slate. Contact MDI to order the matching kit and confirm the appliance configuration.
Maui doors have five-piece solid-birch frames with a ¼-inch plywood center panel, including painted Polar White. Construction includes a ½-inch plywood cabinet box, solid-birch face frame and concealed soft-close hinges. The dovetail drawer box has ⅝-inch solid-wood sides and a plywood bottom, with full-extension undermount soft-close slides.
Confirm current availability and appliance fit with MDI before ordering. Provide the appliance manufacturer and model so the cutout, support, electrical and ventilation requirements can be checked. Cabinet width alone does not establish compatibility. Appliances are not included. Plan any exposed-end finishing panels with the complete layout.
This Universal model uses the optional OVD33D drawer system. Compare the original Maui double-oven cabinet, which uses the separate OVD33P overlay-panel option for a smaller appliance.
