Maui enclosed angled wall-end cabinets finish a wall-cabinet run with a diagonal door and adjustable shelf storage. Available in Polar White or Slate as ready-to-assemble (RTA) cabinetry.
WEC1230, WEC1236 and WEC1242: heights of 30, 36 and 42 inches respectively.
Triangular footprint with two 12-inch sides and a diagonal front measuring 17¹⁄₁₆ inches in the manufacturer drawing.
One door, with two adjustable shelves at 30- and 36-inch heights or three shelves at 42 inches.

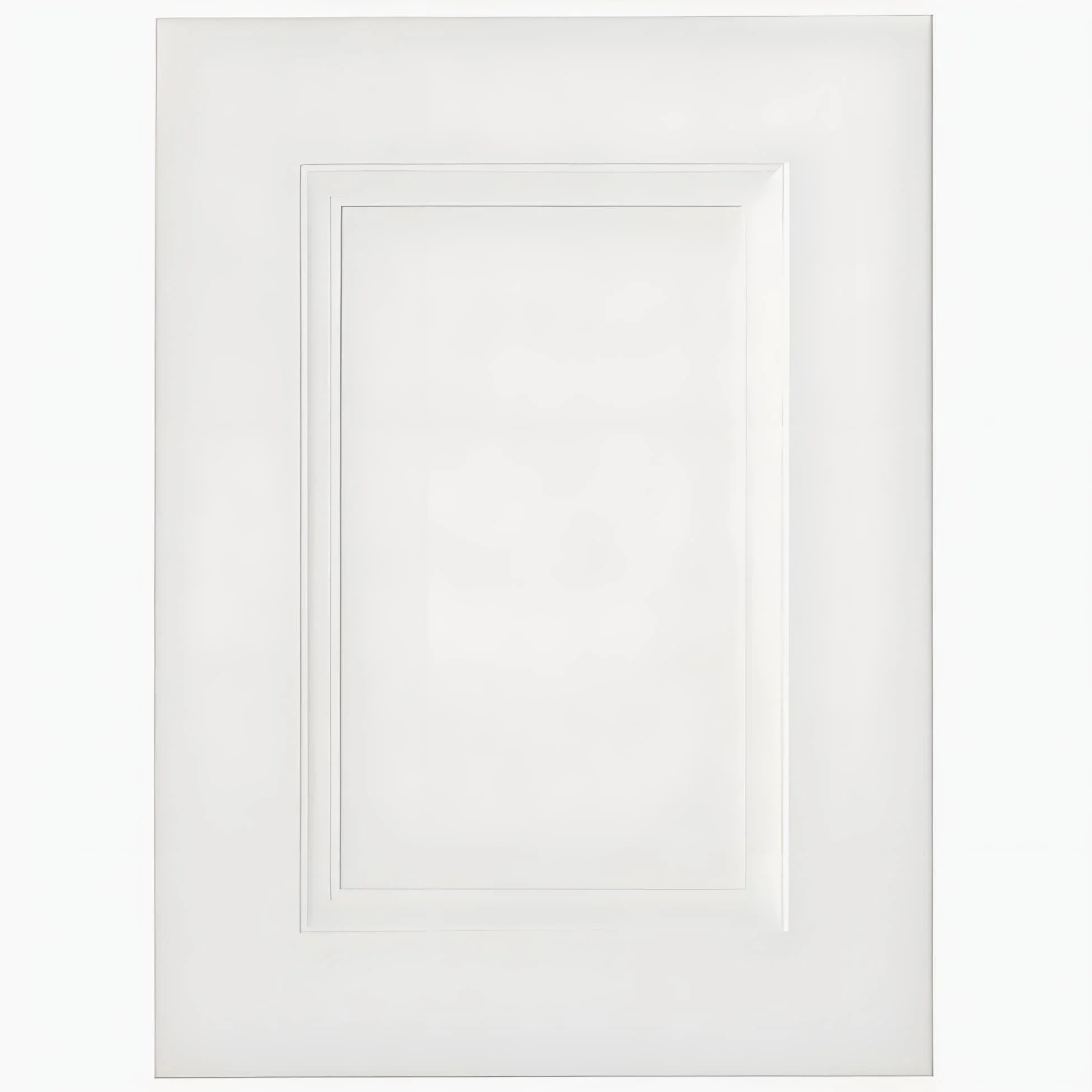

Maui doors use five-piece solid-birch frames with a ¼-inch plywood center panel, including the painted Polar White finish. Maui construction includes plywood cabinet panels, solid-birch face frames and adjustable soft-close concealed hinges.
These are enclosed cabinets with doors, not open end shelves. Check the triangular footprint and door swing against adjacent walls and cabinets. Use the drawing when planning the diagonal front and finished end of the cabinet run.
Choose the finish when ordering: manufacturer suffix MWH identifies Polar White and MSL identifies Slate. Cabinet dimensions are separate from shipping-carton estimates.
Compare Wall Cabinets Single Door; Wall Cabinets Double Door; Wall Diagonal Corner. Browse the Maui collection or contact MDI for help with your layout.
