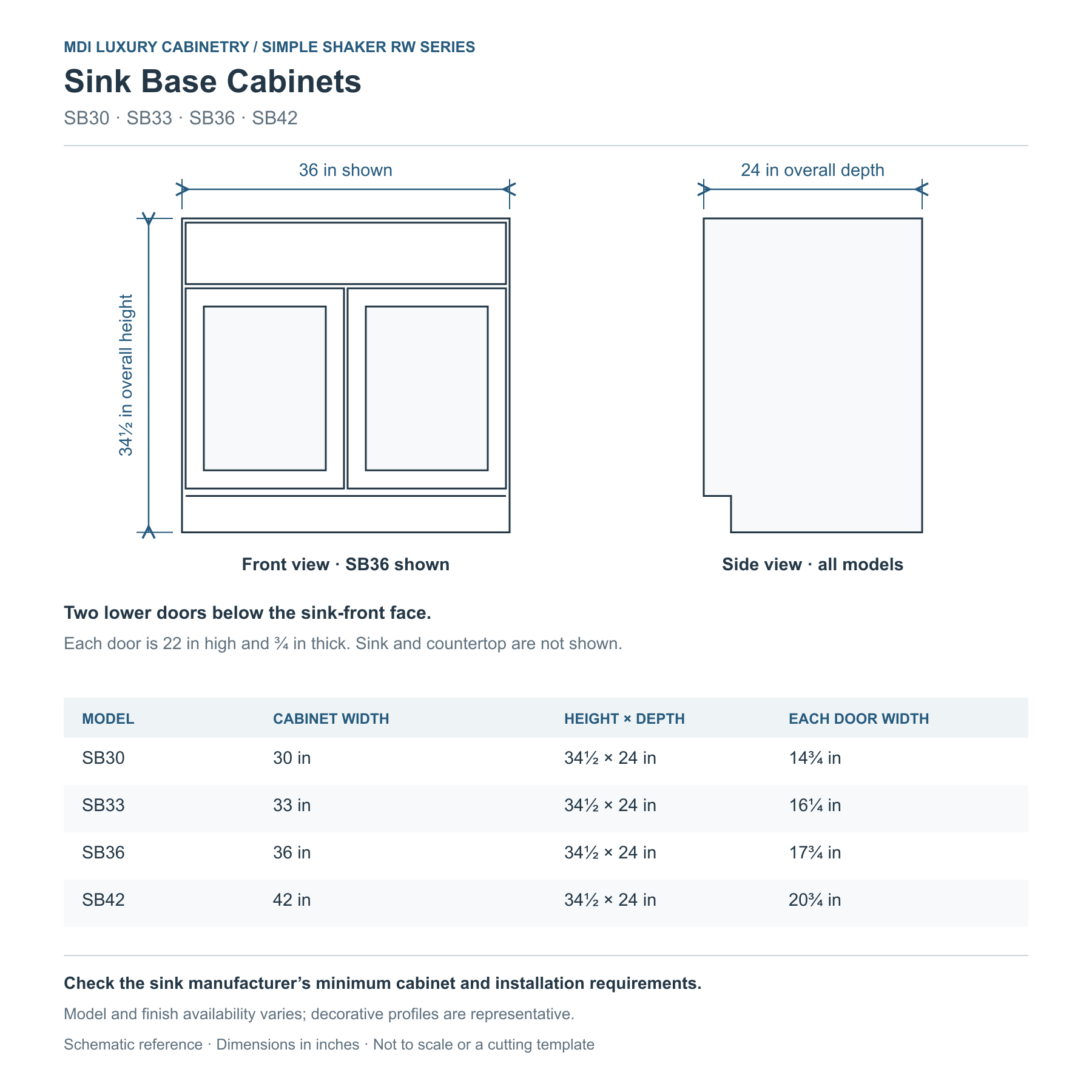

Build your sink area around a two-door base cabinet with an upper false front and no operable drawer. Models SB30, SB33, SB36 and SB42 are 30, 33, 36 and 42 inches wide; all are 34½ inches high and 24 inches deep.
Each door face is 22 inches high and ¾ inch thick. Door-face widths are 14¾ inches on SB30, 16¼ inches on SB33, 17¾ inches on SB36 and 20¾ inches on SB42. These are exterior door measurements, not interior clearance.

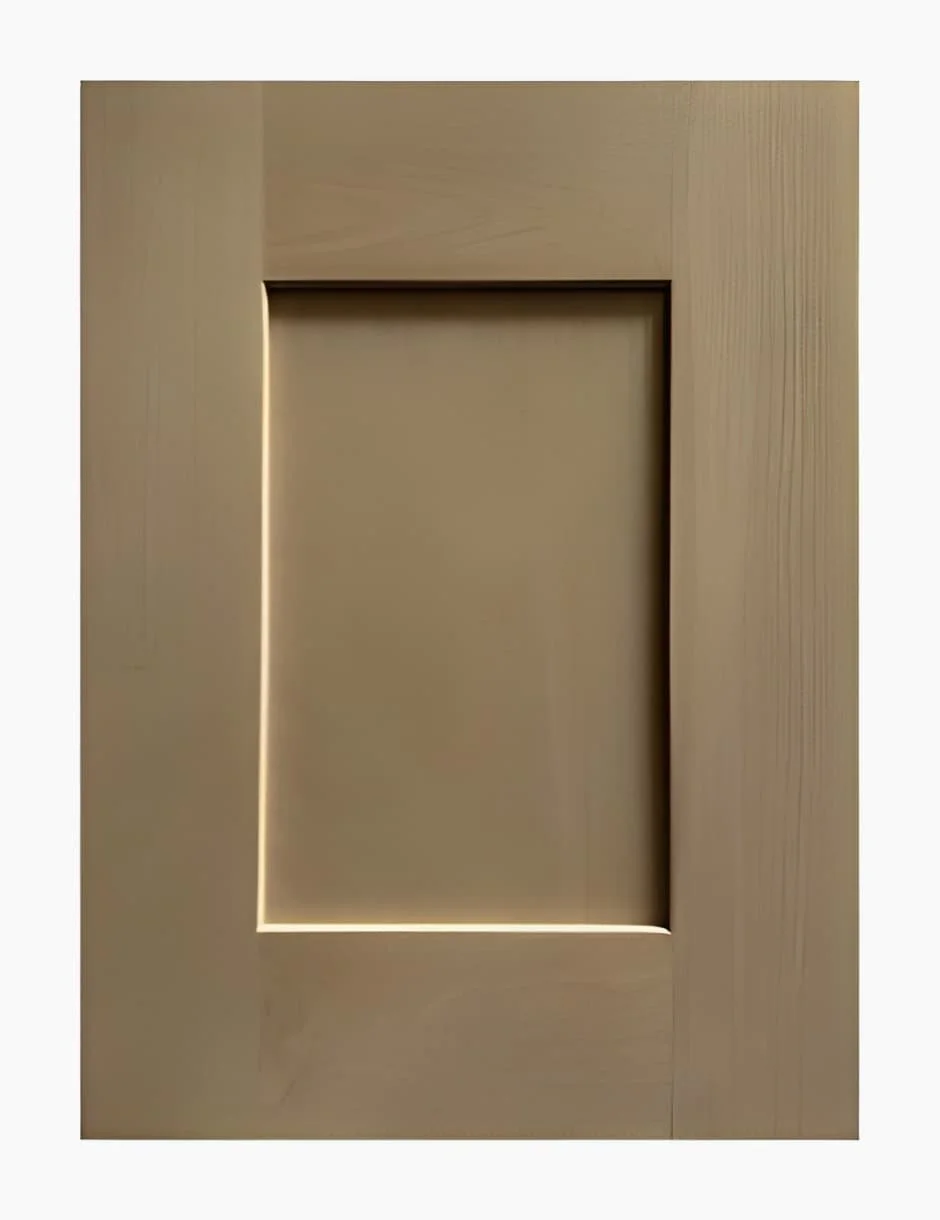

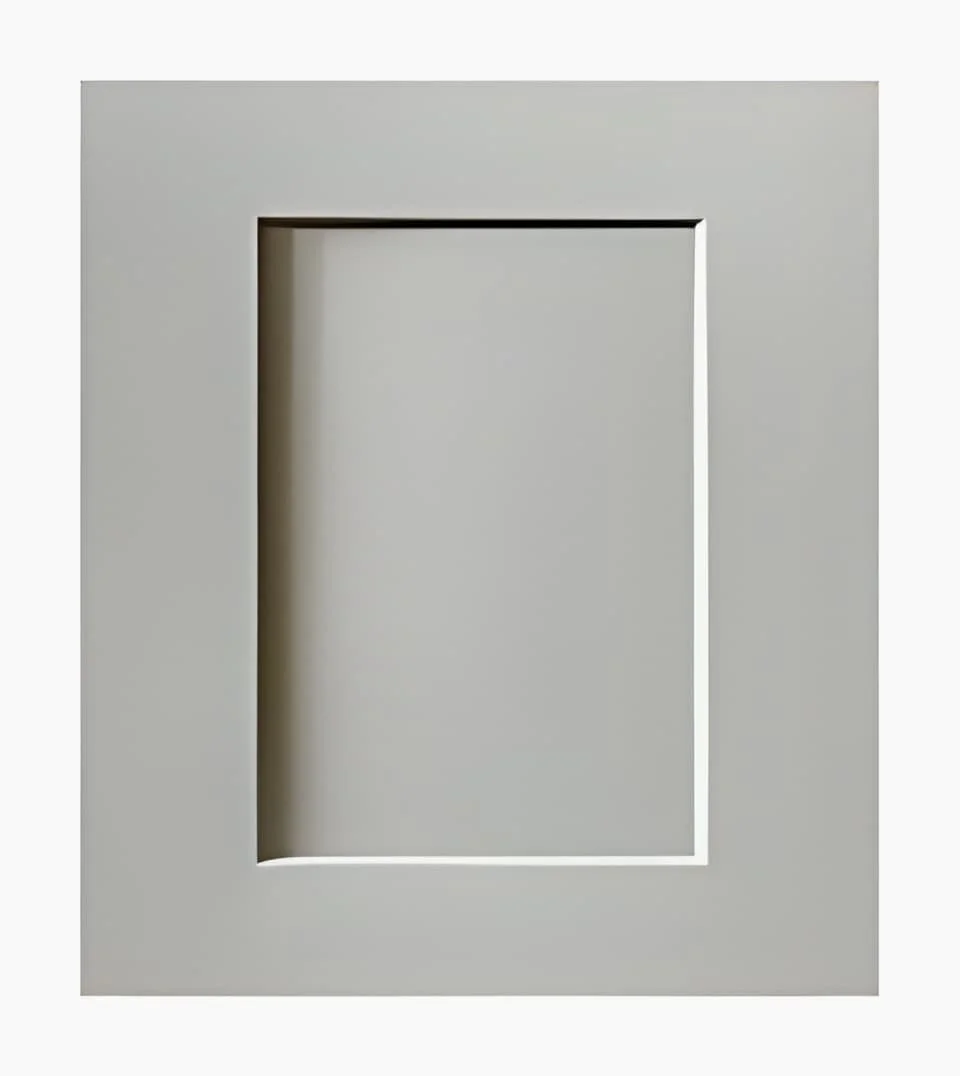

Confirm the sink or cooktop manufacturer’s required cabinet width and installation clearances before ordering. Model and finish availability varies. Shaker finishes use a square profile; Antique White, Pewter Green and Classic Wheat use the detailed Classic profile. Images represent the cabinet style; the dimension guide shows the model measurements.
Build your sink area around a two-door base cabinet with an upper false front and no operable drawer. Models SB30, SB33, SB36 and SB42 are 30, 33, 36 and 42 inches wide; all are 34½ inches high and 24 inches deep.
Each door face is 22 inches high and ¾ inch thick. Door-face widths are 14¾ inches on SB30, 16¼ inches on SB33, 17¾ inches on SB36 and 20¾ inches on SB42. These are exterior door measurements, not interior clearance.
Confirm the sink or cooktop manufacturer’s required cabinet width and installation clearances before ordering. Model and finish availability varies. Shaker finishes use a square profile; Antique White, Pewter Green and Classic Wheat use the detailed Classic profile. Images represent the cabinet style; the dimension guide shows the model measurements.
