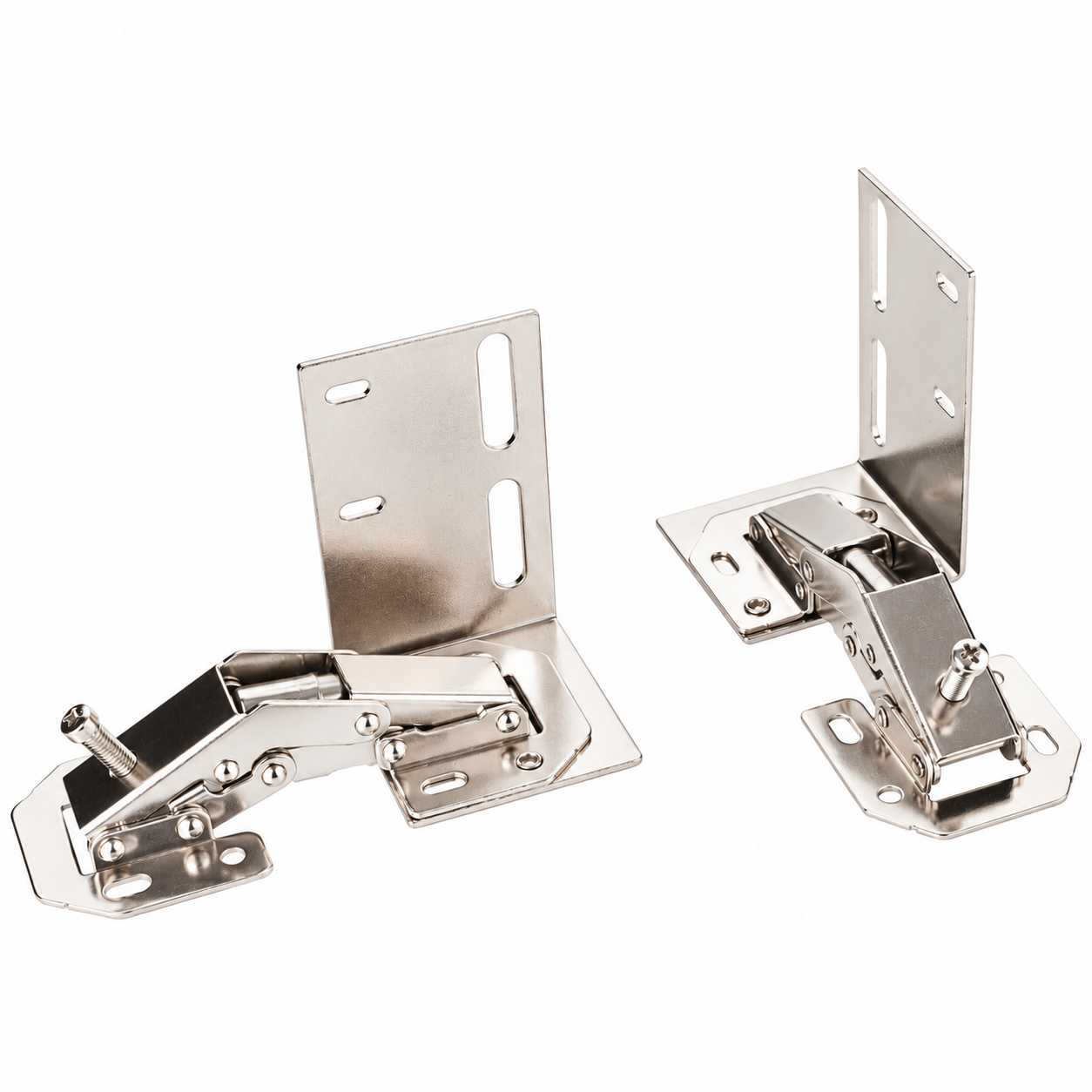

Self-Closing Tip-Out Hinge Pair

$11.29

Restore smooth sink-front access

Build or refresh a compatible tip-out tray installation with a self-closing hinge pair. The adjustable opening angle lets you set how far the false drawer front tilts for access to small sink essentials.

  • One left/right pair of steel hinges in a chrome finish.
  • Self-closing action; this is not a soft-close hinge.
  • For compatible sink-base false drawer fronts.
  • Trays and cabinet front are sold separately.

Model and fit

TIPOUT-HINGE. Overall hinge length is 4.3228 inches (109.8 mm); maximum width is 47.7 mm, approximately 1-7/8 inches. Upright mounting plate is 71.4 mm high. Confirm your mounting pattern and available clearance before ordering replacement hardware.

Regular MDI price per pair

Manufacturer list $13.21 · $11.29
