Soft-Close Appliance Lift

from $221.80

Bring your favorite appliance into the moment—and give your countertops room to breathe. This spring-assisted lift raises a stand mixer or other countertop appliance from its dedicated cabinet to a convenient working position, then guides it smoothly back into storage when you're finished.

Made for kitchens that love to cook

  • Mechanical assistance makes raising and lowering a heavy appliance easier.
  • The lift locks in its fully extended position for a secure working platform.
  • Soft-close dampers control the return into the cabinet.
  • Three spring settings accommodate different appliance weights; rated load capacity is up to 45 lb.
  • Chrome-finished steel hardware mounts to the cabinet's interior sides.
  • Compatible with full-height face-frame and frameless cabinets when correctly sized and supported.

Choose your shelf option

Mechanism only — ML-1CH
For a custom-fitted shelf and cabinet layout. Shelf and shelf-attachment screws are not included. The supplier describes custom applications from a 12-inch minimum through a 24-inch cabinet width; follow the installation drawing to determine your finished shelf width.
Manufacturer list: $259.43   MDI price: $221.80

12-inch opening kit — ML-1CH-12S
Includes a solid birch shelf measuring 9¾″ W × 20½″ D × ¾″ thick, plus the lift and shelf-attachment screws.
Manufacturer list: $411.77   MDI price: $352.06

15-inch opening kit — ML-1CH-15S
Includes a solid birch shelf measuring 12¾″ W × 20½″ D × ¾″ thick, plus the lift and shelf-attachment screws.
Manufacturer list: $426.91   MDI price: $365.02

18-inch opening kit — ML-1CH-18S
Includes a solid birch shelf measuring 15¾″ W × 20½″ D × ¾″ thick, plus the lift and shelf-attachment screws.
Manufacturer list: $442.03   MDI price: $377.93

Plan your appliance's new home

Kit sizes refer to the clear cabinet opening, not the outside cabinet width. Use a full-height cabinet without an upper drawer and verify the appliance's height, width, weight and stored clearance. The supplied kit drawing shows a maximum stored appliance height of 13 9/16″ for its illustrated installation; your cabinet and mounting position must meet that drawing's clearances.

For a custom shelf, use material at least ¾″ thick and no longer than 20½″. Its width is the measured distance between the installed mounting plates minus 1¼″. The included kit shelves can be trimmed to fit. Some face-frame cabinets need additional side support material, supplied by the installer.

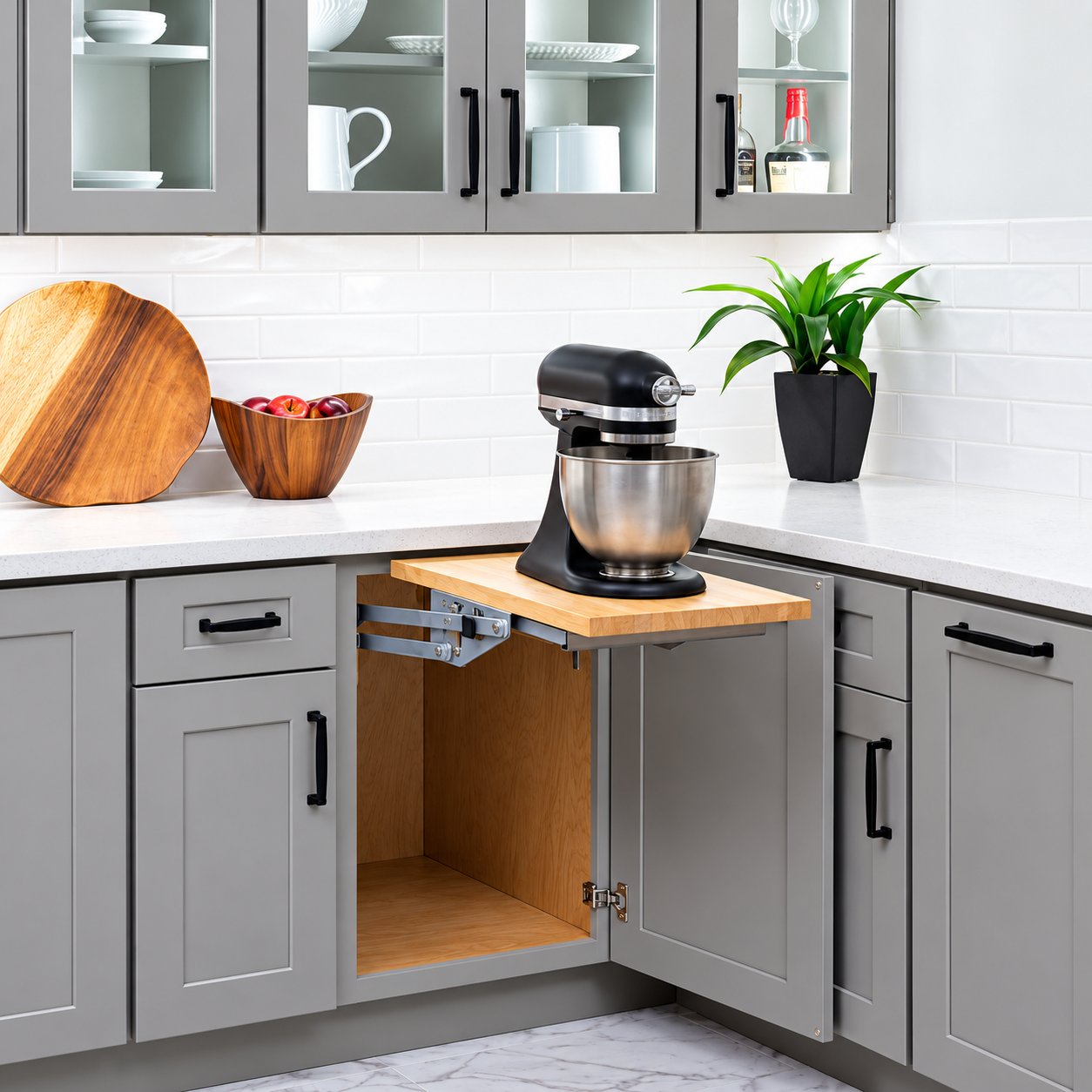

Includes the left and right lift mechanisms and cabinet-mounting screws; shelf kits include the shelf and its mounting screws. Appliance, cabinet, door, countertop and decorative items are not included. The installed photograph represents the family. Follow the manufacturer's installation instructions for mounting, spring adjustment and clearance.
