Soft-Close Wood Top-Mount Trash Frame

Keep waste and recycling discreetly behind your cabinetry with a softly closing, top-mounted wood frame. Attach your cabinet door to the included brackets for convenient pullout access.

Frame and hardware only. Plastic waste bins are sold separately.

• UV-coated white birch construction with full-extension soft-close ball-bearing slides.
• Included door-mounting hardware and self-adjusting rear brackets for face-frame installation.
• Single-bin models include a small rear wire basket.
• Use a 90 lb total load limit, matching the model-specific capacity table; the slides are rated for 100 lb.

Choose your opening & bin configuration

• CAN-TMSC-12 — 12-inch opening — Single 35/50 qt; listed frame width 11-13/16"; typically a 15-inch base cabinet.
• CAN-TMSC-15 — 15-inch opening — Single 35/50 qt; listed frame width 14-13/16"; typically a 18-inch base cabinet.
• CAN-TMDSC-15 — 15-inch opening — Double 35 qt only; listed frame width 15"; typically a 18-inch base cabinet.
• CAN-TMDSC-18 — 18-inch opening — Double 35/50 qt; listed frame width 17-13/16"; typically a 21-inch base cabinet.
• CAN-TMDSC-21 — 21-inch opening — Double 35/50 qt; listed frame width 20-13/16"; typically a 24-inch base cabinet.

Single-bin models and the 18-/21-inch double-bin models accept compatible 35- or 50-quart containers using the included ring. CAN-TMDSC-15 accepts two 35-quart bins only. Match the correct container shape and rim dimensions; nominal capacity alone does not guarantee fit.

Installation dimensions

Frame depth is 21-5/8 in. for single-bin and 18-/21-inch double-bin models. The CAN-TMDSC-15 drawing specifies 21-13/16 in. depth. Allow the full selected cabinet opening for mounting hardware. Single/18-/21-inch assemblies have approximately 9-5/8 in. bracket height, plus the single model basket rises 5/8 in.; the 15-inch double assembly is 8-5/8 in. high. These are frame-and-bracket dimensions, not the required height with bins installed. Check the chosen bin height and rear bracket clearance before installation.

Models & pricing

• CAN-TMSC-12: $238.54 $203.96
• CAN-TMSC-15: $253.11 $216.41
• CAN-TMDSC-15: $254.80 $217.85
• CAN-TMDSC-18: $256.22 $219.06
• CAN-TMDSC-21: $280.73 $240.01

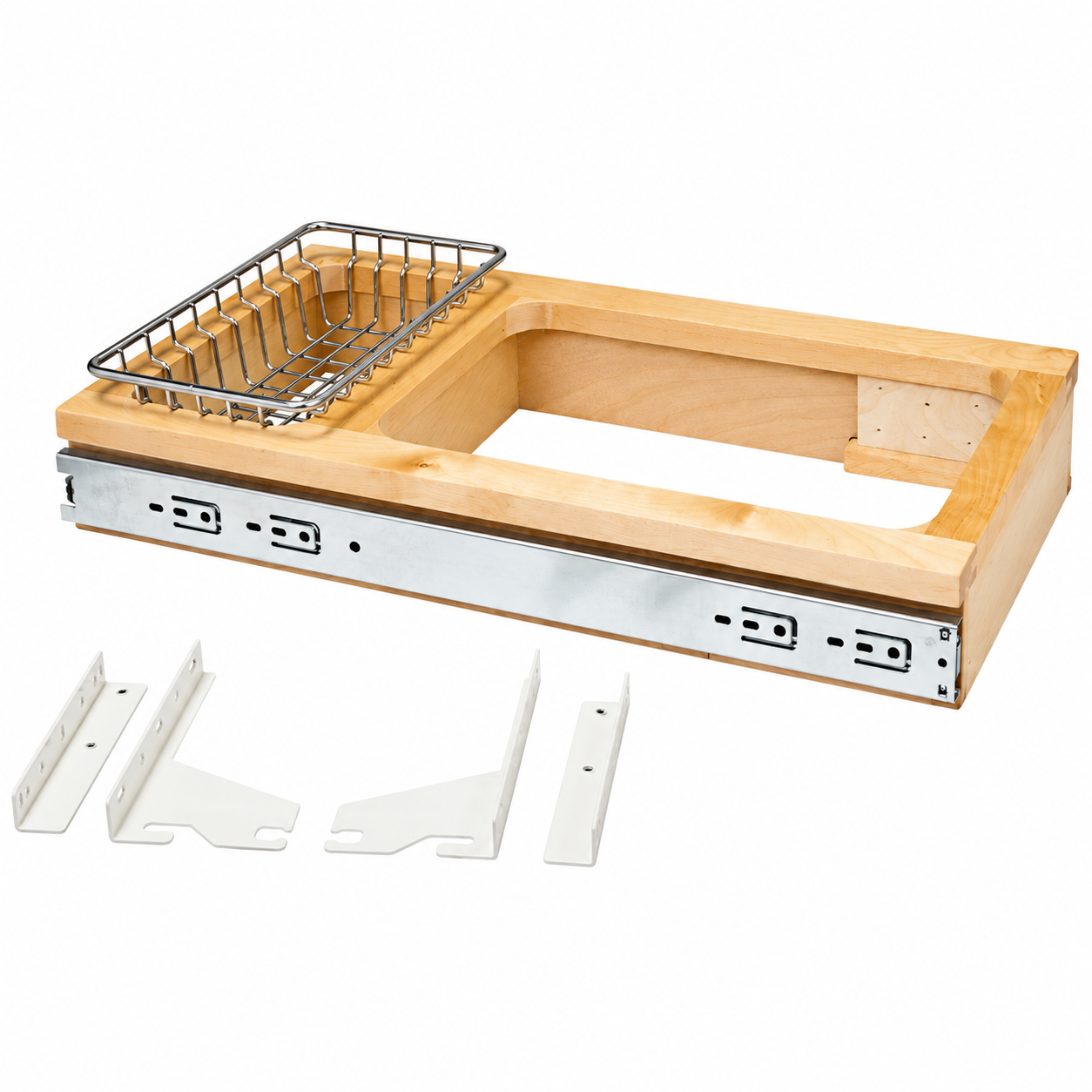

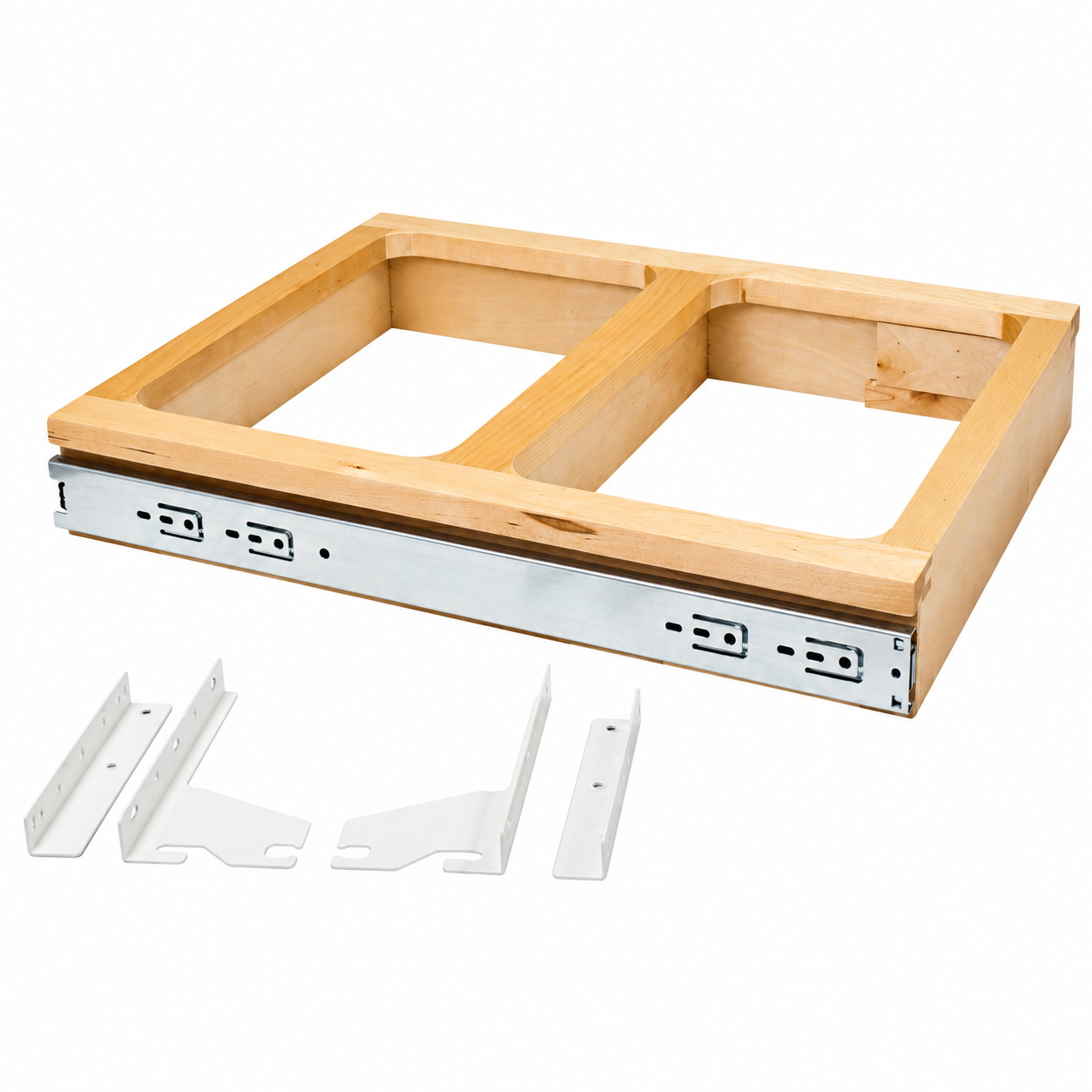

Struck-through amounts are manufacturer list prices. Bold amounts are our regular prices. Representative photos show single- and double-bin frames. Cabinet door, cabinetry and waste containers are not included.
