Soft-Close Wood Top-Mount Trash & Recycling Kit

Make cleanup feel effortless with a complete wood top-mount waste and recycling kit. The bins stay hidden behind your cabinet door and glide into reach on full-extension soft-close slides.

• Includes the wood pullout frame, selected waste container or containers, slides and adjustable door-mounting brackets.
• White birch frame with protective UV finish; bins offered in Black, Grey or White where available.
• 303-300-series soft-close ball-bearing slides rated for 100 lb. Use the matching frame’s 90 lb total load limit.
• Self-adjusting rear brackets for face-frame installation; door brackets adjust horizontally and vertically.
• Single-bin models include a small rear wire basket.

Choose your configuration

Select the clear cabinet opening first, then the bin configuration and color. A 12-inch opening typically fits a 15-inch base cabinet; 15, 18 and 21-inch openings typically fit 18, 21 and 24-inch base cabinets respectively.

• 12-inch opening: single 35- or 50-quart bin.
• 15-inch opening: single 35- or 50-quart bin, or two 35-quart bins. Single 35-quart is available here in Black or White.
• 18- or 21-inch opening: two 35-quart or two 50-quart bins.

Dimensions & installation

Overall width matches the selected opening. Technical drawings specify 21-11/16 in. depth for single-bin kits, 21-13/16 in. for the 15-inch double kit, and 21-5/8 in. for the 18-/21-inch double kits. Height with 35-quart bins is 18-1/16 in.; with 50-quart bins it is 22-3/8 in. Allow installation clearance above the bin rims and for rear brackets, hinges and the cabinet door.

Exact models & regular prices

• CAN-TMS1235B-K — 12-inch opening — Single 35 qt, Black: $268.37 $229.45
• CAN-TMS1235G-K — 12-inch opening — Single 35 qt, Grey: $268.37 $229.45
• CAN-TMS1235W-K — 12-inch opening — Single 35 qt, White: $268.37 $229.45
• CAN-TMS1250B-K — 12-inch opening — Single 50 qt, Black: $285.09 $243.76
• CAN-TMS1250G-K — 12-inch opening — Single 50 qt, Grey: $285.09 $243.76
• CAN-TMS1250W-K — 12-inch opening — Single 50 qt, White: $285.09 $243.76
• CAN-TMS1535B-K — 15-inch opening — Single 35 qt, Black: $283.21 $242.14
• CAN-TMD1535G-K — 15-inch opening — Double 35 qt, Grey: $312.37 $267.07
• CAN-TMS1535W-K — 15-inch opening — Single 35 qt, White: $283.21 $242.14
• CAN-TMS1550B-K — 15-inch opening — Single 50 qt, Black: $283.21 $242.14
• CAN-TMS1550G-K — 15-inch opening — Single 50 qt, Grey: $299.88 $256.41
• CAN-TMS1550W-K — 15-inch opening — Single 50 qt, White: $299.88 $256.41
• CAN-TMD1535B-K — 15-inch opening — Double 35 qt, Black: $312.37 $267.07
• CAN-TMD1535W-K — 15-inch opening — Double 35 qt, White: $312.37 $267.07
• CAN-TMD1835B-K — 18-inch opening — Double 35 qt, Black: $313.80 $268.31
• CAN-TMD1835G-K — 18-inch opening — Double 35 qt, Grey: $313.80 $268.31
• CAN-TMD1835W-K — 18-inch opening — Double 35 qt, White: $313.80 $268.31
• CAN-TMD1850B-K — 18-inch opening — Double 50 qt, Black: $347.28 $296.93
• CAN-TMD1850G-K — 18-inch opening — Double 50 qt, Grey: $347.28 $296.93
• CAN-TMD1850W-K — 18-inch opening — Double 50 qt, White: $347.28 $296.93
• CAN-TMD2135B-K — 21-inch opening — Double 35 qt, Black: $338.46 $289.39
• CAN-TMD2135G-K — 21-inch opening — Double 35 qt, Grey: $338.46 $289.39
• CAN-TMD2135W-K — 21-inch opening — Double 35 qt, White: $338.46 $289.39
• CAN-TMD2150B-K — 21-inch opening — Double 50 qt, Black: $371.90 $317.99
• CAN-TMD2150G-K — 21-inch opening — Double 50 qt, Grey: $371.90 $317.99
• CAN-TMD2150W-K — 21-inch opening — Double 50 qt, White: $371.90 $317.99

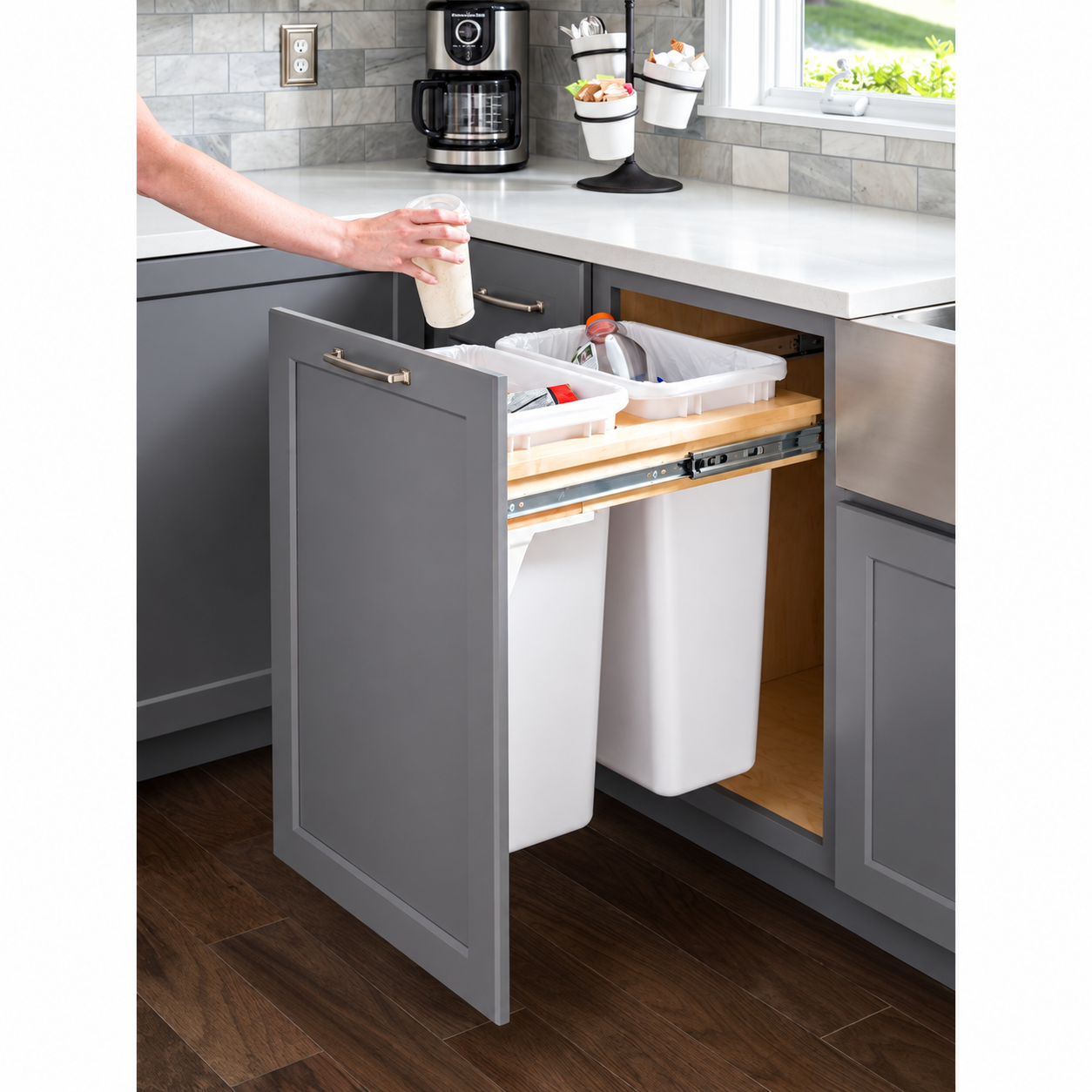

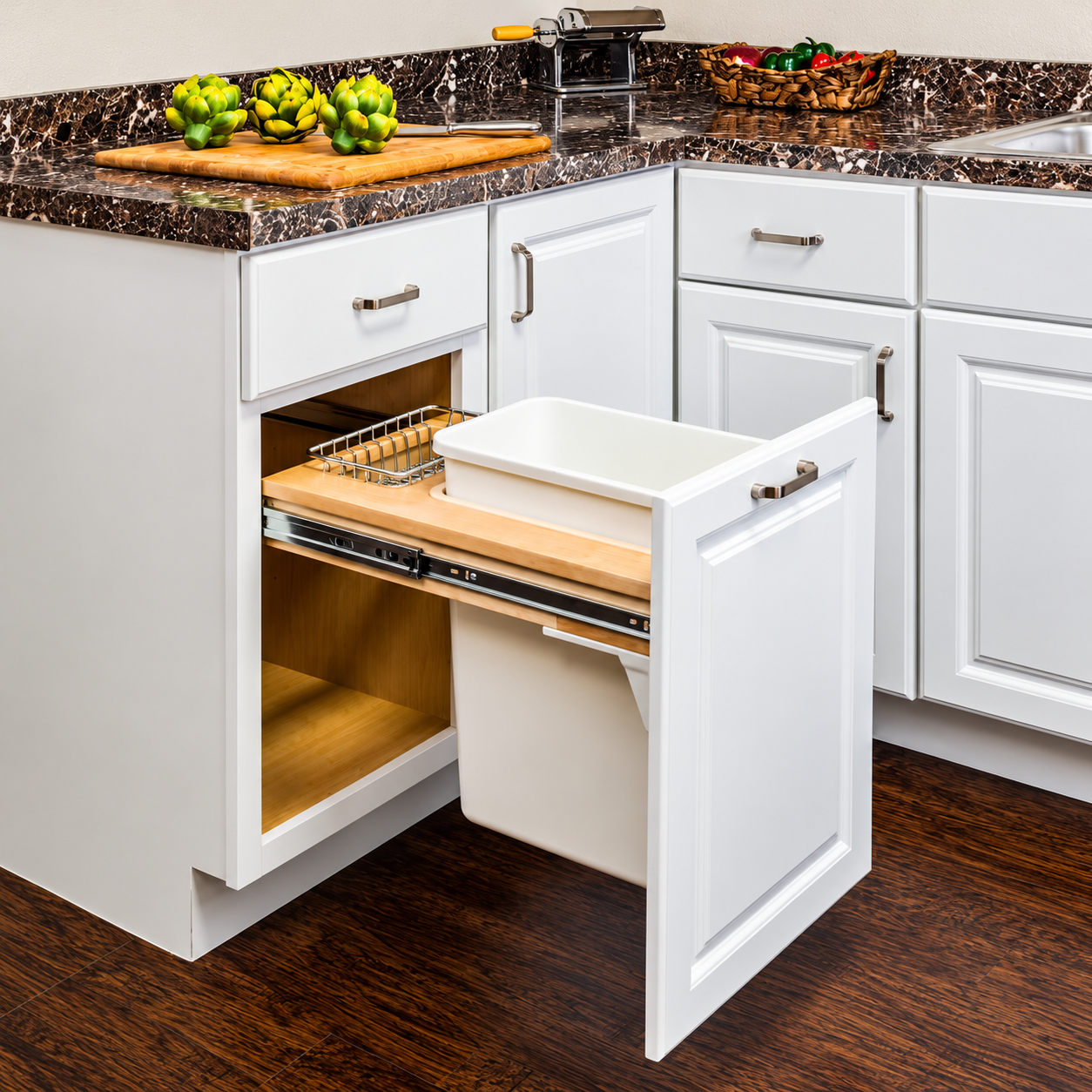

Struck-through amounts are manufacturer list prices. Bold amounts are our regular prices. Gallery photos show representative single- and double-bin installations in White; your selection determines bin color, quantity and capacity. Cabinetry and door front are not included.
