Soft-Close Wood Trash Rollout for Hinged Doors

A beautiful kitchen deserves thoughtful storage behind every door. This birch wood rollout keeps trash and recycling tucked away, then brings the bins within easy reach. Open your hinged cabinet door and pull the organizer forward; soft-close slides ease it gently back into place.

Made for hinged cabinet doors

• UV-coated, edge-banded birch plywood construction with removable plastic bin(s) in black, grey or white.
• Full-extension concealed undermount slides with soft-close action.
• 100 lb load capacity for the complete organizer. The slide hardware is separately rated at 120 lb; use the 100 lb organizer limit.
• Preassembled and mounted to the cabinet floor with four screws. Assembled in the USA.
• This model operates behind a hinged door and does not attach to the decorative cabinet door.

Sizes, fit and pricing

Reduced-depth 15-inch base — Single 35 qt
Models: CAN-WBMS35VB (Black), CAN-WBMS35VG (Grey), CAN-WBMS35VWH (White).
Wood frame width: 9-1/8 in.; maximum assembly width including slides: 9-7/8 in. Depth: 18-7/16 in. Height with bin(s): 19-13/16 in.
Recommended clear opening: 12 in. For reduced-depth cabinets; measure around plumbing and hinges.
Manufacturer list: $344.02   MDI price: $294.12 in any offered bin color.

15-inch base — Single 35 qt
Models: CAN-WBMS35B (Black), CAN-WBMS35G (Grey), CAN-WBMS35WH (White).
Wood frame width: 11 in.; maximum assembly width including slides: 11-5/8 in. Depth: 21-3/8 in. Height with bin(s): 19-13/16 in.
Recommended clear opening: 12 in.
Manufacturer list: $365.20   MDI price: $312.25 in any offered bin color.

15-inch base — Single 50 qt
Models: CAN-WBMS50B (Black), CAN-WBMS50G (Grey), CAN-WBMS50WH (White).
Wood frame width: 11 in.; maximum assembly width including slides: 11-5/8 in. Depth: 21-3/8 in. Height with bin(s): 24-3/16 in.
Recommended clear opening: 12 in.
Manufacturer list: $383.48   MDI price: $327.89 in any offered bin color.

18-inch base — Double 35 qt
Models: CAN-WBMD35B (Black), CAN-WBMD35G (Grey), CAN-WBMD35WH (White).
Wood frame width: 14 in.; maximum assembly width including slides: 14-5/8 in. Depth: 21-3/8 in. Height with bin(s): 19-13/16 in.
Recommended clear opening: 15 in.
Manufacturer list: $389.58   MDI price: $333.09 in any offered bin color.

18-inch base — Double 50 qt
Models: CAN-WBMD50B (Black), CAN-WBMD50G (Grey), CAN-WBMD50WH (White).
Wood frame width: 14 in.; maximum assembly width including slides: 14-5/8 in. Depth: 21-3/8 in. Height with bin(s): 24-3/16 in.
Recommended clear opening: 15 in.
Manufacturer list: $423.22   MDI price: $361.85 in any offered bin color.

21-inch base — Double 35 qt
Models: CAN-WBMD3518B (Black), CAN-WBMD3518G (Grey), CAN-WBMD3518WH (White).
Wood frame width: 17 in.; maximum assembly width including slides: 17-5/8 in. Depth: 21-3/8 in. Height with bin(s): 19-13/16 in.
Recommended clear opening: 18 in.
Manufacturer list: $464.34   MDI price: $397.03 in any offered bin color.

21-inch base — Double 50 qt
Models: CAN-WBMD5018B (Black), CAN-WBMD5018G (Grey), CAN-WBMD5018WH (White).
Wood frame width: 17 in.; maximum assembly width including slides: 17-5/8 in. Depth: 21-3/8 in. Height with bin(s): 24-3/16 in.
Recommended clear opening: 18 in.
Manufacturer list: $493.10   MDI price: $421.60 in any offered bin color.

Plan your fit

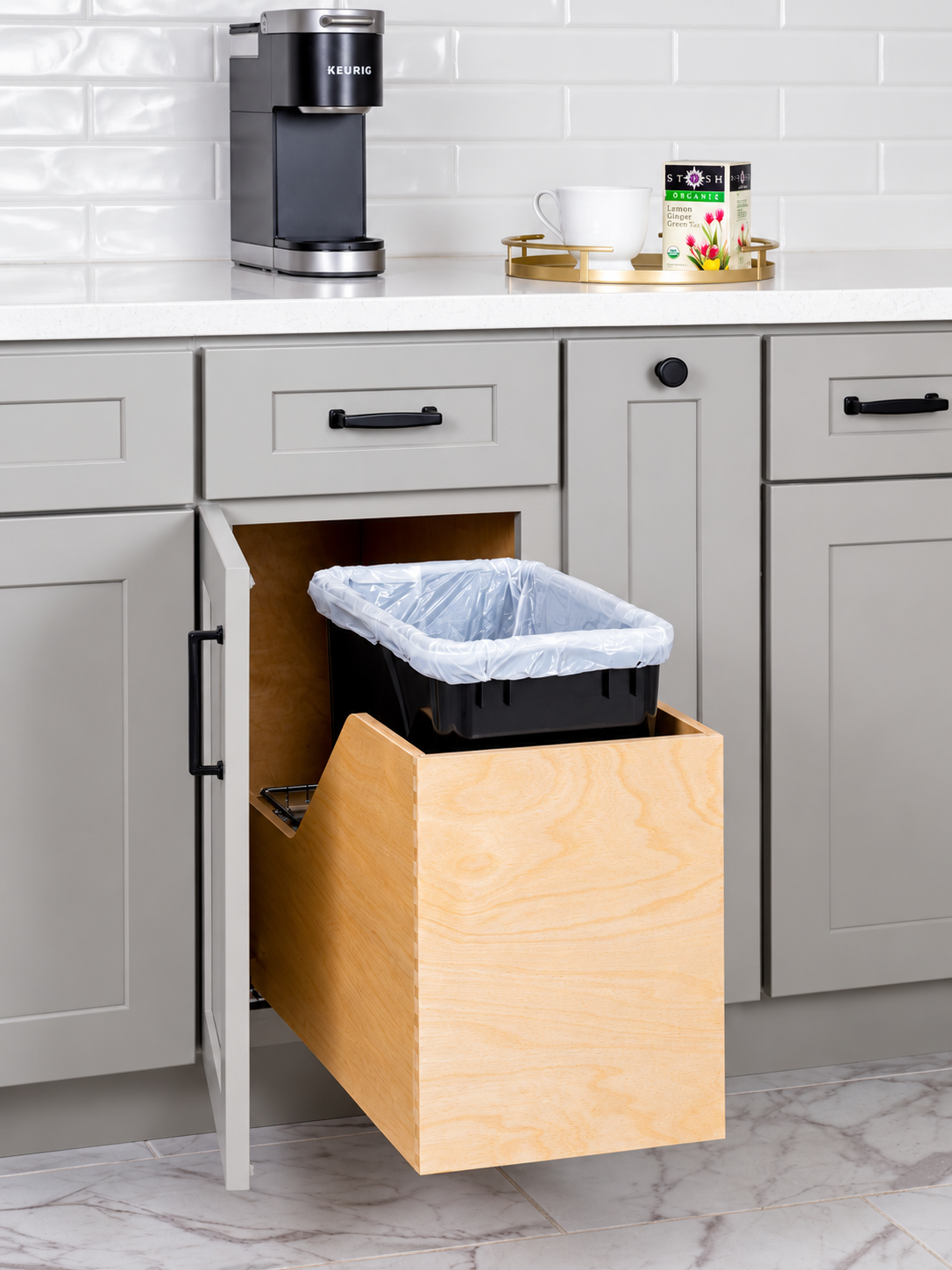

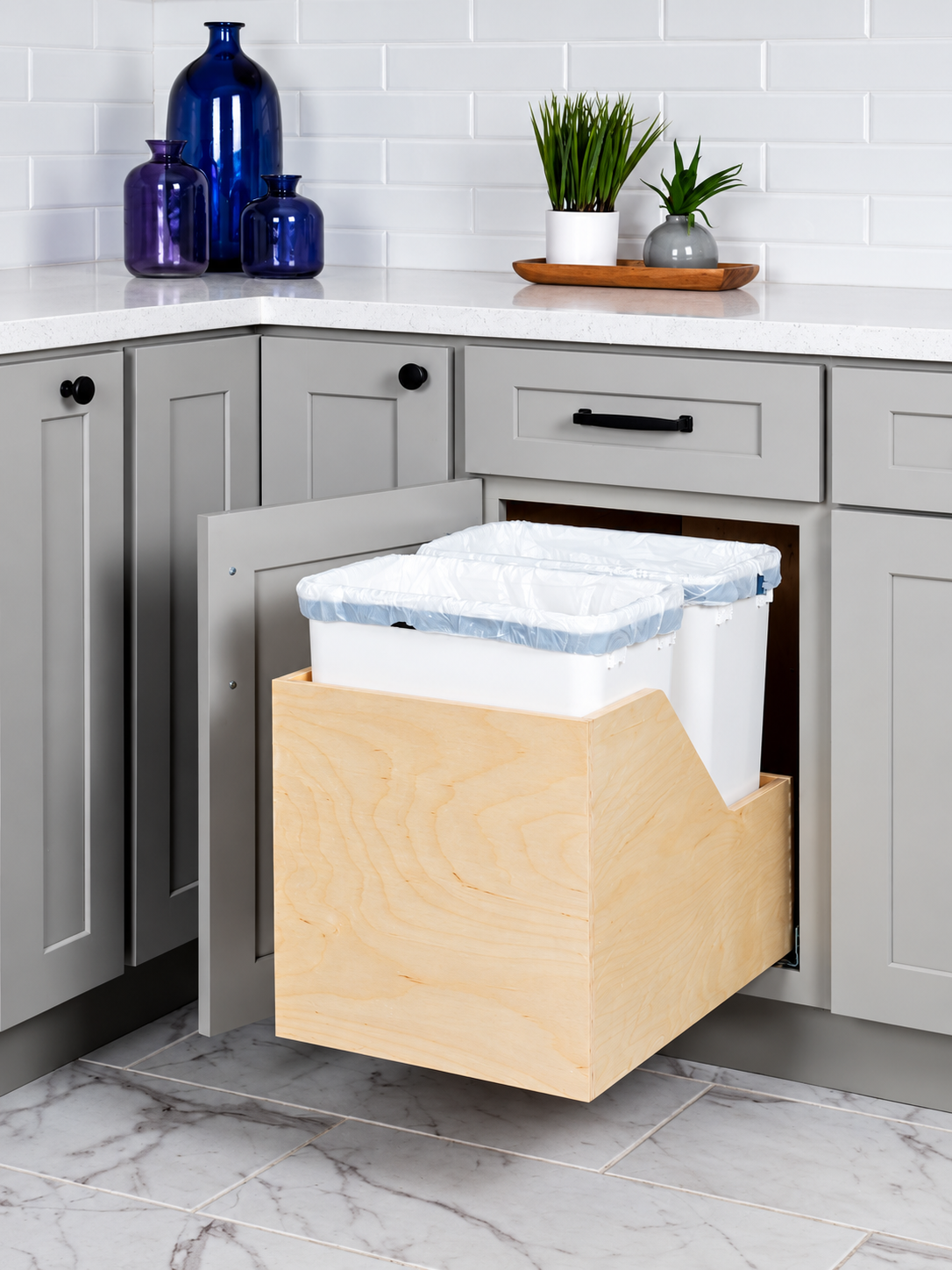

Cabinet labels describe typical cabinet sizes, not the clear interior space. Measure the opening, interior depth and height, and allow clearance for hinges and framing. The reduced-depth option has a smaller published minimum opening in the specification table; the recommended 12-inch opening provides more practical clearance for its hinged-door installation. Single options include one bin; double options include two bins of the stated capacity. Decorative cabinet, door and styling accessories are not included. Gallery images are representative single and double 35-quart installations; color, width and bin height follow your selection.
