22855 Series 105° Soft-Close Face-Frame Cabinet Hinge

from $4.23

Bring a cushioned close and precise door alignment to face-frame cabinetry with a compact hinge that incorporates a concealed soft-close damper.

Fit and features

105° opening and 1/2-inch overlay on all three models.
Steel construction with a robust die-cast face-frame plate and two cabinet attachment points.
Dual-pivot movement helps bring the door closer to the cabinet to reduce the door gap.
One-piece assembly with six-way vertical, horizontal and depth cam adjustment.
35 mm cup, 12.5 mm bore depth and 45 mm mounting centers.

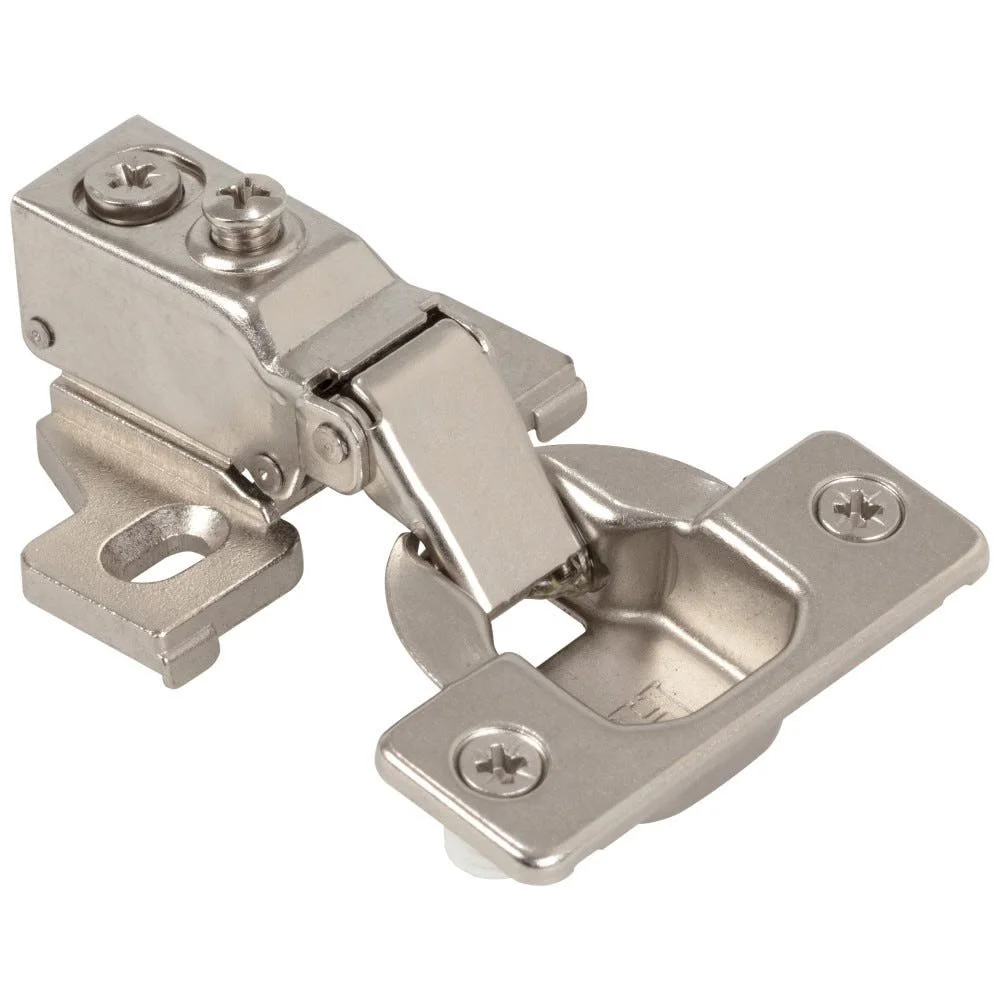

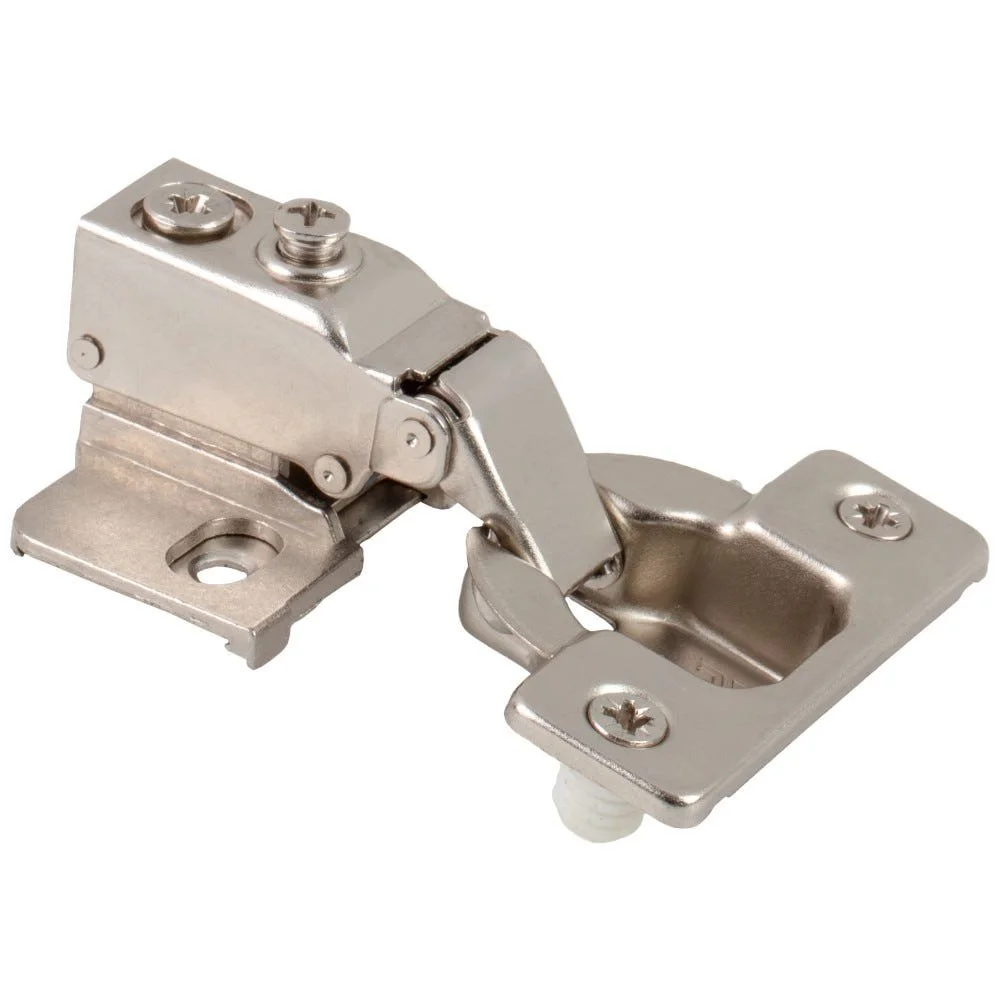

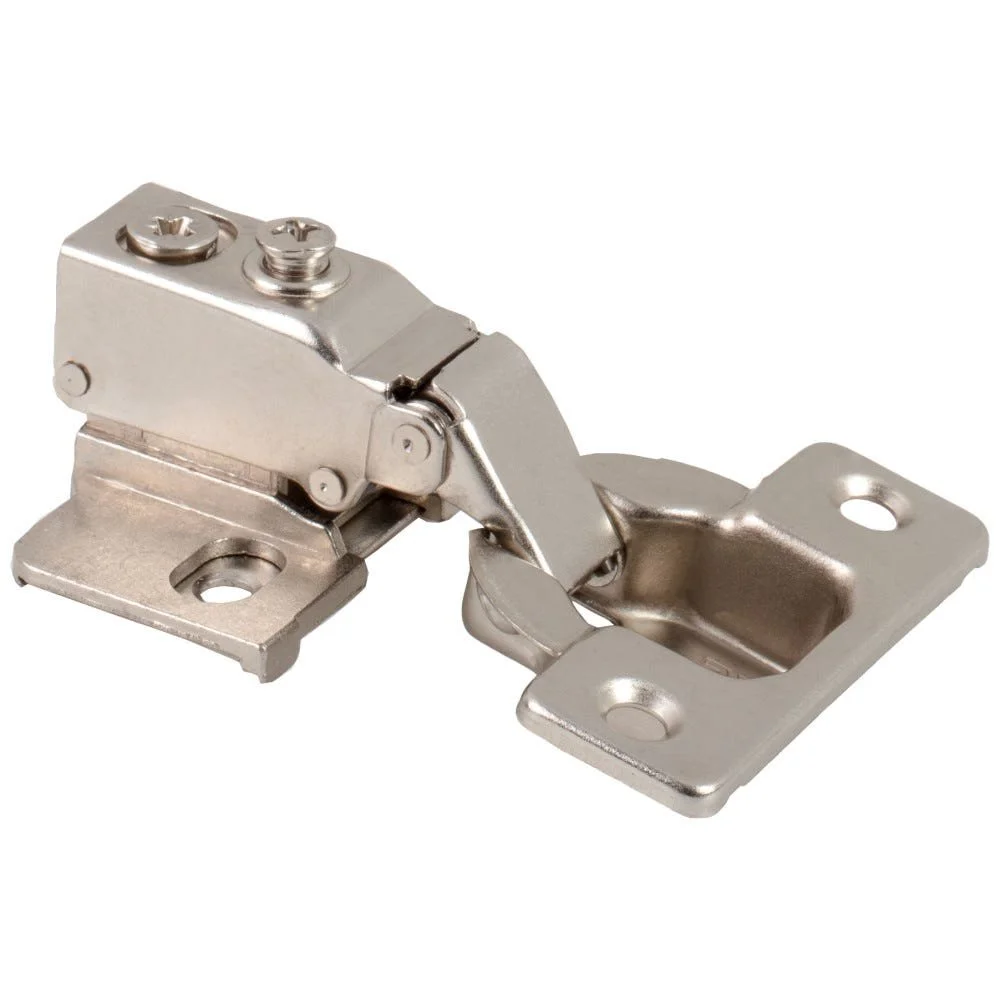

22855-7SFT and 22855-10SFT have no dowels; 22855-9SFT uses screw-expanding dowels.
Factory recommends #6 × 5/8-inch pan washer-head screws for cabinet attachment. Follow the relevant factory document for each model.
Sold individually. Screws, tools, doors and cabinetry are sold separately.
