22855 Series 125° Self-Closing Face-Frame Cabinet Hinge

Get dependable self-closing action and a generous opening angle for 1/2-inch overlay face-frame doors. Choose the exact mounting configuration by model, with doweled and screw-on versions available.

Fit and features

• 125° opening; 1/2-inch overlay on all four models.
• Compact steel hinge with a face-frame mounting plate and dual-pivot movement to reduce the door gap.
• 35 mm cup, 12.5 mm bore depth and 45 mm mounting centers.
• Door-alignment adjustment is built into the assembly. Vertical screw/cam arrangement varies by model; consult the factory drawing.
• 22855-10 and 22855-8-000N-2 have no dowels. 22855-7-000N-2 and 22855-9 are doweled models.
• Self-closing action draws the door shut; these versions do not have a soft-close damper.
• Cabinet attachment screw specification varies by model. Screws and tools are sold separately.
• Sold individually. Cabinetry and doors are sold separately.

Models and options

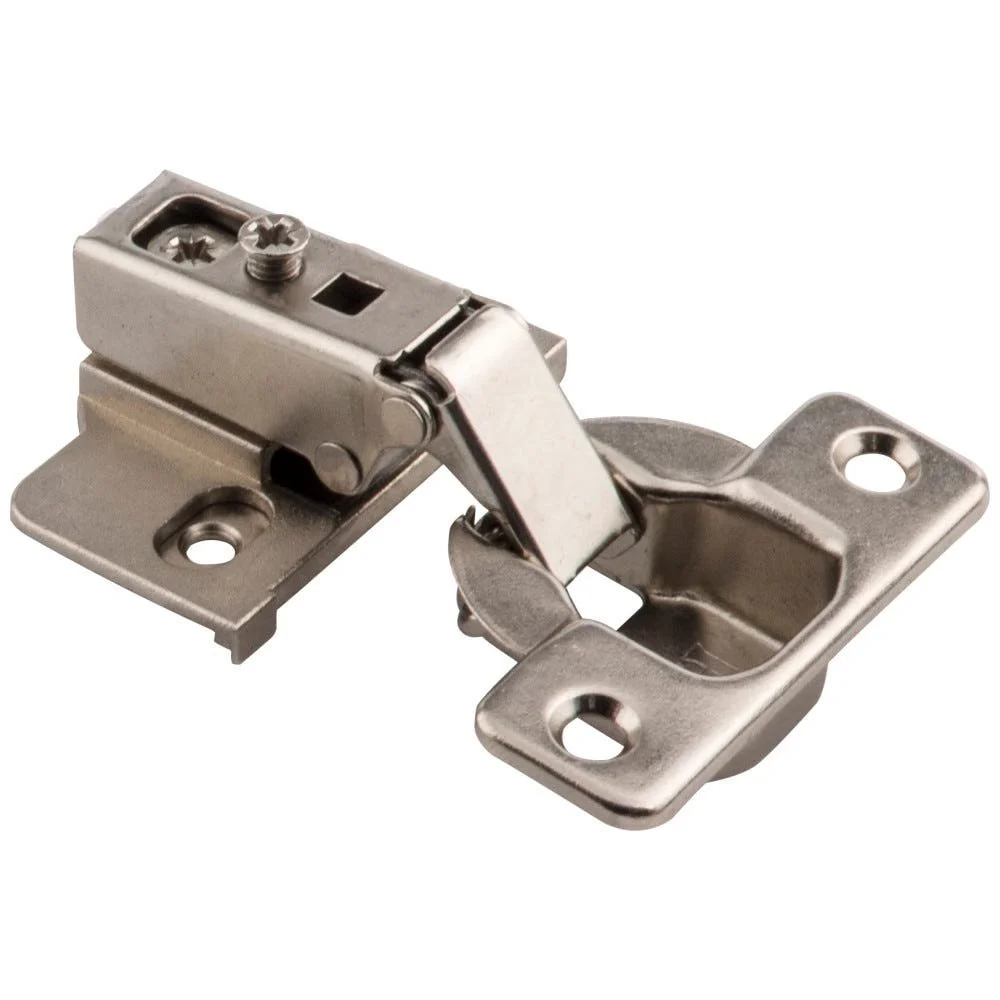

• 22855-10 — 22855-10 — 1/2" Overlay — No Dowels; $2.32 each.

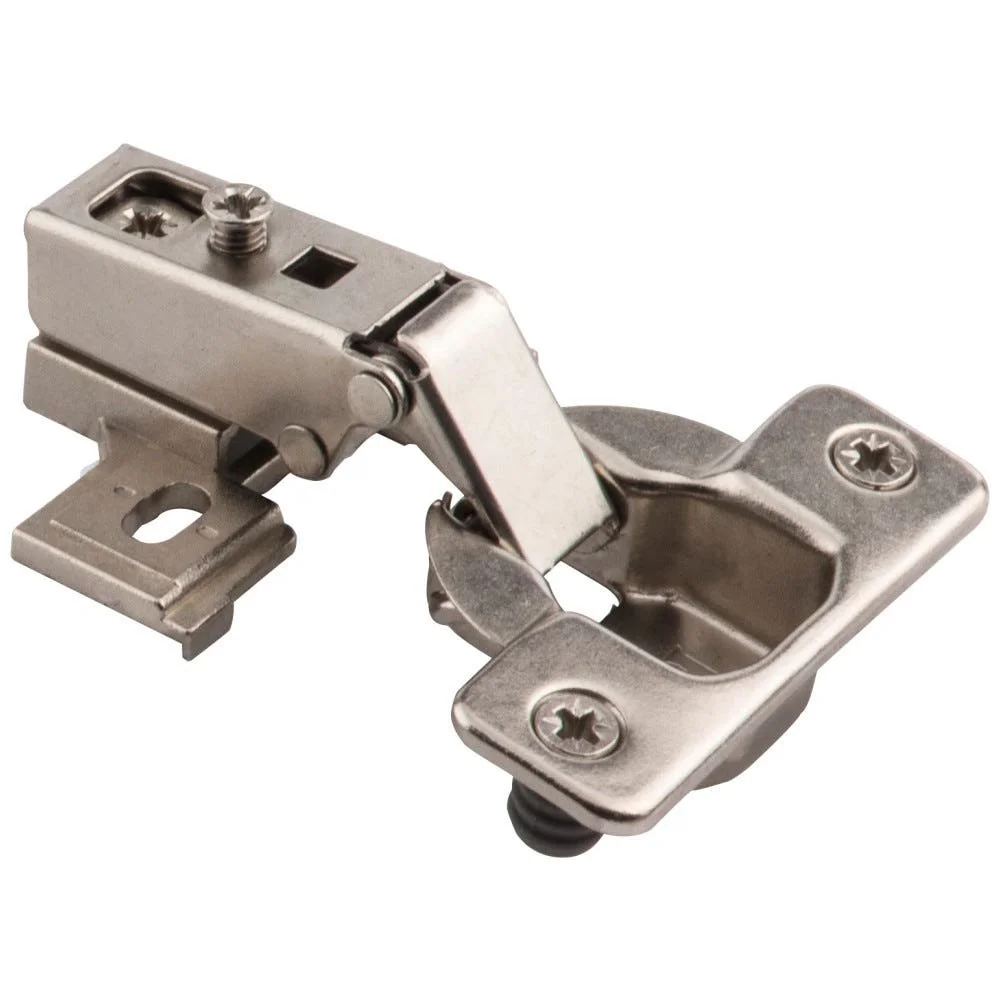

• 22855-7-000N-2 — 22855-7-000N-2 — 1/2" Overlay — Dowels; $2.25 each.

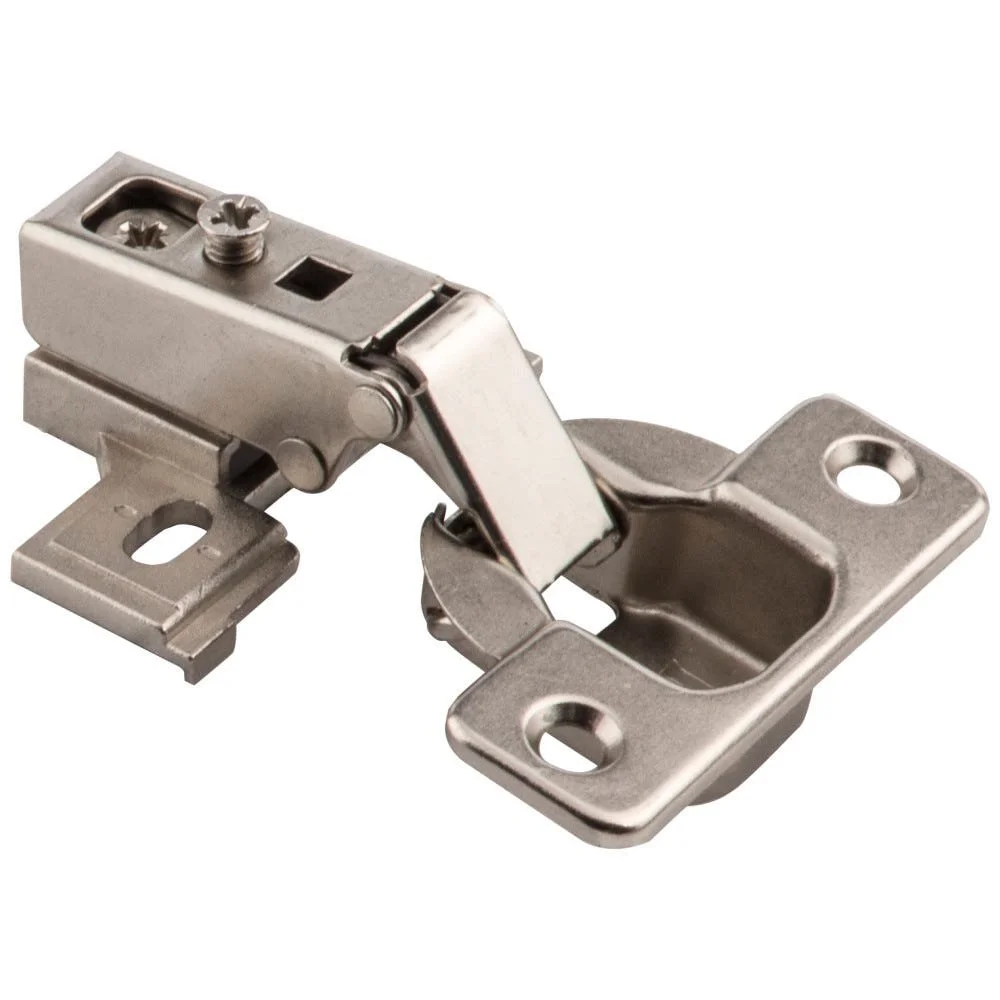

• 22855-8-000N-2 — 22855-8-000N-2 — 1/2" Overlay — No Dowels; $2.16 each.

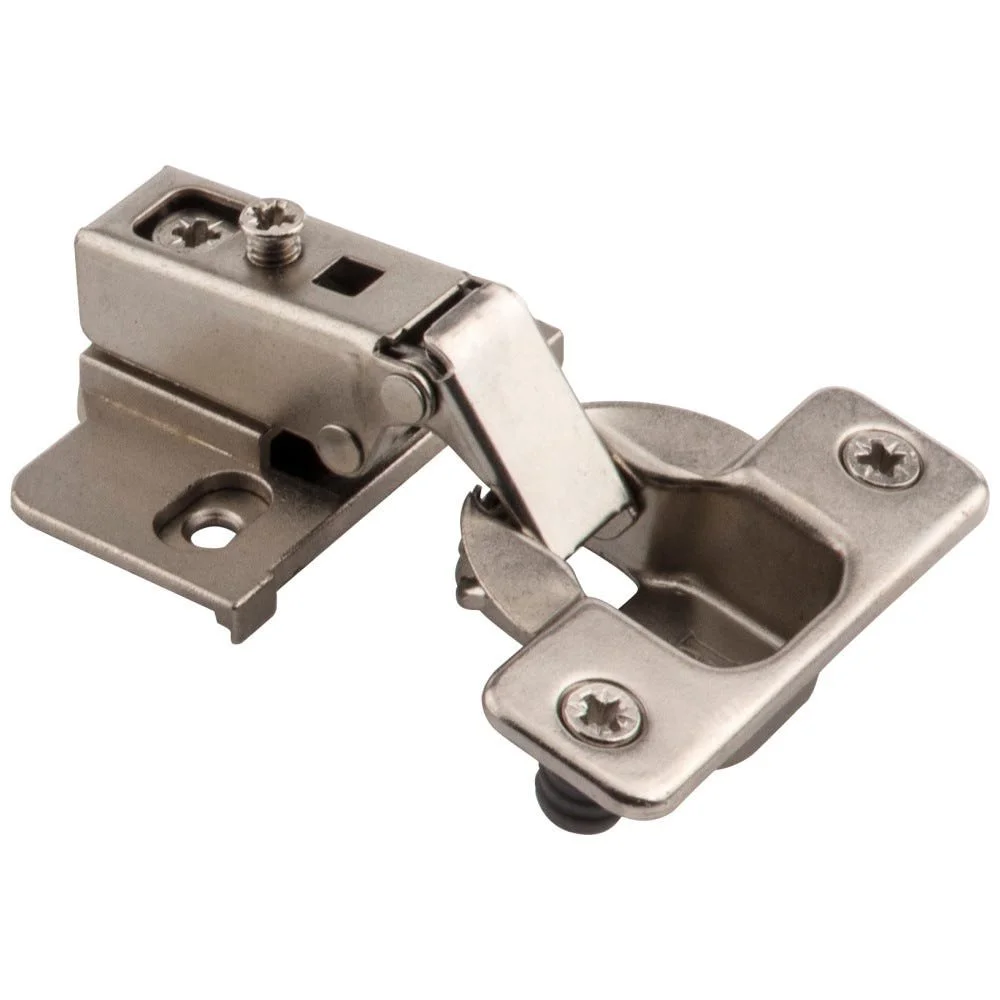

• 22855-9 — 22855-9 — 1/2" Overlay — Dowels; $2.50 each.

Product documents

Available 22855 factory drawings: see model labels on each sheet (PDF) · Factory compact-hinge installation guide (PDF) · Warranty (PDF)
