A practical standard-duty hinge for everyday face-frame cabinet doors, with self-closing action and a compact one-piece design. Select the overlay and mounting style that match your door.
105° opening, single pivot and polished nickel finish on steel.
Face-frame application; overlays from 1/2 to 1-1/2 inches, depending on the selected model.
35 mm cup, 12.5 mm bore depth and 45 mm mounting centers.
Door-alignment adjustment built into the hinge; standard models provide six-way adjustment with vertical screw and horizontal/depth cam adjustment.
3390 is screw-on without dowels. 3390-3-000 has Easy Fix dowels. Remaining options use 8 mm press-in dowels.
Two-cleat models are explicitly identified in the selector.
Self-closing action is spring-assisted; these models do not provide soft-close damping.
Sold individually. Installation screws, tools, doors and cabinetry are sold separately.
3390 — 1/2" Overlay — No Dowels; $1.67 each.

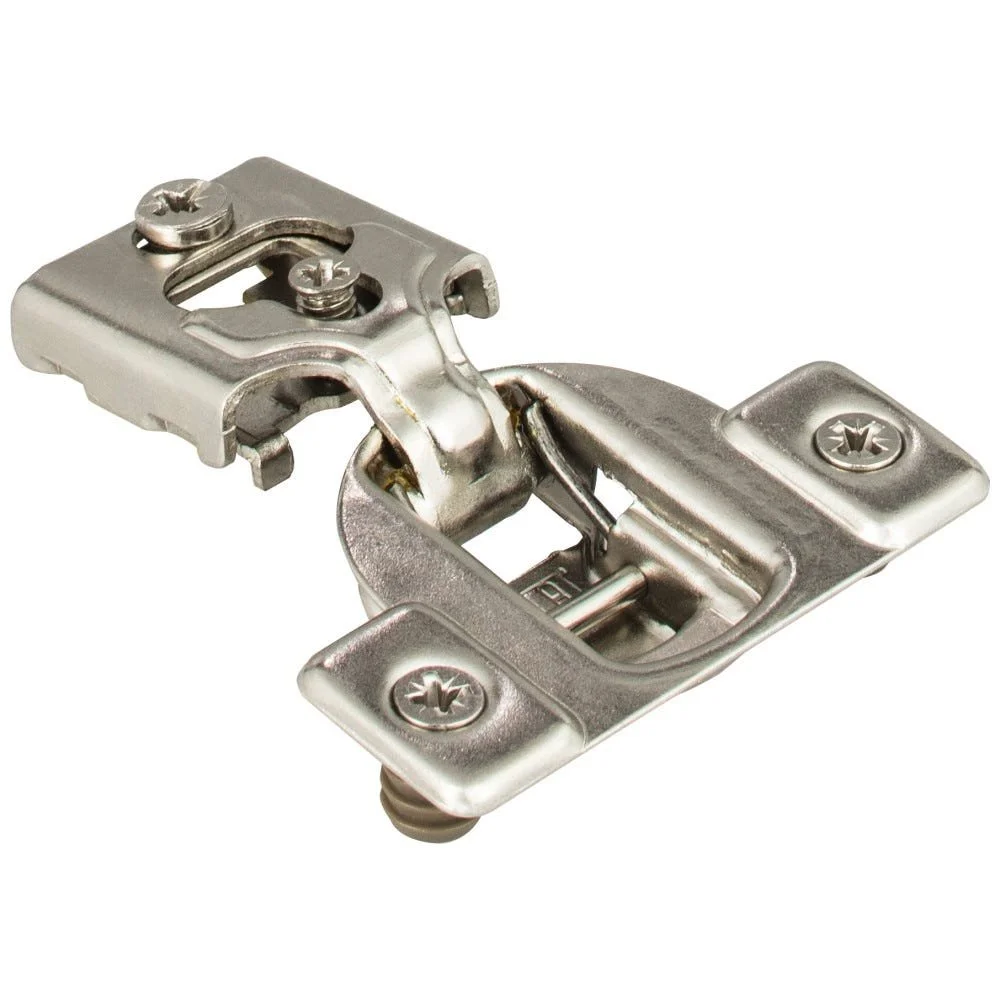

3390-2-2C — 1/2" Overlay — 8 mm Press-in Dowels — 2 Cleats; $1.80 each.

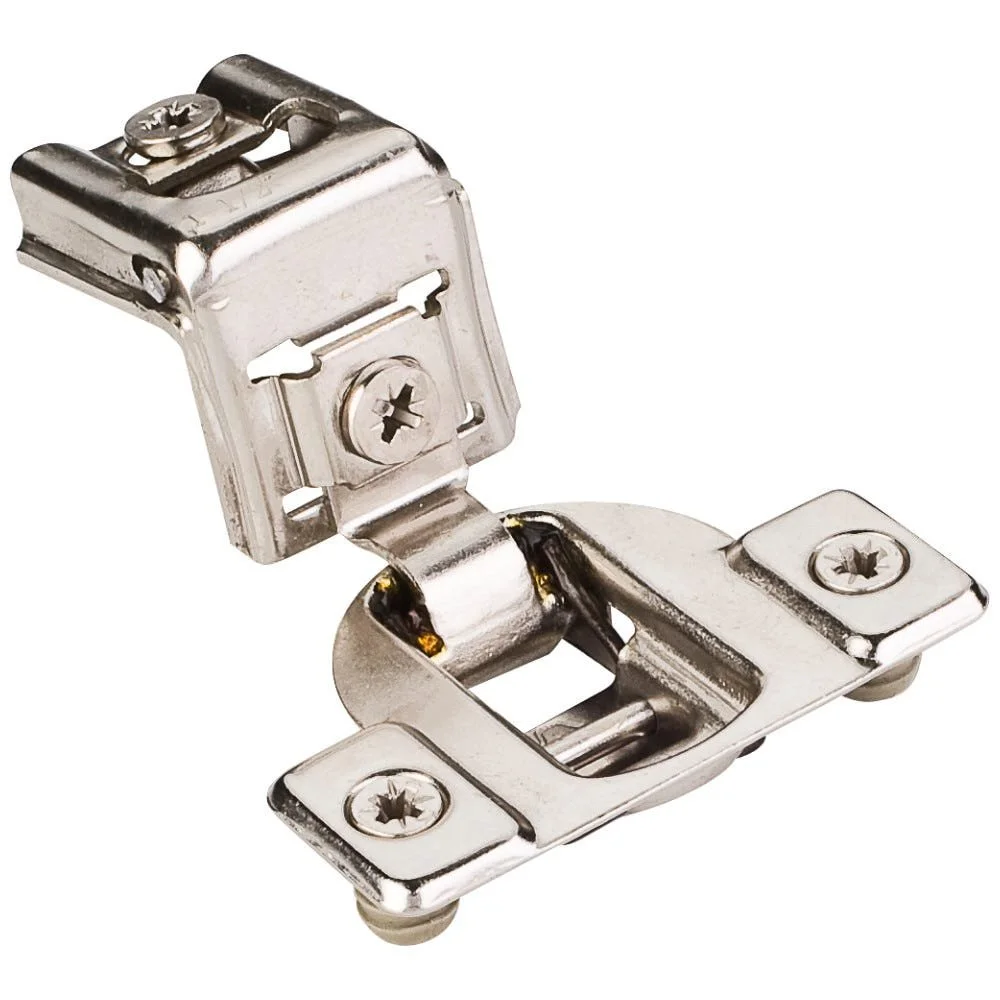

3392-000 — 1-1/2" Overlay — 8 mm Press-in Dowels; $3.24 each.

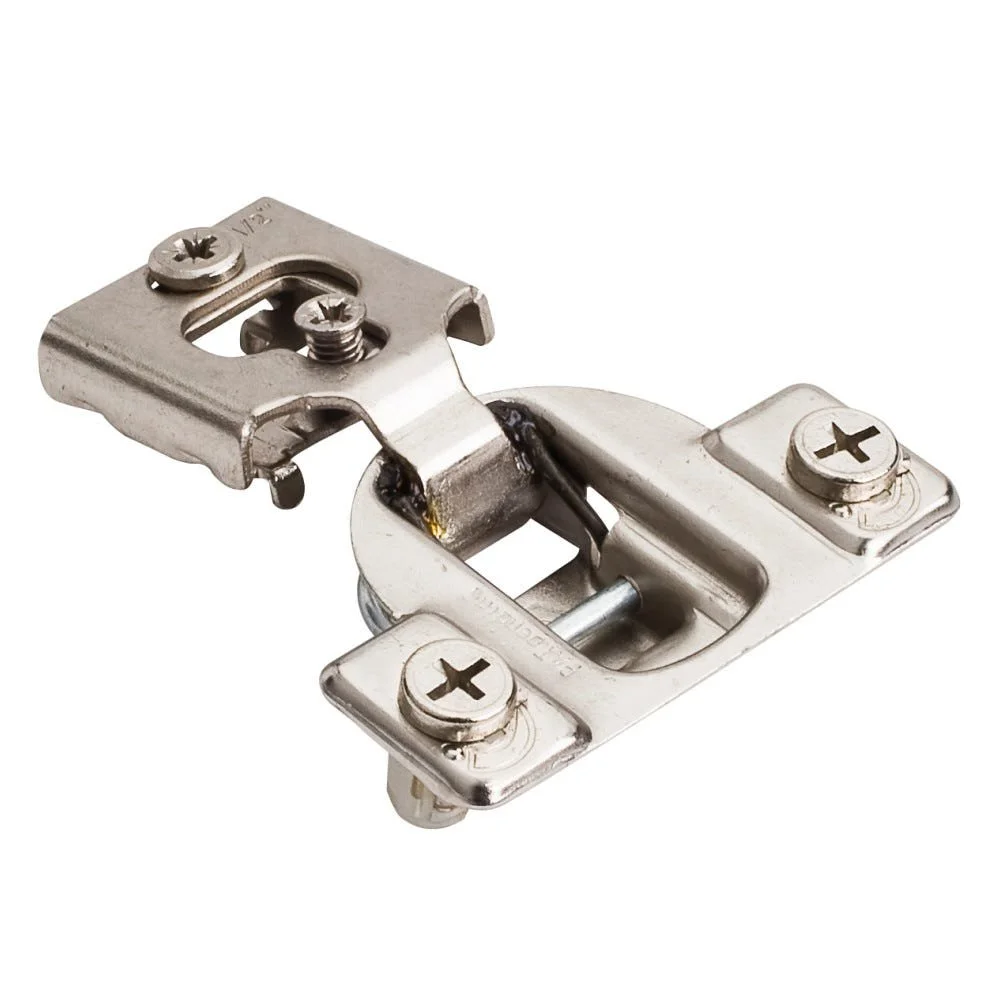

3390-3-000 — 1/2" Overlay — Easy Fix Dowels; $2.12 each.

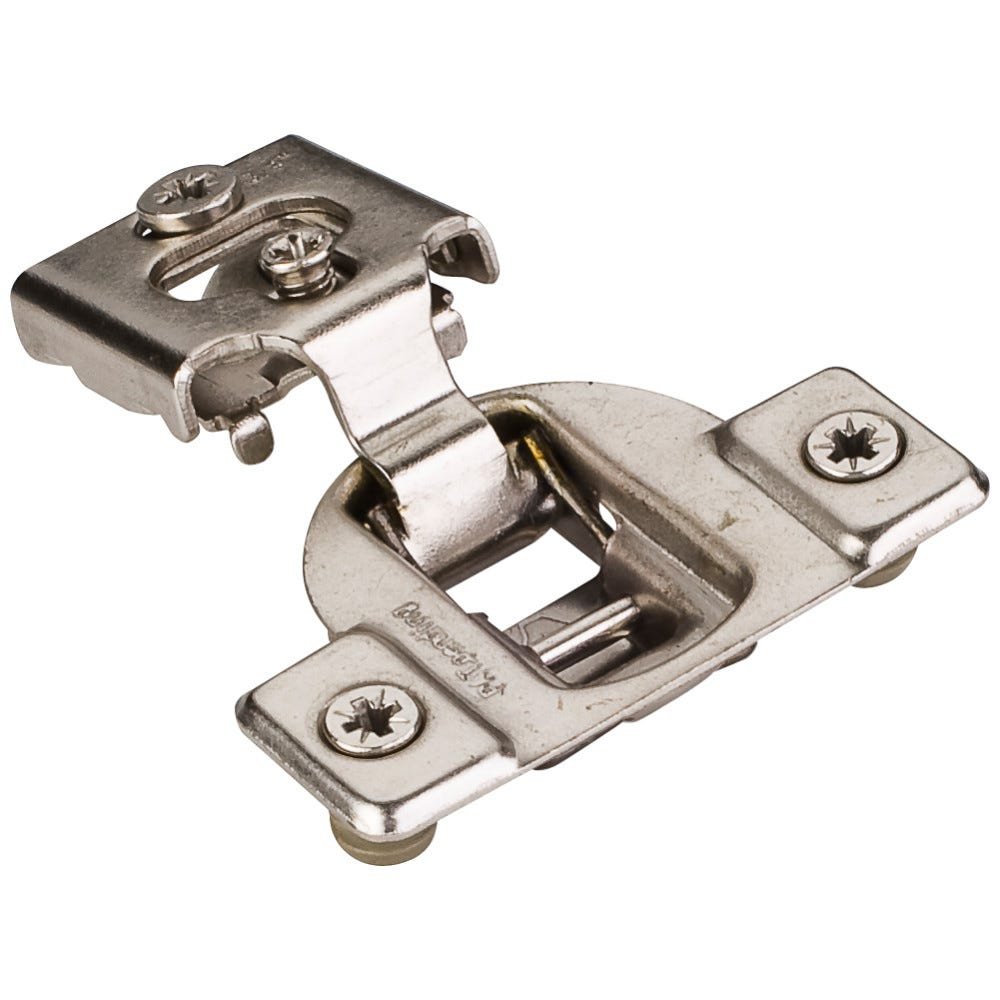

3390-6-000 — 3/4" Overlay — 8 mm Press-in Dowels; $1.82 each.

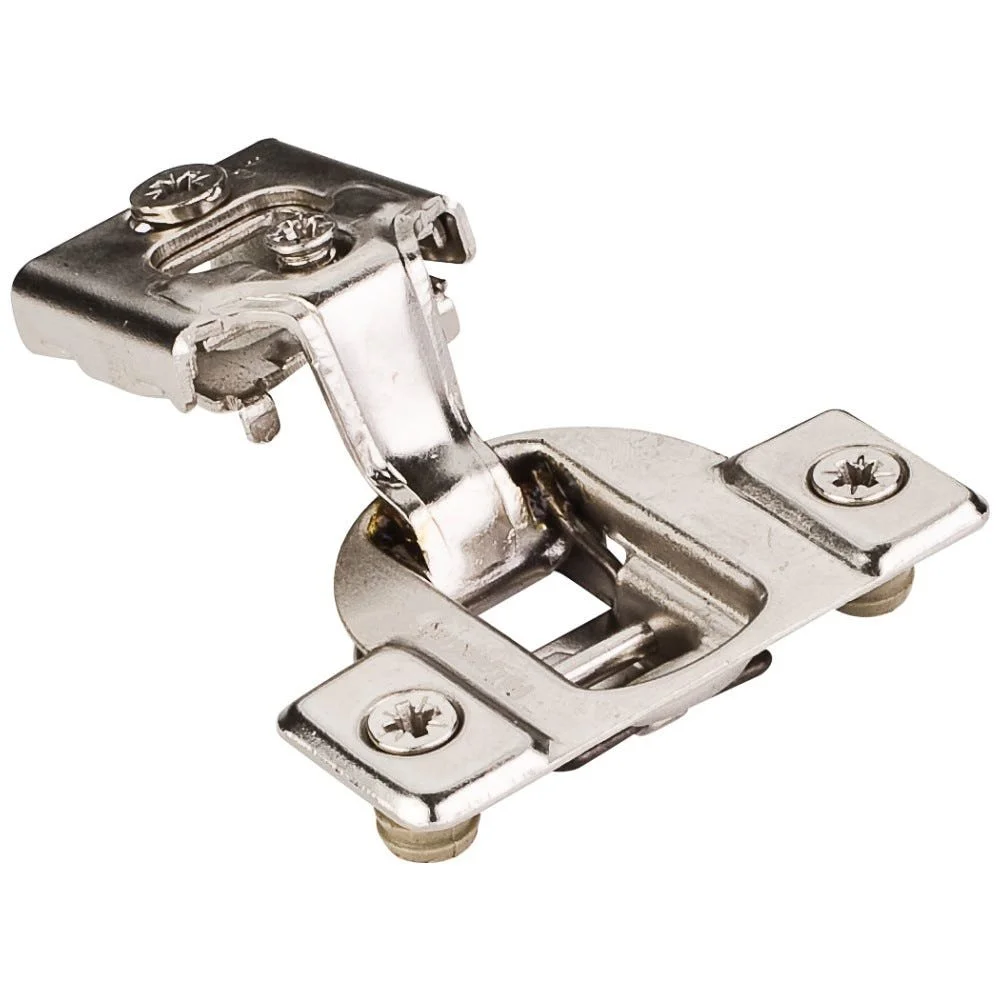

3391-000 — 1" Overlay — 8 mm Press-in Dowels; $2.16 each.

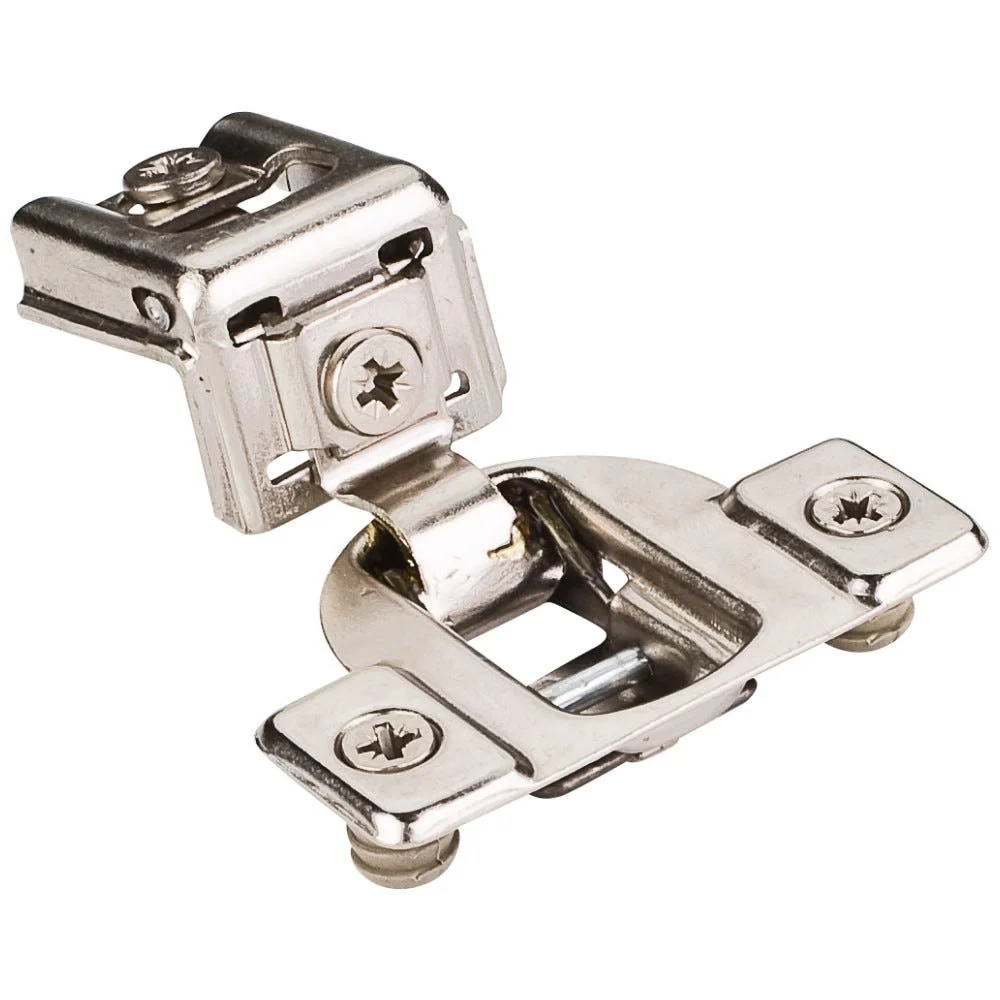

3394-000 — 1-1/4" Overlay — 8 mm Press-in Dowels; $3.24 each.

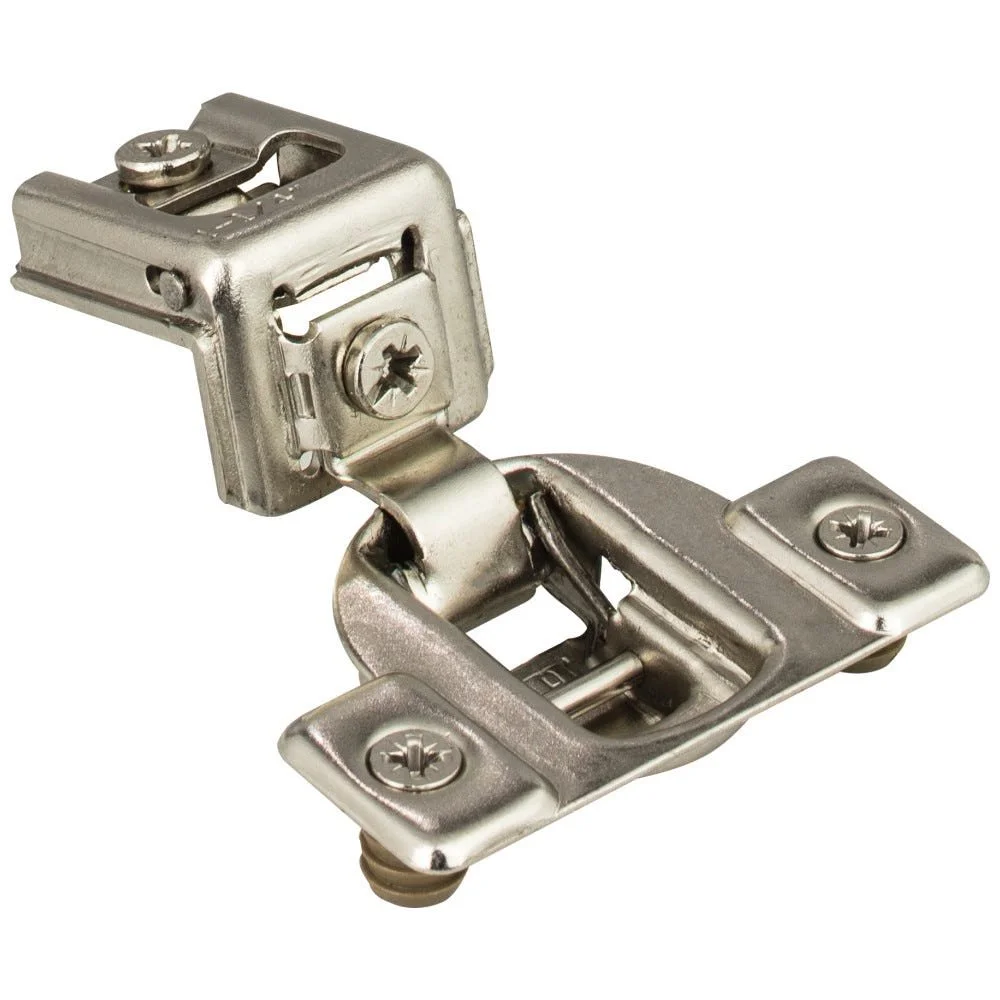

3394-2C — 1-1/4" Overlay — 8 mm Press-in Dowels — 2 Cleats; $3.24 each.

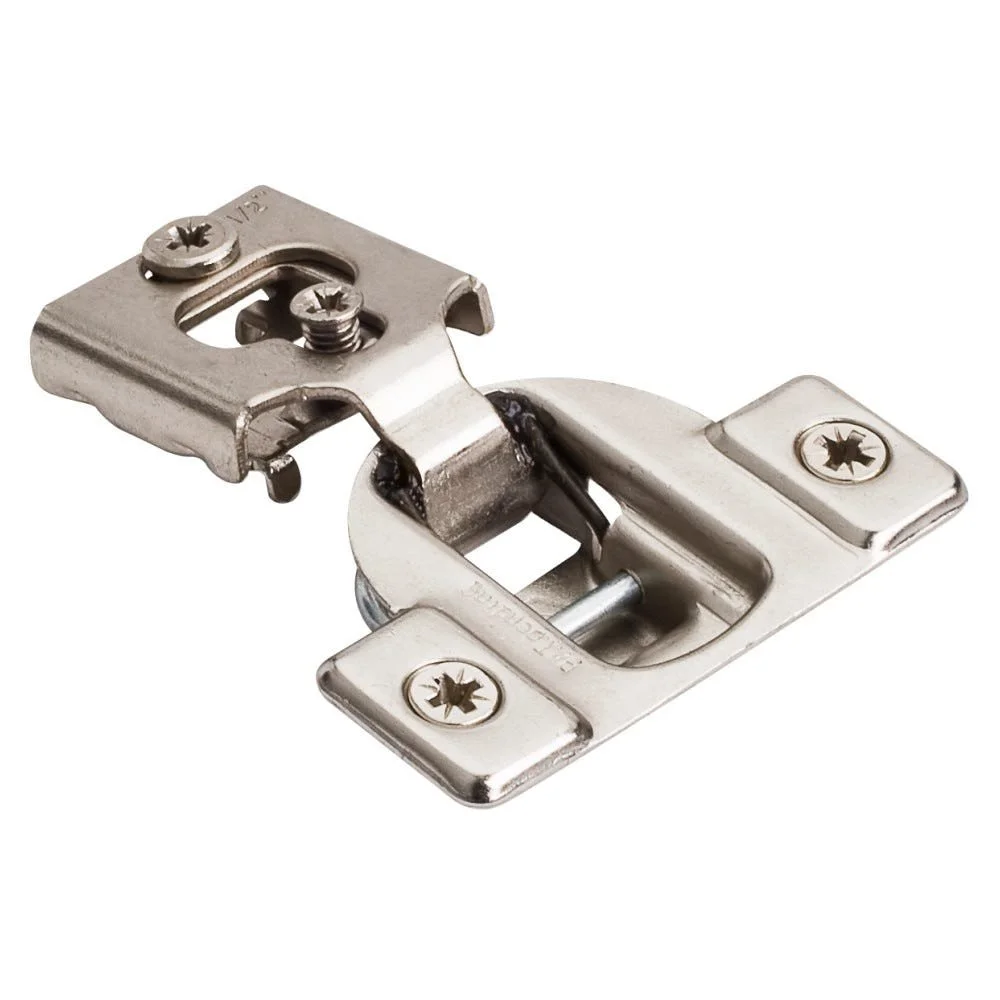

3390-2-000 — 1/2" Overlay — 8 mm Press-in Dowels; $1.80 each.
Available 3390-series factory drawings: see model labels on each sheet (PDF)
Factory compact-hinge installation guide (PDF) · Warranty (PDF)
