4390 Series 105° Standard-Duty Self-Closing Compact Hinge

from $2.32

Match a 3/4-inch or 1-3/8-inch overlay cabinet door with a standard-duty self-closing compact hinge. This legacy series has a shallower cup bore than many newer compact hinges, so match the preparation carefully.

Fit and features

105° opening and single-pivot self-closing action.
Cold-rolled steel with nickel plating; supplier finish designation Polished Nickel.
35 mm cup, 10.3 mm cup bore depth and 45 mm mounting centers.
Doweled mounting; six-way adjustment with vertical screw and horizontal/depth cam adjustment.
Factory recommends #7 × 5/8-inch pan washer-head cabinet attachment screws.
Sold individually. Screws, tools, doors and cabinetry are sold separately. These models do not include soft-close damping.

Models and options

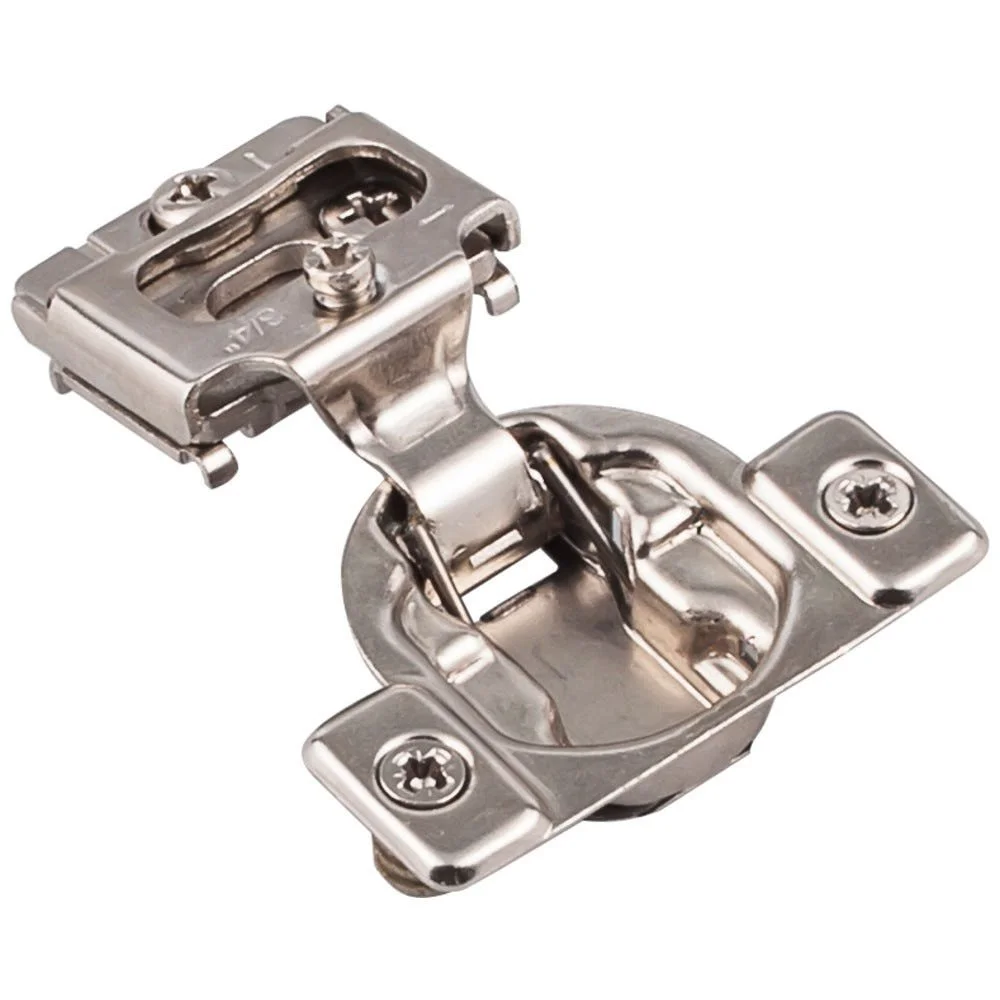

4390-6-000 — 3/4" Overlay — Dowels; $2.32 each.

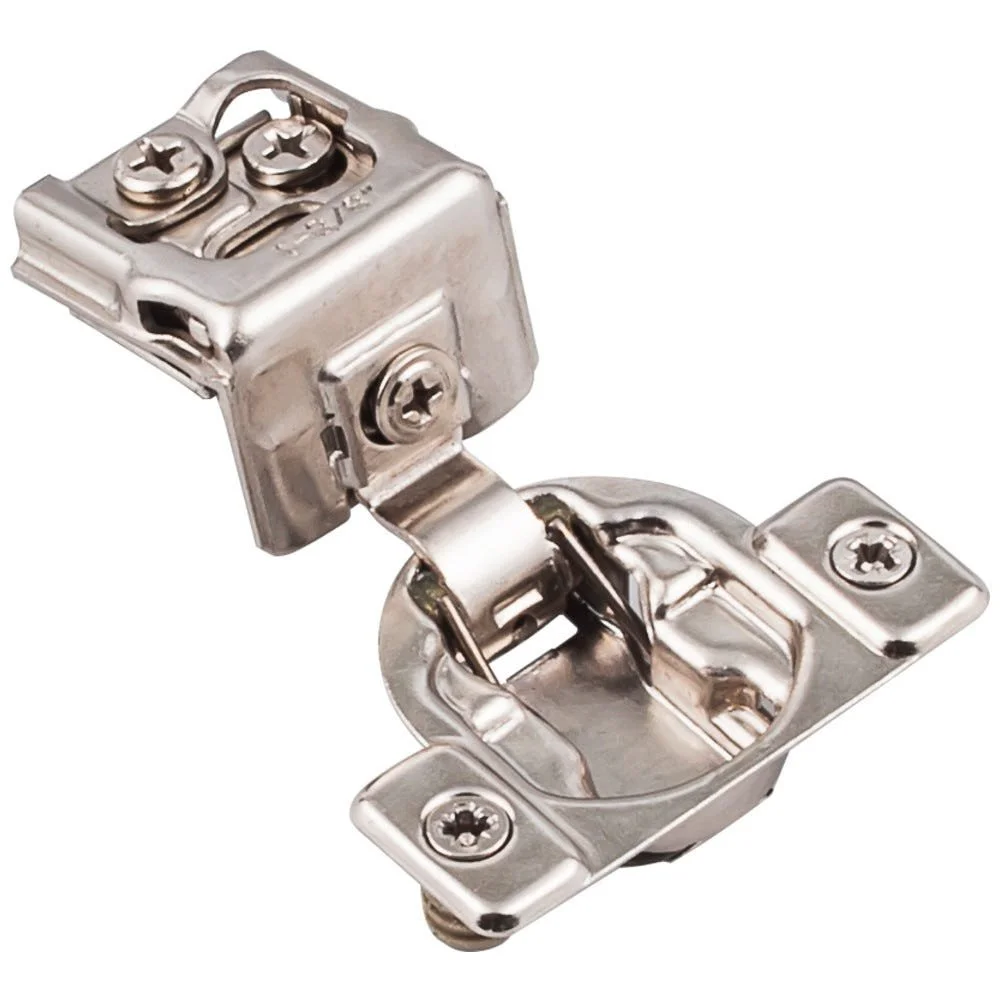

4393-000 — 1-3/8" Overlay — Dowels; $3.60 each.

Product documents

Factory compact-hinge installation guide (PDF) · Warranty (PDF)
