6390 Series 105° 5/8-Inch Overlay Self-Closing Compact Hinge

$2.72

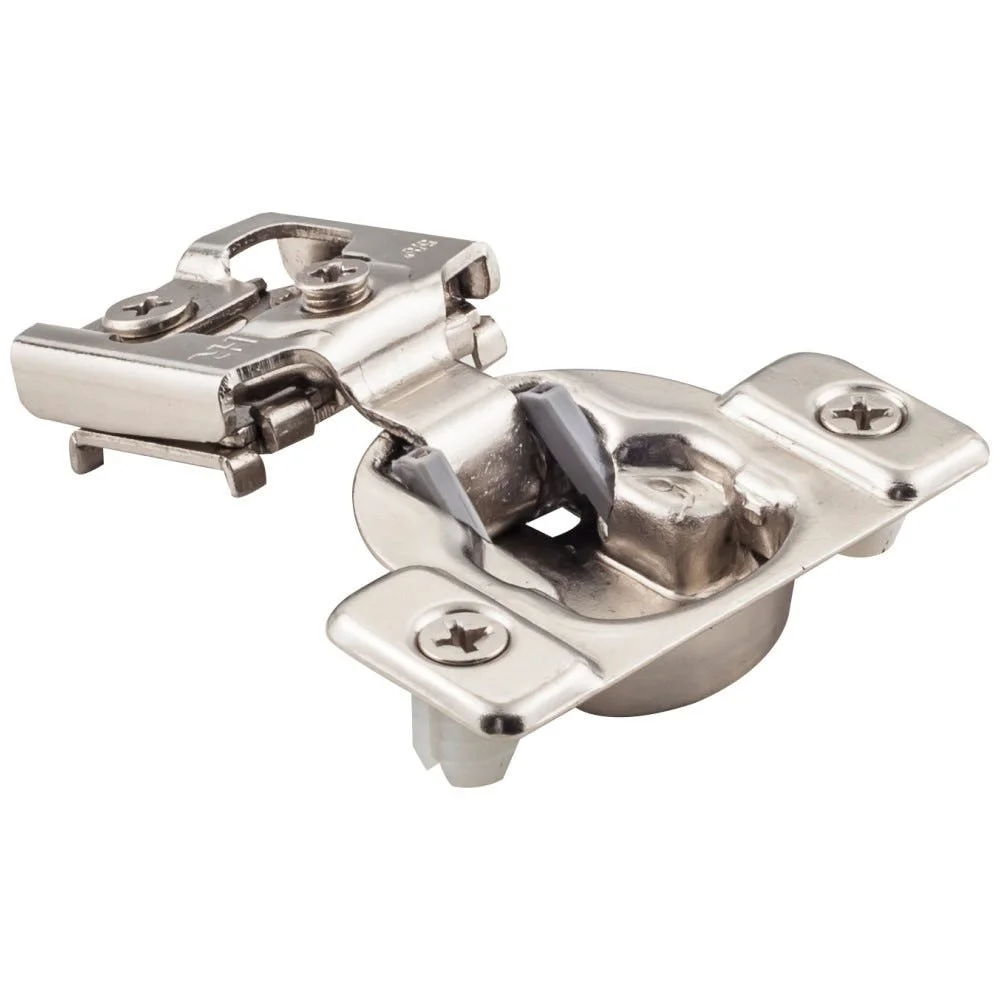

A durable self-closing hinge for face-frame cabinet doors with a 5/8-inch overlay. The compact one-piece assembly combines a single pivot with spring sleeves designed to reduce friction and wear.

Fit and features

Exact model 6390-058; 105° opening and 5/8-inch door overlay.
Cold-rolled steel with nickel plating; supplier finish designation Polished Nickel.
35 mm cup, 11.2 mm bore depth, 45 mm boring pattern and press-in 8 mm dowels.
Six-way adjustment: vertical screw adjustment plus horizontal and depth cam adjustment.
Self-closing action draws the door shut; this model does not provide soft-close damping.
Sold individually at $2.72. Installation screws, tools, cabinet doors and cabinetry are sold separately.
Follow the factory instructions for boring, mounting and adjustment.

Product documents

Specifications and measurements (PDF) · Factory installation instructions (PDF)

Warranty (PDF)

A durable self-closing hinge for face-frame cabinet doors with a 5/8-inch overlay. The compact one-piece assembly combines a single pivot with spring sleeves designed to reduce friction and wear.

Fit and features

Exact model 6390-058; 105° opening and 5/8-inch door overlay.
Cold-rolled steel with nickel plating; supplier finish designation Polished Nickel.
35 mm cup, 11.2 mm bore depth, 45 mm boring pattern and press-in 8 mm dowels.
Six-way adjustment: vertical screw adjustment plus horizontal and depth cam adjustment.
Self-closing action draws the door shut; this model does not provide soft-close damping.
Sold individually at $2.72. Installation screws, tools, cabinet doors and cabinetry are sold separately.
Follow the factory instructions for boring, mounting and adjustment.

Product documents

Specifications and measurements (PDF) · Factory installation instructions (PDF)

Warranty (PDF)
