8390 Series 105° Self-Closing Compact Hinge — Large Overlays

Match larger-overlay face-frame cabinet doors with a one-piece self-closing hinge. Choose the exact overlay and the standard or two-cleat press-in configuration.

Fit and features

• Heavy-duty steel hinge with nickel finish, a one-piece compact assembly and 105° opening.
• Self-closing action pulls the door shut. This series does not include a soft-close damper.
• 35 mm cup, 11.2 mm cup boring depth and 45 mm mounting centers.
• Six-way adjustment with vertical screw adjustment and horizontal/depth cam adjustment.
• Choose 1-1/4, 1-3/8 or 1-1/2-inch overlay. All four models have press-in 8 mm dowels.
• Two-cleat models are available for face frames thicker than 3/4 inch; follow the factory guide for fit.
• Factory recommends #7 × 5/8-inch pan washer-head cabinet screws. Use the installation guide for door attachment and hinge quantity.
• Sold individually. Screws, tools, optional restrictor clips, doors and cabinetry are sold separately.

Models and options

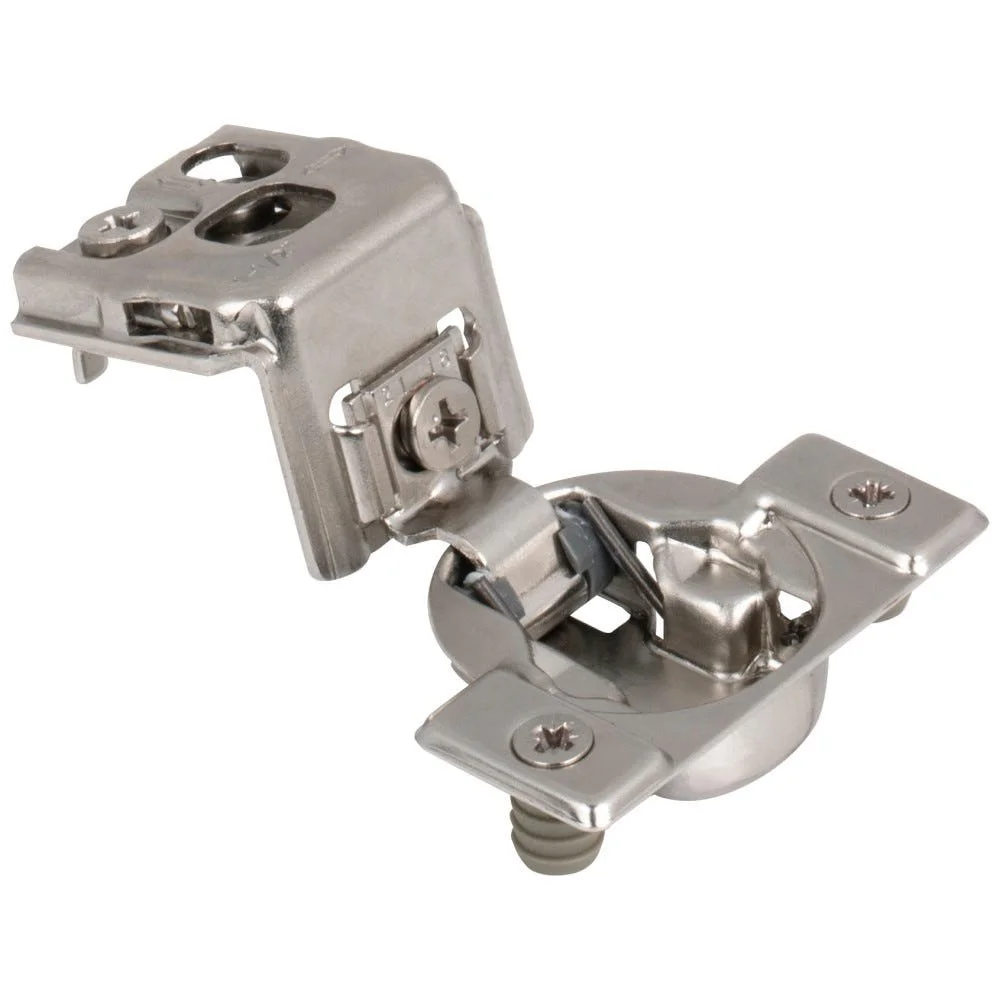

• 8392-000 — 1-1/2" Overlay — 8 mm Press-in Dowels; $4.61 each.
• 8393-000 — 1-3/8" Overlay — 8 mm Press-in Dowels; $4.61 each.

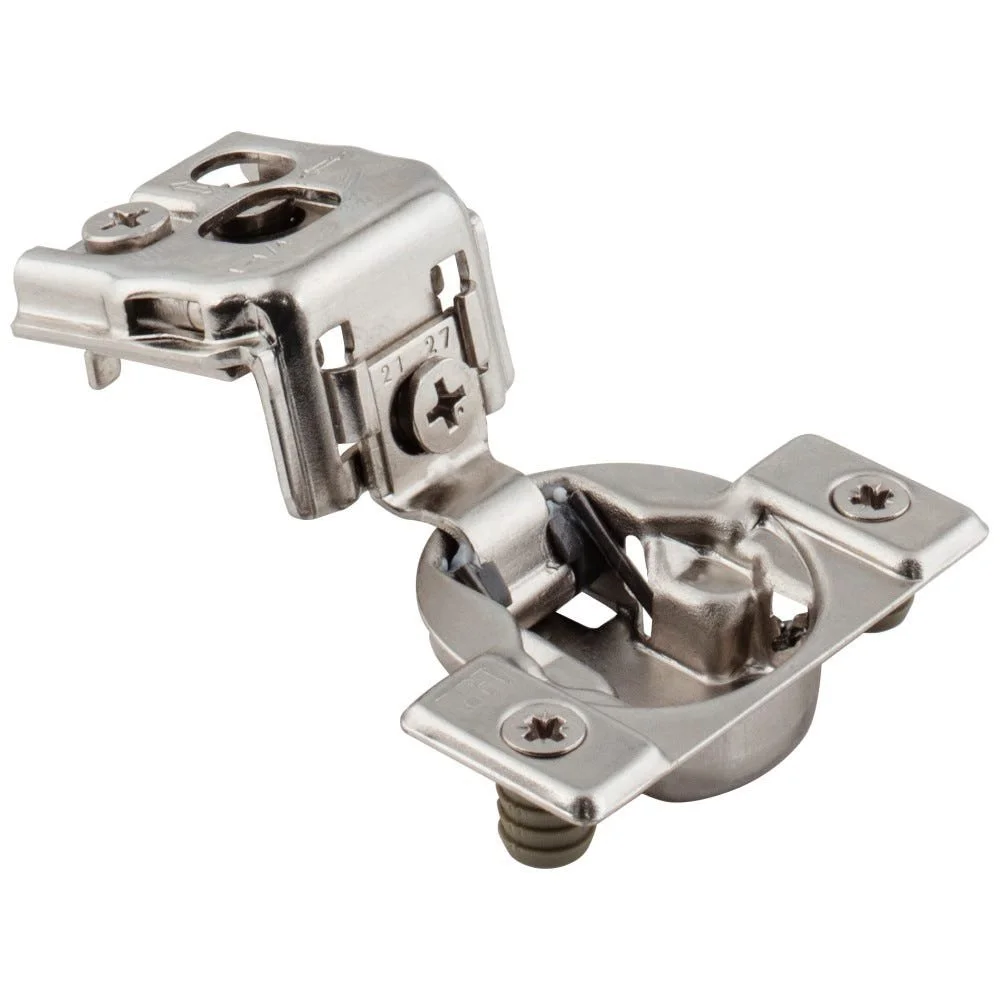

• 8394-000 — 1-1/4" Overlay — 8 mm Press-in Dowels; $4.61 each.

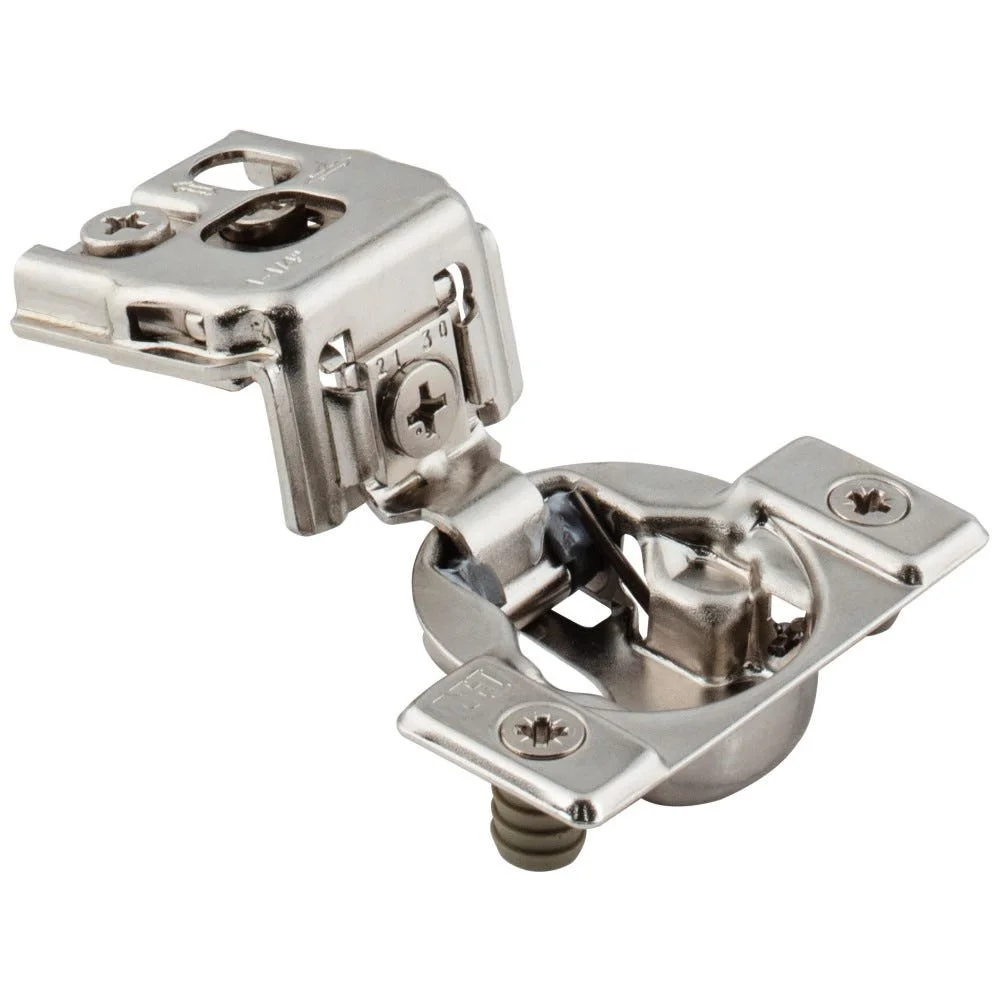

• 8394-2C — 1-1/4" Overlay — 8 mm Press-in Dowels — 2 Cleats; $4.61 each.

Product documents

Specifications and measurements (PDF)

9390/8390 installation and hinge quantity guide (PDF) · Warranty (PDF)
