Bring a smooth, controlled close to a face-frame cabinet door with a one-piece compact hinge. Choose the exact overlay and door-mounting configuration, with conventional screw-on and press-in dowel options clearly labeled.
Heavy-duty steel hinge with a nickel finish and integrated soft-close mechanism.
105° opening angle for face-frame cabinetry.
35 mm hinge cup; 11.2 mm cup boring depth; 45 mm mounting centers.
Six-way door adjustment with vertical screw adjustment and horizontal/depth cam adjustment.
Overlay choices from 3/8 to 3/4 inch. Overlay is how far the door overlaps the face frame.
Press-in models include 8 mm dowels. Models marked No Dowels use screw attachment.
2-cleat versions are available for face frames thicker than 3/4 inch, as explained in the factory installation guide.
For installation, the factory guide calls for a #7 × 5/8-inch pan washer-head screw at the cabinet and a #7 × 5/8-inch flat-head screw for non-dowel door attachment. Screws, tools and optional restrictor clips are sold separately.
Factory Grade 2 certification testing covers 50,000 cycles. Select hinge quantity using door size and weight in the installation guide.
Sold individually. Cabinet doors and cabinetry are sold separately.

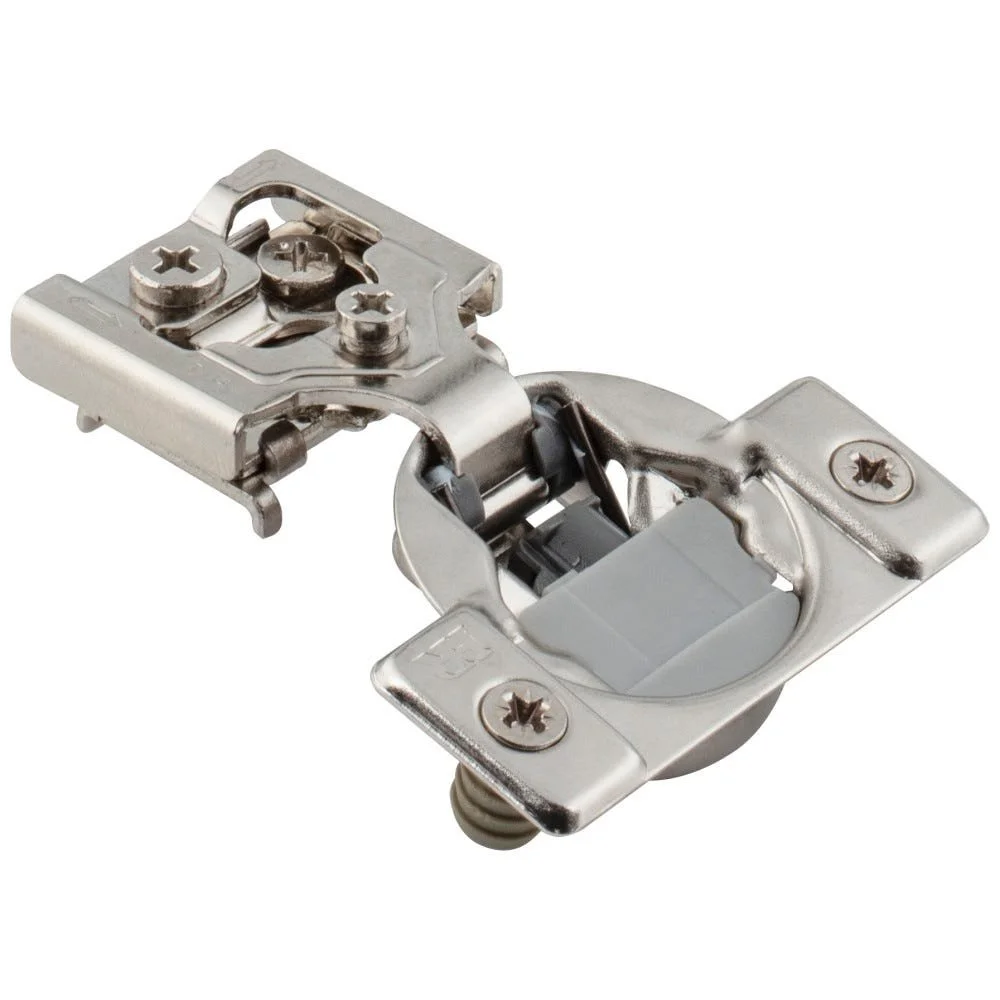

9390-038 — 3/8" Overlay — 8 mm Press-in Dowels; $5.08 each.
9390-716 — 7/16" Overlay — 8 mm Press-in Dowels; $5.02 each.

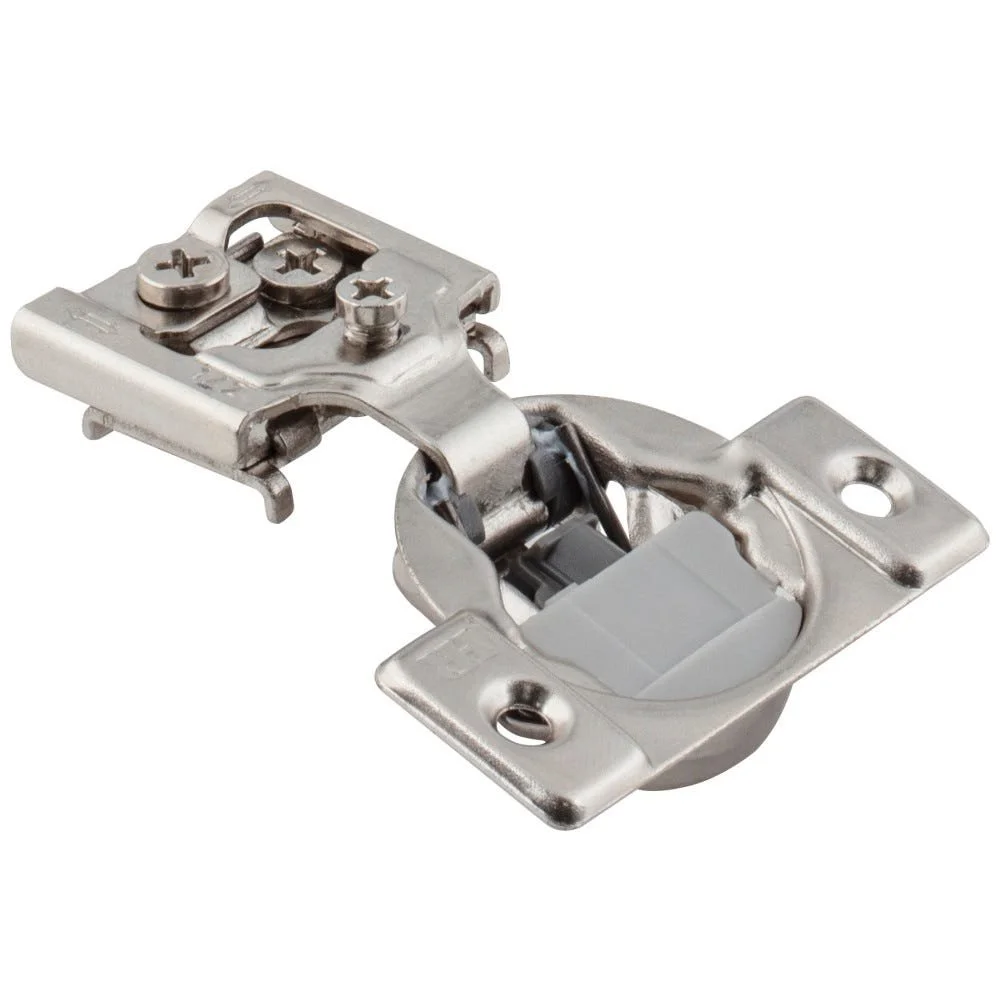

9390 — 1/2" Overlay — No Dowels; $4.23 each.

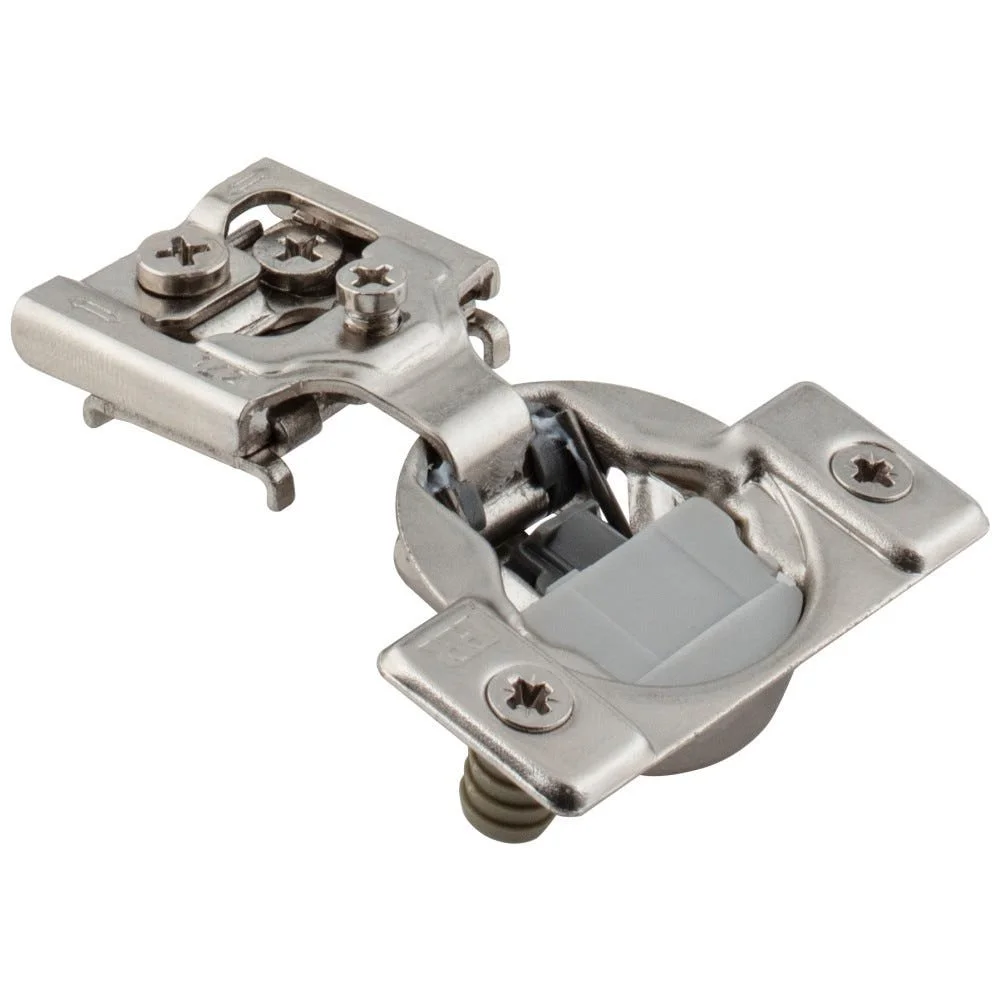

9390-2-000 — 1/2" Overlay — 8 mm Press-in Dowels; $4.54 each.

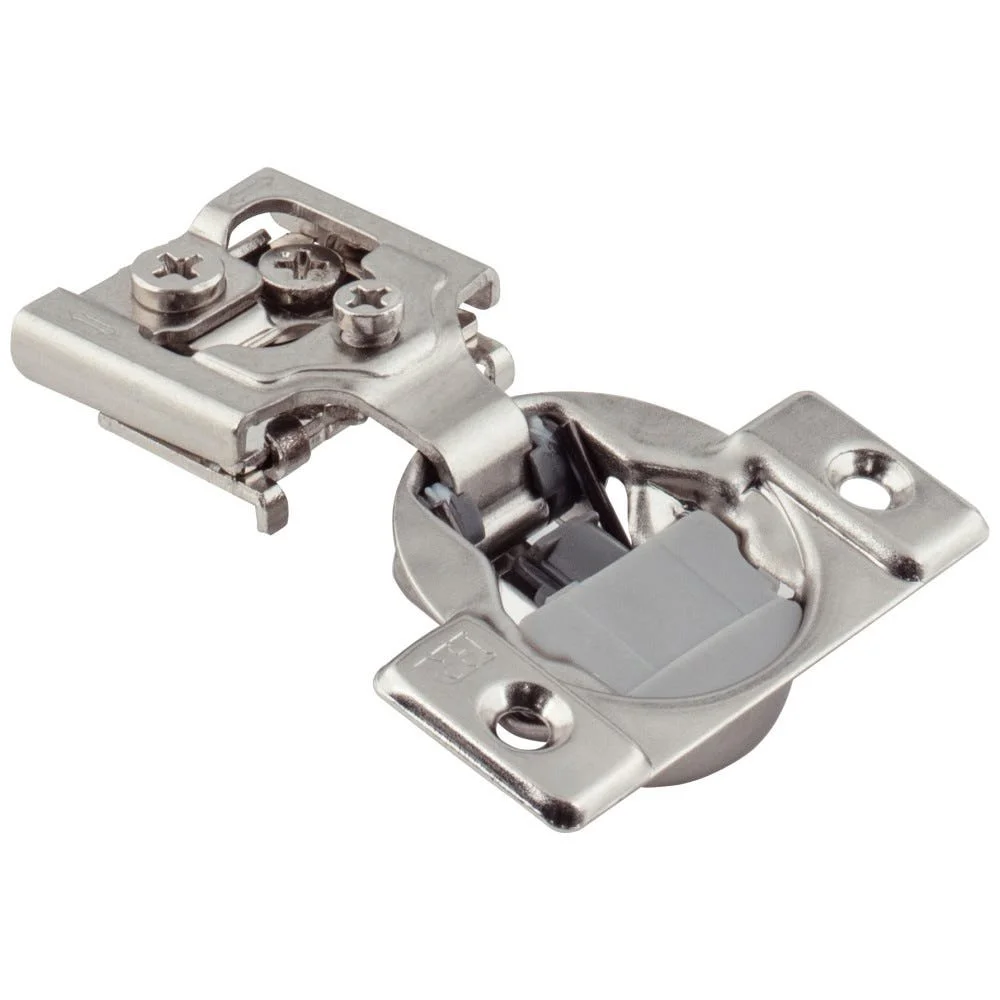

9390-2C — 1/2" Overlay — No Dowels — 2 Cleats; $4.64 each.

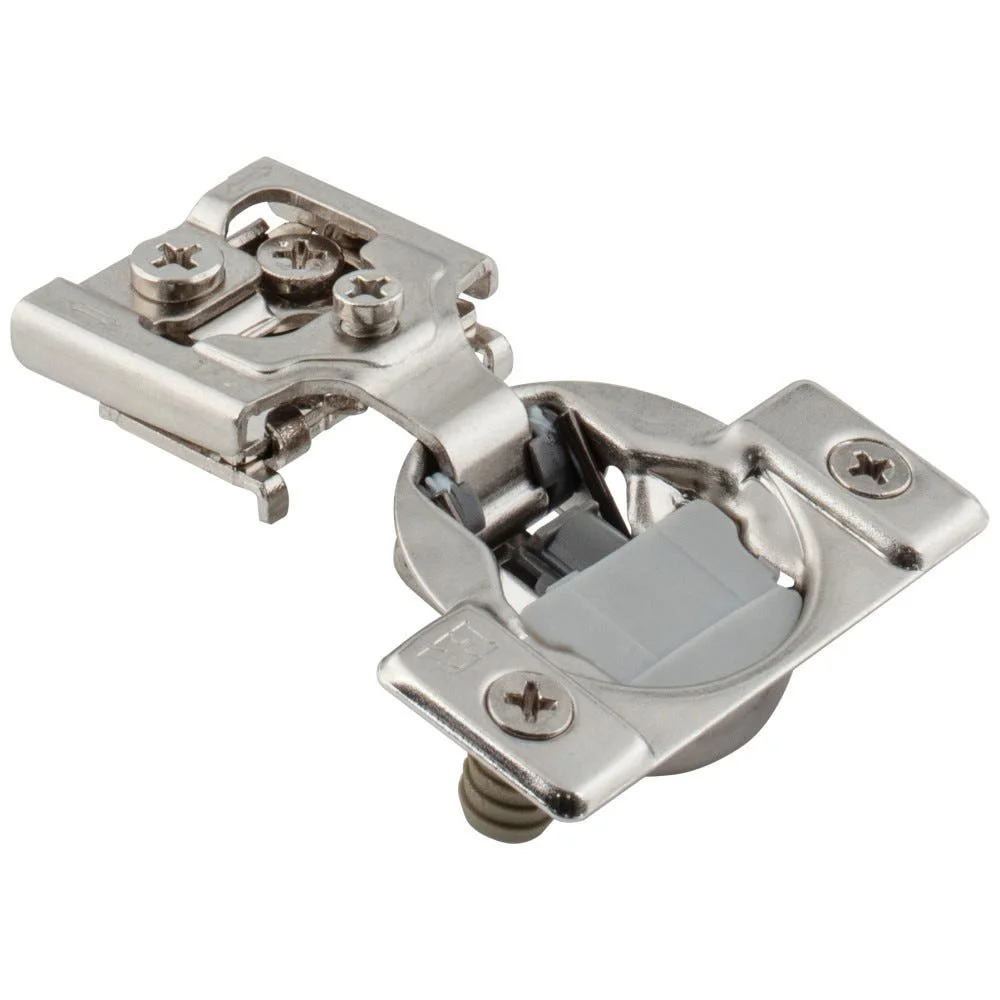

9390-2-2C — 1/2" Overlay — 8 mm Press-in Dowels — 2 Cleats; $4.91 each.

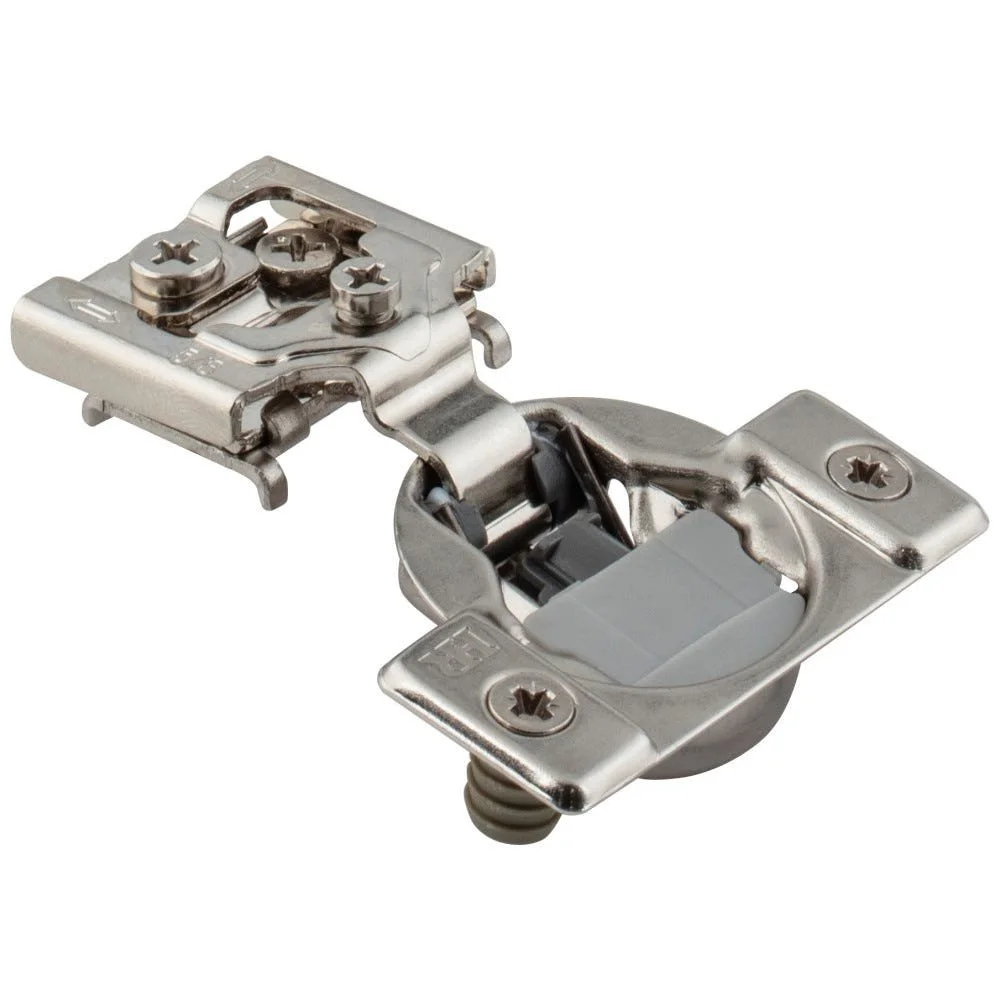

9390-058 — 5/8" Overlay — 8 mm Press-in Dowels; $5.02 each.

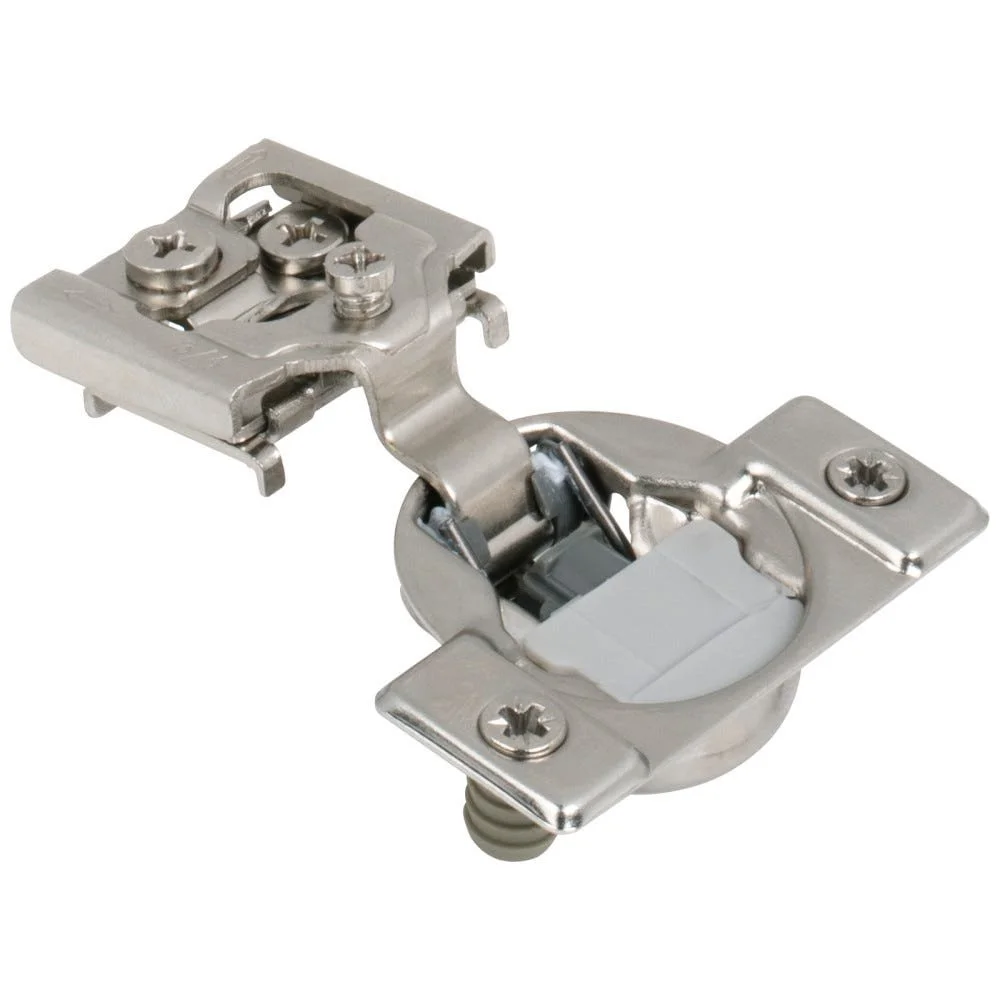

9390-6-000 — 3/4" Overlay — 8 mm Press-in Dowels; $5.08 each.
Specifications and measurements (PDF) · Installation instructions and hinge quantity guide (PDF) · Factory certification (PDF)
