9390 Series 105° Soft-Close Compact Hinge — Large Overlays

Give larger-overlay face-frame doors a controlled, quiet close with a heavy-duty one-piece compact hinge. Choose the exact overlay and attachment style for your door preparation.

Fit and features

• Nickel-finished steel hinge with an integrated soft-close mechanism and 105° opening.
• For face-frame cabinets; overlay choices are 1, 1-1/4, 1-3/8 and 1-1/2 inches.
• 35 mm cup, 11.2 mm boring depth and 45 mm mounting centers.
• Six-way adjustment: vertical screw adjustment plus horizontal and depth cam adjustment.
• Press-in versions include 8 mm dowels. Model 9394 is the screw-on version without dowels.
• Model 9394-2C has two cleats; consult the factory guide when fitting face frames thicker than 3/4 inch.
• Factory guide recommends a #7 × 5/8-inch pan washer-head cabinet screw. Non-dowel door attachment uses #7 × 5/8-inch flat-head screws.
• Screws, installation tools and optional restrictor clips are sold separately. Sold individually; cabinetry and doors are sold separately.
• Choose hinge quantity from the door height and weight guide before ordering.

Models and options

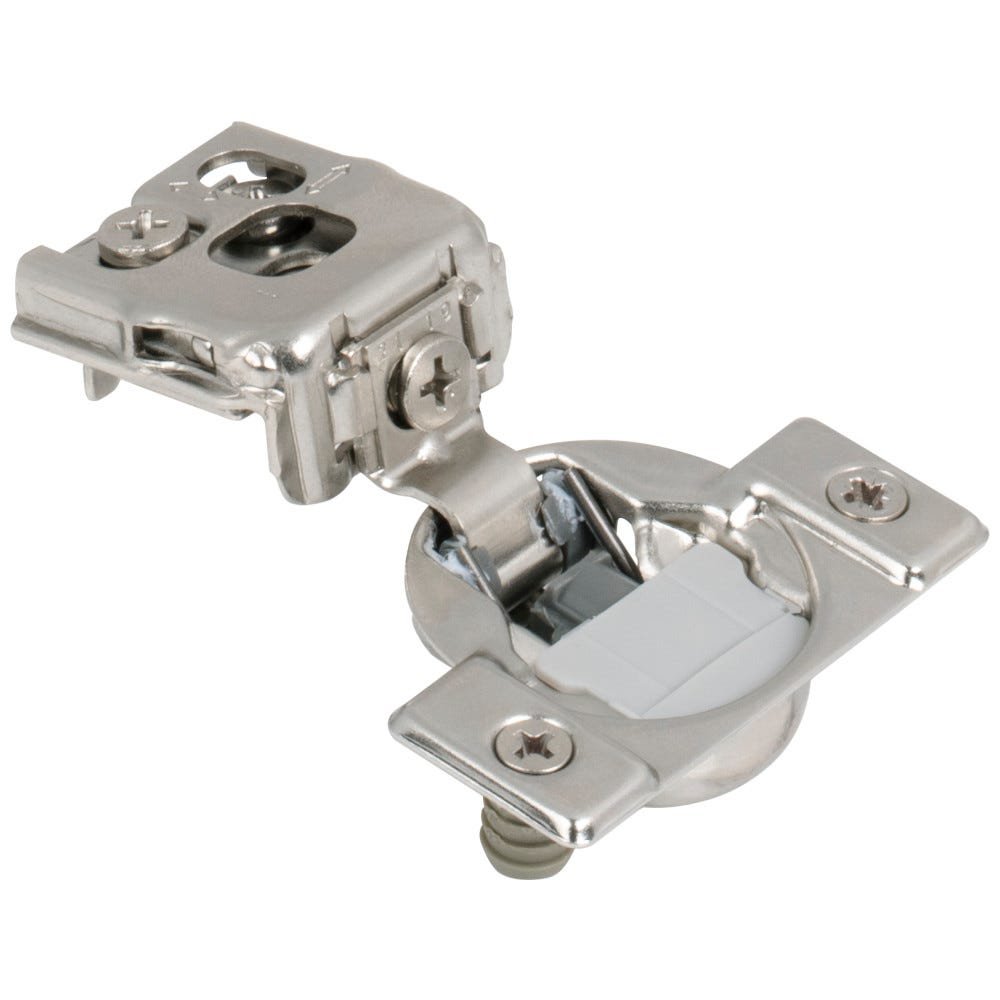

• 9391-000 — 1" Overlay — 8 mm Press-in Dowels; $5.08 each.

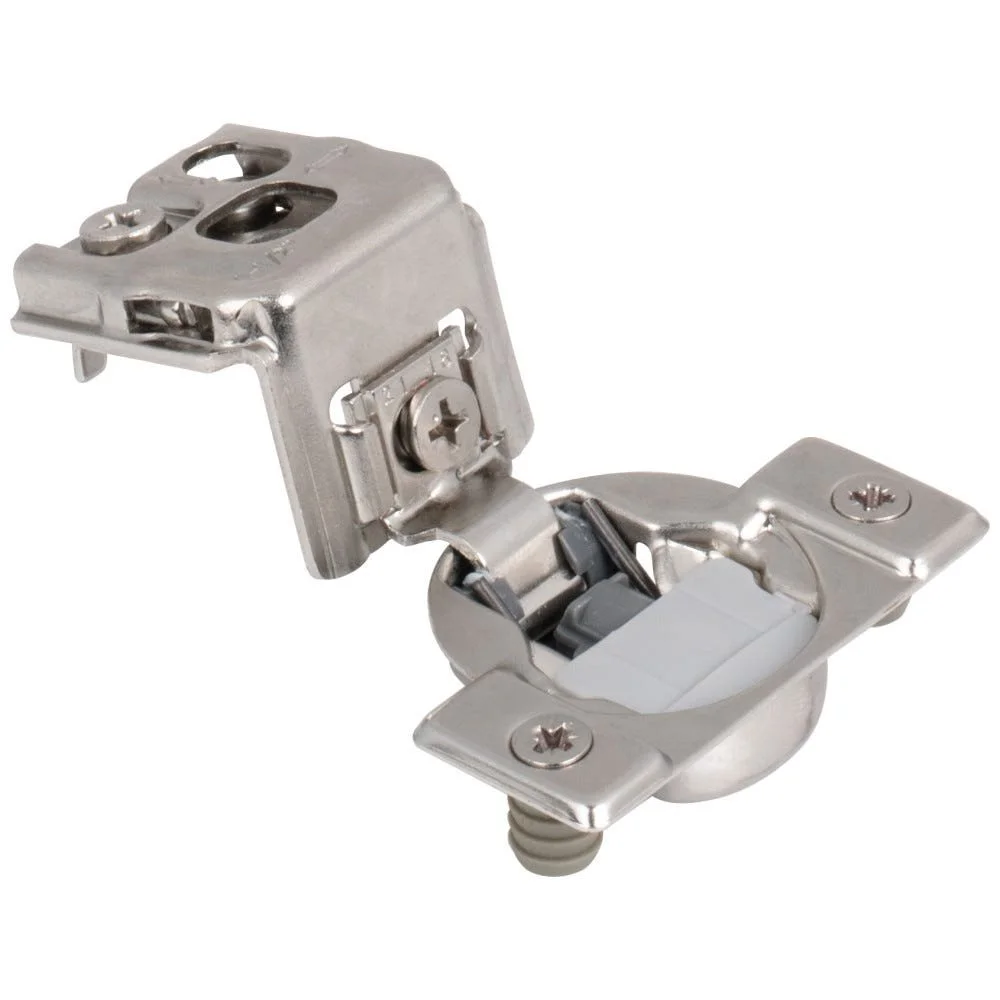

• 9392-000 — 1-1/2" Overlay — 8 mm Press-in Dowels; $5.08 each.

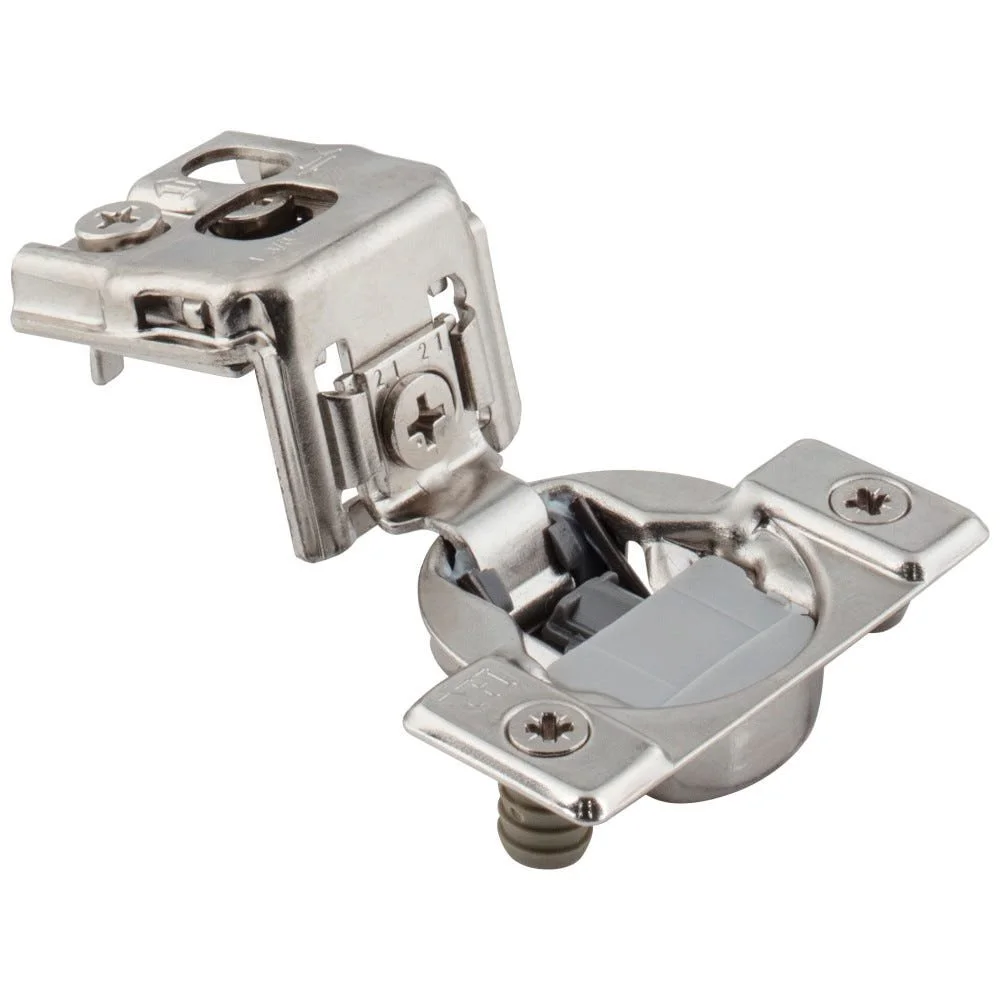

• 9393-000 — 1-3/8" Overlay — 8 mm Press-in Dowels; $5.08 each.

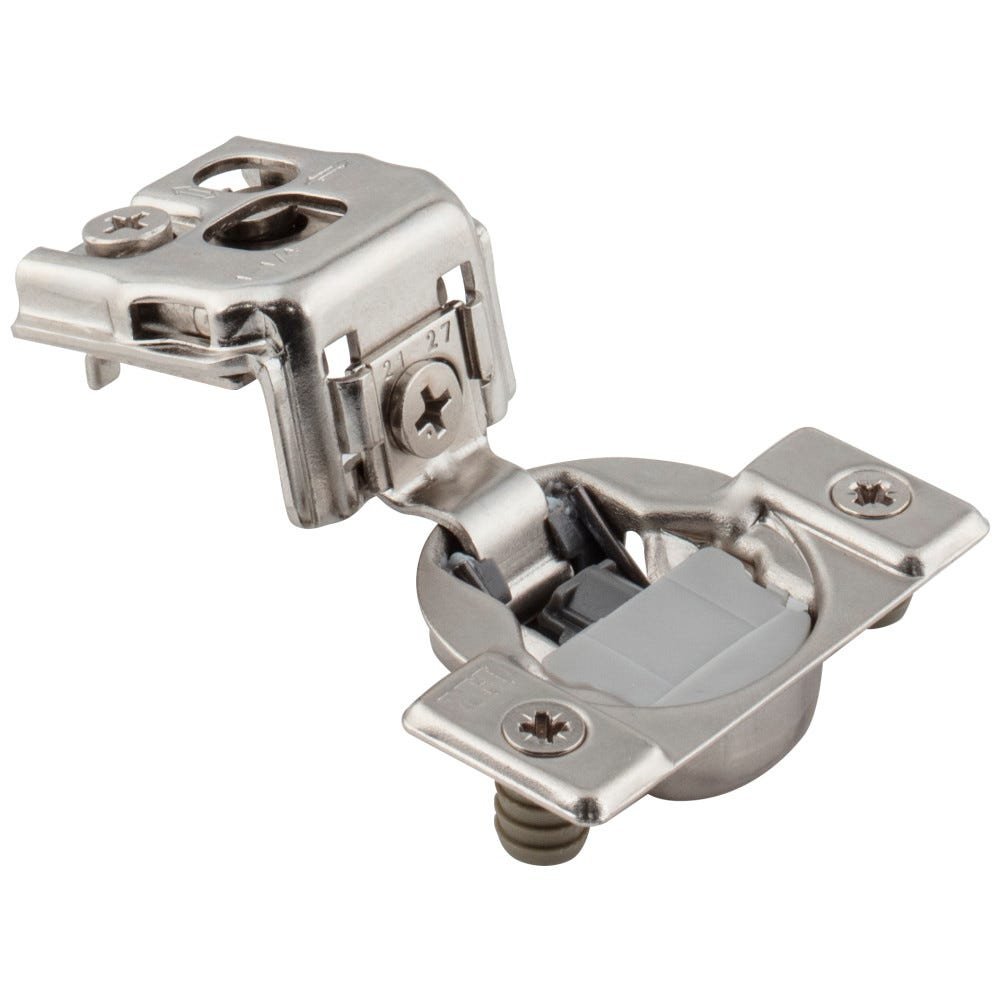

• 9394-000 — 1-1/4" Overlay — 8 mm Press-in Dowels; $4.54 each.

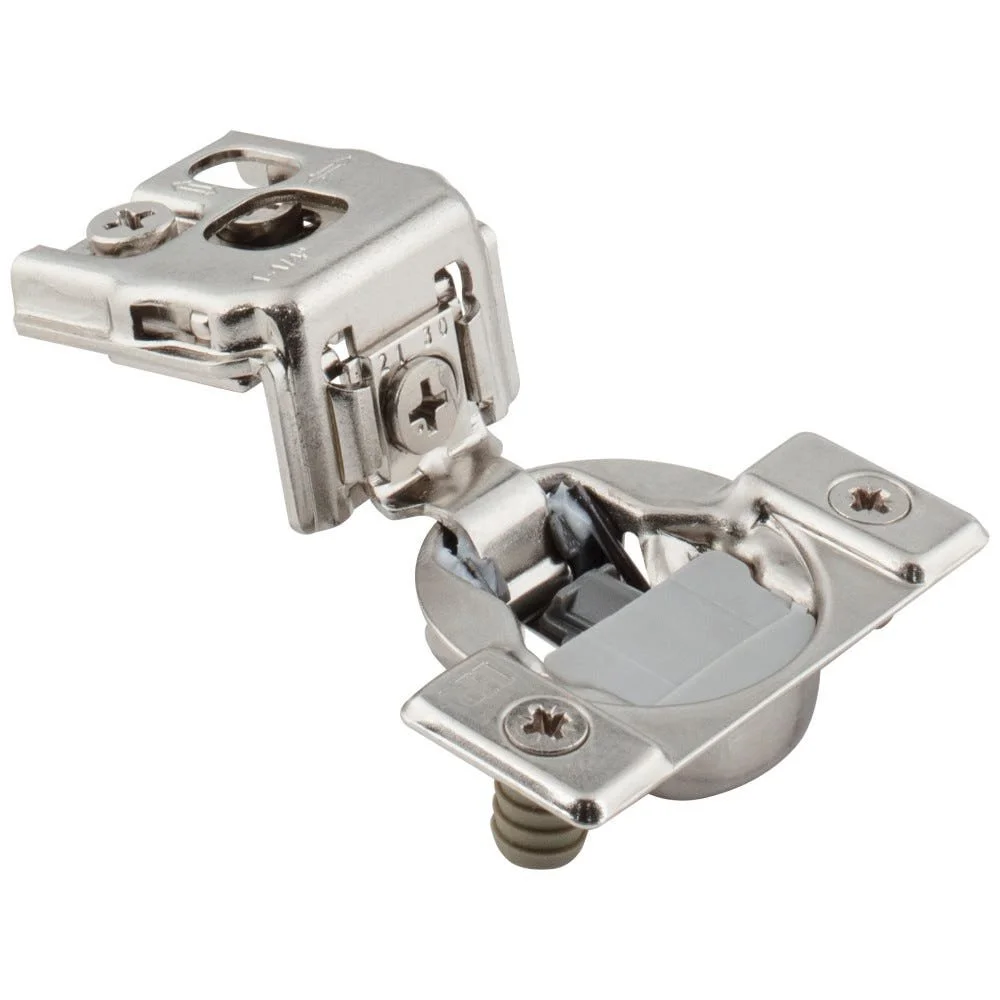

• 9394-2C — 1-1/4" Overlay — 8 mm Press-in Dowels — 2 Cleats; $4.91 each.

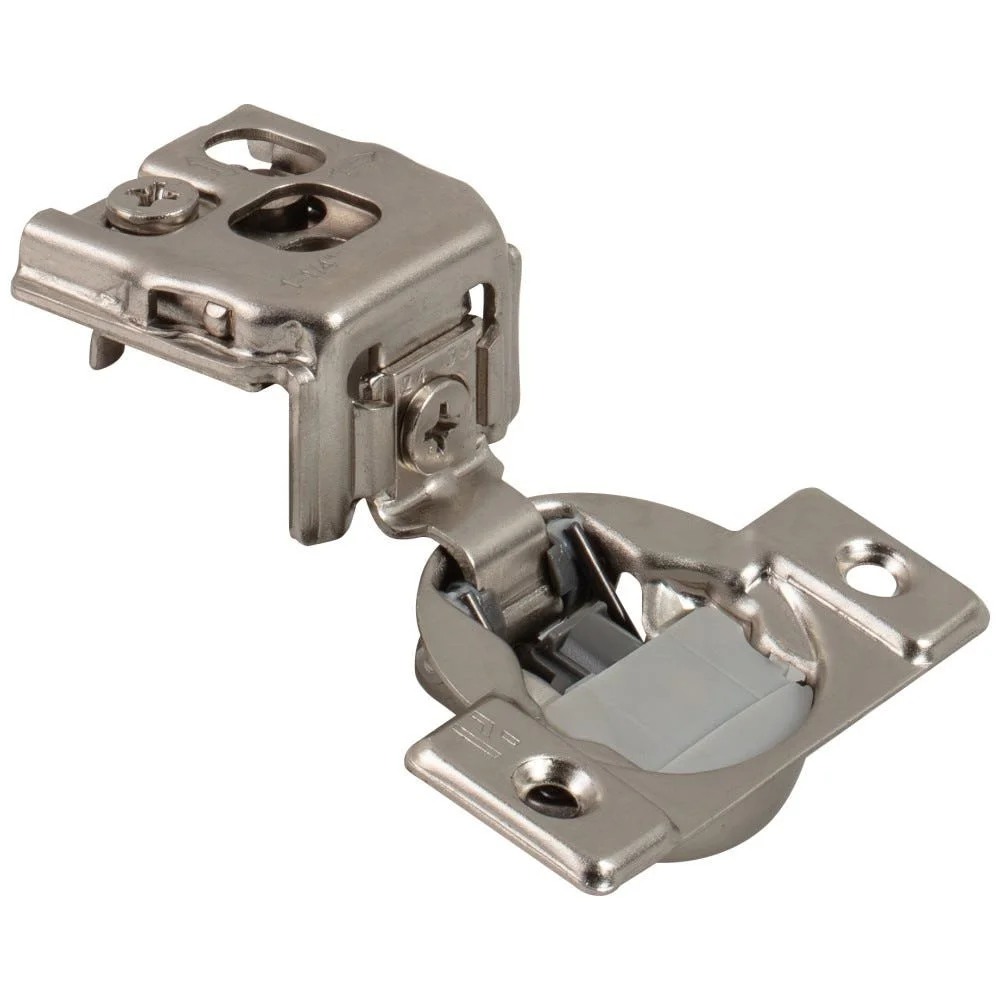

• 9394 — 1-1/4" Overlay — No Dowels; $3.67 each.
