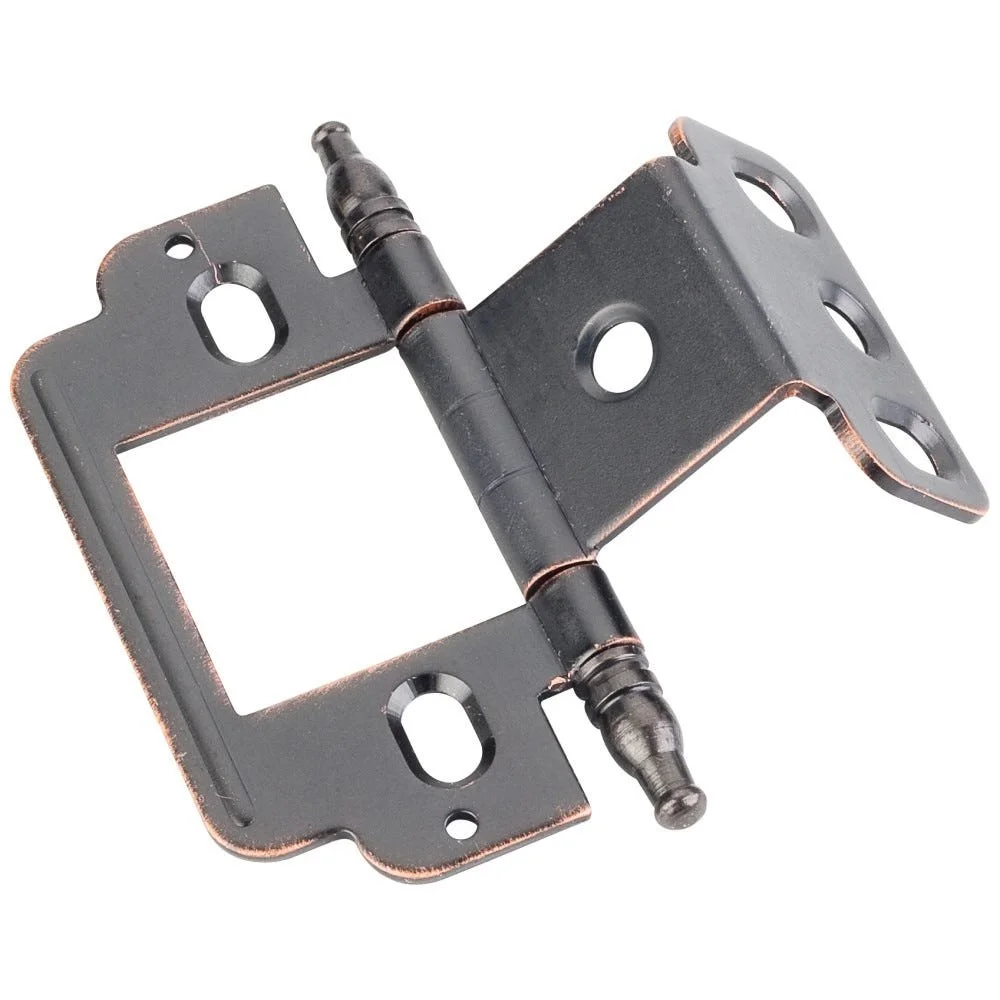

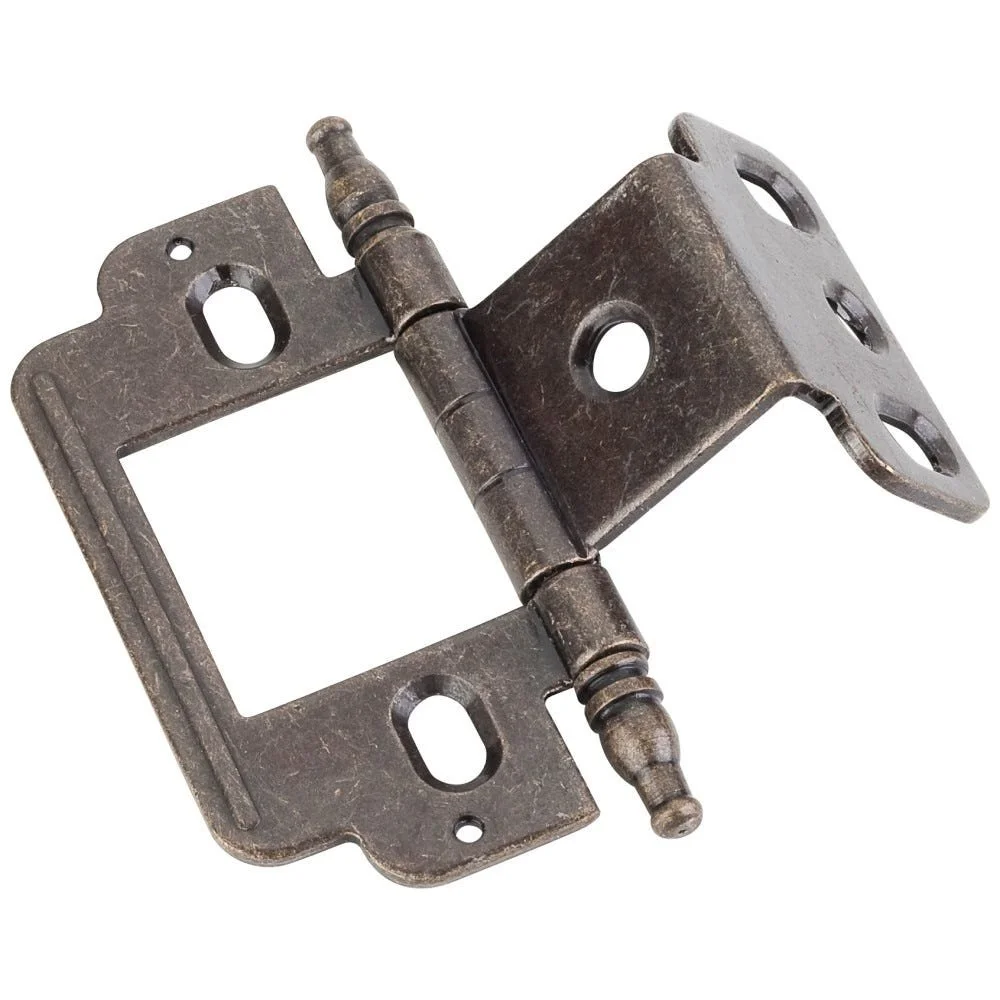

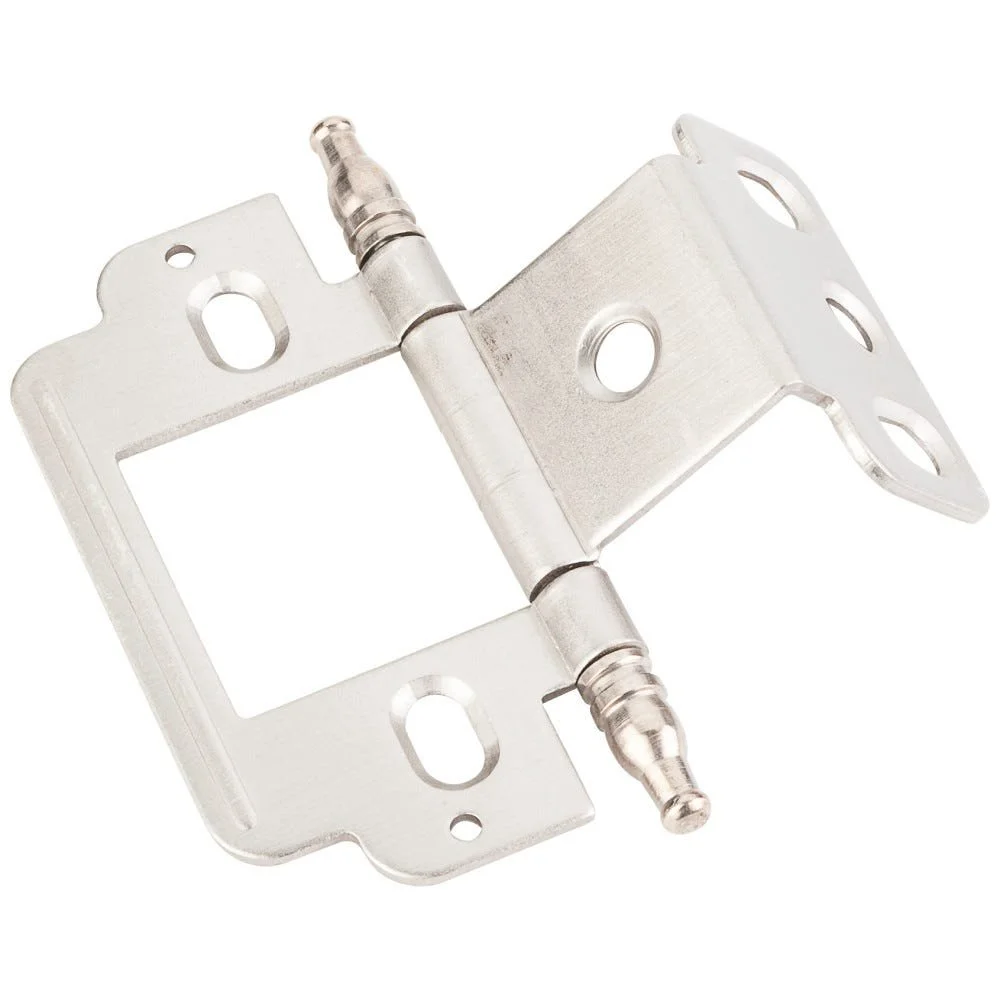

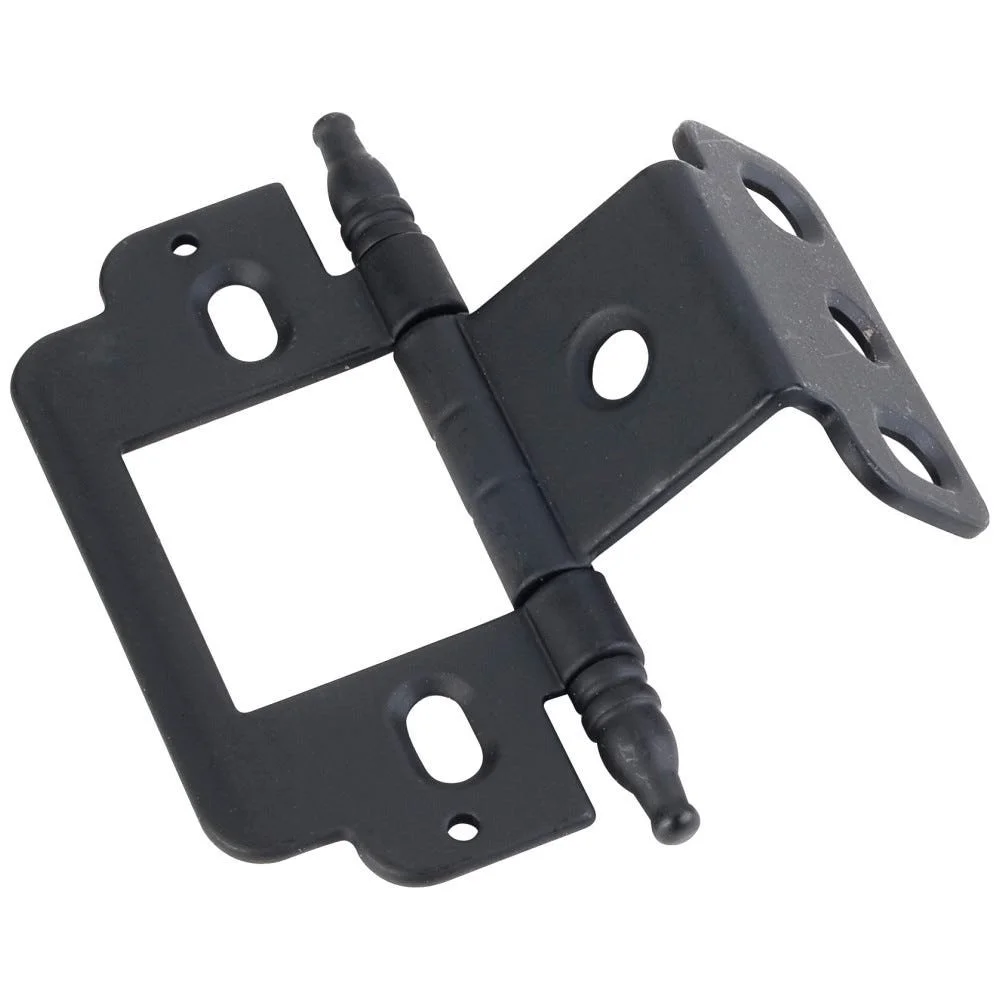

270° Partial-Wrap Inset Minaret-Tip Hinge — Style A

from $3.60

Style A combines an elegant minaret-tip profile with a partial-wrap mounting design for inset cabinet doors.

Fit and features

For 3/4-inch face frames and 3/4-inch doors in a full-inset application.
270-degree opening; free-swinging action.
Non-mortise steel construction with vertical adjustment through slotted holes.
Style A geometry differs from Style B; check the factory mounting drawing before ordering.
Recommended fasteners: #6 × 5/8-inch flat-head screws for the frame and #6 × 1/2-inch flat-head screws for the door.
Sold individually. Installation screws, tools, doors and cabinetry are sold separately.

Finish:
