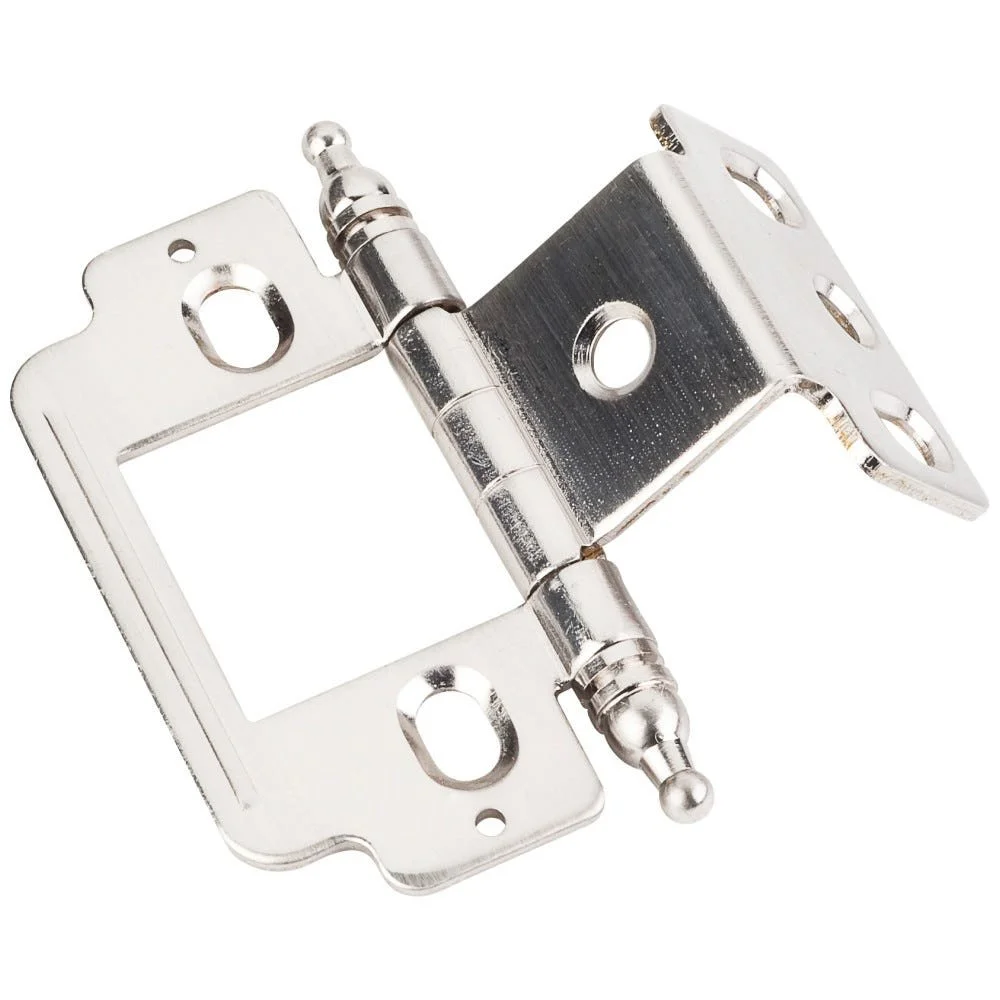

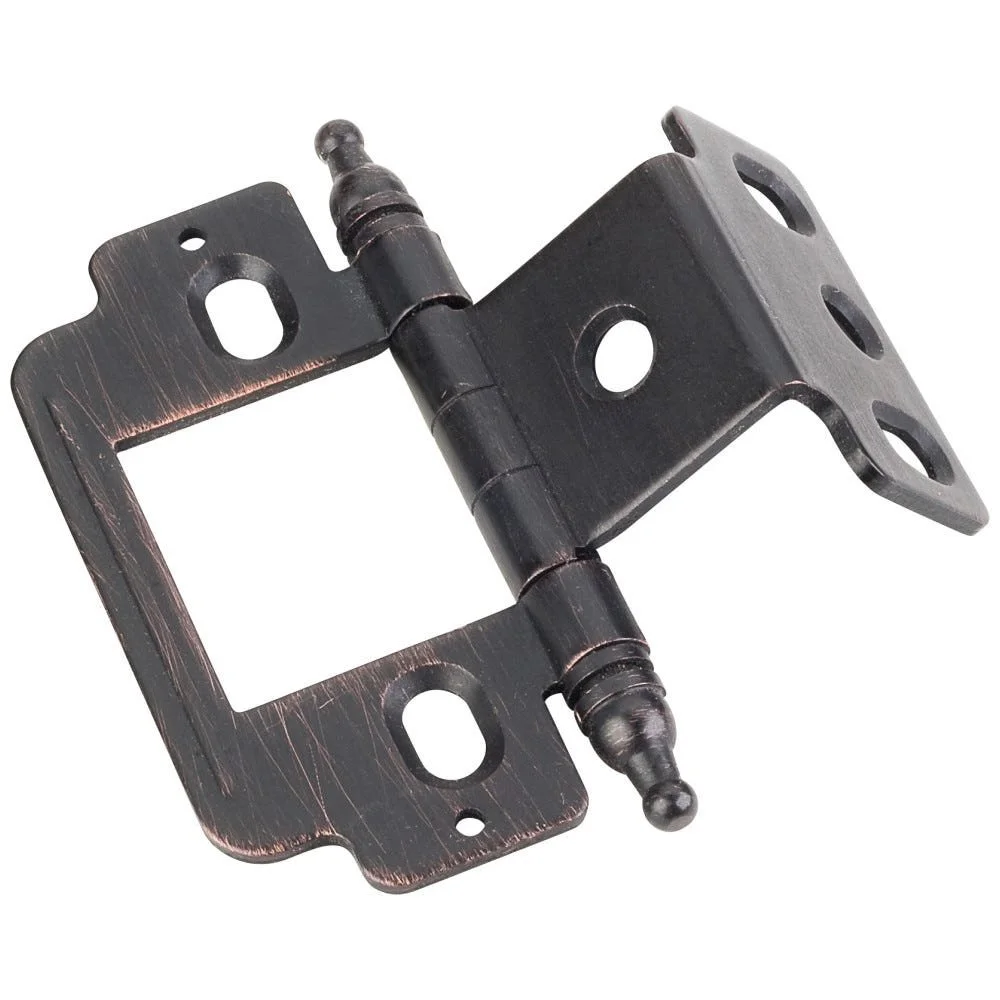

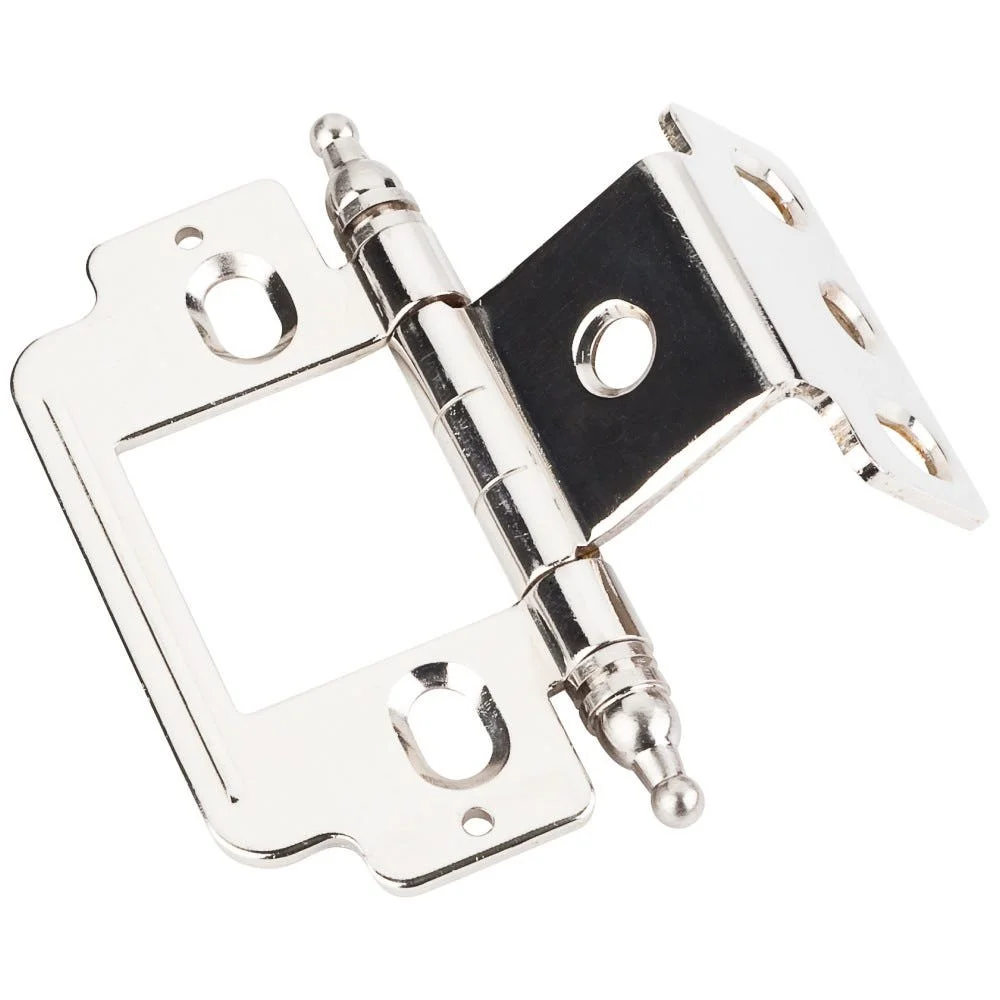

270° Partial-Wrap Inset Minaret-Tip Hinge — Style B

from $8.03

The Style B minaret hinge gives inset doors a decorative traditional profile with a wide opening and adjustable mounting.

Fit and features

For 3/4-inch face frames and 3/4-inch doors in a full-inset application.
270-degree opening; free-swinging action.
Non-mortise steel construction with horizontal and vertical alignment through slotted holes.
Style B geometry differs from Style A; check the factory mounting drawing before ordering.
Recommended fasteners: #6 × 5/8-inch flat-head screws for the frame and #6 × 1/2-inch flat-head screws for the door.
Sold individually. Installation screws, tools, doors and cabinetry are sold separately.

Finish:

The Style B minaret hinge gives inset doors a decorative traditional profile with a wide opening and adjustable mounting.

For 3/4-inch face frames and 3/4-inch doors in a full-inset application.
270-degree opening; free-swinging action.
Non-mortise steel construction with horizontal and vertical alignment through slotted holes.
Style B geometry differs from Style A; check the factory mounting drawing before ordering.
Recommended fasteners: #6 × 5/8-inch flat-head screws for the frame and #6 × 1/2-inch flat-head screws for the door.
Sold individually. Installation screws, tools, doors and cabinetry are sold separately.
