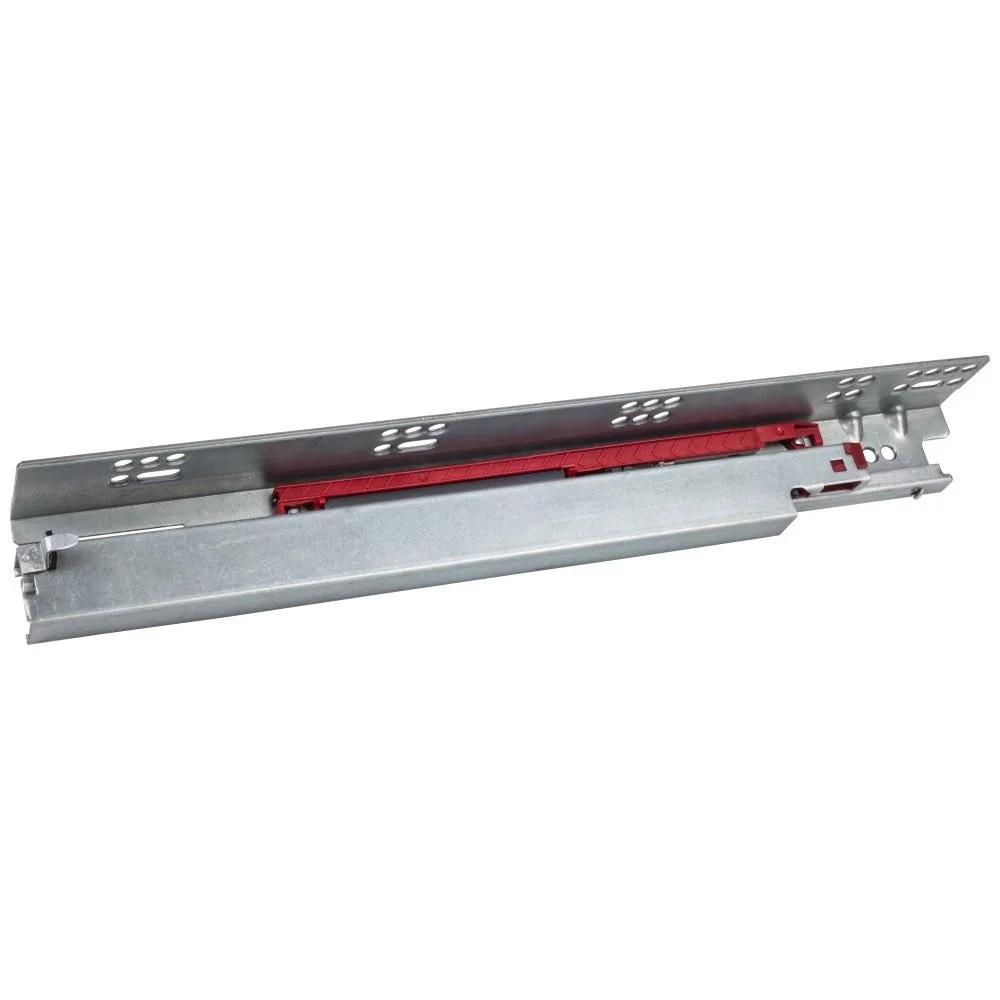

Full-extension soft-close undermount slides with low opening force and a protective spring cover that helps keep sawdust and countertop dust away from the closing mechanism. Select the nominal drawer-box length for your project.
USE58-300 series, sold as one left-and-right slide pair.
Manufacturer-rated 100 lb load capacity.
Zinc-finished steel for face-frame and frameless cabinetry.
For 1/2 to 5/8 inch drawer-box sides. Required notching, rear boring and bottom clearances are shown in the factory installation guide.
Slotted mounting holes allow alignment during installation.
Compatible release clips, screws and rear mounting brackets are sold separately. Rear brackets are required for face-frame installations.
The 9-inch option requires USE-STEEL-309 rear brackets for face-frame installation. Longer sizes use the compatible USE-STEEL or USE-ADJ5 option described in the guide.
Minimum drawer width varies with the selected release clip; use the guide to choose the clip and confirm construction dimensions.
These are standard non-inset cabinet interior depth requirements. Inset fronts require additional setback. The nominal drawer-box size differs from the overall metal slide length.
9 in — USE58-300-9
Frameless minimum interior depth: 10-1/2 in
Face-frame interior depth range: 10-1/2 to 11-3/4 in
Price per pair: $35.37
15 in — USE58-300-15
Frameless minimum interior depth: 15-5/8 in
Face-frame interior depth range: 15-7/8 to 17 in
Price per pair: $41.83
18 in — USE58-300-18
Frameless minimum interior depth: 18-5/8 in
Face-frame interior depth range: 18-7/8 to 20 in
Price per pair: $46.82
21 in — USE58-300-21
Frameless minimum interior depth: 21-5/8 in
Face-frame interior depth range: 21-7/8 to 23 in
Price per pair: $49.97
24 in — USE58-300-24
Frameless minimum interior depth: 24-5/8 in
Face-frame interior depth range: 24-7/8 to 26 in
Price per pair: $61.83
Photos represent the series; the selected exact model determines the supplied length. Drawer boxes and cabinetry are sold separately.
