100 lb Full-Extension Side-Mount Ball-Bearing Drawer Slides

from $6.35

Reliable full-extension access for drawers throughout your cabinetry. The 303FU series uses lubricated steel ball bearings, a retained bearing cage for easier drawer installation and a hold-in detent to help keep the drawer closed.

Features and fit

Manufacturer-rated 100 lb load capacity; full-extension side-mount design.
Steel slides in zinc or black, depending on the selected model. Nominal 45 mm height with 1/2 inch clearance on each side.
Non-handed trigger disconnect for drawer removal.
Synthetic rubber hold-in detent helps prevent bounce-back and unwanted roll-out.
Sold as a pair for one drawer. Recommended fasteners are 6.3 mm Euro screws or #8 × 7/16 inch truss-head screws. Screws and optional mounting brackets are sold separately.

Choose your size and finish

8" (203 mm) — Zinc — 303FU8
Full extension; nominal slide length 8 in.
Price per pair: $6.35

10" — Zinc — 303FU10
Full extension; nominal slide length 10 in.
Price per pair: $7.38

12" — Zinc — 303FU12
Full extension; nominal slide length 12 in.
Price per pair: $8.86

14" — Zinc — 303FU14
Full extension; nominal slide length 14 in.
Price per pair: $10.26

16" — Zinc — 303FU16
Full extension; nominal slide length 16 in.
Price per pair: $11.75

18" — Zinc — 303FU18
Full extension; nominal slide length 18 in.
Price per pair: $12.98

20" — Zinc — 303FU20
Full extension; nominal slide length 20 in.
Price per pair: $13.75

22" — Zinc — 303FU22
Full extension; nominal slide length 22 in.
Price per pair: $14.74

24" — Zinc — 303FU24
Full extension; nominal slide length 24 in.
Price per pair: $16.31

26" — Zinc — 303FU26
Full extension; nominal slide length 26 in.
Price per pair: $18.68

28" — Zinc — 303FU28
Full extension; nominal slide length 28 in.
Price per pair: $20.34

12" — Black — 303FU12BLK
Full extension; nominal slide length 12 in.
Price per pair: $7.40

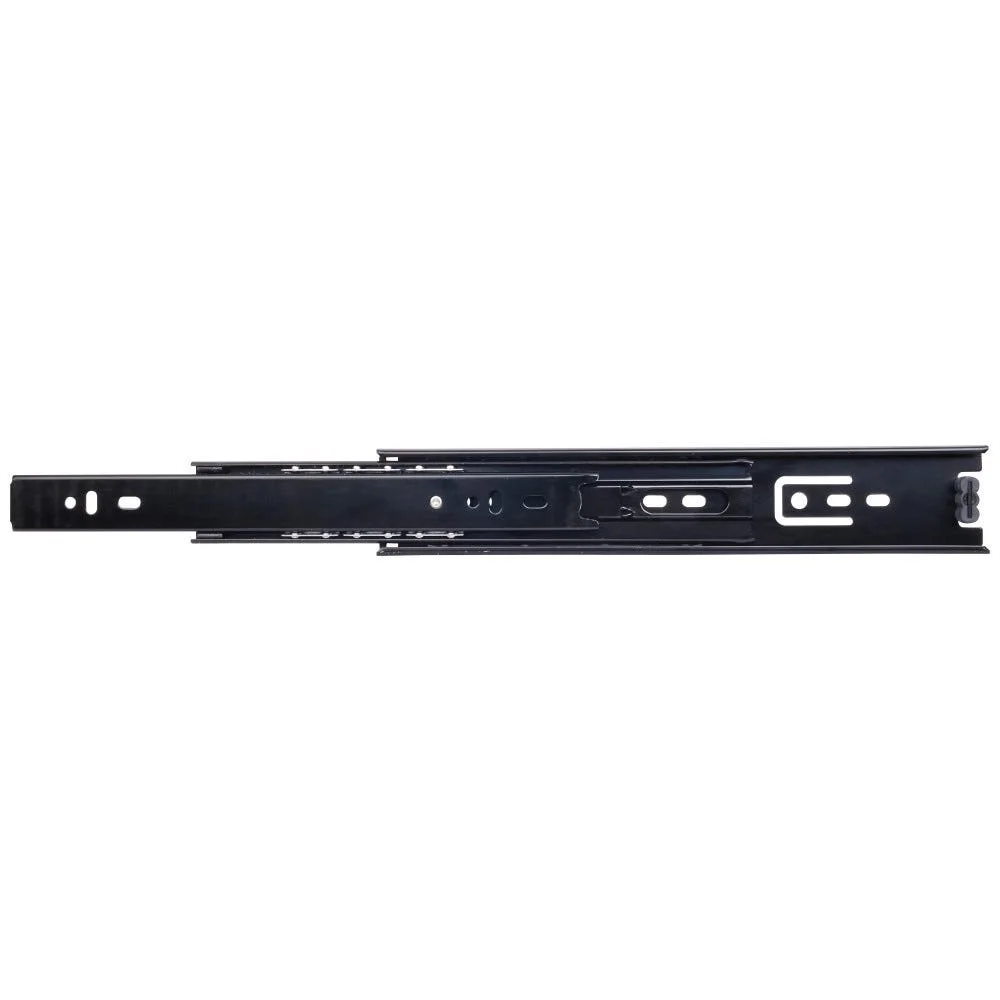

20" — Black — 303FU20BLK
Full extension; nominal slide length 20 in.
Price per pair: $13.48

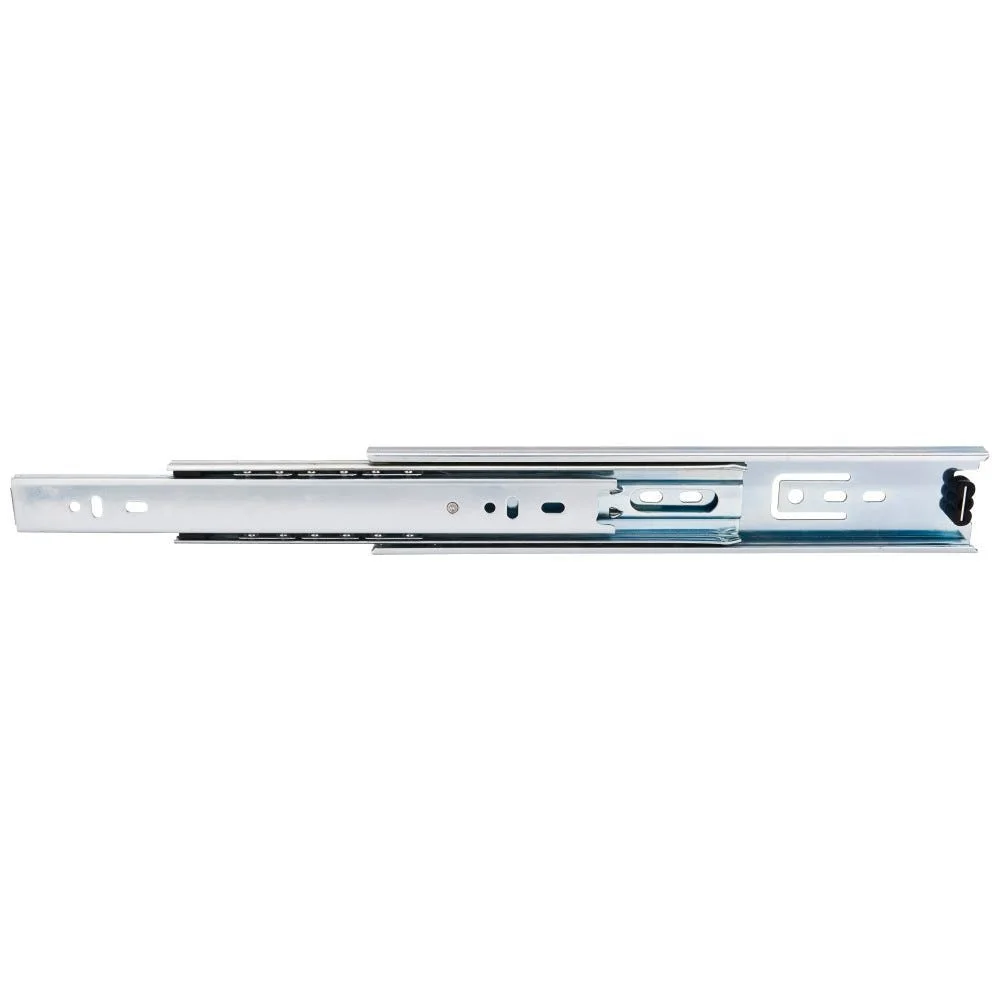

Inch lengths are nominal selection sizes. Use the factory drawings and installation instructions to verify exact geometry, clearances and mounting locations. The matching finish photo represents the series; the selected model determines the supplied length.

Product documents

Factory diagrams cover the documented series sizes and black-finish models. The independent reports identify the specific samples tested.

Zinc and black model drawings & dimensions (PDF)

Installation instructions (PDF)

Series sample test reports (PDF)

Warranty (PDF)
