100 lb Synchronized Soft-Close Undermount Drawer Slides

from $47.75

Full-extension undermount slide pairs with a synchronized gear drive to keep both sides moving together. Soft closing and low opening force give wide or heavily loaded drawers a smooth, controlled feel.

Features and fit

USE58-500 series, sold as one left-and-right slide pair.
Manufacturer-rated 100 lb dynamic capacity; the linked test report documents the 21-inch USE58-500-21 sample tested with a 100 lb drawer load.
Zinc-finished steel; suitable for face-frame or frameless cabinets.
For 1/2 to 5/8 inch drawer-box sides, with the notching, boring and clearances shown in the installation guide.
Compatible attachment clips: USCLIP500-2-4W, USCLIP500-2-4WZ or USCLIP500-2-6WZ, sold separately.
Rear brackets are required for face-frame installation. Compatible bracket options in the factory guide are USE-STEEL, USE-ADJ and USE-ADJ5; sold separately.
Mounting screws, clips, rear brackets and drawer boxes are not included with the slide pair.

Choose your drawer-box length

The selected length is the nominal drawer-box size. Use the cabinet interior depth requirements below for the standard non-inset installation; inset drawer fronts need additional setback.

12 in — USE58-500-12
Frameless minimum interior depth: 12-5/8 in
Face-frame interior depth range: 12-7/8 to 14 in
Price per pair: $47.75

15 in — USE58-500-15
Frameless minimum interior depth: 15-5/8 in
Face-frame interior depth range: 15-7/8 to 17 in
Price per pair: $50.56

18 in — USE58-500-18
Frameless minimum interior depth: 18-5/8 in
Face-frame interior depth range: 18-7/8 to 20 in
Price per pair: $56.61

21 in — USE58-500-21
Frameless minimum interior depth: 21-5/8 in
Face-frame interior depth range: 21-7/8 to 23 in
Price per pair: $60.26

24 in — USE58-500-24
Frameless minimum interior depth: 24-5/8 in
Face-frame interior depth range: 24-7/8 to 26 in
Price per pair: $74.79

With the compatible clips listed in the guide, minimum drawer-box width is 8 inches for 1/2-inch material or 8-1/4 inches for 5/8-inch material. Confirm all construction details in the factory guide before building or modifying a drawer.

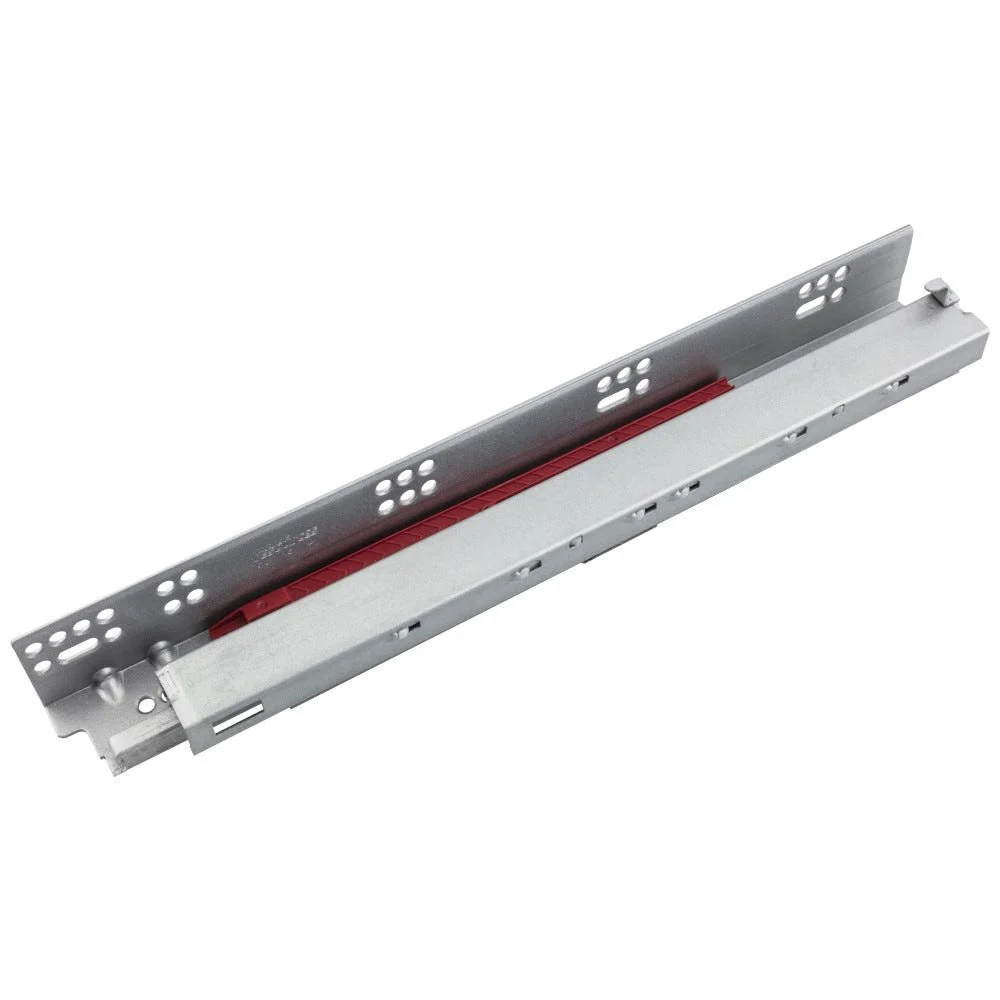

The photo represents the series. The selected model determines the supplied length.

Product documents

Warranty (PDF)

Specifications & measurements (PDF)

Installation instructions (PDF)

Independent load-test report (PDF)
