200 lb Extra-Heavy-Duty Full-Extension Drawer Slides

from $49.86

Support file drawers, wide drawers and other heavier storage with a full-extension ball-bearing slide pair. The 300FU series combines a 200 lb manufacturer load rating with a clear zinc finish and a hold-in detent to help keep the drawer closed.

Features and cabinet fit

Manufacturer-rated 200 lb load capacity and full extension.
Required side space: 1/2 inch per slide. The factory guide specifies a cabinet opening 1 to 1-1/16 inches wider than the drawer box.
Steel construction with clear zinc finish and an approximately 2 inch profile (50.6 mm on the factory drawing).
Non-handed trigger disconnect separates the drawer and cabinet members for installation.
Synthetic rubber hold-in detent helps prevent bounce-back and roll-out.
The installation guide lists two slides and 16 installation screws. Recommended mounting fasteners are 6.3 mm Euro screws or #8 × 7/16 inch truss-head screws; verify suitability for your cabinet material.

Choose your nominal length

12 in — 300FU12
Factory closed cabinet-member length: 300 mm.
Price per pair: $49.86

14 in — 300FU14
Factory closed cabinet-member length: 350 mm.
Price per pair: $58.28

16 in — 300FU16
Factory closed cabinet-member length: 400 mm.
Price per pair: $62.98

18 in — 300FU18
Factory closed cabinet-member length: 450 mm.
Price per pair: $73.66

20 in — 300FU20
Factory closed cabinet-member length: 500 mm.
Price per pair: $82.49

22 in — 300FU22
Factory closed cabinet-member length: 550 mm.
Price per pair: $91.44

24 in — 300FU24
Factory closed cabinet-member length: 600 mm.
Price per pair: $94.75

26 in — 300FU26
Factory closed cabinet-member length: 650 mm.
Price per pair: $102.67

28 in — 300FU28
Factory closed cabinet-member length: 700 mm.
Price per pair: $110.63

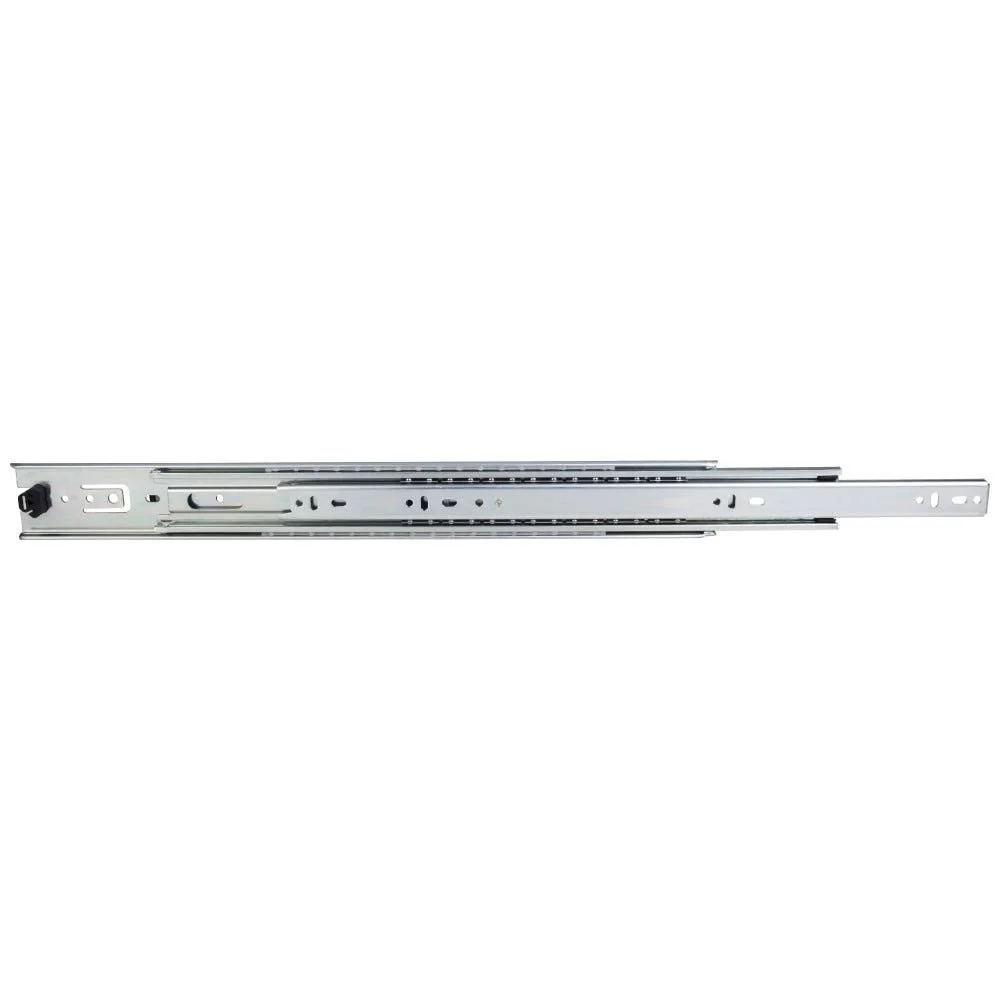

Sold per pair for one drawer. Inch options are nominal; confirm actual cabinet depth and mounting-hole positions against the factory drawing before ordering. The photo represents this series. Cabinetry and drawer boxes are sold separately.

Product documents

The independent reports identify an 18-inch sample tested with 200 lb in both 16-inch-wide and 24-inch-wide drawers; these are not separate tests of every slide length.

Product dimensions & drawings (PDF)
Installation instructions (PDF)
Independent test reports (PDF)
Product warranty (PDF)
