225 lb Extra-Heavy-Duty Drawer Slides — 1 in Overtravel

from $90.49

Bring the contents of larger drawers fully into reach with an extra-heavy-duty ball-bearing slide pair. The 209FU series extends 1 inch beyond the slide length for access at the back of the drawer.

Features and fit

Manufacturer-rated 225 lb load capacity with 1 inch of overtravel.
Required side clearance: 3/4 inch per slide. The factory guide specifies a drawer opening 1-1/2 to 1-9/16 inches wider than the drawer box.
Zinc finish and 54 mm slide profile; side mounting in a compatible frameless cabinet installation.
Lubricated steel ball bearings, non-handed trigger disconnect and a synthetic rubber hold-in detent to help prevent bounce-back and roll-out.
The factory installation guide lists two drawer slides and 16 installation screws. Cabinetry and drawer boxes are sold separately.

Choose your nominal length

16 in — 209FU16
Factory cabinet-member length: 406 mm. Verify actual cabinet depth, mounting clearances and hole positions using the drawing.
Price per pair: $90.49

18 in — 209FU18
Factory cabinet-member length: 457 mm. Verify actual cabinet depth, mounting clearances and hole positions using the drawing.
Price per pair: $101.79

20 in — 209FU20
Factory cabinet-member length: 508 mm. Verify actual cabinet depth, mounting clearances and hole positions using the drawing.
Price per pair: $113.13

22 in — 209FU22
Factory cabinet-member length: 559 mm. Verify actual cabinet depth, mounting clearances and hole positions using the drawing.
Price per pair: $124.36

24 in — 209FU24
Factory cabinet-member length: 610 mm. Verify actual cabinet depth, mounting clearances and hole positions using the drawing.
Price per pair: $135.67

26 in — 209FU26
Factory cabinet-member length: 661 mm. Verify actual cabinet depth, mounting clearances and hole positions using the drawing.
Price per pair: $146.93

28 in — 209FU28
Factory cabinet-member length: 712 mm. Verify actual cabinet depth, mounting clearances and hole positions using the drawing.
Price per pair: $158.31

30 in — 209FU30
Factory cabinet-member length: 763 mm. Verify actual cabinet depth, mounting clearances and hole positions using the drawing.
Price per pair: $169.61

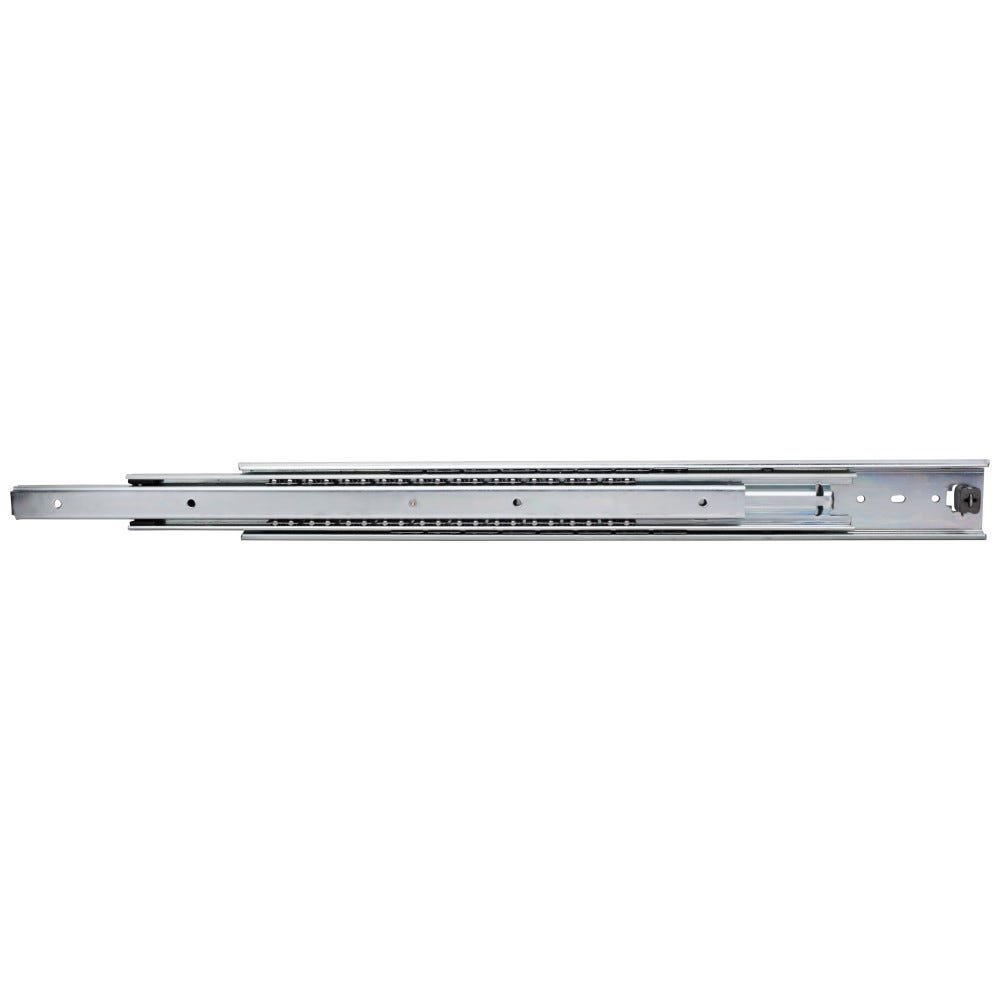

Sold per pair for one drawer. Inch lengths are nominal selection sizes. The photo represents the 209FU series; the selected model determines the supplied length.

Product documents

The independent report identifies an 18-inch sample tested at 225 lb; it is not a separate test of every length.

Dimensions & mounting drawings (PDF)
Installation instructions (PDF)
Independent test report (PDF)
Product warranty (PDF)
