Adjustable Rear Mounting Brackets for 303-Series Drawer Slides

Support compatible 303-series drawer slides at the rear cabinet wall. Choose the screw-mount bracket or the dowel-mount version to match your cabinet construction. Both are sold as a pair, separately from the drawer slides.

Choose your mounting style

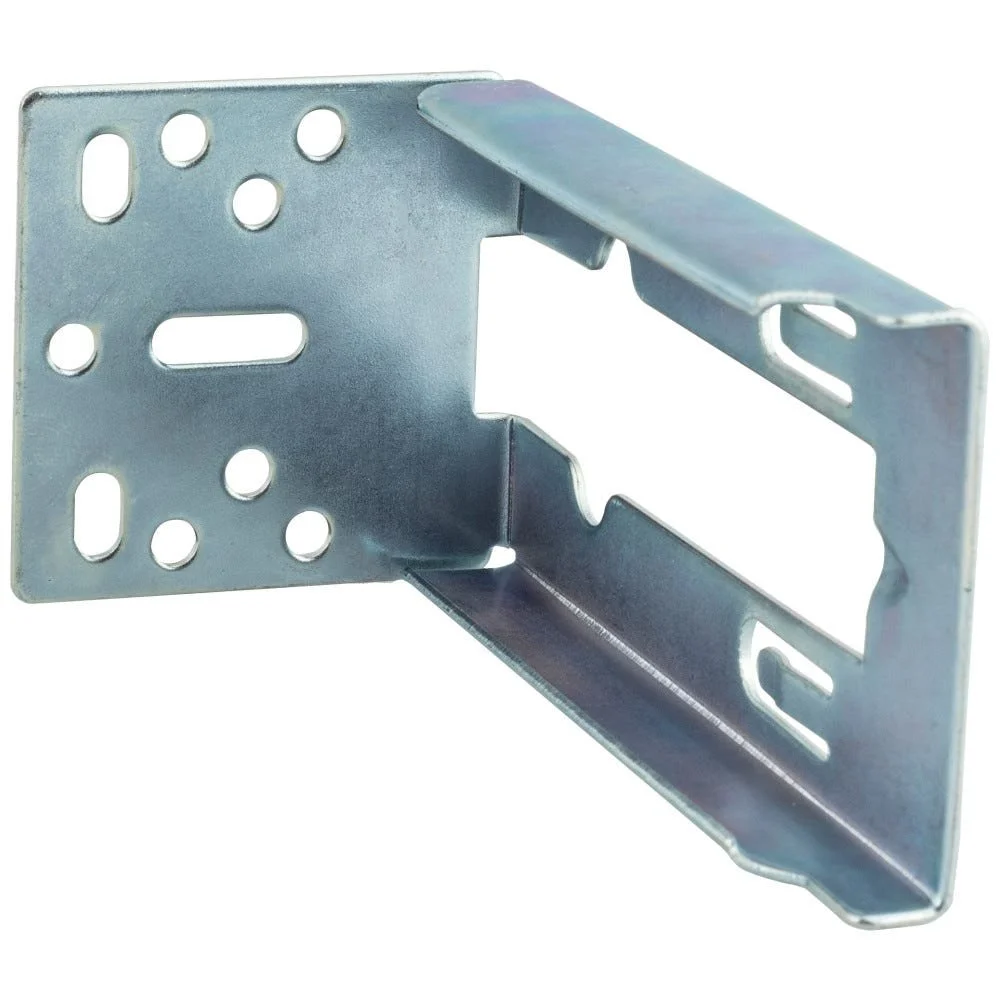

Screw mount — 303FUSFT2
Zinc-finished steel bracket with slotted holes for vertical and horizontal positioning, plus up to 3 inches of depth adjustment. Recommended fastener: #6 pan-head wood screw.
Price per pair: $3.28

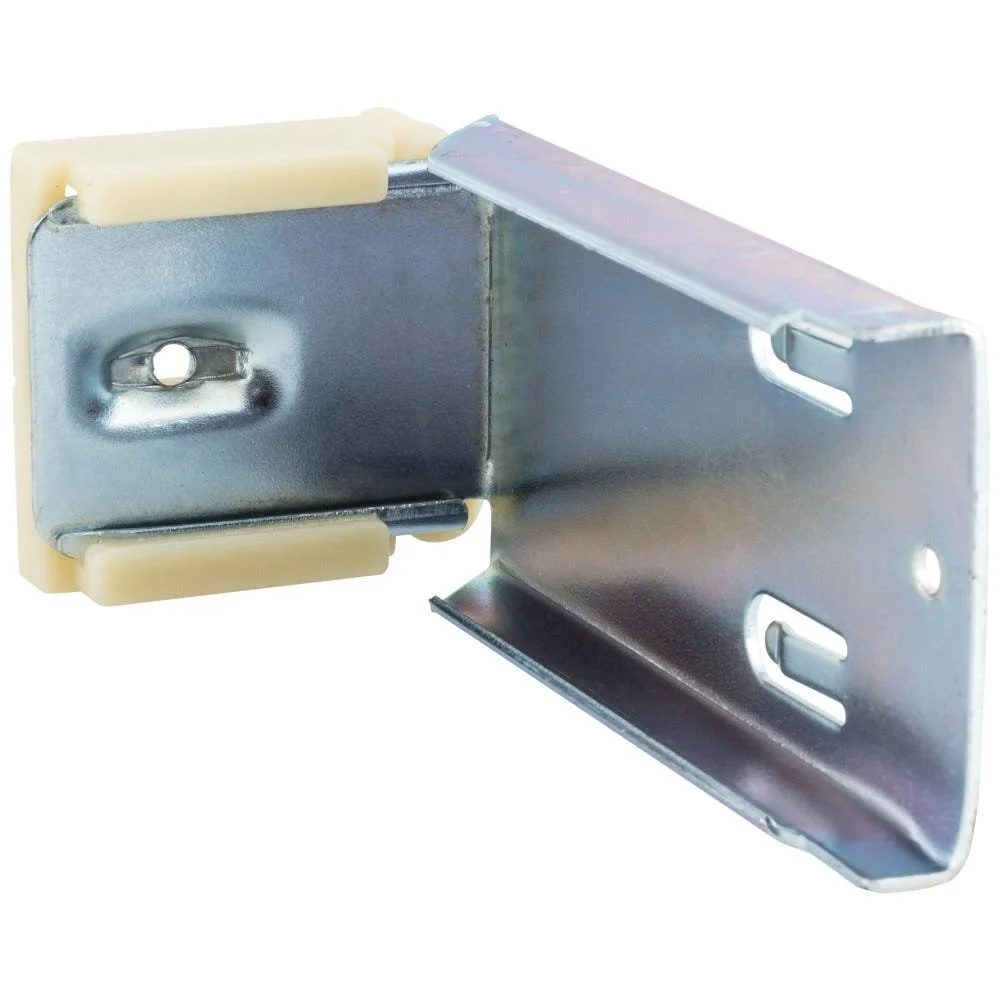

10 mm dowel mount — 303FUSFT6
Steel bracket with plastic dowels for predrilled 10 mm system holes on 32 mm centers. Laterally self-adjusting with up to 3 inches of depth adjustment. Published overall dimensions: 120 mm long × 49 mm wide × 45 mm high.
Price per pair: $4.84

Compatibility and ordering

• Manufacturer-listed for compatible 303-200, 303FUSFT, 303-300 and 303-325 slide series; the supplier also names 303FU in its compatibility features.
• Verify the selected slide series, rear mounting arrangement and hole layout before ordering.
• One pair of rear brackets is supplied. Drawer slides, cabinetry and installation screws are sold separately.
• Choose the correct mounting style; the matching photo shows the selected bracket configuration.

Product documents

Compatible 303FUSFT slide installation guide (PDF)

Warranty (PDF)
