Adjustable Release Clip Pairs for USE58-500 Undermount Slides

from $5.92

Secure and align a drawer box on USE58-500 synchronized undermount slides with a matching left-and-right release clip pair. Choose a four-way plastic base, four-way zinc base or six-way zinc base.

Compatible fit

For USE58-500 series slides and 1/2 to 5/8 inch drawer-box sides.
Sold as one left-and-right pair in the selected configuration.
All options provide up to 3 mm vertical adjustment and ±2 mm horizontal adjustment. The six-way model also provides up to 2.5 mm depth adjustment, per the factory drawing.
Black components with red adjustment controls; zinc-base models add a heavy-duty base beneath the clip assembly.
With these clips, the installation guide lists minimum drawer-box widths of 8 inches for 1/2-inch sides or 8-1/4 inches for 5/8-inch sides.
Slides, drawer boxes and mounting screws are sold separately.

Choose the clip pair

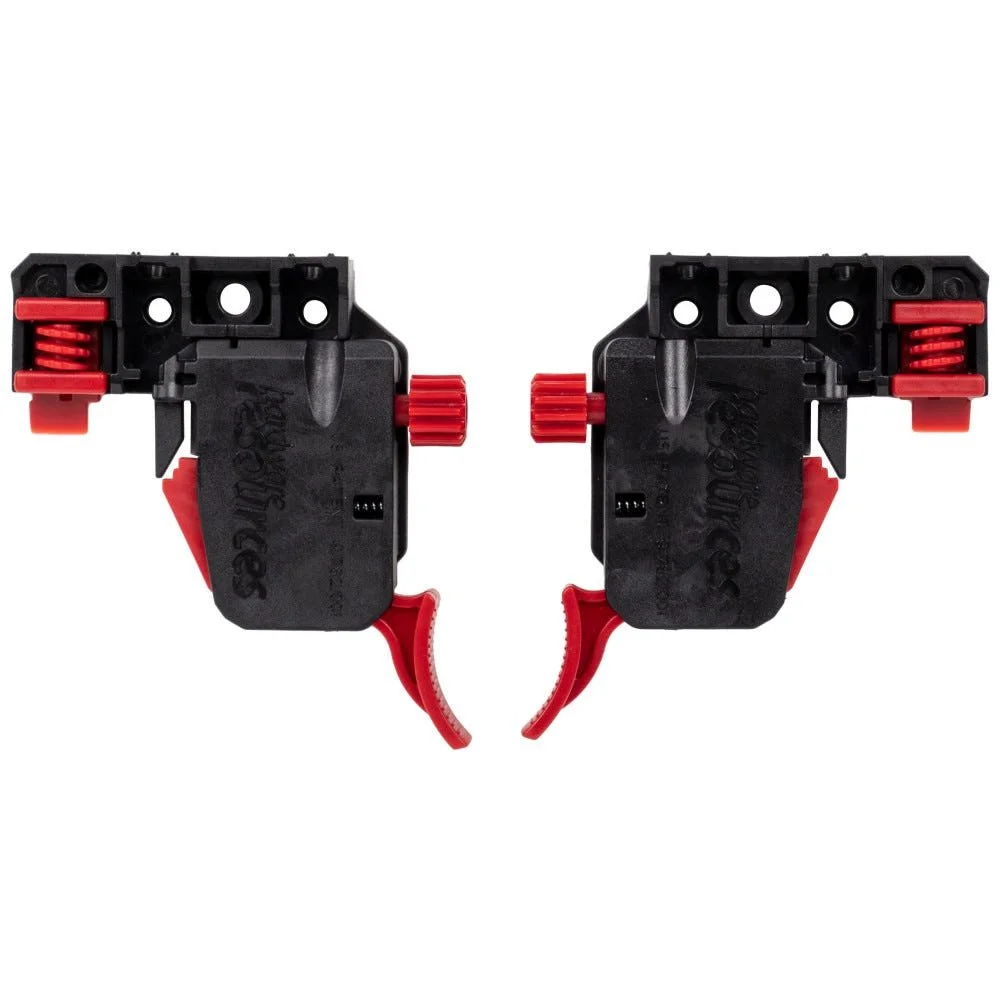

4-way plastic base
Exact model: USCLIP500-2-4W
Price per pair: $5.92

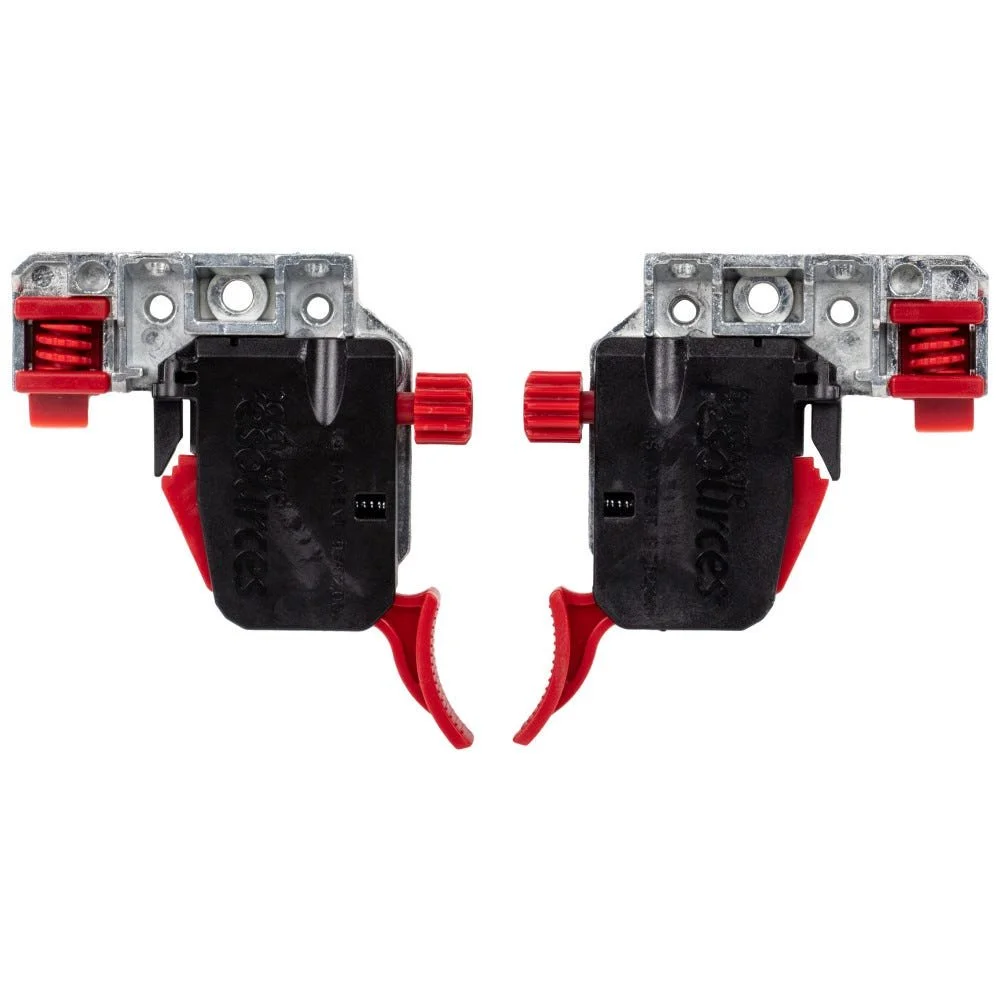

4-way zinc base
Exact model: USCLIP500-2-4WZ
Price per pair: $8.53

6-way zinc base
Exact model: USCLIP500-2-6WZ
Price per pair: $9.05

Each option has its own product photo. Refer to the supplied series drawings and installation guide for final clearances and adjustment locations.

Product documents

USE58-500 installation instructions (PDF)

Warranty (PDF)

Four-way clip specifications (PDF)

Six-way clip specifications (PDF)
