Side-mount ball-bearing slide pairs with soft closing and relaxed opening force. Choose from ten nominal lengths for face-frame or frameless cabinet applications.
303-300 series, sold as one left-and-right pair.
Manufacturer-rated 100 lb load capacity.
The 10-inch model has three-quarter extension. Models 12 through 28 inches are full extension.
Zinc-finished cold-rolled steel, nominal 45 mm slide height.
Allow 1/2 inch clearance on each side of the drawer; verify drawer width, cabinet depth and screw positions before installation.
Non-handed trigger disconnect permits drawer removal.
Retained bearing cage helps during installation; a synthetic-rubber hold-in detent helps prevent bounce-back and unintended roll-out.
Mounting screws and optional face-frame brackets are sold separately. The factory guide recommends #8 × 7/16 inch truss-head screws.
Inch sizes are nominal selection sizes. The closed metal lengths below come from the factory drawing. Use that drawing for final hole patterns and geometry; allow at least the selected nominal cabinet interior depth for the standard installation.
10 in — 303-300-10
Travel: Three-quarter extension.
Factory closed metal length: 250 mm.
Price per pair: $22.82
12 in — 303-300-12
Travel: Full extension.
Factory closed metal length: 300 mm.
Price per pair: $25.04
14 in — 303-300-14
Travel: Full extension.
Factory closed metal length: 350 mm.
Price per pair: $27.20
16 in — 303-300-16
Travel: Full extension.
Factory closed metal length: 400 mm.
Price per pair: $29.34
18 in — 303-300-18
Travel: Full extension.
Factory closed metal length: 450 mm.
Price per pair: $31.41
20 in — 303-300-20
Travel: Full extension.
Factory closed metal length: 500 mm.
Price per pair: $33.57
22 in — 303-300-22
Travel: Full extension.
Factory closed metal length: 550 mm.
Price per pair: $35.75
24 in — 303-300-24
Travel: Full extension.
Factory closed metal length: 600 mm.
Price per pair: $37.85
26 in — 303-300-26
Travel: Full extension.
Factory closed metal length: 650 mm.
Price per pair: $39.98
28 in — 303-300-28
Travel: Full extension.
Factory closed metal length: 700 mm.
Price per pair: $42.03

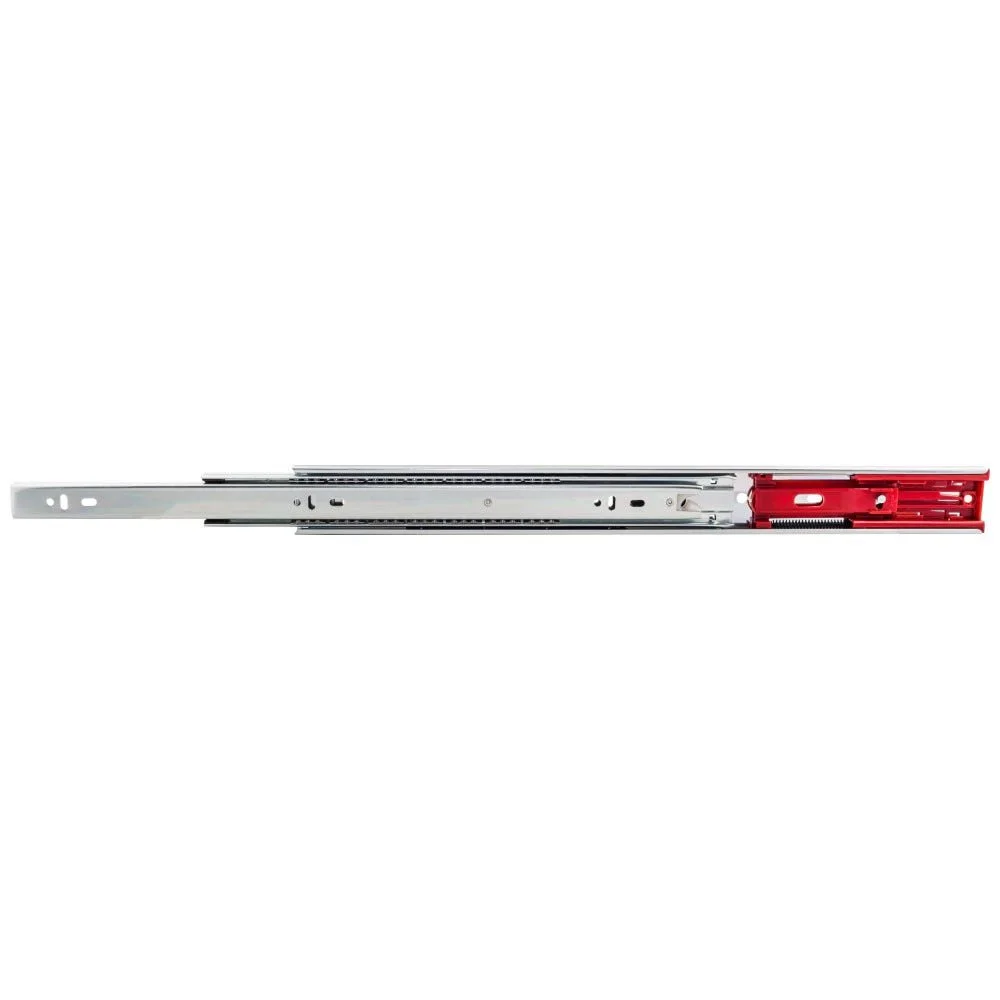

The photo represents this slide series; the selected model determines the supplied length. Drawer boxes and cabinetry are sold separately.
Series drawing & dimensions (PDF)
Side-mount ball-bearing slide pairs with soft closing and relaxed opening force. Choose from ten nominal lengths for face-frame or frameless cabinet applications.
303-300 series, sold as one left-and-right pair.
Manufacturer-rated 100 lb load capacity.
The 10-inch model has three-quarter extension. Models 12 through 28 inches are full extension.
Zinc-finished cold-rolled steel, nominal 45 mm slide height.
Allow 1/2 inch clearance on each side of the drawer; verify drawer width, cabinet depth and screw positions before installation.
Non-handed trigger disconnect permits drawer removal.
Retained bearing cage helps during installation; a synthetic-rubber hold-in detent helps prevent bounce-back and unintended roll-out.
Mounting screws and optional face-frame brackets are sold separately. The factory guide recommends #8 × 7/16 inch truss-head screws.
Inch sizes are nominal selection sizes. The closed metal lengths below come from the factory drawing. Use that drawing for final hole patterns and geometry; allow at least the selected nominal cabinet interior depth for the standard installation.
10 in — 303-300-10
Travel: Three-quarter extension.
Factory closed metal length: 250 mm.
Price per pair: $22.82
12 in — 303-300-12
Travel: Full extension.
Factory closed metal length: 300 mm.
Price per pair: $25.04
14 in — 303-300-14
Travel: Full extension.
Factory closed metal length: 350 mm.
Price per pair: $27.20
16 in — 303-300-16
Travel: Full extension.
Factory closed metal length: 400 mm.
Price per pair: $29.34
18 in — 303-300-18
Travel: Full extension.
Factory closed metal length: 450 mm.
Price per pair: $31.41
20 in — 303-300-20
Travel: Full extension.
Factory closed metal length: 500 mm.
Price per pair: $33.57
22 in — 303-300-22
Travel: Full extension.
Factory closed metal length: 550 mm.
Price per pair: $35.75
24 in — 303-300-24
Travel: Full extension.
Factory closed metal length: 600 mm.
Price per pair: $37.85
26 in — 303-300-26
Travel: Full extension.
Factory closed metal length: 650 mm.
Price per pair: $39.98
28 in — 303-300-28
Travel: Full extension.
Factory closed metal length: 700 mm.
Price per pair: $42.03
The photo represents this slide series; the selected model determines the supplied length. Drawer boxes and cabinetry are sold separately.
Series drawing & dimensions (PDF)
