Mount compatible drawer slides directly to a cabinet floor or fixed shelf when building a rollout drawer. This zinc steel mounting kit uses threaded collars so the slide attachment can be secured with a screwdriver.

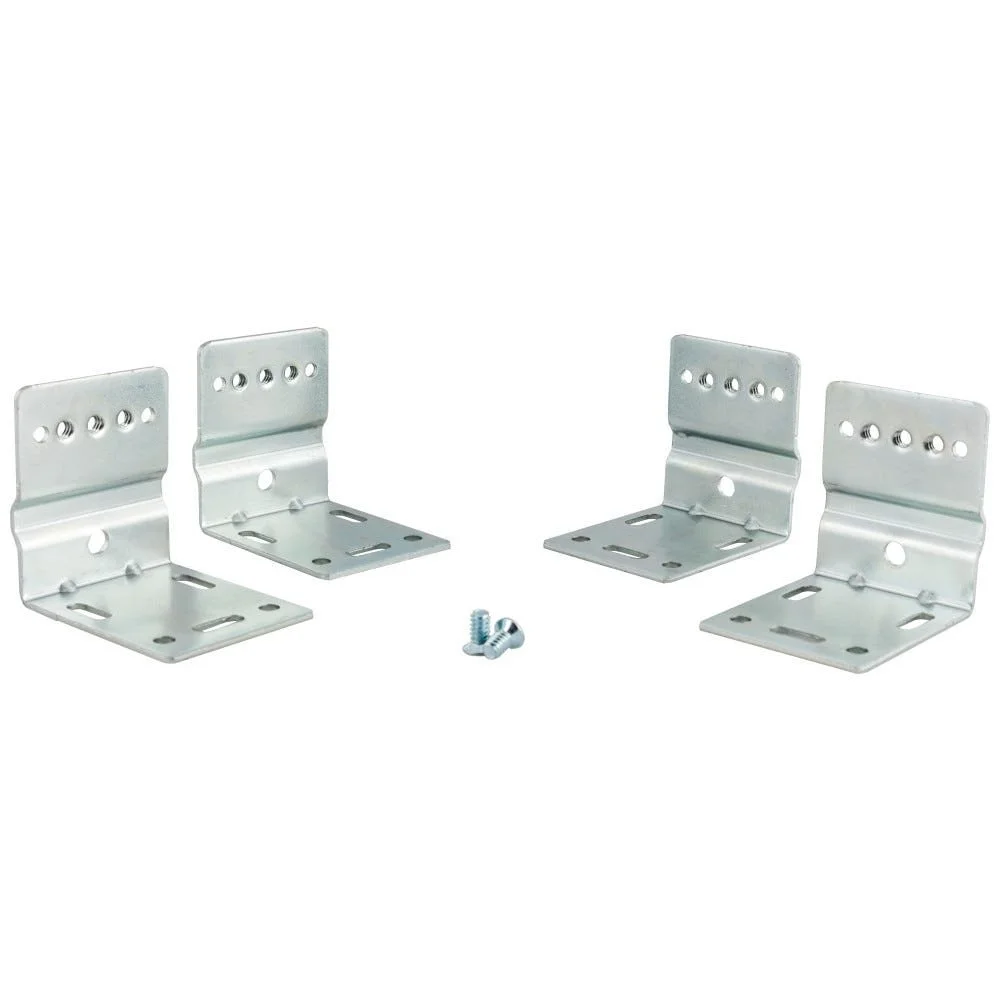

Four L-shaped mounting brackets.
Eight #10-24 × 3/8 inch flat-head attachment screws, as shown on the factory drawing.
Each bracket measures 60 mm long × 45 mm wide × 54 mm high.
Manufacturer-listed for compatible 301FU and 303FU ball-bearing slides and supported USE-series undermount slides. Verify your exact slide and mounting-hole layout against the drawing.
Recommended cabinet-floor fastener: #6 pan-head screw; cabinet-floor screws are sold separately.
Drawer slides, drawer boxes, shelves and cabinetry are sold separately.
SLIDE-KIT — Set of Four Brackets
Price per set: $12.24
Product dimensions & mounting diagram (PDF)
Product warranty (PDF)
Mount compatible drawer slides directly to a cabinet floor or fixed shelf when building a rollout drawer. This zinc steel mounting kit uses threaded collars so the slide attachment can be secured with a screwdriver.
Four L-shaped mounting brackets.
Eight #10-24 × 3/8 inch flat-head attachment screws, as shown on the factory drawing.
Each bracket measures 60 mm long × 45 mm wide × 54 mm high.
Manufacturer-listed for compatible 301FU and 303FU ball-bearing slides and supported USE-series undermount slides. Verify your exact slide and mounting-hole layout against the drawing.
Recommended cabinet-floor fastener: #6 pan-head screw; cabinet-floor screws are sold separately.
Drawer slides, drawer boxes, shelves and cabinetry are sold separately.
SLIDE-KIT — Set of Four Brackets
Price per set: $12.24
Product dimensions & mounting diagram (PDF)
Product warranty (PDF)
