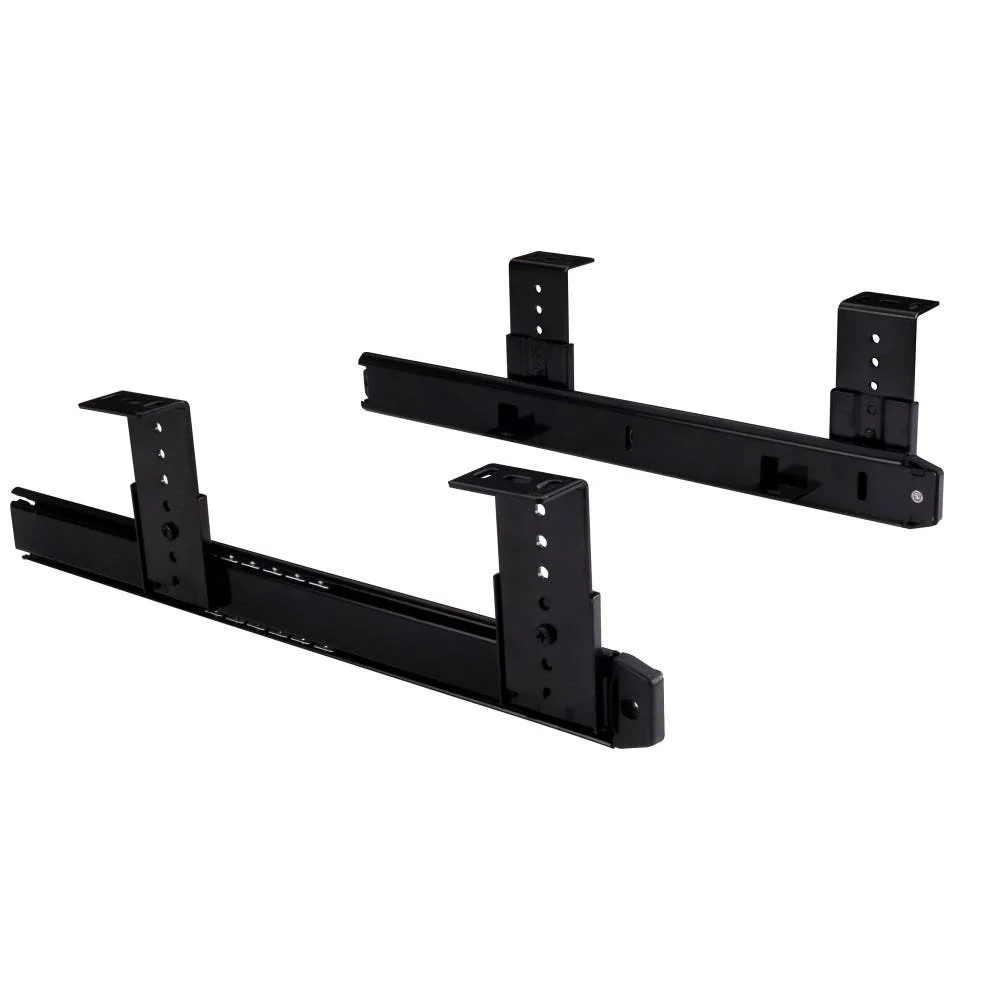

Add a sliding keyboard shelf to a desk or workstation with a height-adjustable pair of black steel keyboard slides. Model 70541BK is supplied without the keyboard tray or shelf, allowing you to use a separate shelf sized for your workspace.
Nominal 14-inch ball-bearing slides; the factory drawing gives a 350 mm slide length.
11-1/4 inches of tray travel; manufacturer classifies the slide as 3/4 extension.
Mounting-height range 52–98 mm, approximately 2 to 3-7/8 inches, depending on bracket position.
Reversible L-shaped brackets support inward or outward mounting.
Allow a mounting space 3 inches wider than the keyboard shelf for outward mounting, or 1-5/16 inches wider for inward mounting.
Cold-rolled steel with a black powder-coat finish.
One left and one right slide assembly.
Four L-shaped mounting brackets.
Four M4 × 5 machine screws, twelve #8 × 5/8 inch pan-head wood screws and two plastic protectors, as listed in the factory installation guide.
Keyboard tray/shelf is sold separately. Verify mounting clearances, shelf size and screw suitability for your installation.
70541BK — Black Slide Pair
Price per pair: $26.41
Keyboard-slide drawing and dimensions (PDF)
