Heavy-Duty Soft-Close Full-Extension Side-Mount Drawer Slides

from $24.30

Bring smooth full-extension access and controlled soft closing to everyday cabinetry. These 303FUSFT side-mount ball-bearing slides are sold as a pair for one drawer, with nine nominal lengths from 12 to 28 inches.

Features and fit

Manufacturer-rated 100 lb load capacity with full extension and soft closing.
Zinc-finished cold-rolled steel, nominal 45 mm slide height and 1/2 inch side clearance per slide.
Non-handed trigger disconnect allows drawer removal. Lubricated steel ball bearings and a retained bearing cage help with smooth travel and installation.
Steel member thicknesses: 1.0 × 1.0 × 1.2 mm.
Recommended fasteners: 6.3 mm Euro screws or #8 × 7/16 inch truss-head screws. Screws, optional mounting brackets and cabinetry are sold separately.

Choose your slide length

12 in — 303FUSFT12
Full extension; minimum cabinet depth 12 in. Factory closed slide dimension A: 300 mm.
Price per pair: $24.30

14 in — 303FUSFT14
Full extension; minimum cabinet depth 14 in. Factory closed slide dimension A: 350 mm.
Price per pair: $26.44

16 in — 303FUSFT16
Full extension; minimum cabinet depth 16 in. Factory closed slide dimension A: 400 mm.
Price per pair: $28.51

18 in — 303FUSFT18
Full extension; minimum cabinet depth 18 in. Factory closed slide dimension A: 450 mm.
Price per pair: $30.53

20 in — 303FUSFT20
Full extension; minimum cabinet depth 20 in. Factory closed slide dimension A: 500 mm.
Price per pair: $32.62

22 in — 303FUSFT22
Full extension; minimum cabinet depth 22 in. Factory closed slide dimension A: 550 mm.
Price per pair: $34.72

24 in — 303FUSFT24
Full extension; minimum cabinet depth 24 in. Factory closed slide dimension A: 600 mm.
Price per pair: $36.76

26 in — 303FUSFT26
Full extension; minimum cabinet depth 26 in. Factory closed slide dimension A: 650 mm.
Price per pair: $38.81

28 in — 303FUSFT28
Full extension; minimum cabinet depth 28 in. Factory closed slide dimension A: 700 mm.
Price per pair: $40.84

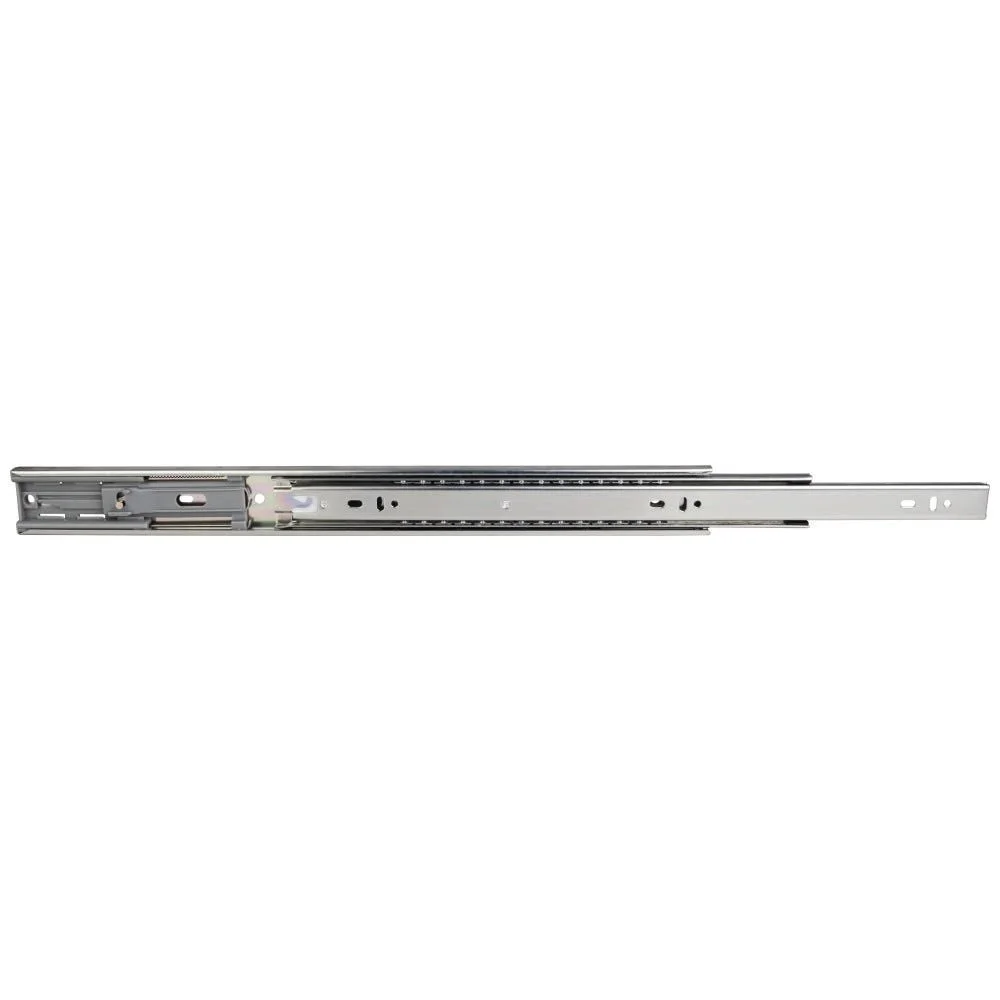

Inch lengths are nominal selection sizes. Verify the factory drawing, installation clearances and screw positions before ordering. The photo represents this slide series; the selected model determines the supplied length.

Product documents

The independent report covers an 18-inch series sample tested with a 100 lb drawer load; it is not a separate test of every length.

Series drawing & dimensions (PDF)

Installation instructions (PDF)

18-inch series model test report (PDF)

Warranty (PDF)
