Narrow 2-Way Release Clip Pairs for Undermount Drawer Slides

Fit a compatible undermount drawer slide to a narrow drawer box with a two-way release clip pair. Select the clip for your slide series: standard 50/100/300 or synchronized 500.

What you receive

• One left-and-right clip pair in the selected series.
• Up to 3 mm (1/8 in) vertical adjustment.
• For 1/2 to 5/8 inch drawer-box sides; minimum drawer width depends on the clip selected below.
• Plastic construction with a model-specific product photo.
• Slides, drawer boxes and mounting screws are sold separately.

Choose the compatible series

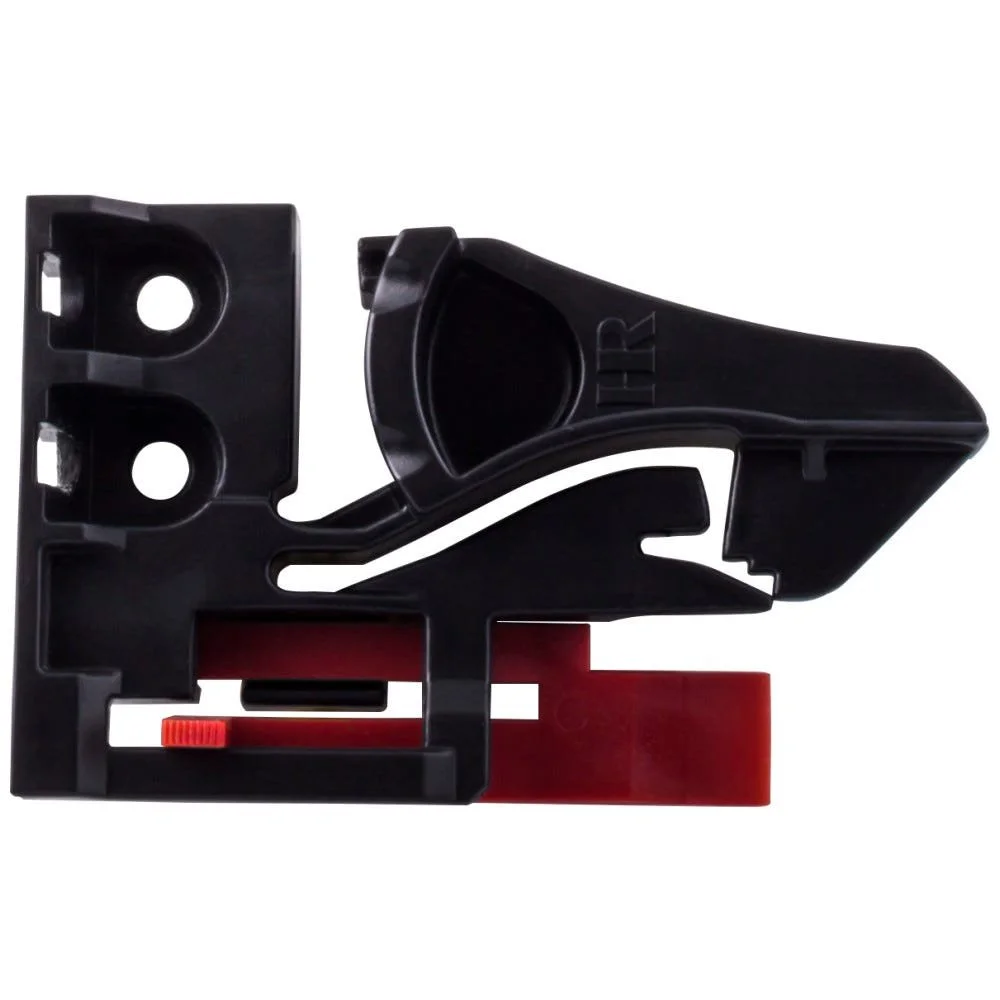

Standard 50/100/300 — US-CLIP-NR
Black finish. For compatible USE58-50, USE58-100 and USE58-300 slides.
Minimum drawer-box width: 4-1/2 in with 1/2-in sides; 4-3/4 in with 5/8-in sides.
Price per pair: $5.18

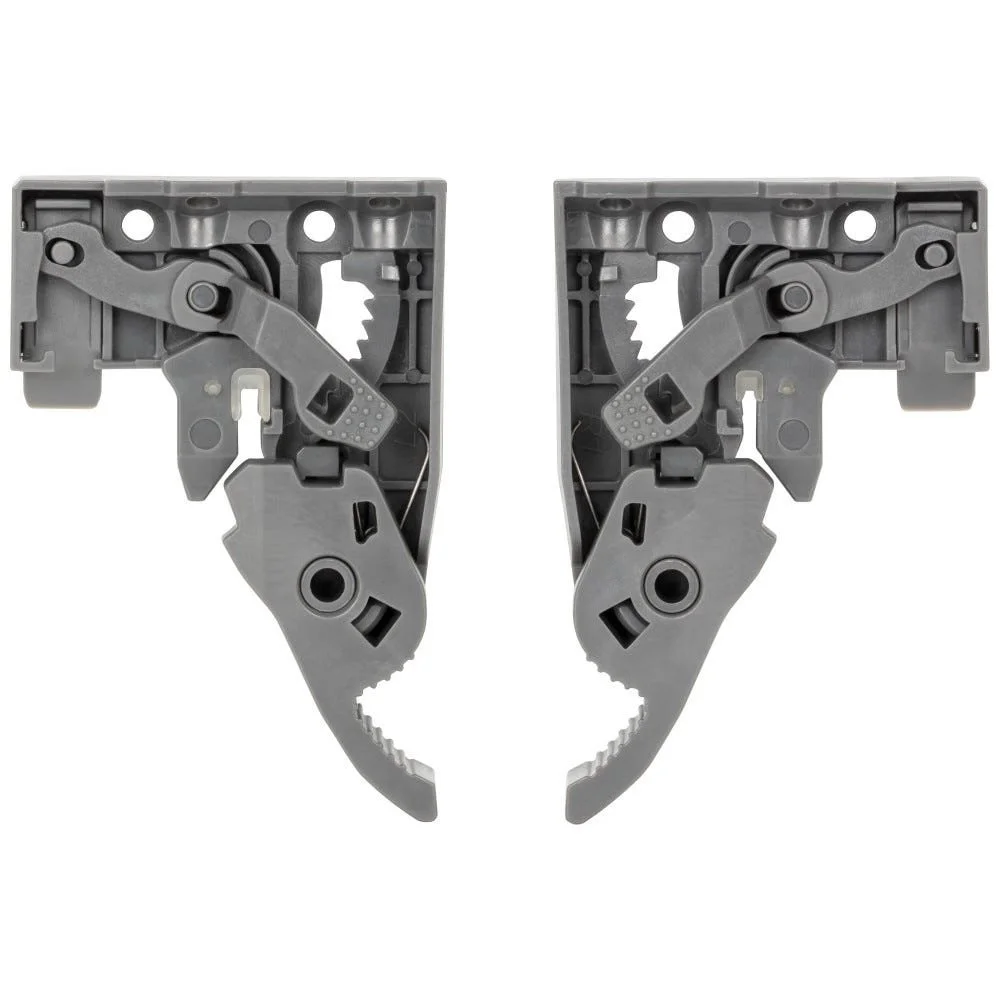

Synchronized 500 — USCLIP500-NR
Matte grey appearance. For compatible 500-series undermount slides.
Minimum drawer-box width: 6 in with 1/2-in sides; 6-1/4 in with 5/8-in sides.
Listed clip dimensions: 81.41 mm long × 54.9 mm wide × 12.91 mm high.
Price per pair: $5.27

Confirm the exact slide model and drawer construction before ordering. These two clip types have different fit requirements and should be selected by slide compatibility.
