Performance Soft-Close Full-Extension Undermount Drawer Slides

Concealed undermount slides with smooth full-extension travel, soft closing and reduced opening force. Select the length of your drawer box to choose the matching pair.

Performance and construction

• USMAX2 non-synchronized Performance Series, sold as one left-and-right pair.

• Manufacturer-advertised 120 lb dynamic load rating. The linked independent report documents an 18-inch USMAX2-18 pair passing 50,000 cycles with a 120 lb drawer test load.

• Zinc-finished steel for face-frame or frameless cabinetry.

• For drawer-box sides 1/2 to 5/8 inch thick; follow the factory notching, boring and clearance requirements.

• Slotted mounting holes support alignment during installation.

• Attachment clips, mounting screws and rear brackets are sold separately. Face-frame installations require compatible rear brackets.

• The 9-inch option requires USE-STEEL-309 rear brackets when used in face-frame cabinetry.

• Compatible release clips: USMAXCLIPN, USMAXCLIP4W, USMAXCLIP4WZ or USMAXCLIP6WZ. Choose the clip for your drawer width and desired adjustments.

Choose your drawer-box length

The selected 9–24 inch size is the nominal drawer-box length, not the overall metal slide length. The factory guide provides these cabinet-depth limits for its standard installation. Inset fronts require additional setback; use the guide for final fitting.

9 in — USMAX2-9
Frameless minimum interior depth: 10-1/2 in
Face-frame interior depth range: 10-1/2 to 11-3/4 in
MDI price per pair: $30.76

12 in — USMAX2-12
Frameless minimum interior depth: 12-5/8 in
Face-frame interior depth range: 12-7/8 to 14 in
MDI price per pair: $34.40

15 in — USMAX2-15
Frameless minimum interior depth: 15-5/8 in
Face-frame interior depth range: 15-7/8 to 17 in
MDI price per pair: $36.38

18 in — USMAX2-18
Frameless minimum interior depth: 18-5/8 in
Face-frame interior depth range: 18-7/8 to 20 in
MDI price per pair: $40.72

21 in — USMAX2-21
Frameless minimum interior depth: 21-5/8 in
Face-frame interior depth range: 21-7/8 to 23 in
MDI price per pair: $43.45

24 in — USMAX2-24
Frameless minimum interior depth: 24-5/8 in
Face-frame interior depth range: 24-7/8 to 26 in
MDI price per pair: $53.77

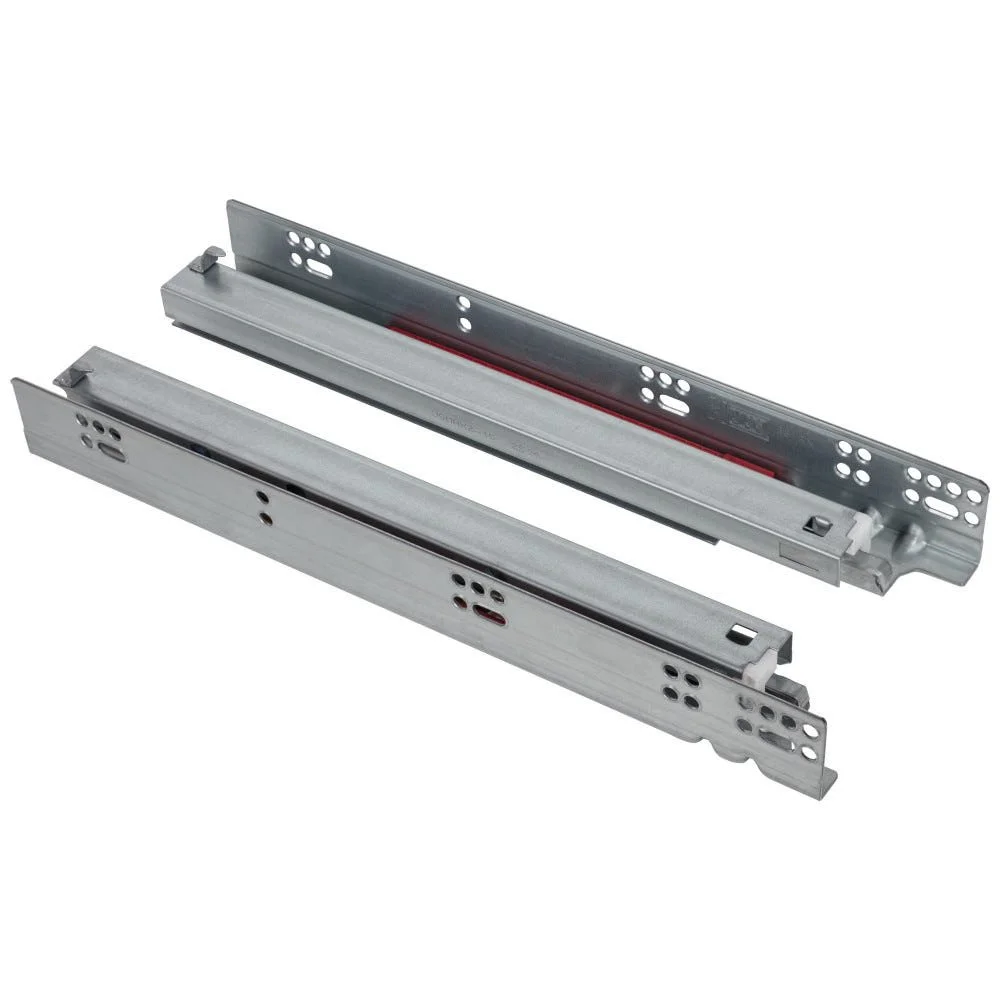

Product photos are representative of the series. The selected model determines the supplied length. Drawer boxes and cabinetry are sold separately.

Product documents

Warranty (PDF)

Specifications & measurements (PDF)

Installation instructions (PDF)

Independent load-test report (PDF)
