Support compatible undermount drawer slides at the rear of a face-frame cabinet. Choose a plastic system-hole bracket or steel surface-mount bracket to suit the exact slide and cabinet installation.
One left-and-right bracket pair in the selected style.
Slides, release clips, cabinet and installation screws are sold separately.
Plastic system-hole styles use predrilled 8 mm mounting holes and provide lateral adjustment.
The standard steel style has slotted installation holes for vertical and horizontal alignment.
Choose the bracket specified in the installation guide for your exact slide; the special nine-inch style is a separate option.

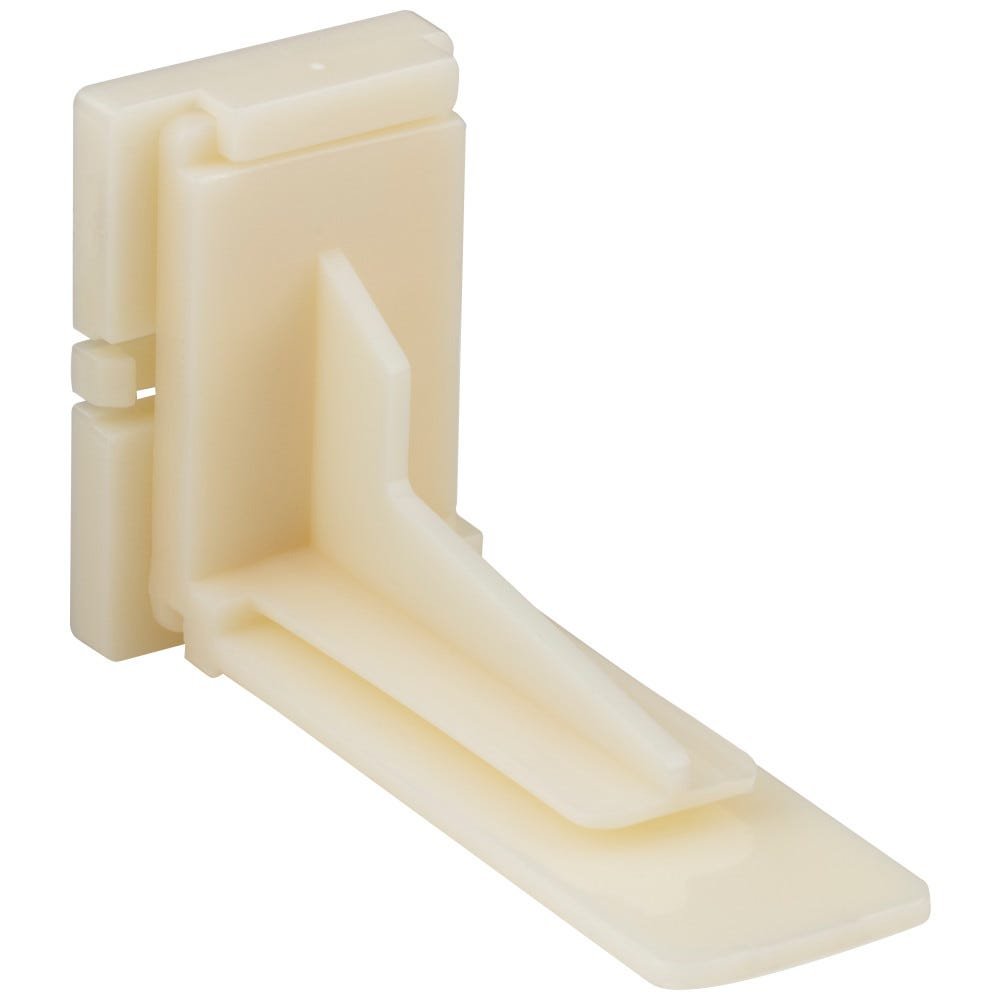

Adjustable Plastic — USE-ADJ
Almond plastic with 8 mm dowels and lateral adjustment.
Shown as a compatible rear bracket in the USE58-500 installation guide.
Price per pair: $3.91

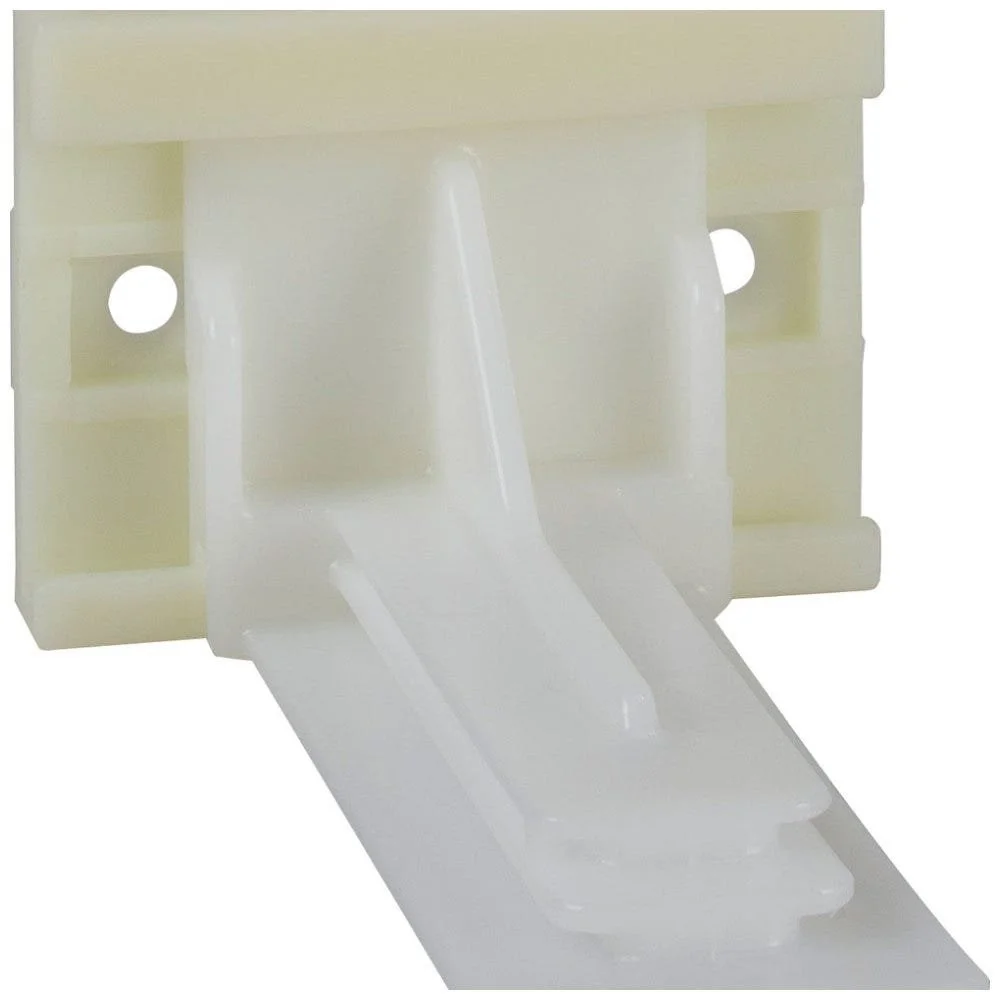

Adjustable Plastic — USE-ADJ5
Almond plastic with 8 mm dowels and lateral adjustment.
Supplier-listed applications include USE58-500, USE58-300 and USE58-50; follow the slide guide for model-specific fit.
Price per pair: $6.08
Standard Steel — USE-STEEL
Zinc/galvanized steel, surface mount, slotted installation holes.
Factory drawing dimensions: 71 mm projection × 36 mm width × 57 mm height.
For compatible installations where the slide guide specifies USE-STEEL.
Price per pair: $1.31

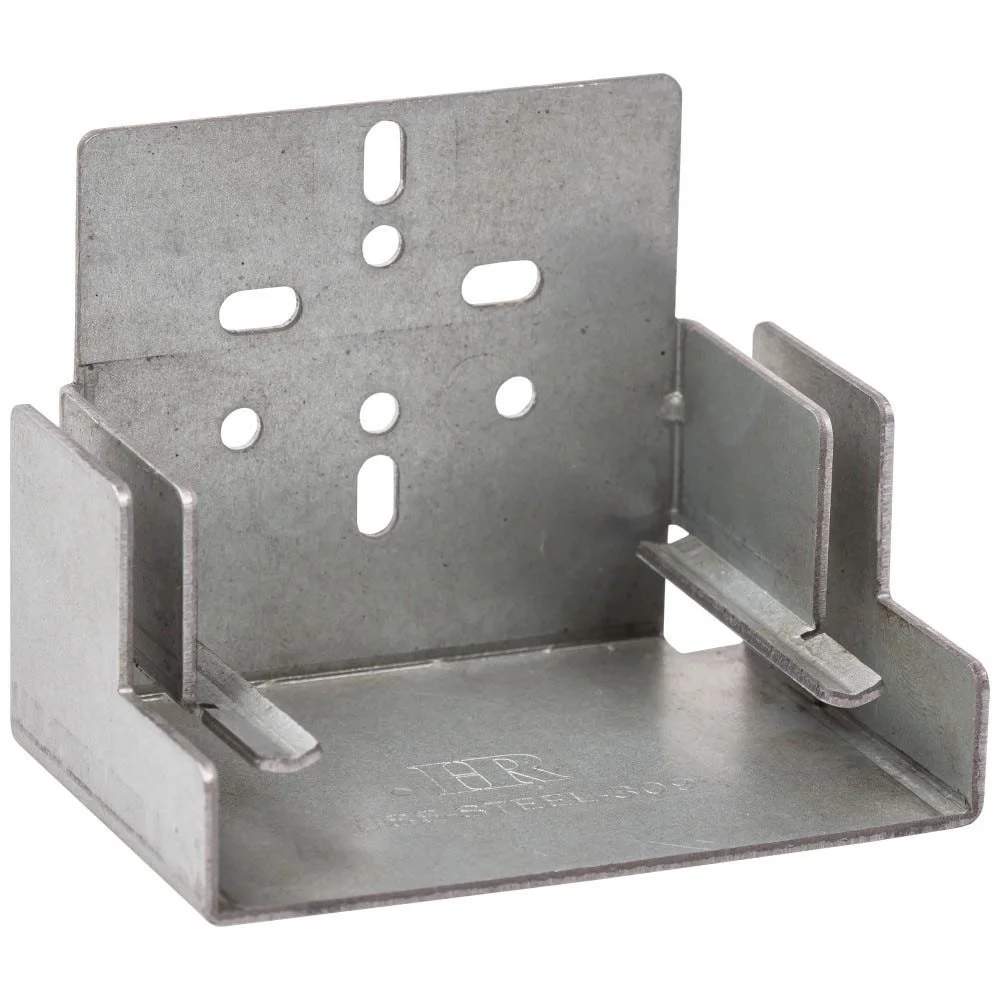

Special Nine-Inch Slide Bracket — USE-STEEL-309
Zinc-finished steel for the special nine-inch installation specified by the slide guide, including USE58-300-9.
Price per pair: $9.88
Each option has a matching model photo. Check cabinet depth and mounting clearances before installing. The supplied guides identify bracket selection and screw placement; the separate steel drawing applies to USE-STEEL.
USE58-300 installation & bracket selection (PDF)
