Rear Mounting Brackets for 301FU Drawer Slides

from $3.58

Choose the rear mounting support that fits your 301FU-series drawer-slide installation. Both options mount at the rear cabinet wall and are sold as a pair, separately from the slides.

Choose your bracket

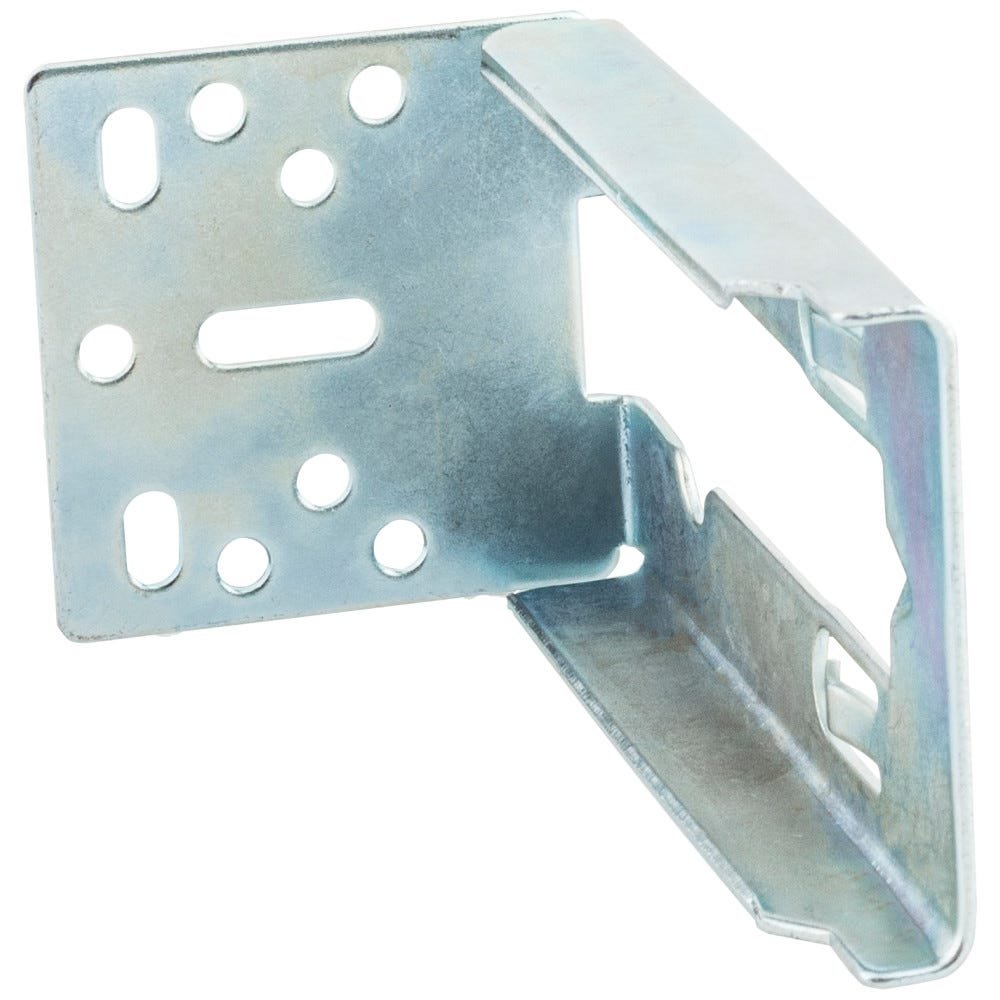

Standard steel — 301FU2
Zinc-finished solid steel with slotted holes for vertical and horizontal positioning. Provides up to 3 inches of depth adjustment. Recommended fastener: #6 pan-head screw.
Price per pair: $3.58

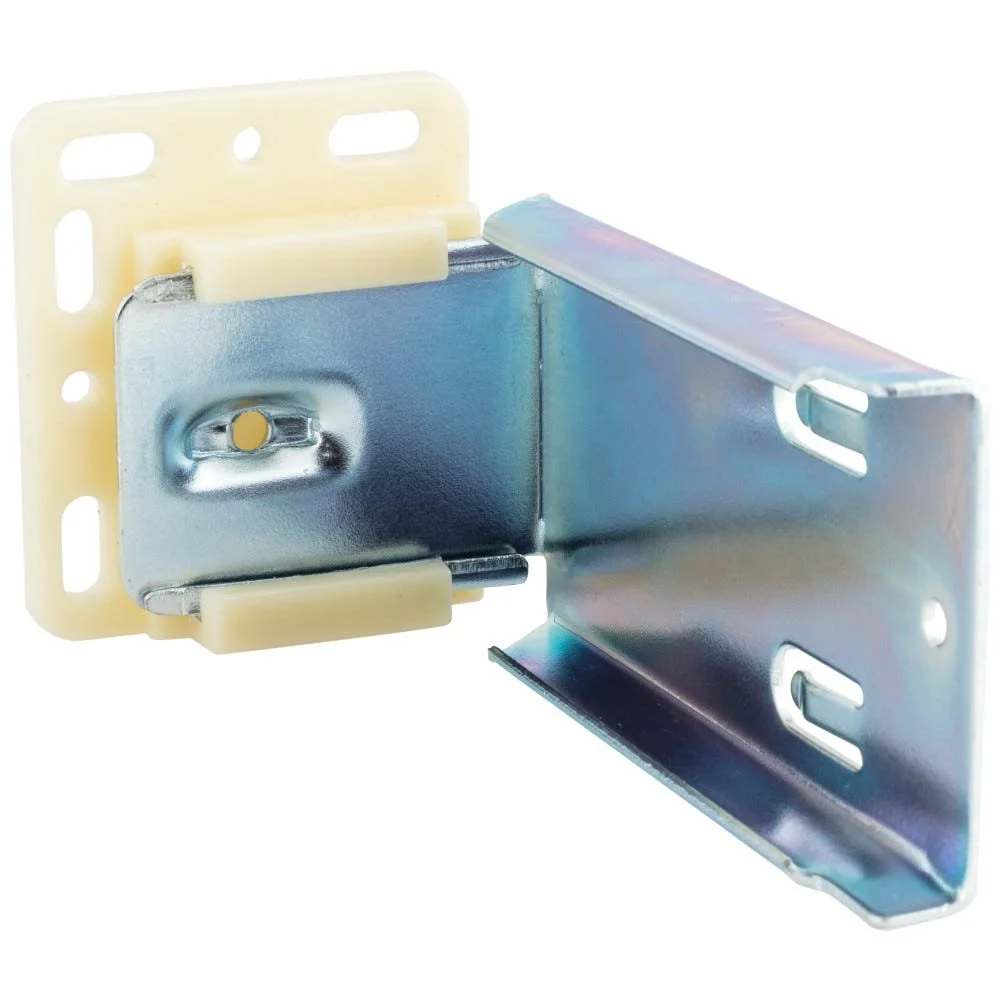

Self-adjusting — 301FU3
Steel construction with a plastic bracket that laterally self-adjusts. Provides up to 3 inches of depth adjustment. Recommended fastener: #6 pan-head screw.
Price per pair: $4.61

Fit and ordering

Designed for compatible 301FU-series slides. Confirm slide model and the cabinet rear mounting arrangement before ordering.
Use the factory diagrams for exact geometry and mounting-hole positions.
Each option includes a pair of rear brackets. Drawer slides, cabinetry and installation screws are sold separately.
The selected mounting style has its own matching thumbnail photo.

Product documents

Standard and self-adjusting bracket drawings (PDF)

Warranty (PDF)

Mounting Style:
