Choose a rear bracket arrangement to match your 303FU or 303-50/100/150-series drawer slides and cabinet construction. All four configurations are sold as pairs, separately from the slides.

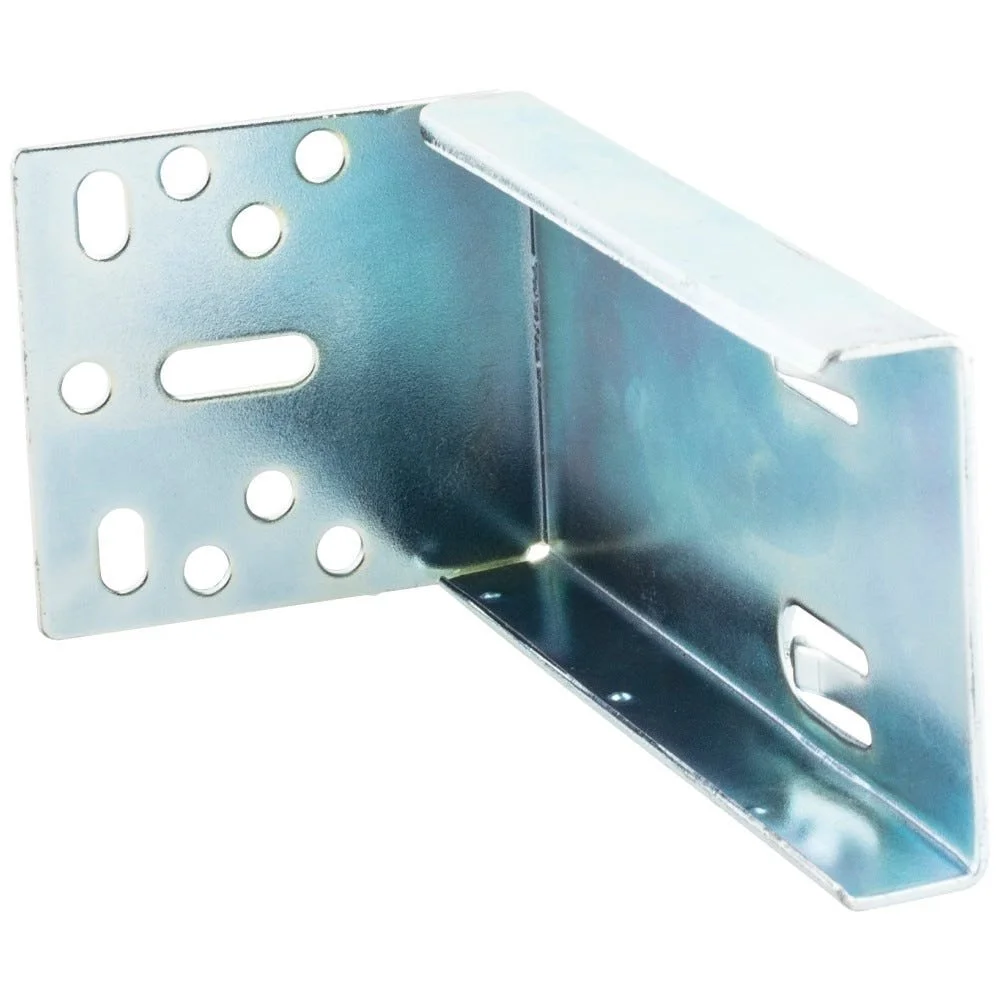

Standard screw mount — 303FU2
Zinc-finished steel with slotted holes for vertical and horizontal positioning and up to 3 inches of depth adjustment. Recommended fastener: #6 pan-head wood screw.
Price per pair: $2.57

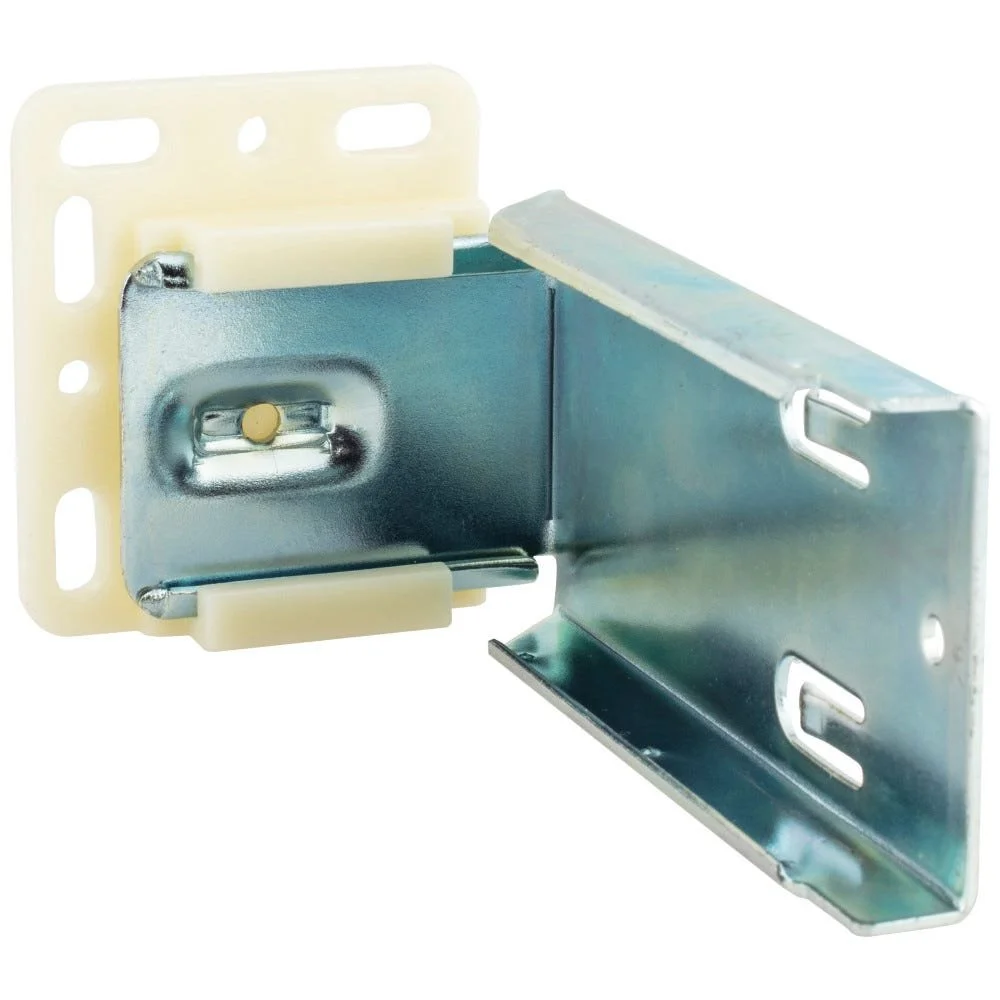

Self-adjusting screw mount — 303FU3
Steel and plastic construction with lateral self-adjustment and up to 3 inches of depth adjustment. Recommended fastener: #6 pan-head wood screw.
Price per pair: $4.16

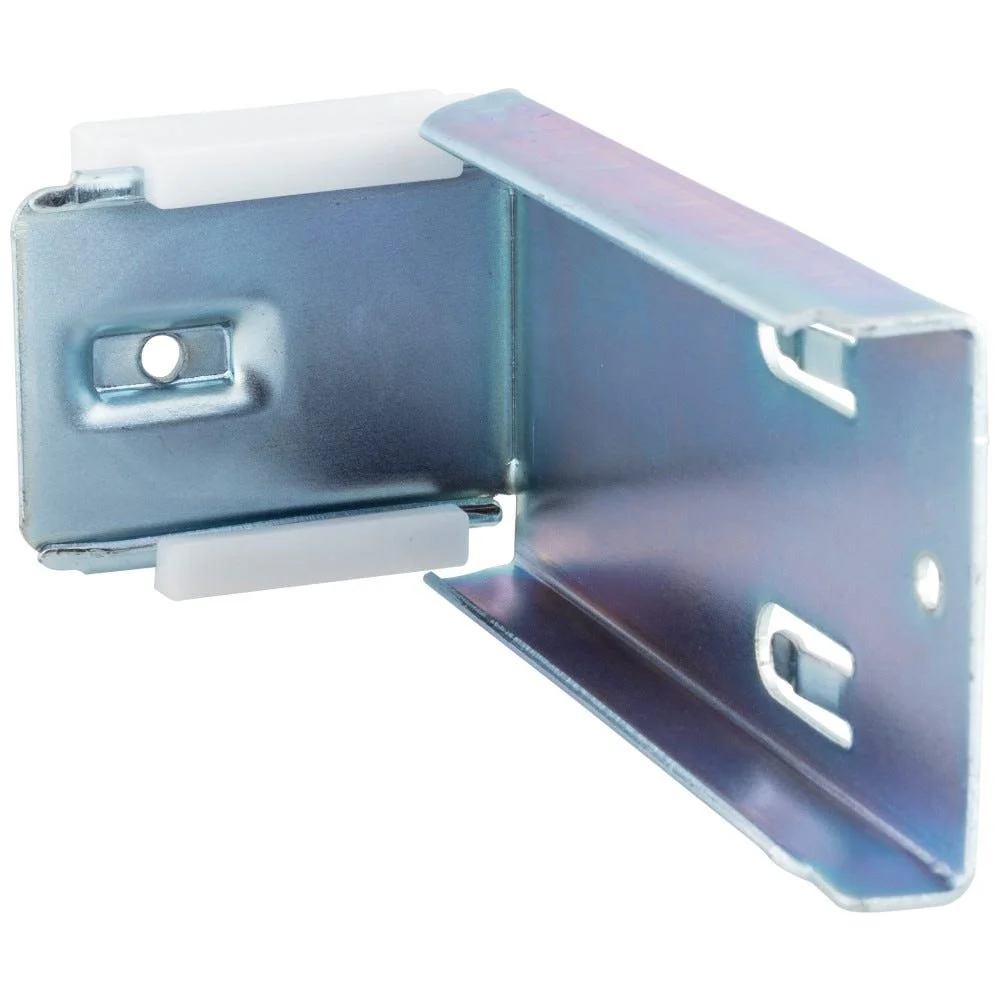

8 mm dowel mount — 303FU5
For predrilled 8 mm system holes on 32 mm centers. Steel and plastic construction with lateral self-adjustment and up to 3 inches of depth adjustment.
Price per pair: $4.09

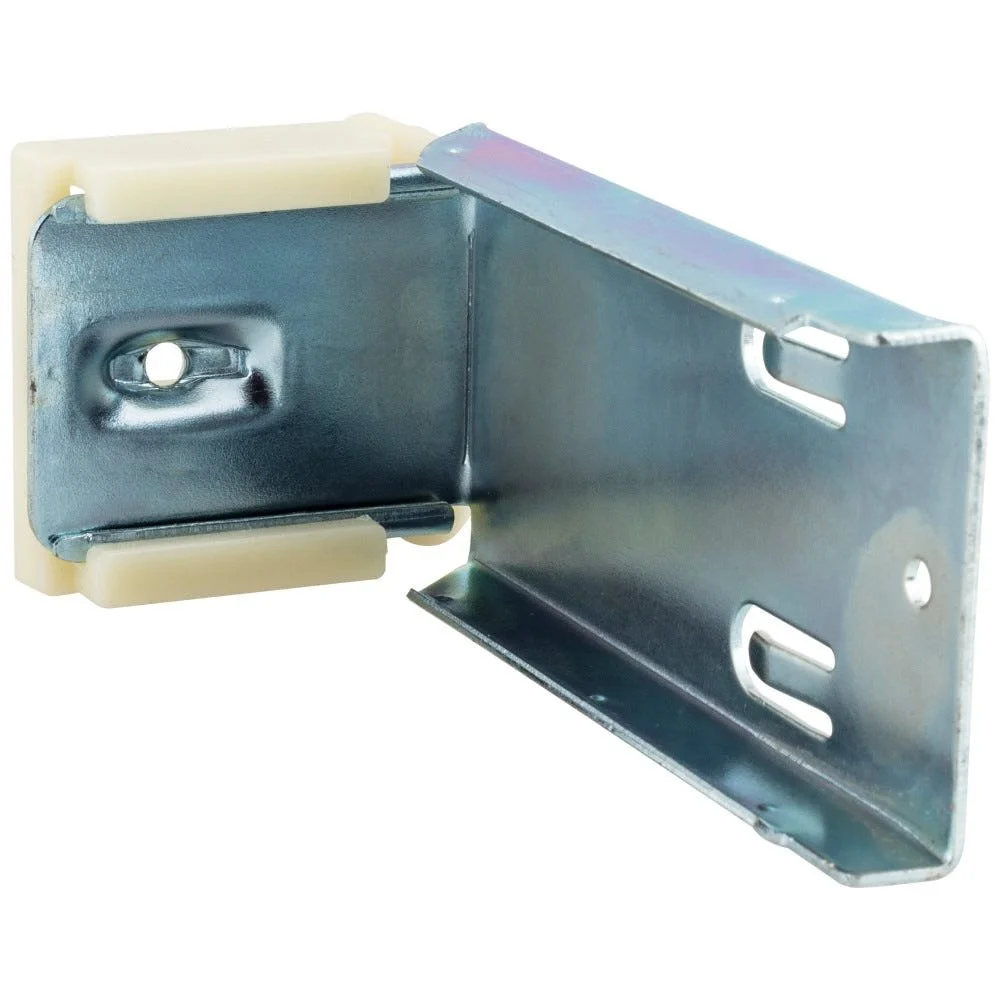

10 mm dowel mount — 303FU6
For predrilled 10 mm system holes on 32 mm centers. Steel and plastic construction with lateral self-adjustment and up to 3 inches of depth adjustment.
Price per pair: $4.09
For compatible 303FU, 303-50, 303-100 and 303-150 series slides. Verify slide model and rear mounting requirements before ordering.
Each selection includes a pair of rear brackets in the chosen configuration.
Drawer slides, cabinetry and installation screws are sold separately.
Each mounting style has a matching thumbnail photo. Use the factory drawings for exact dimensions and mounting-hole locations.
Mounting-style drawings and dimensions (PDF)
