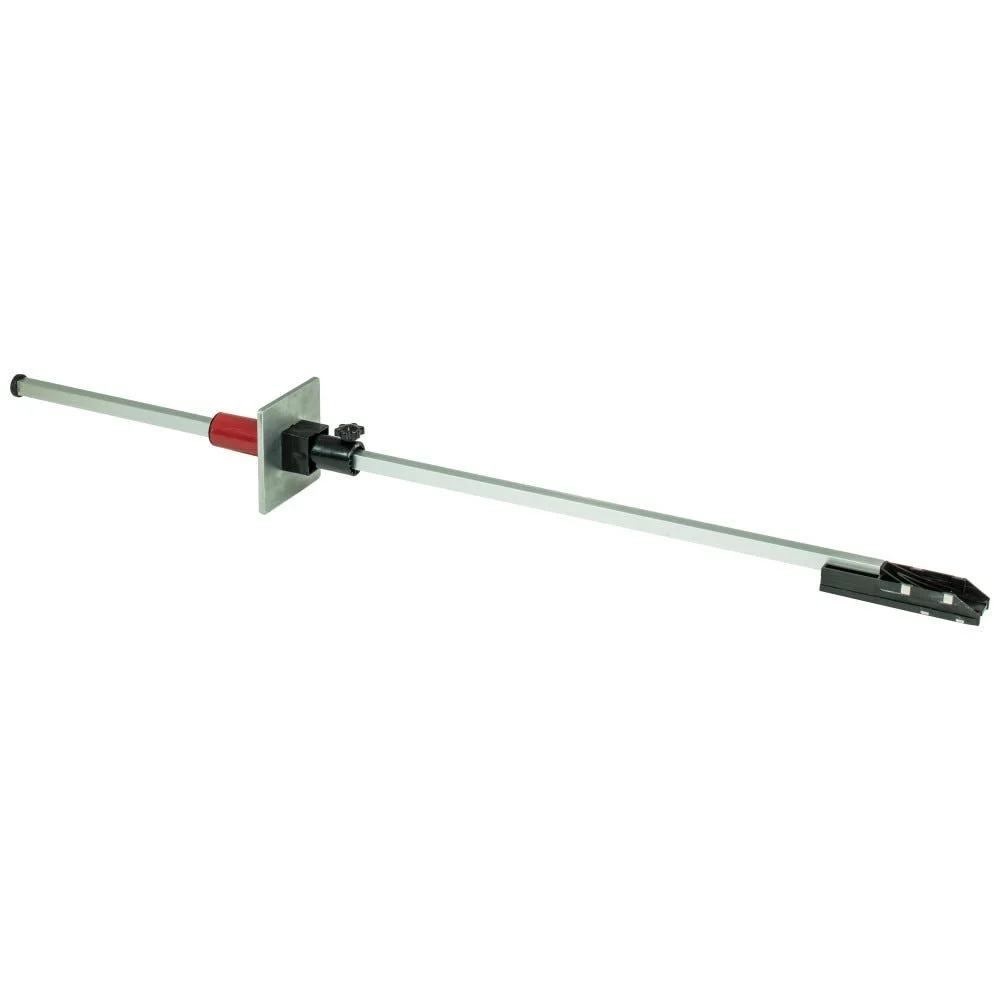

Position compatible metal rear slide brackets inside a face-frame cabinet with a magnetic holder and adjustable aluminum rod. This tool helps locate and hold the bracket while you fasten it to the rear cabinet wall.
For compatible metal rear brackets used with undermount and ball-bearing drawer slides.
Magnetic bracket holder with separate placement channels for supported bracket styles.
Set-screw knob locks the rod at the selected cabinet depth for repeat installations.
Factory guide operating range: 7-1/2 to 30 inches of inside cabinet depth in face-frame cabinets.
Aluminum rod with handle; factory drawing shows overall dimensions of 33-1/8 × 3-9/16 × 3-9/16 inches.
Place the bracket securely in the holder, keep the handle flush and square against the face frame, extend the rod to the back wall, and tighten the set screw. Fasten the bracket, remove the tool, and repeat on the other side. Follow the factory guide for the selected bracket’s placement channel.
This is an installation tool only. Drawer slides, rear brackets, fasteners and cabinetry are sold separately. Verify bracket compatibility against the guide before ordering.
HR-TOOL-RBINST
Price each: $61.97
Tool dimensions & installation instructions (PDF)
Product warranty (PDF)
Position compatible metal rear slide brackets inside a face-frame cabinet with a magnetic holder and adjustable aluminum rod. This tool helps locate and hold the bracket while you fasten it to the rear cabinet wall.
For compatible metal rear brackets used with undermount and ball-bearing drawer slides.
Magnetic bracket holder with separate placement channels for supported bracket styles.
Set-screw knob locks the rod at the selected cabinet depth for repeat installations.
Factory guide operating range: 7-1/2 to 30 inches of inside cabinet depth in face-frame cabinets.
Aluminum rod with handle; factory drawing shows overall dimensions of 33-1/8 × 3-9/16 × 3-9/16 inches.
Place the bracket securely in the holder, keep the handle flush and square against the face frame, extend the rod to the back wall, and tighten the set screw. Fasten the bracket, remove the tool, and repeat on the other side. Follow the factory guide for the selected bracket’s placement channel.
This is an installation tool only. Drawer slides, rear brackets, fasteners and cabinetry are sold separately. Verify bracket compatibility against the guide before ordering.
HR-TOOL-RBINST
Price each: $61.97
Tool dimensions & installation instructions (PDF)
Product warranty (PDF)
