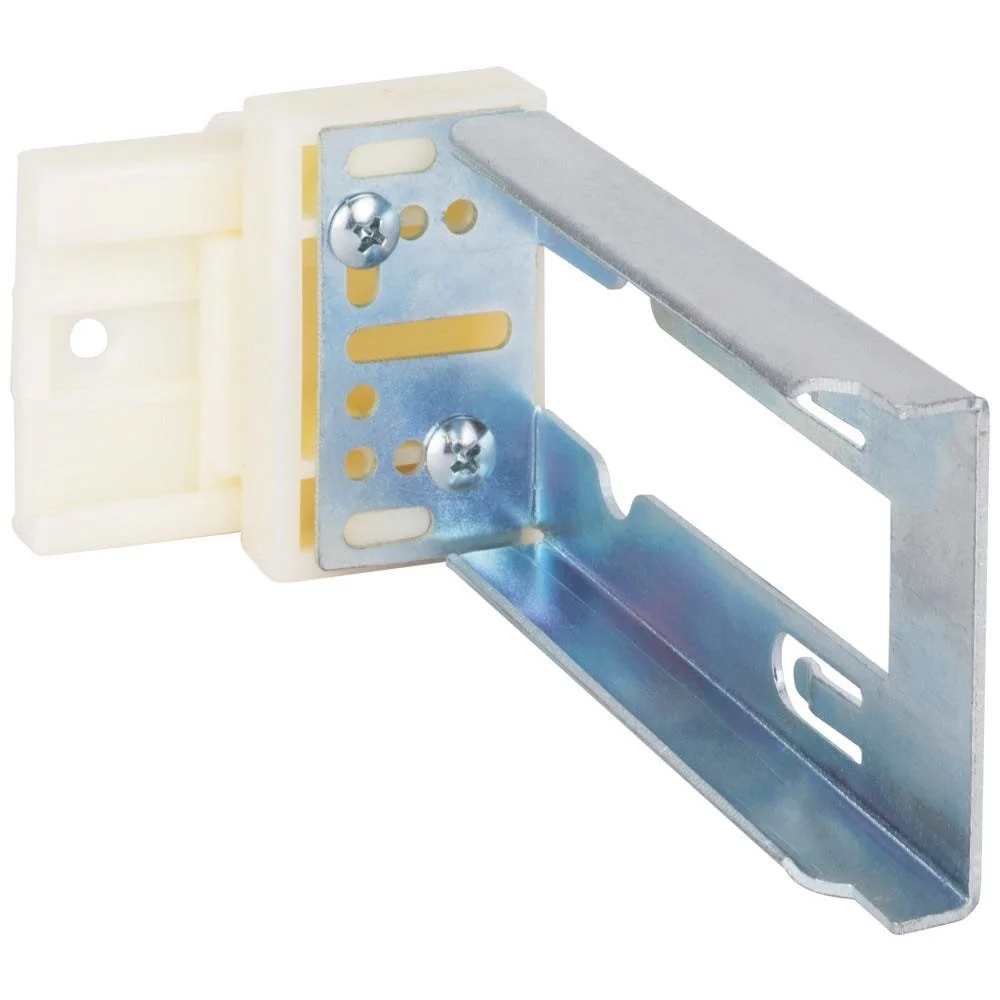

Support compatible ball-bearing drawer slides with an adjustable rear bracket designed for predrilled cabinet systems. Choose the left or right bracket to match the side of the drawer.
Steel and plastic construction in an almond finish.
8 mm dowels fit system holes spaced 32 mm center to center.
Mounts at the rear cabinet wall, laterally self-adjusts and provides up to 3 inches of depth adjustment.
Factory drawings show an overall length of 132.5 mm including the dowel projection. Use the handed drawing to verify the complete mounting layout.
Manufacturer-listed for compatible 303-200, 303FUSFT, 303-300 and 303-325 slide series; 303FU is also named in the compatibility features.
Right — 303FUSFT7-R
Price per individual right bracket: $5.35
Left — 303FUSFT7-L
Price per individual left bracket: $5.35
Sold individually. For a matched set, order one left and one right bracket. Drawer slides and cabinetry are sold separately. Photos are factory representatives; the selected model determines the handed part supplied.
Left and right bracket drawings & dimensions (PDF)
