Soft-Close Side-Mount Drawer Slides — Retail Pack with Screws

A retail-packed soft-close side-mount slide set with the mounting screws and printed instructions included. Choose 18, 20 or 22 inches to match your drawer installation.

Included in each retail pack

• One left-and-right slide pair: two slide assemblies for one drawer.
• Sixteen #8 × 7/16 inch mounting screws.
• Installation instructions.

Features and fit

• 303-300 retail-pack models with full extension, soft closing and relaxed opening force.
• Manufacturer-rated 100 lb load capacity.
• Zinc-finished cold-rolled steel; nominal 45 mm slide height.
• For face-frame or frameless cabinets with 1/2 inch side clearance per slide.
• Non-handed trigger disconnect allows drawer removal. A retained bearing cage aids installation, and the hold-in detent helps prevent bounce-back.
• Optional mounting brackets and cabinetry are sold separately.

Choose your retail pack

18 in — 303-300-18-R
Full extension; allow at least 18 in cabinet interior depth for the standard installation.
Price per retail pack: $39.29

20 in — 303-300-20-R
Full extension; allow at least 20 in cabinet interior depth for the standard installation.
Price per retail pack: $42.12

22 in — 303-300-22-R
Full extension; allow at least 22 in cabinet interior depth for the standard installation.
Price per retail pack: $44.87

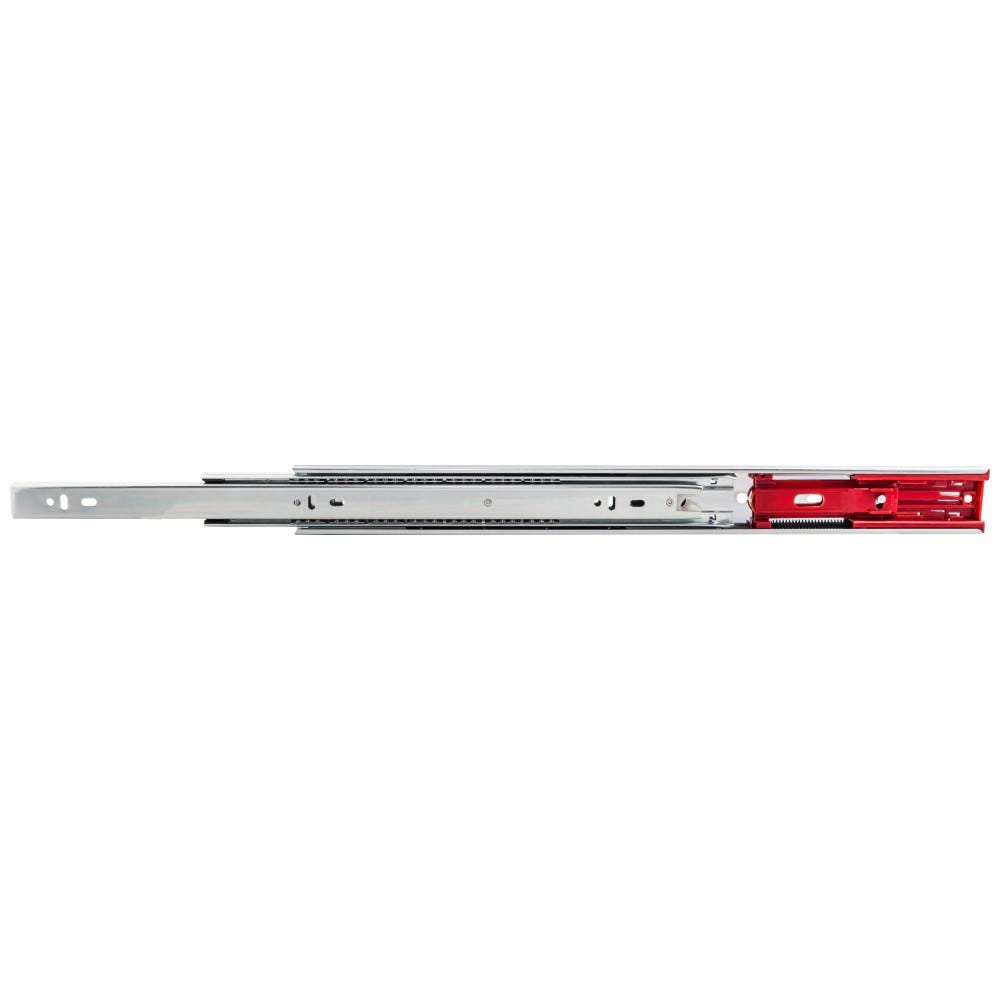

Inch lengths are nominal selection sizes; use the factory drawing and installation guide for exact geometry and hole positions. The photo represents the slide series; the model selected determines the supplied length.

Product documents

Series drawing & dimensions (PDF)

Installation instructions (PDF)

18-inch series model test report (PDF)

Warranty (PDF)
