Standard-Duty Full-Extension Side-Mount Drawer Slides

from $9.32

Make the full depth of your drawer easy to reach with these 303-50 standard-duty ball-bearing slides. The full-extension design uses a retained bearing cage and a hold-in detent for dependable everyday operation.

Features and fit

Manufacturer-rated 100 lb load capacity, sold as a pair for one drawer.
Zinc-finished steel with a nominal 45 mm profile and 1/2 inch side clearance per slide.
Non-handed trigger disconnect allows drawer removal. Lubricated ball bearings and a retained cage aid installation.
Synthetic rubber hold-in detent helps prevent bounce-back and roll-out.
The factory guide lists two slides and 16 installation screws. Optional mounting brackets and cabinetry are sold separately.
For face-frame installations, verify bracket requirements and the extra clearance required by optional front brackets in the installation guide.

Choose your length

12 in — 303-50-12
Full extension; nominal slide length 12 in.
Price per pair: $9.32

14 in — 303-50-14
Full extension; nominal slide length 14 in.
Price per pair: $10.82

16 in — 303-50-16
Full extension; nominal slide length 16 in.
Price per pair: $12.29

18 in — 303-50-18
Full extension; nominal slide length 18 in.
Price per pair: $13.88

20 in — 303-50-20
Full extension; nominal slide length 20 in.
Price per pair: $15.26

22 in — 303-50-22
Full extension; nominal slide length 22 in.
Price per pair: $17.15

24 in — 303-50-24
Full extension; nominal slide length 24 in.
Price per pair: $18.40

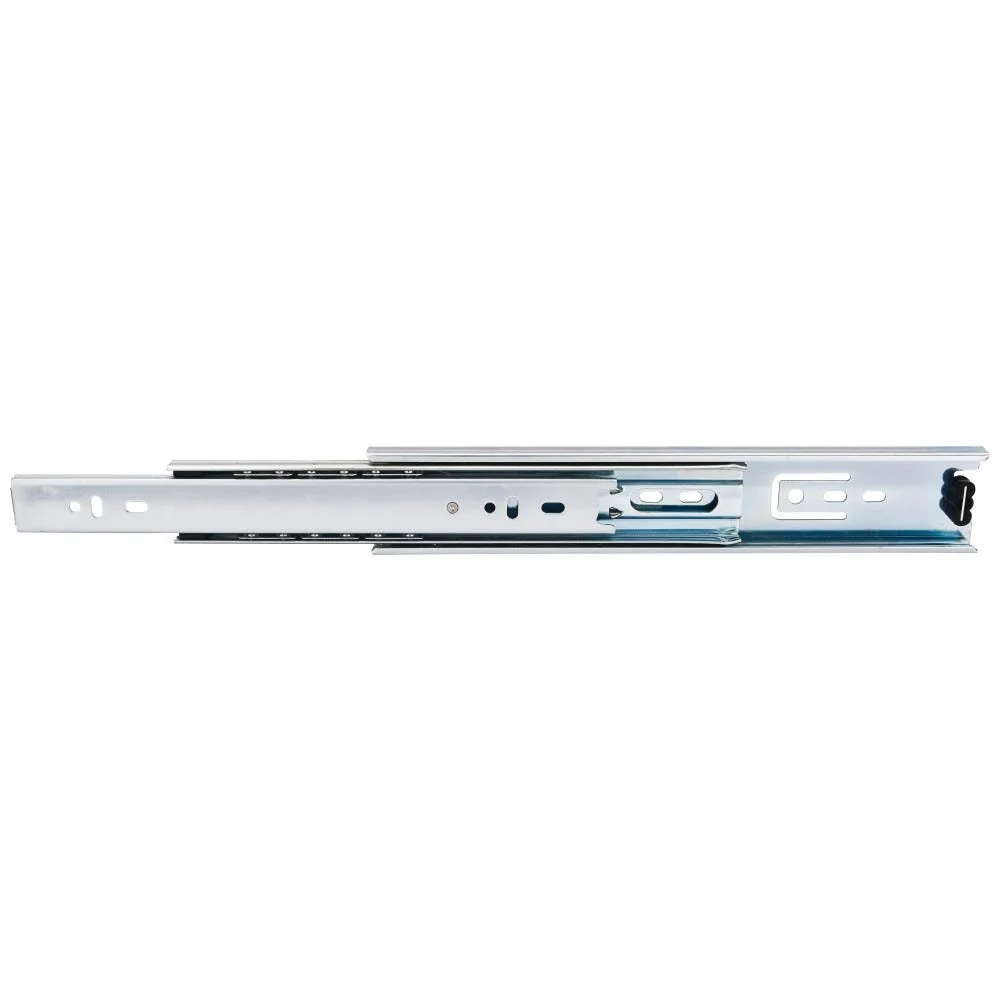

Inch lengths are nominal selection sizes. Confirm opening and drawer dimensions, installation clearances and mounting positions using the factory documents. The photo represents this series; the selected model determines the supplied length.

Product documents

Series drawing & dimensions (PDF)

Installation instructions (PDF)

22-inch model load-deflection report (PDF)

Warranty (PDF)
