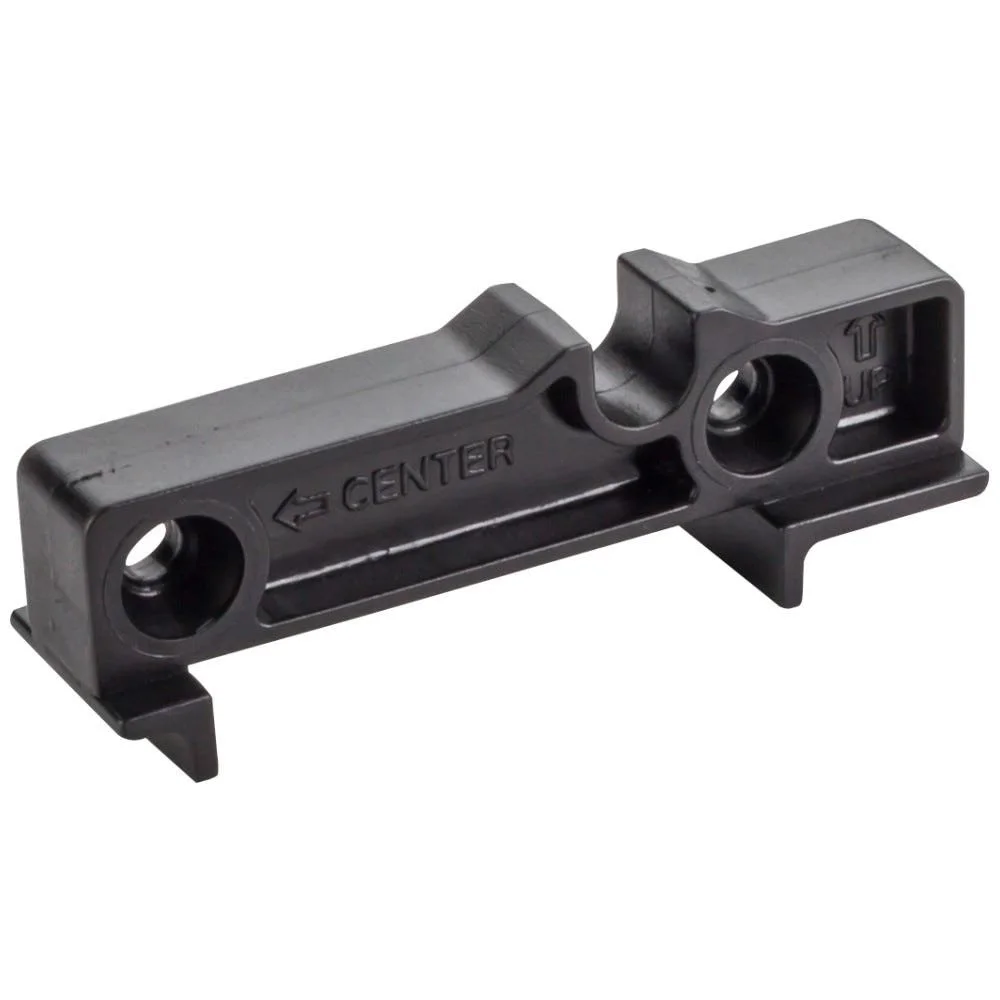

Convert a compatible undermount slide installation for a pull-out shelf with rear mounting blocks that attach to the shelf apron. The blocks replace the need to notch and bore the shelf rear for the slide engagement.
Pack of two USE-RMB mounting blocks, with installation screws.
Black plastic construction.
Listed block dimensions: 58.5 mm long × 10 mm wide × 14 mm high.
For compatible USE58-100, USE58-50 or USE34-100 undermount slides.
Maximum apron thickness: 16 mm (5/8 in) for USE58 series; 19 mm (3/4 in) for USE34 series.
One compatible left-and-right release clip pair is required per shelf and is sold separately.
USE-RMB — pack of two
Quantity one supplies one two-block pack.
Price per pack: $1.57
Slides, release clips, shelf and cabinetry are sold separately. Follow the factory mounting guide for apron layout, setback and shelf width. The guide specifies shelf length as slide length minus 10 mm (13/32 in).
Convert a compatible undermount slide installation for a pull-out shelf with rear mounting blocks that attach to the shelf apron. The blocks replace the need to notch and bore the shelf rear for the slide engagement.
Pack of two USE-RMB mounting blocks, with installation screws.
Black plastic construction.
Listed block dimensions: 58.5 mm long × 10 mm wide × 14 mm high.
For compatible USE58-100, USE58-50 or USE34-100 undermount slides.
Maximum apron thickness: 16 mm (5/8 in) for USE58 series; 19 mm (3/4 in) for USE34 series.
One compatible left-and-right release clip pair is required per shelf and is sold separately.
USE-RMB — pack of two
Quantity one supplies one two-block pack.
Price per pack: $1.57
Slides, release clips, shelf and cabinetry are sold separately. Follow the factory mounting guide for apron layout, setback and shelf width. The guide specifies shelf length as slide length minus 10 mm (13/32 in).
