Build a clean white drawer with concealed soft-close slides and an adjustable drawer front. The MDB metal drawer system offers full-extension access with a 100 lb dynamic manufacturer load rating for compatible frameless cabinets.

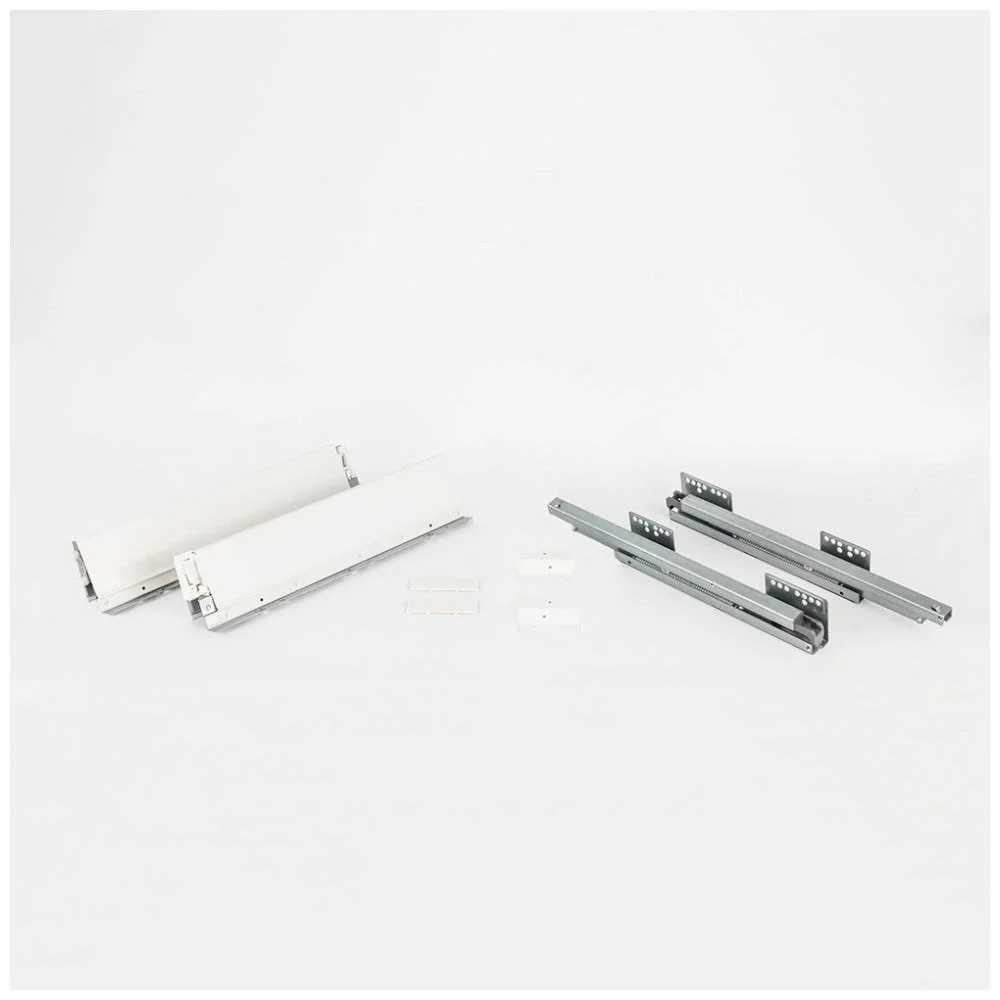

86 mm × 400 mm — MDB-086-400
Nominal length: 400 mm. Minimum installation depth: 410 mm. Internal drawer length: 374 mm.
Price per system set: $43.13
86 mm × 450 mm — MDB-086-450
Nominal length: 450 mm. Minimum installation depth: 460 mm. Internal drawer length: 424 mm.
Price per system set: $46.89
86 mm × 500 mm — MDB-086-500
Nominal length: 500 mm. Minimum installation depth: 510 mm. Internal drawer length: 474 mm.
Price per system set: $48.91
86 mm × 550 mm — MDB-086-550
Nominal length: 550 mm. Minimum installation depth: 560 mm. Internal drawer length: 524 mm.
Price per system set: $50.35
164 mm with gallery rail × 400 mm — MDB-164-400
Nominal length: 400 mm. Minimum installation depth: 410 mm. Internal drawer length: 374 mm.
Price per system set: $48.89
164 mm with gallery rail × 450 mm — MDB-164-450
Nominal length: 450 mm. Minimum installation depth: 460 mm. Internal drawer length: 424 mm.
Price per system set: $49.97
164 mm with gallery rail × 500 mm — MDB-164-500
Nominal length: 500 mm. Minimum installation depth: 510 mm. Internal drawer length: 474 mm.
Price per system set: $53.73

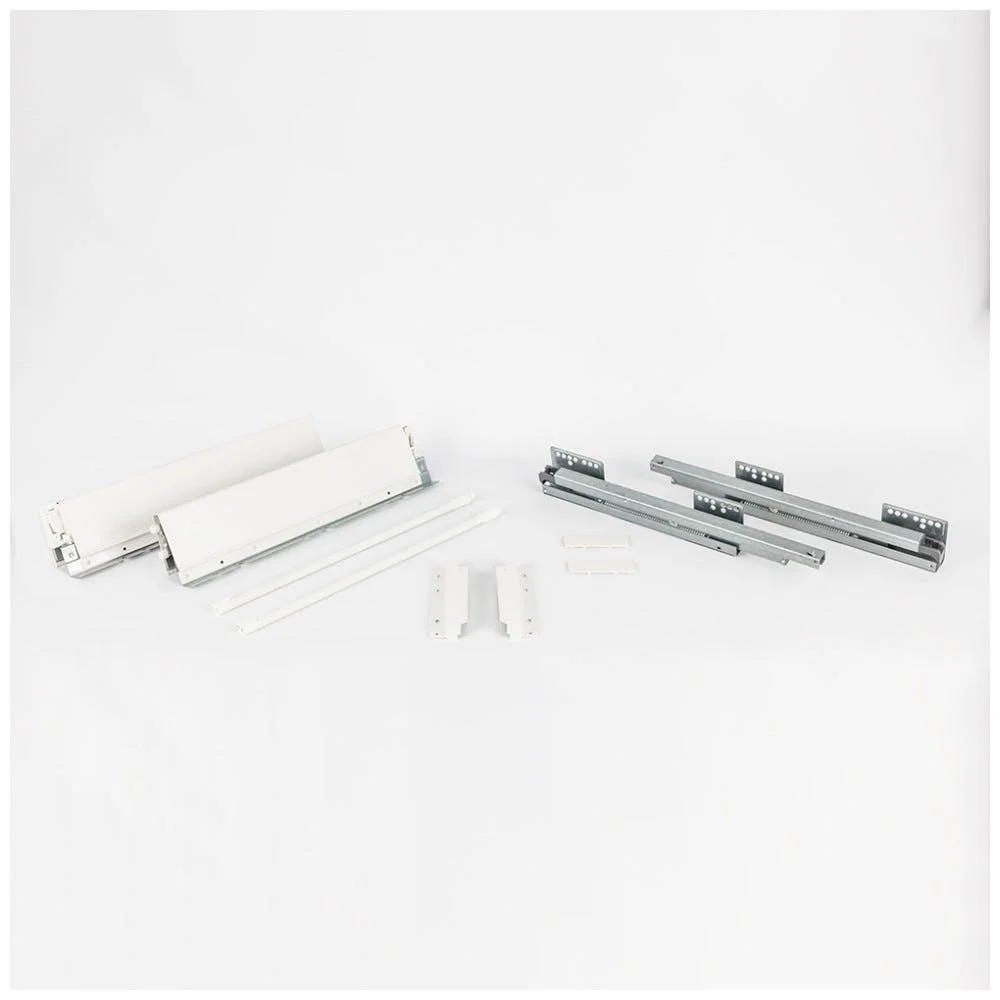

164 mm with gallery rail × 550 mm — MDB-164-550
Nominal length: 550 mm. Minimum installation depth: 560 mm. Internal drawer length: 524 mm.
Price per system set: $56.14
White steel drawer hardware with full-extension soft-close slides concealed at the drawer sides.
Front cams provide vertical and horizontal front adjustment; a release cam allows front removal.
For frameless cabinet applications only.
Choose the 86 mm low configuration or the 164 mm configuration with gallery rails. The taller configuration is not a solid 164 mm side panel.
The factory parts list includes left/right cabinet and drawer profiles, cover plates, front fixing brackets and rear connecting brackets. The 164 mm system also includes two gallery rails.
Provide your own decorative drawer front, bottom and back panels. The manufacturer recommends 5/8 inch material for the bottom and back. Follow the selected model’s cutting diagrams for panel width, length and fixing-hole locations.
The installation guide gives a 70 mm back-panel height for the 86 mm configuration and 148 mm for the 164 mm configuration. Minimum installation heights shown are 105 mm and 185 mm, respectively. Verify the complete cabinet opening and drilling layout before ordering.
Sold as one paired hardware system for one drawer. Wood panels and cabinetry are sold separately. Photos represent the selected configuration; the model determines depth.
System dimensions & installation — both configurations (PDF)
Product warranty (PDF)
