Clean cylindrical lines and solid steel construction make Naples a versatile finishing touch for kitchens, vanities and furniture. Choose a compact pull or a longer statement handle, with coordinating Naples T-knobs available separately.
Sold individually; attachment hardware included. Select mounting-hole spacing and finish above. These are cabinet pulls. Center-to-center spacing and overall length are different measurements; the two 128 mm options have different overall lengths.
3" centers — MDI $4.77 · Factory list $6.90. Overall 5-3/8". Model 136 plus finish suffix.
96 mm centers — MDI $5.83 · Factory list $8.42. Overall 6-1/8". Model 156 plus finish suffix.
128 mm (176 mm OL) centers — MDI $6.91 · Factory list $9.98. Overall 6-15/16". Model 176 plus finish suffix.
128 mm (206 mm OL) centers — MDI $8.60 · Factory list $12.42. Overall 8-1/8". Model 206 plus finish suffix.
160 mm centers — MDI $7.61 · Factory list $11.00. Overall 8-11/16". Model 220 plus finish suffix.
192 mm centers — MDI $8.78 · Factory list $12.68. Overall 10-11/16". Model 272 plus finish suffix.
224 mm centers — MDI $9.50 · Factory list $13.72. Overall 11-15/16". Model 304 plus finish suffix.
256 mm centers — MDI $10.37 · Factory list $14.98. Overall 13-1/4". Model 336 plus finish suffix.
288 mm centers — MDI $11.14 · Factory list $16.10. Overall 14-1/2". Model 368 plus finish suffix.
319 mm centers — MDI $12.10 · Factory list $17.48. Overall 15-11/16". Model 399 plus finish suffix.
416 mm centers — MDI $14.53 · Factory list $20.98. Overall 19-1/2". Model 496 plus finish suffix.
480 mm centers — MDI $16.20 · Factory list $23.40. Overall 22-1/16". Model 560 plus finish suffix.
544 mm centers — MDI $18.00 · Factory list $26.00. Overall 24-9/16". Model 624 plus finish suffix.
640 mm centers — MDI $20.66 · Factory list $29.84. Overall 28-3/8". Model 720 plus finish suffix.
673 mm centers — MDI $21.80 · Factory list $31.48. Overall 30-1/16". Model 763 plus finish suffix.

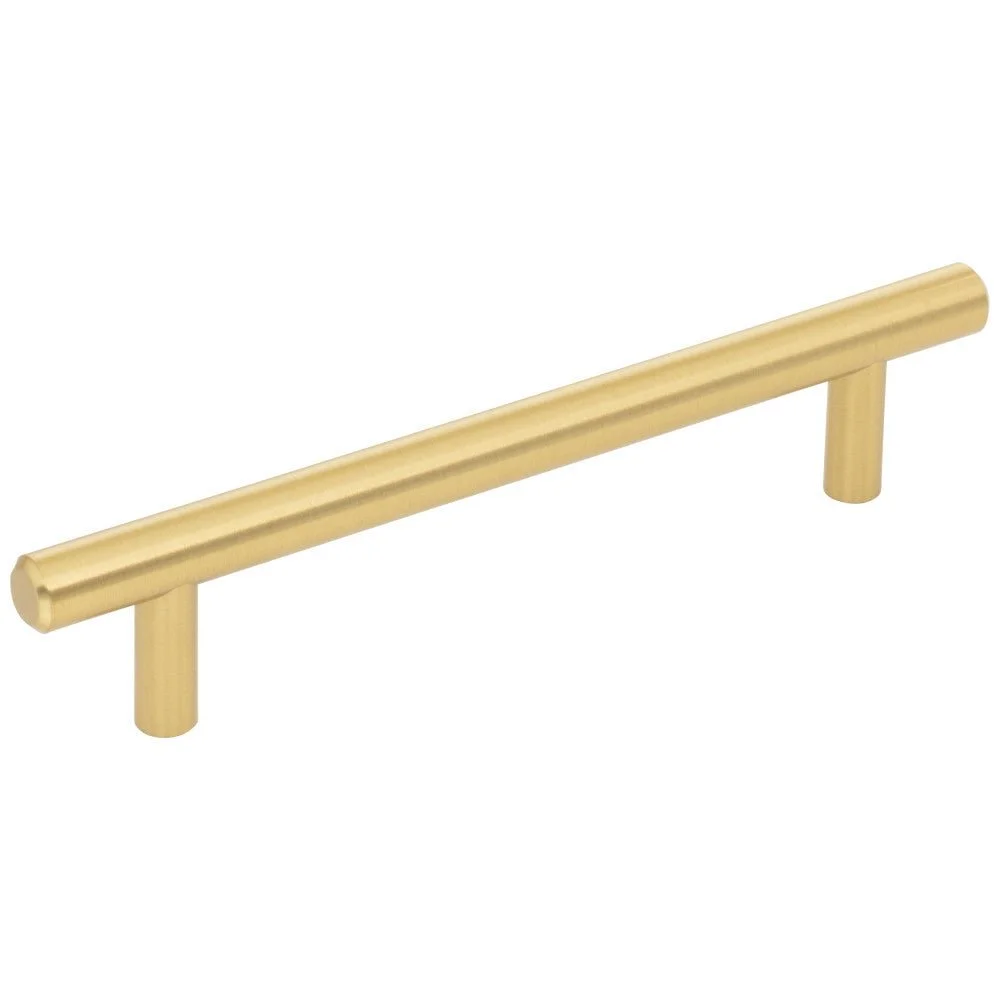

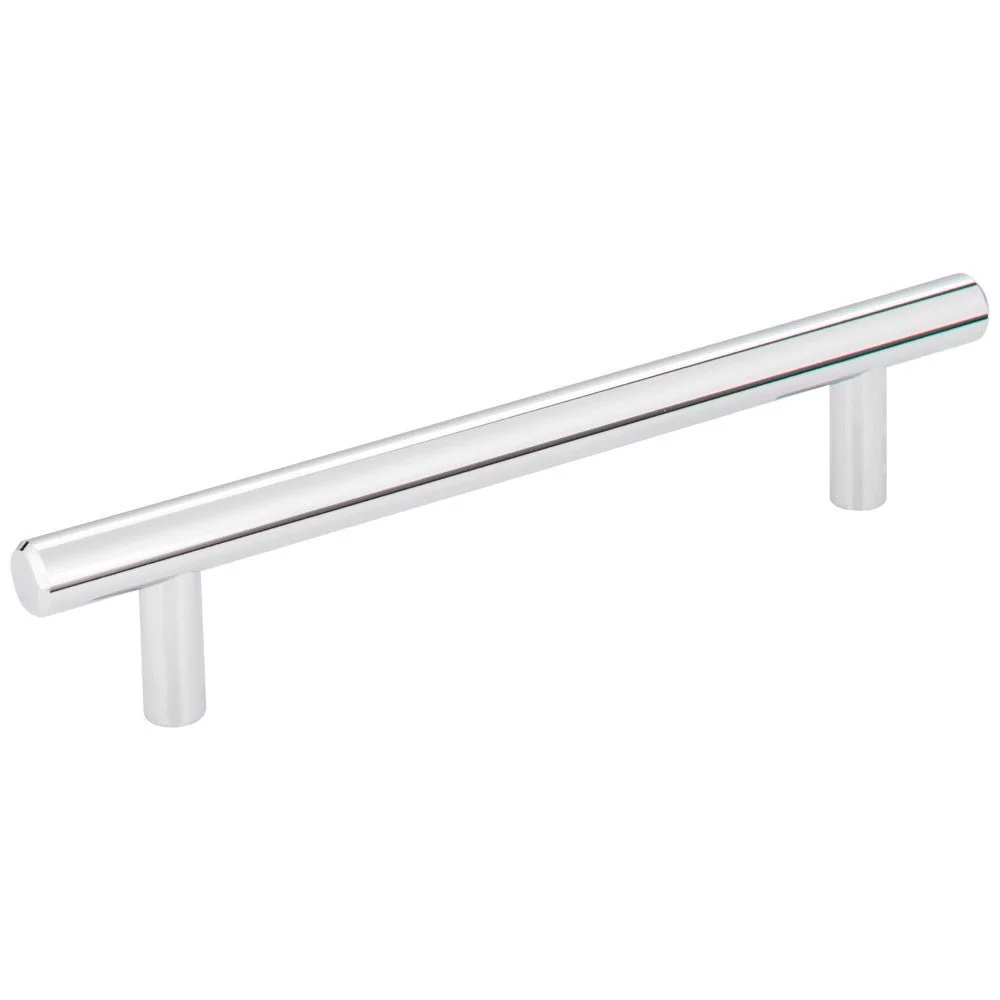

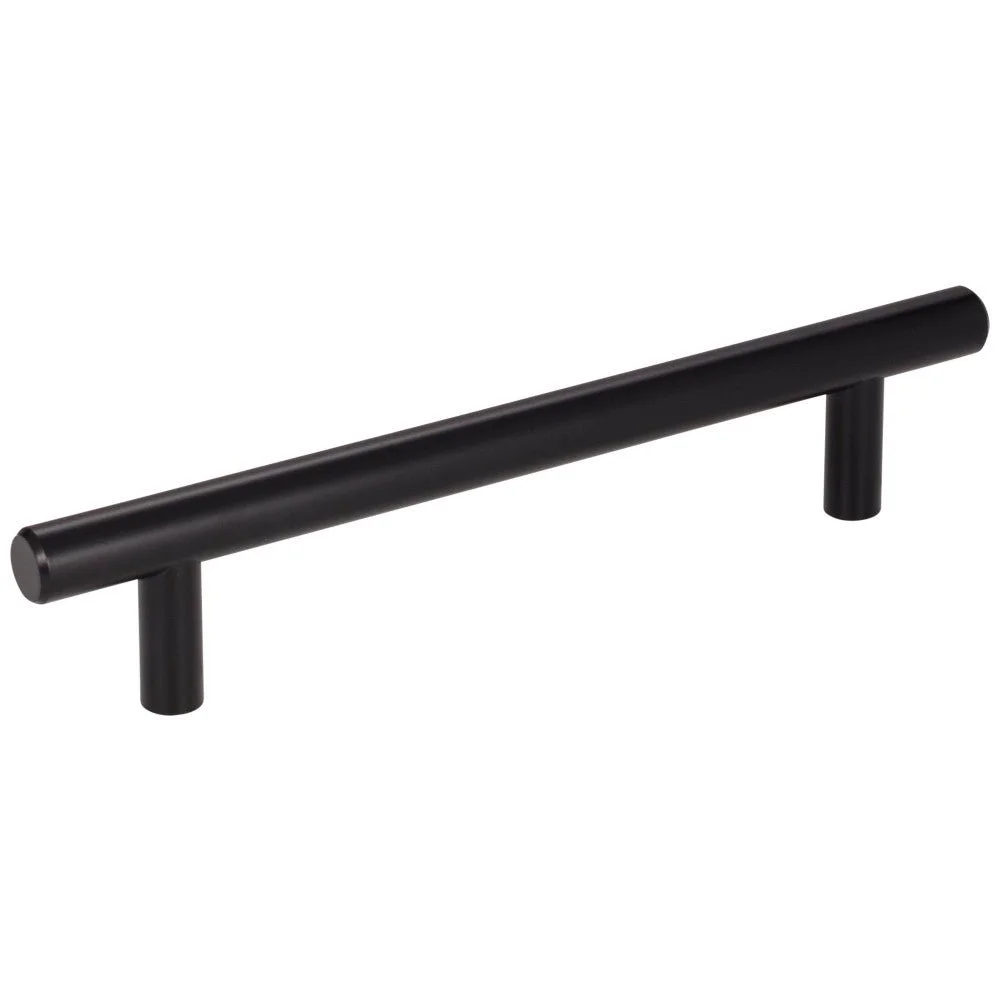

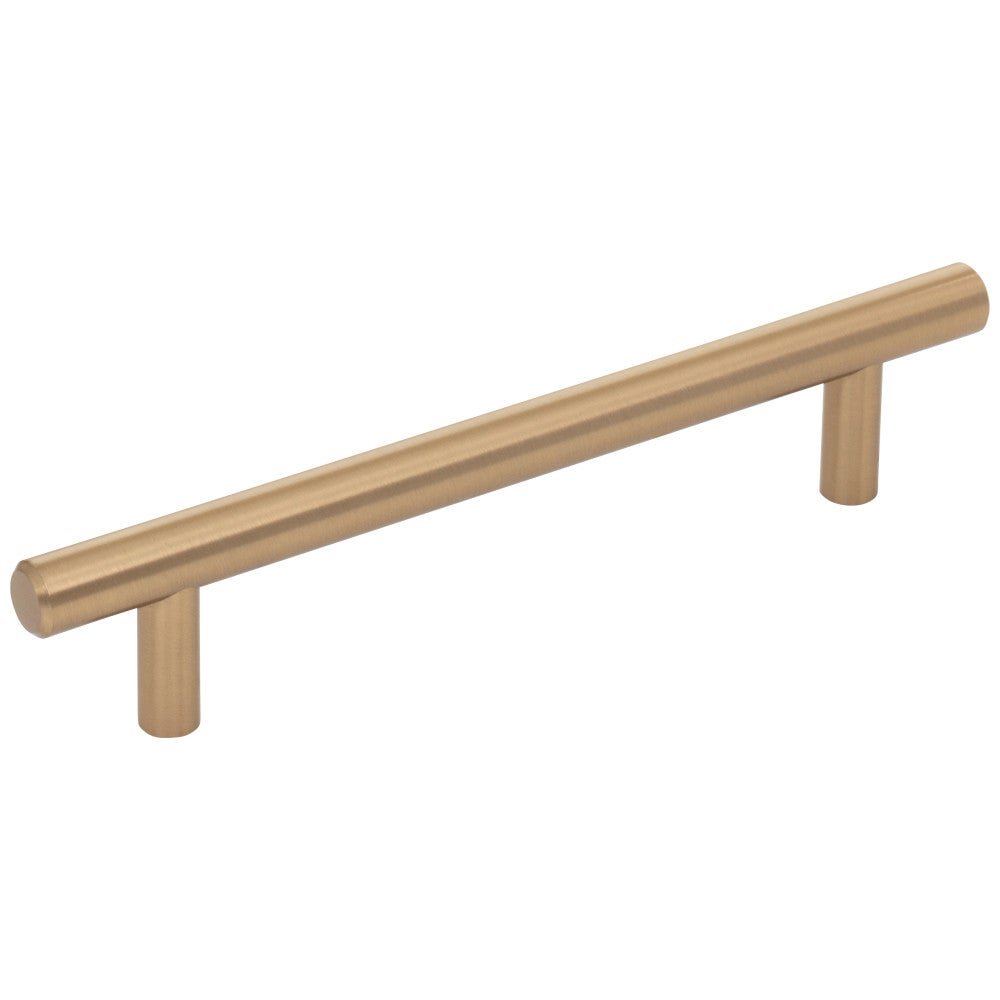

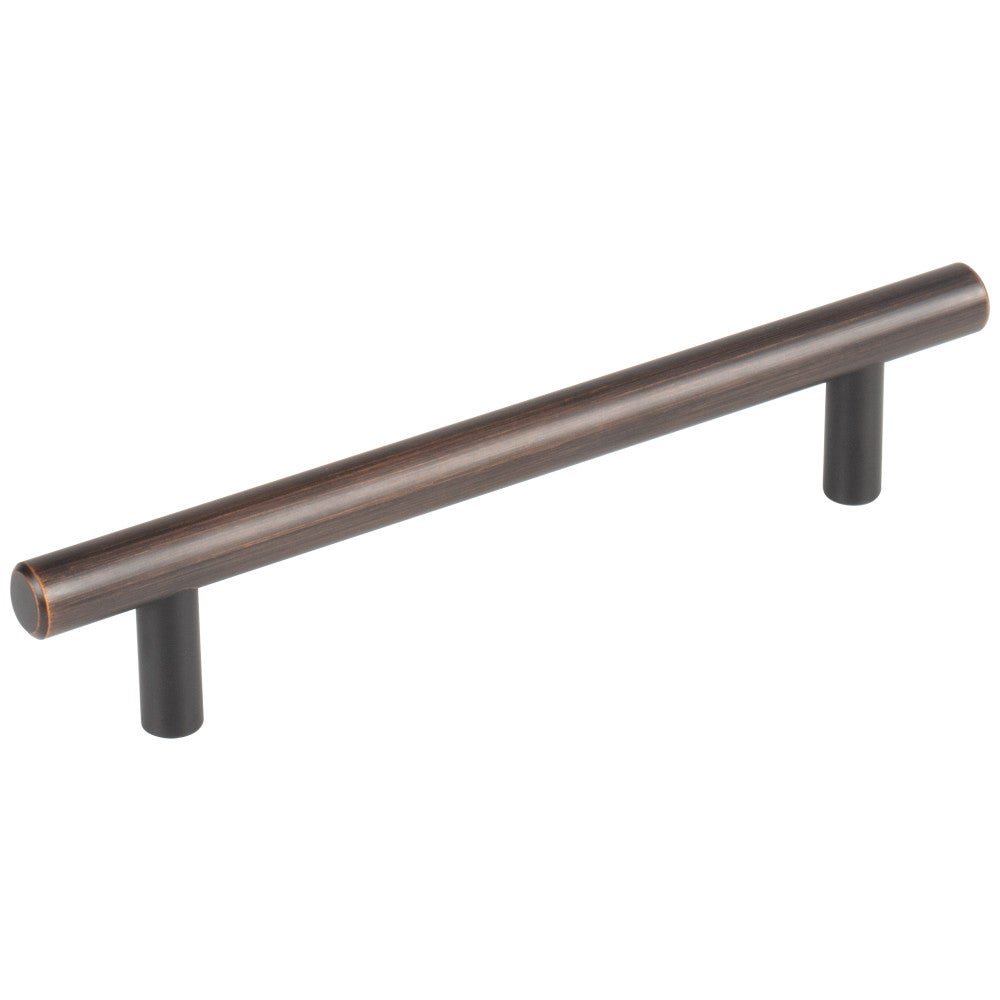

All sizes: 1/2-inch bar width, 1-3/8-inch projection, 7/8-inch hand clearance, and 3/8 × 3/8-inch feet. Solid steel construction. Finish codes: SN Satin Nickel, MB Matte Black, SBZ Satin Bronze, BG Brushed Gold, PC Polished Chrome, DBB Dark Brushed Bronze. The 480, 544, 640 and 673 mm sizes are offered in Satin Nickel and Polished Chrome; the other sizes offer all six finishes. Gallery shows the 176 model in each finish.
Factory warranty · Finish & selection guide
Optional decorative hardware, sold separately from cabinetry. Check the appropriate drawing and existing mounting-hole spacing before ordering.
