Seaver’s arched profile gives cabinet doors and drawers a smooth transitional detail. Choose 3-inch or 96 mm centers and coordinate the finish with matching Seaver round knobs.
Select size and finish above. Sold individually with attachment hardware included.

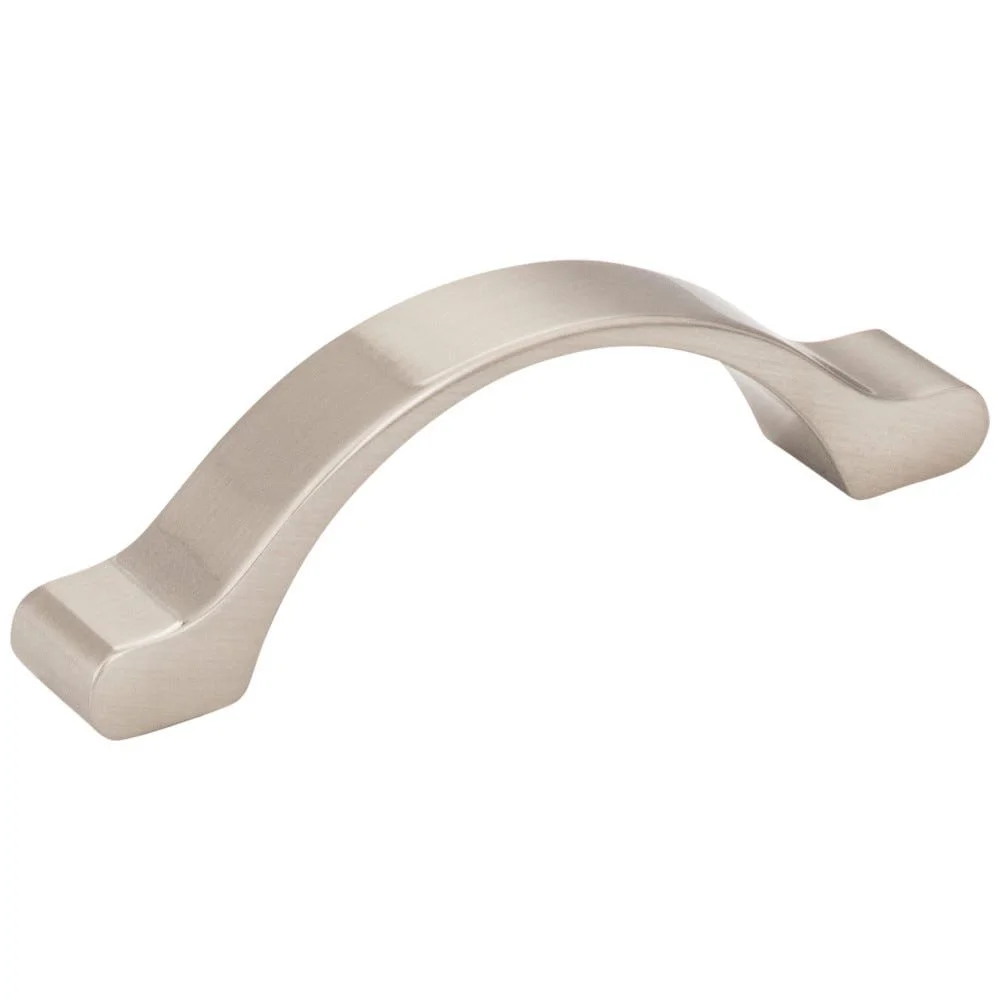

3" · Satin Nickel · model 511-3SN — MDI $5.47 · Factory list $7.92

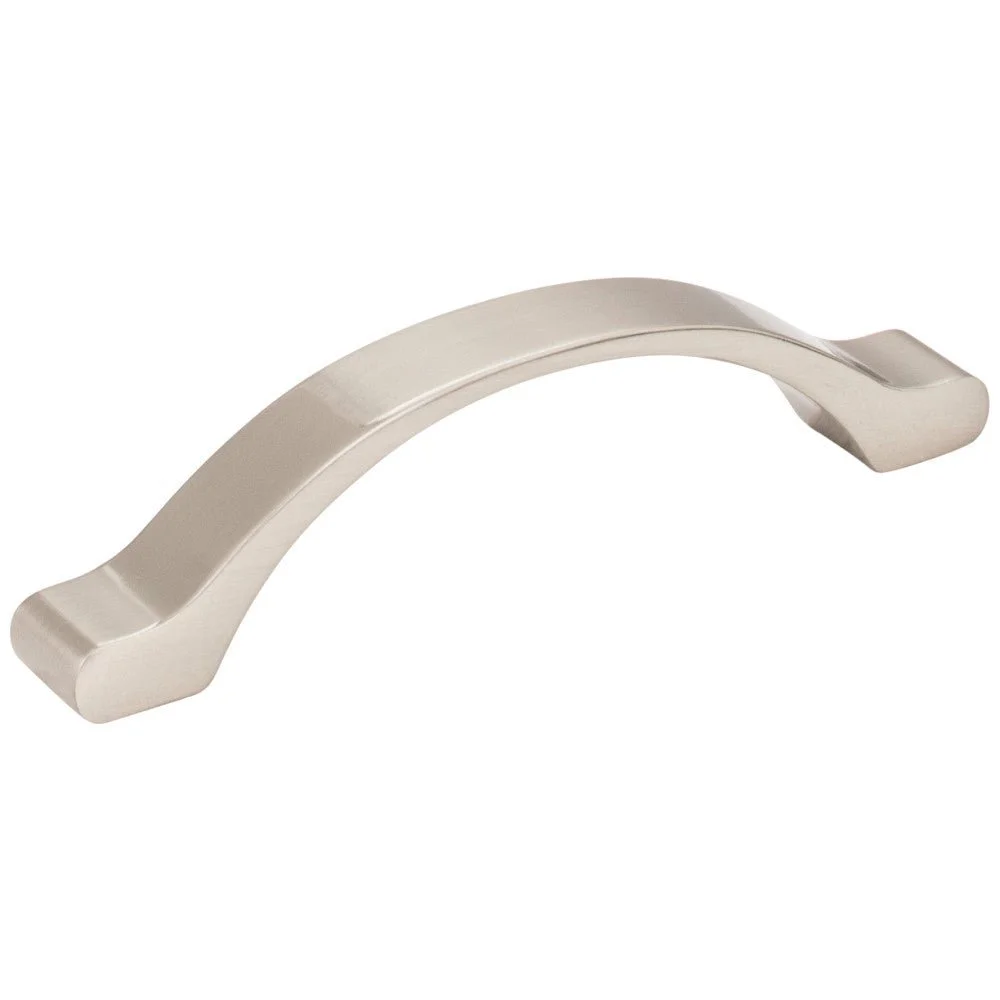

96 mm · Satin Nickel · model 511-96SN — MDI $5.99 · Factory list $8.66

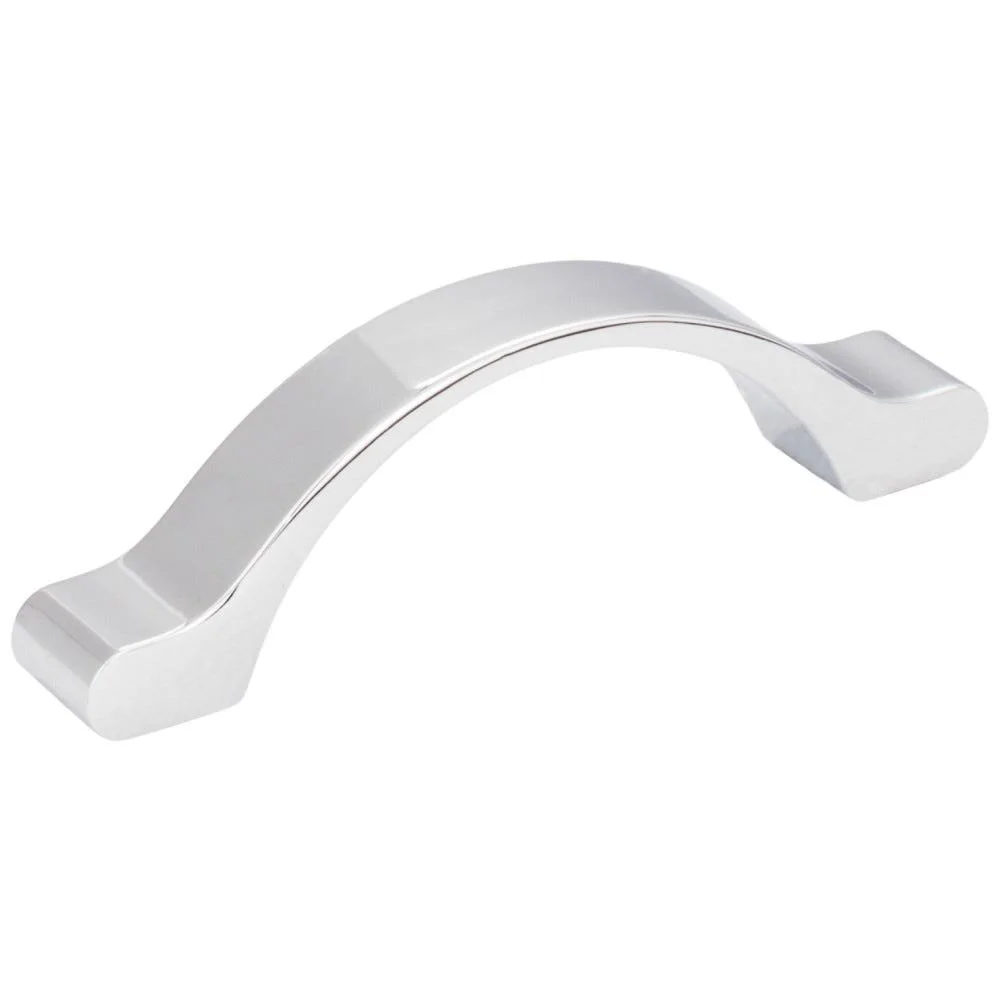

3" · Polished Chrome · model 511-3PC — MDI $5.47 · Factory list $7.92

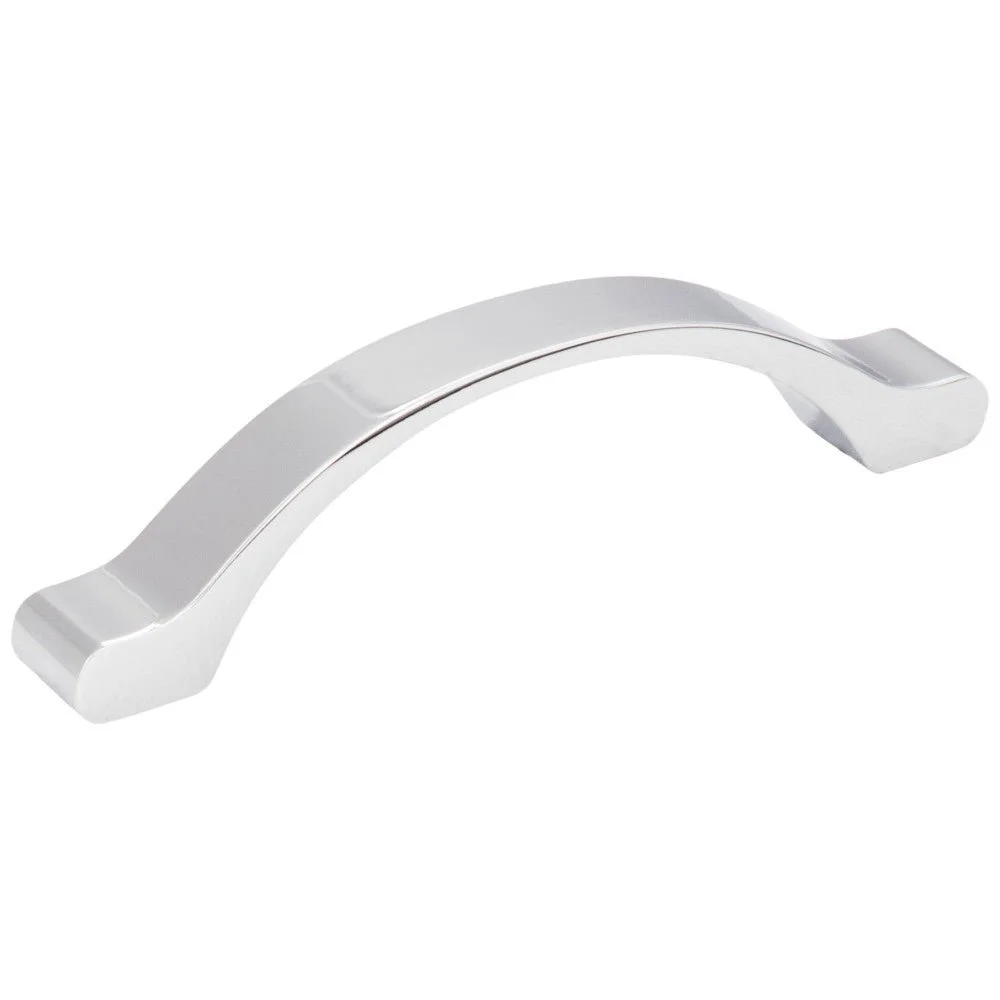

96 mm · Polished Chrome · model 511-96PC — MDI $5.99 · Factory list $8.66
3" · Brushed Pewter · model 511-3BNBDL — MDI $5.47 · Factory list $7.92

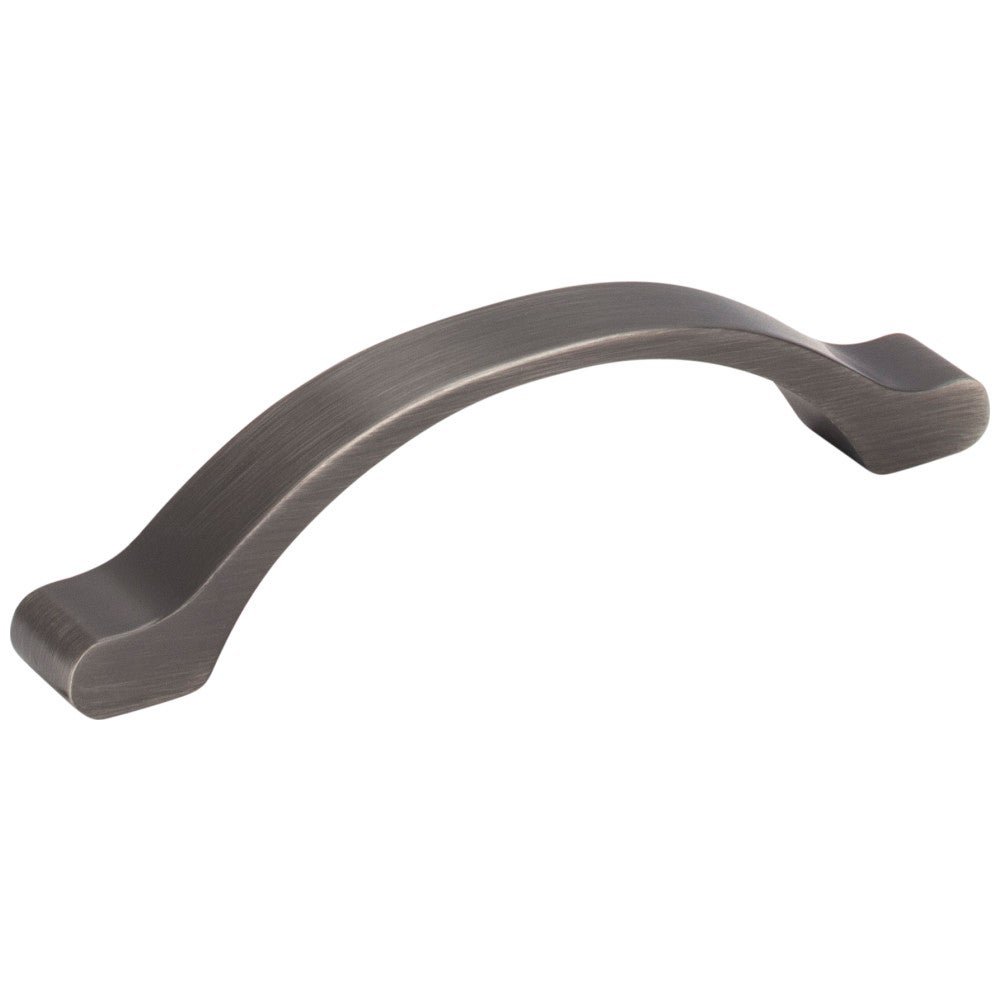

96 mm · Brushed Pewter · model 511-96BNBDL — MDI $5.99 · Factory list $8.66

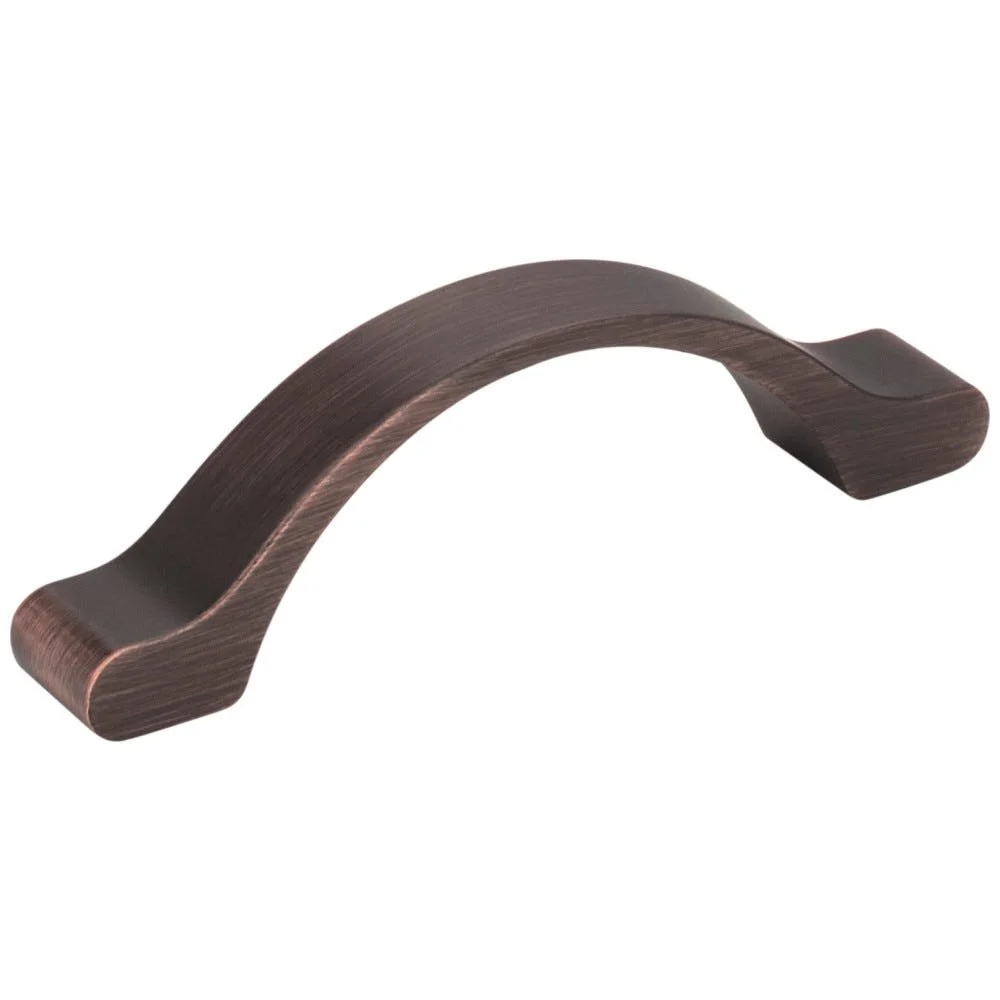

3" · Brushed Oil Rubbed Bronze · model 511-3DBAC — MDI $5.47 · Factory list $7.92

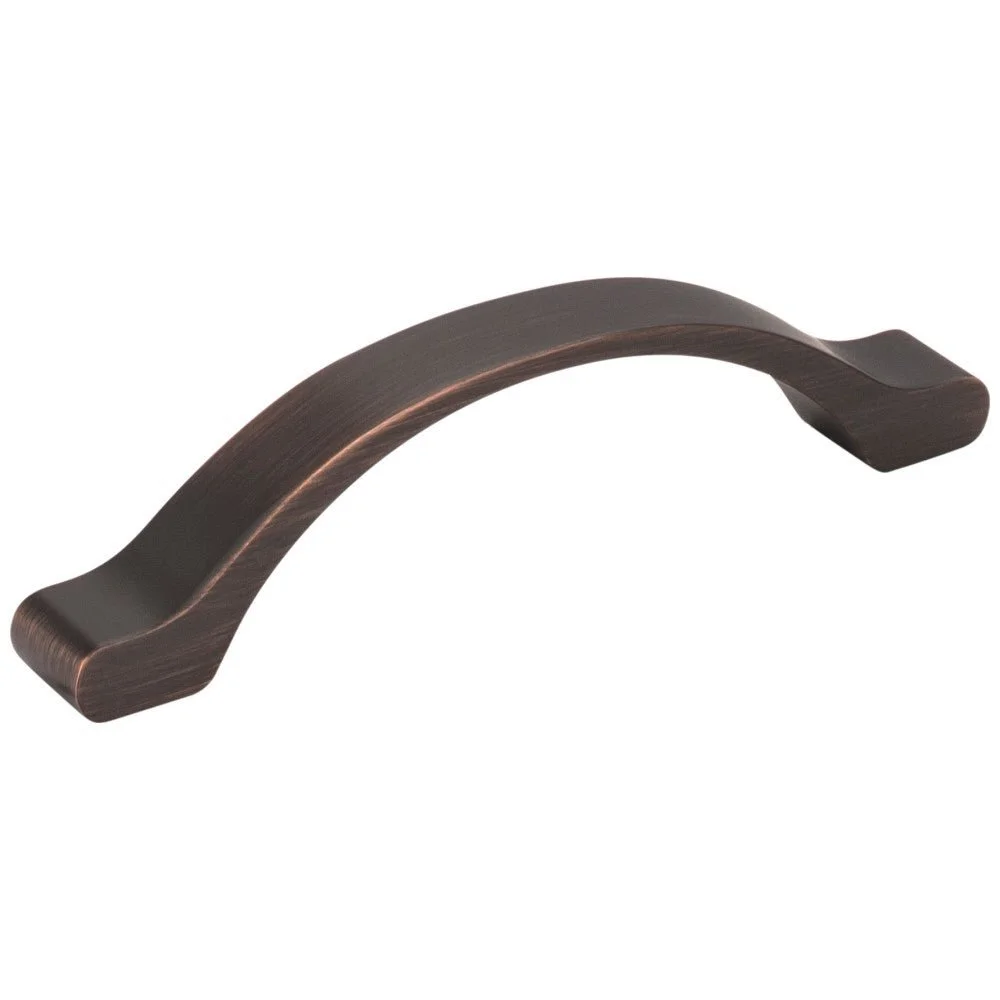

96 mm · Brushed Oil Rubbed Bronze · model 511-96DBAC — MDI $5.99 · Factory list $8.66
3" centers: 4-1/16" overall length; 5/8" width; 1-1/8" projection; 1" clearance; foot 11/16" × 5/8"
96 mm centers: 4-7/8" overall length; 5/8" width; 1-1/8" projection; 1" clearance; foot 11/16" × 5/8"
Zinc construction. Center-to-center measures mounting-hole spacing, not overall length.
seaver 511 3 drawing · seaver 511 96 drawing · Factory warranty · Finish & selection guide
Gallery shows representative 96 mm pulls in each finish; proportions vary by size. Optional decorative hardware, sold separately from cabinetry. Consult the drawing before drilling.
