Sedona’s rounded bar and clean supporting posts bring a confident, modern line to cabinet doors and drawers. Choose the drilling size that fits your project, then coordinate the finish across your kitchen, bath or furniture.
Select your size and finish above. Sold individually with attachment hardware included. Coordinates with the Sedona round cabinet knob.

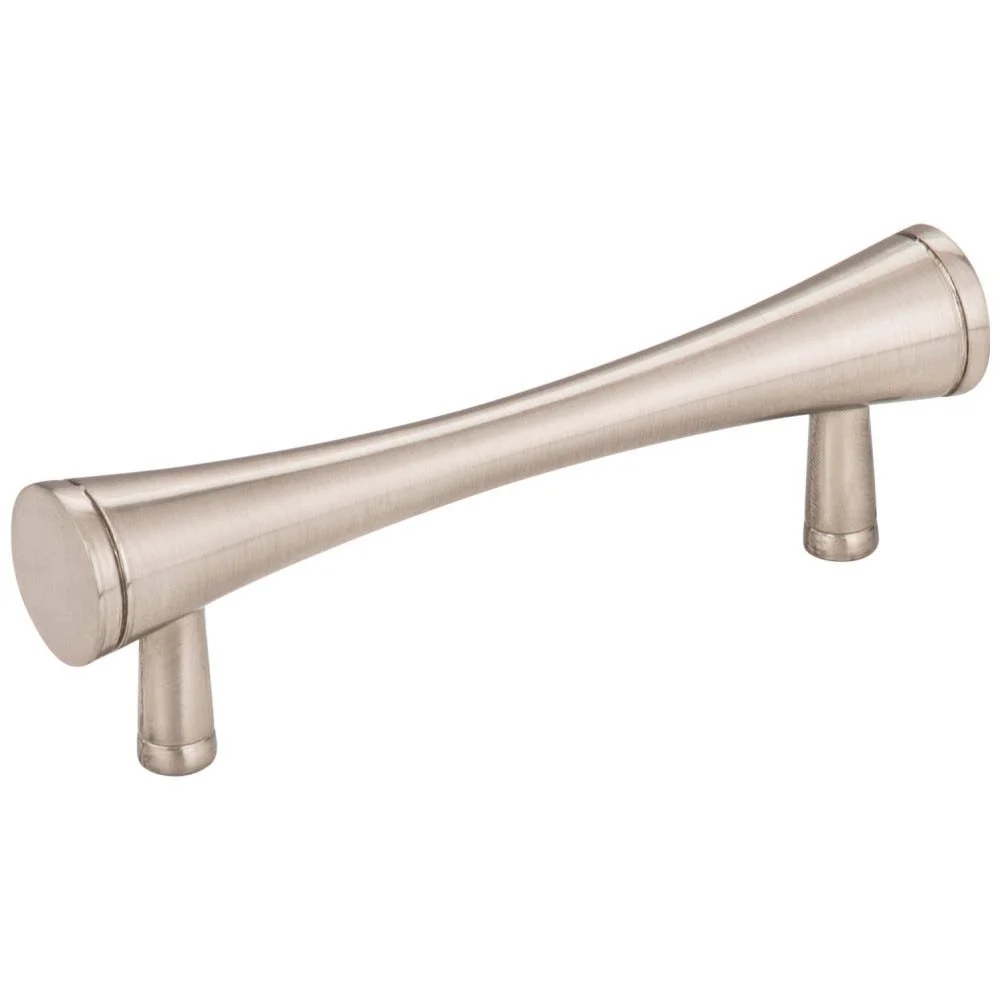

3" centers · Satin Nickel · model 400SN — MDI $6.19 · Factory list $8.96

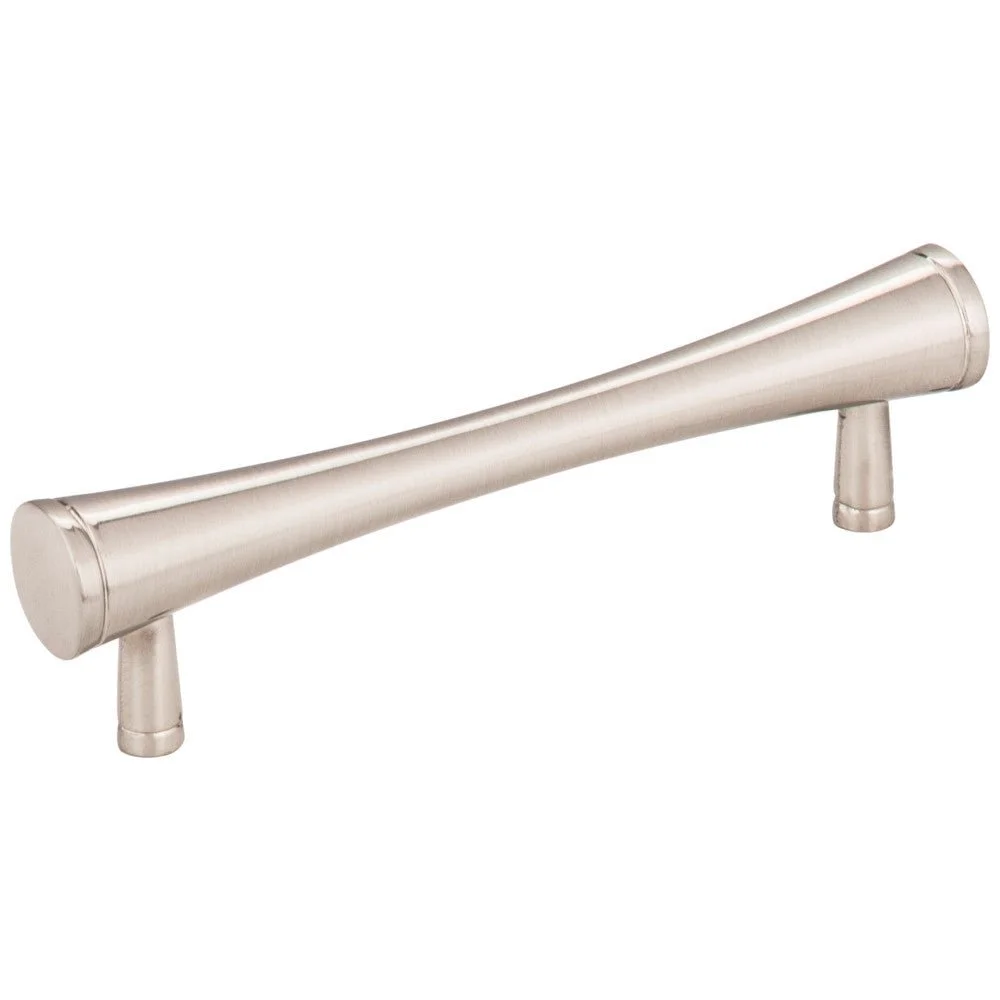

96 mm centers · Satin Nickel · model 475SN — MDI $7.79 · Factory list $11.24

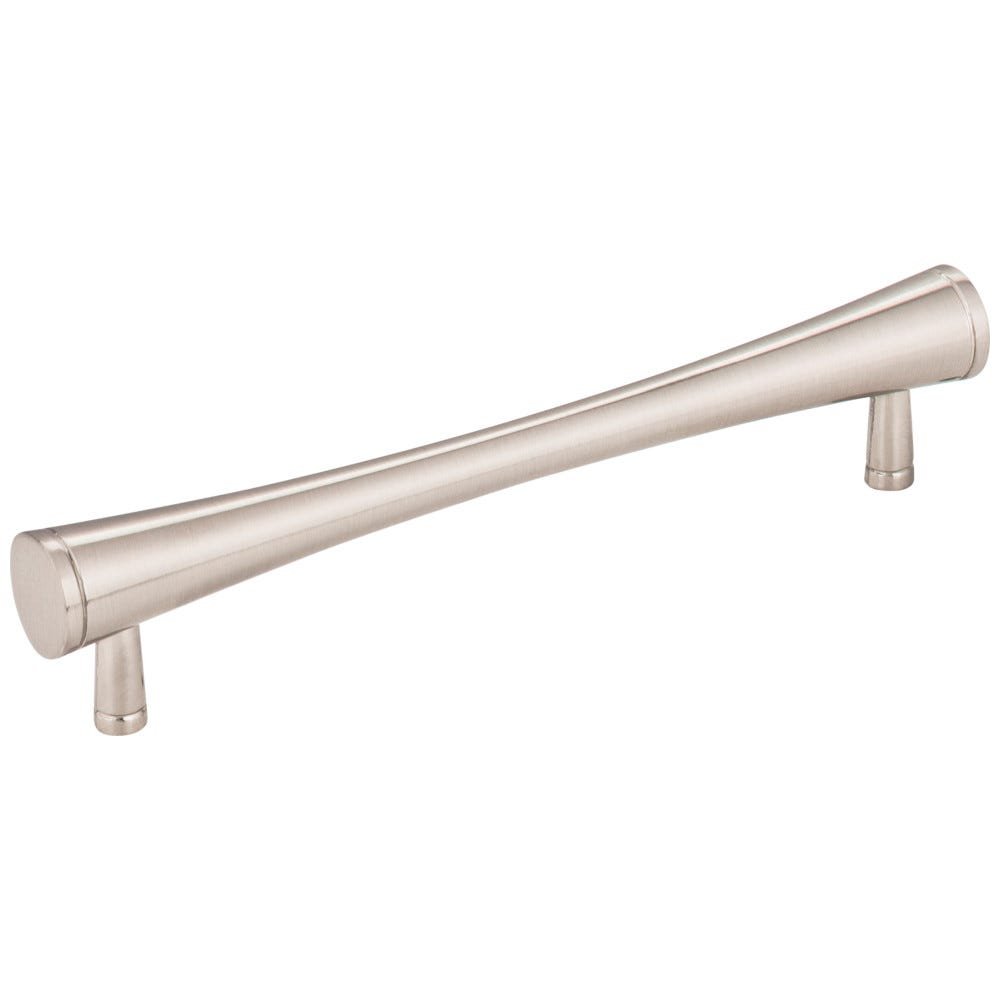

128 mm centers · Satin Nickel · model 600SN — MDI $10.78 · Factory list $15.56

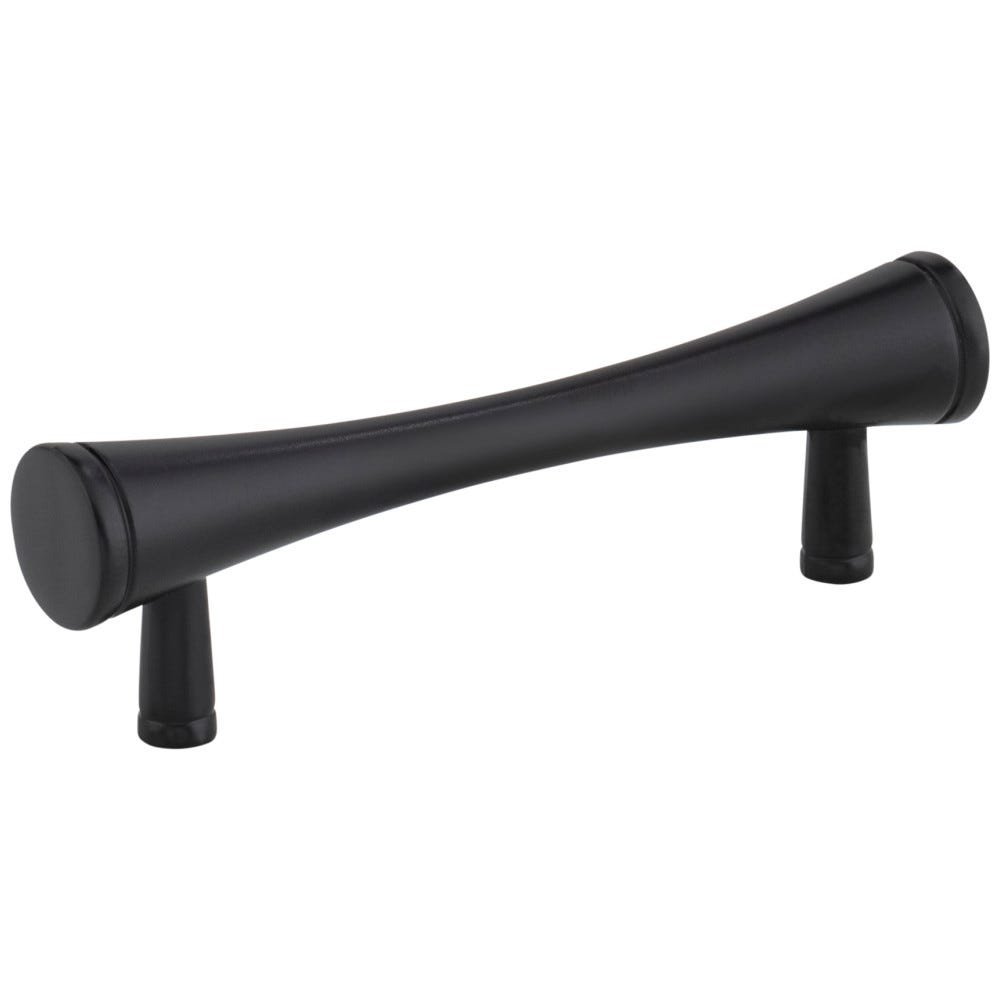

3" centers · Matte Black · model 400MB — MDI $6.19 · Factory list $8.96

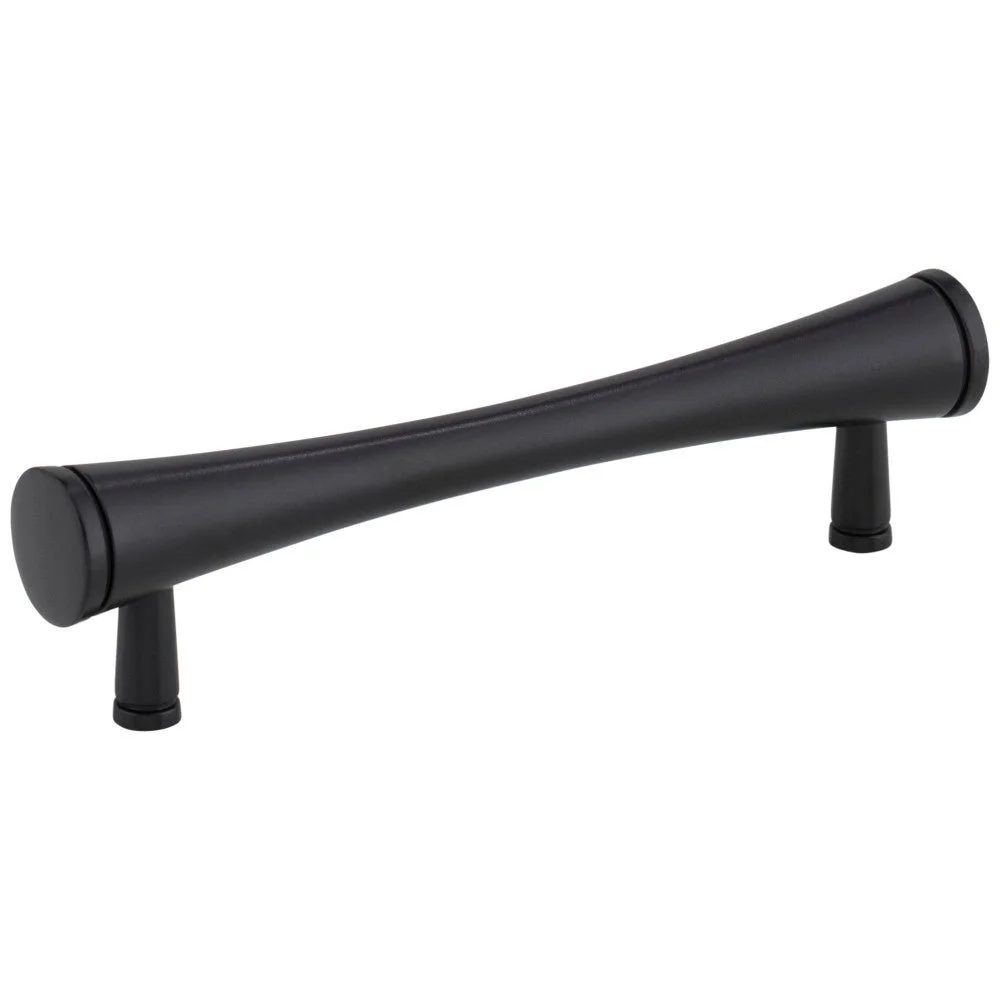

96 mm centers · Matte Black · model 475MB — MDI $7.79 · Factory list $11.24

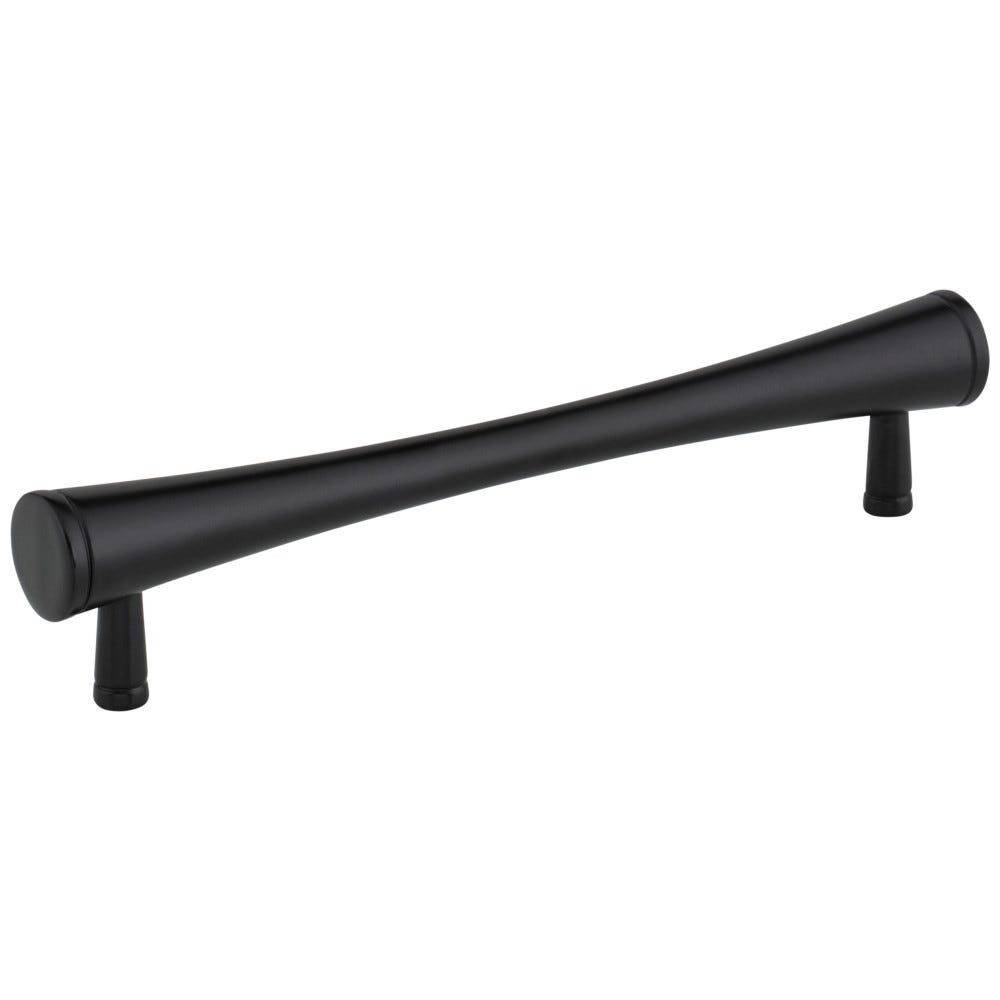

128 mm centers · Matte Black · model 600MB — MDI $10.78 · Factory list $15.56

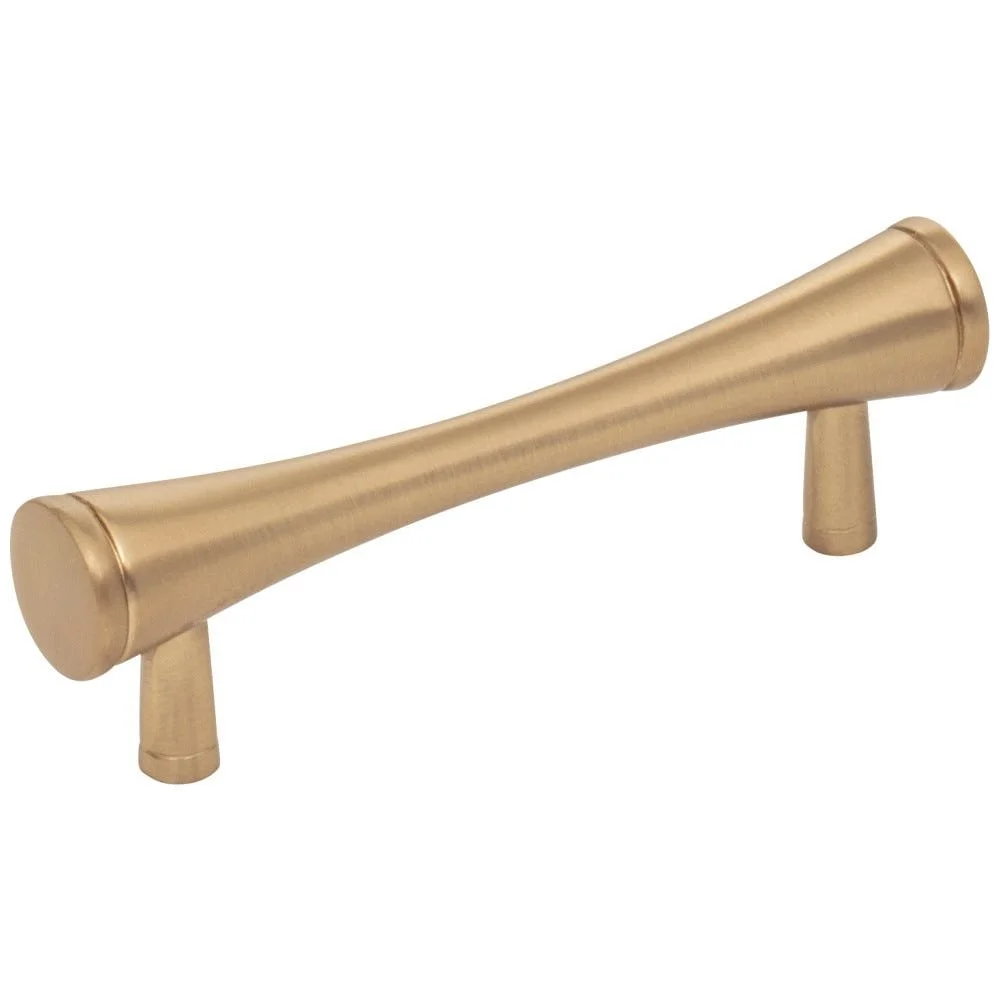

3" centers · Satin Bronze · model 400SBZ — MDI $6.19 · Factory list $8.96

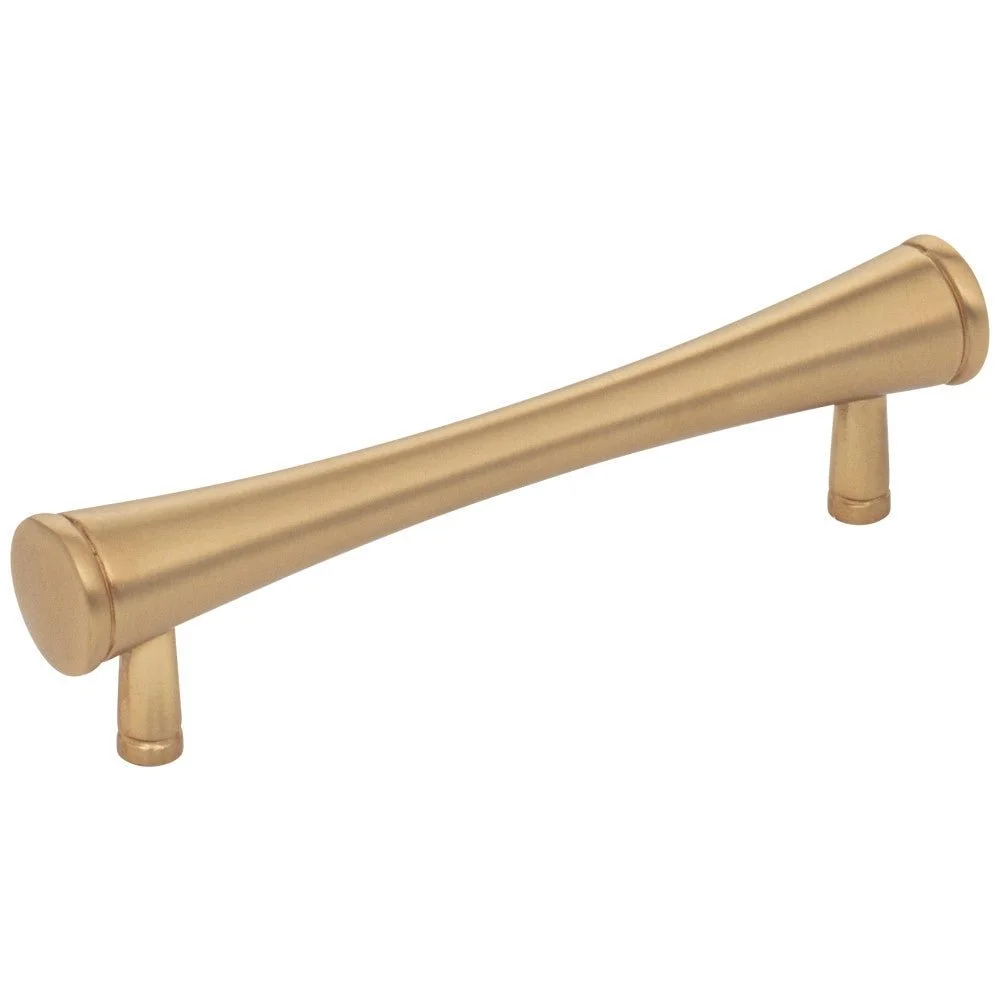

96 mm centers · Satin Bronze · model 475SBZ — MDI $7.79 · Factory list $11.24

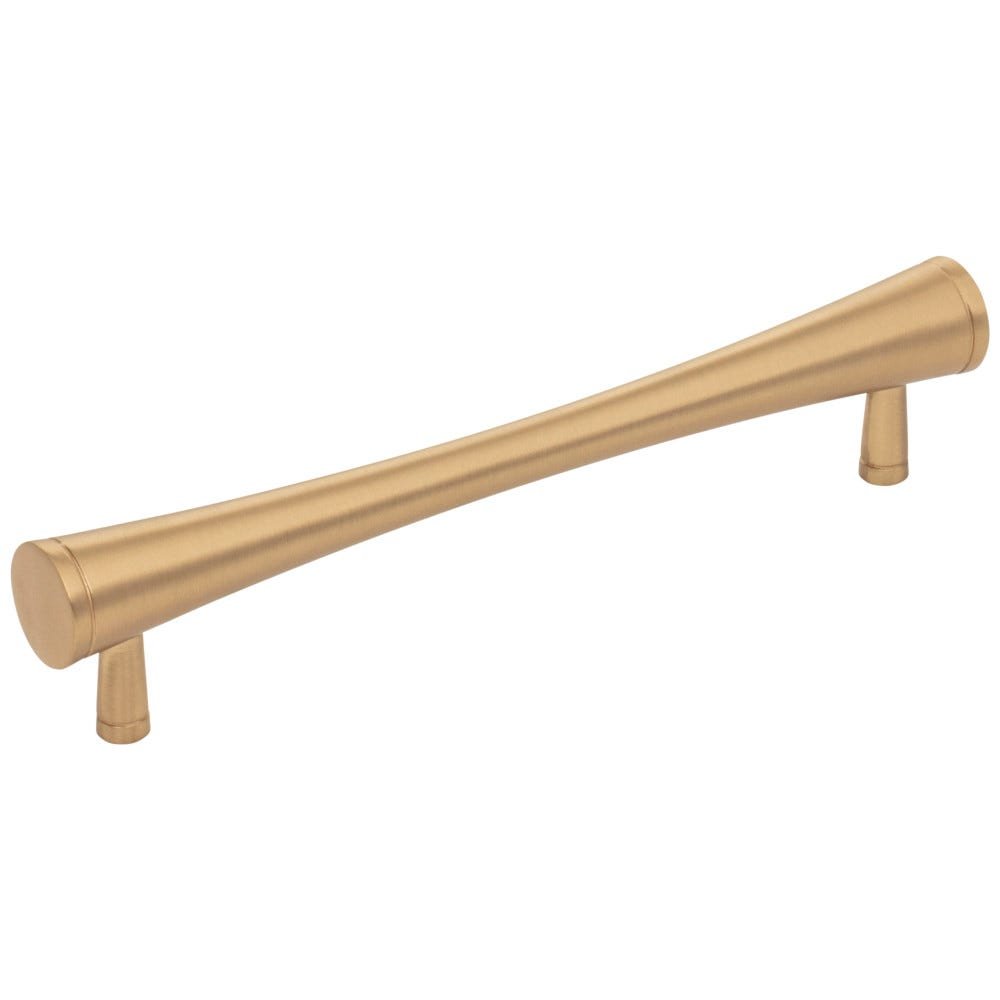

128 mm centers · Satin Bronze · model 600SBZ — MDI $10.78 · Factory list $15.56
3-inch centers: 4-inch overall length, 5/16-inch width and 3/4-inch clearance
96 mm centers: 4-3/4-inch overall length, 3/8-inch width and 11/16-inch clearance
128 mm centers: 6-inch overall length, 3/8-inch width and 11/16-inch clearance
All sizes: 1-1/4-inch projection and 5/16 × 5/16-inch feet
Satin Nickel: steel construction. Matte Black and Satin Bronze: zinc construction.
Center-to-center is the distance between mounting holes; it is different from overall length.
3-inch specification drawing · 96 mm specification drawing · 128 mm specification drawing · Factory warranty · Finish & selection guide
Gallery shows representative 96 mm pulls in each finish; proportions vary by size. Optional decorative hardware, sold separately from cabinetry. Use the drawing before drilling.
