Slade Square Cabinet Pull

Slade’s softly curved face and squared ends bring an understated contemporary detail to cabinets and drawers. Choose from five mounting sizes and five finishes to carry the same design throughout your room.

Select size and finish above. Sold individually with attachment hardware included.

Size, finish & pricing

• 3" · Satin Nickel · model 984-3SN — MDI $3.96 · Factory list $5.72

• 96 mm · Satin Nickel · model 984-96SN — MDI $4.52 · Factory list $6.52

• 128 mm · Satin Nickel · model 984-128SN — MDI $5.26 · Factory list $7.60

• 160 mm · Satin Nickel · model 984-160SN — MDI $6.07 · Factory list $8.76

• 192 mm · Satin Nickel · model 984-192SN — MDI $6.95 · Factory list $10.04

• 3" · Polished Chrome · model 984-3PC — MDI $3.96 · Factory list $5.72

• 96 mm · Polished Chrome · model 984-96PC — MDI $4.52 · Factory list $6.52

• 128 mm · Polished Chrome · model 984-128PC — MDI $5.26 · Factory list $7.60

• 160 mm · Polished Chrome · model 984-160PC — MDI $6.07 · Factory list $8.76

• 192 mm · Polished Chrome · model 984-192PC — MDI $6.95 · Factory list $10.04

• 3" · Brushed Pewter · model 984-3BNBDL — MDI $3.96 · Factory list $5.72

• 96 mm · Brushed Pewter · model 984-96BNBDL — MDI $4.52 · Factory list $6.52

• 128 mm · Brushed Pewter · model 984-128BNBDL — MDI $5.26 · Factory list $7.60

• 160 mm · Brushed Pewter · model 984-160BNBDL — MDI $6.07 · Factory list $8.76

• 192 mm · Brushed Pewter · model 984-192BNBDL — MDI $6.95 · Factory list $10.04

• 3" · Brushed Oil Rubbed Bronze · model 984-3DBAC — MDI $3.96 · Factory list $5.72

• 96 mm · Brushed Oil Rubbed Bronze · model 984-96DBAC — MDI $4.52 · Factory list $6.52

• 128 mm · Brushed Oil Rubbed Bronze · model 984-128DBAC — MDI $5.26 · Factory list $7.60

• 160 mm · Brushed Oil Rubbed Bronze · model 984-160DBAC — MDI $6.07 · Factory list $8.76

• 192 mm · Brushed Oil Rubbed Bronze · model 984-192DBAC — MDI $6.95 · Factory list $10.04

• 3" · Gun Metal · model 984-3DACM — MDI $3.96 · Factory list $5.72

• 96 mm · Gun Metal · model 984-96DACM — MDI $4.52 · Factory list $6.52

• 128 mm · Gun Metal · model 984-128DACM — MDI $5.26 · Factory list $7.60

• 160 mm · Gun Metal · model 984-160DACM — MDI $6.07 · Factory list $8.76

• 192 mm · Gun Metal · model 984-192DACM — MDI $6.95 · Factory list $10.04

Dimensions & details

• 3" centers: 3-5/16" overall length; 7/16" width; 7/8" projection; 3/4" clearance; foot 5/16" × 5/16"

• 96 mm centers: 4-1/8" overall length; 7/16" width; 7/8" projection; 3/4" clearance; foot 5/16" × 5/16"

• 128 mm centers: 5-1/2" overall length; 7/16" width; 7/8" projection; 3/4" clearance; foot 5/16" × 5/16"

• 160 mm centers: 6-11/16" overall length; 1/2" width; 7/8" projection; 3/4" clearance; foot 5/16" × 5/16"

• 192 mm centers: 7-7/8" overall length; 1/2" width; 7/8" projection; 3/4" clearance; foot 5/16" × 5/16"

Zinc construction. Center-to-center measures the distance between mounting holes, not overall handle length.

Product resources

slade 984 3 drawing · slade 984 96 drawing · slade 984 128 drawing · slade 984 160 drawing · slade 984 192 drawing · Factory warranty · Finish & selection guide

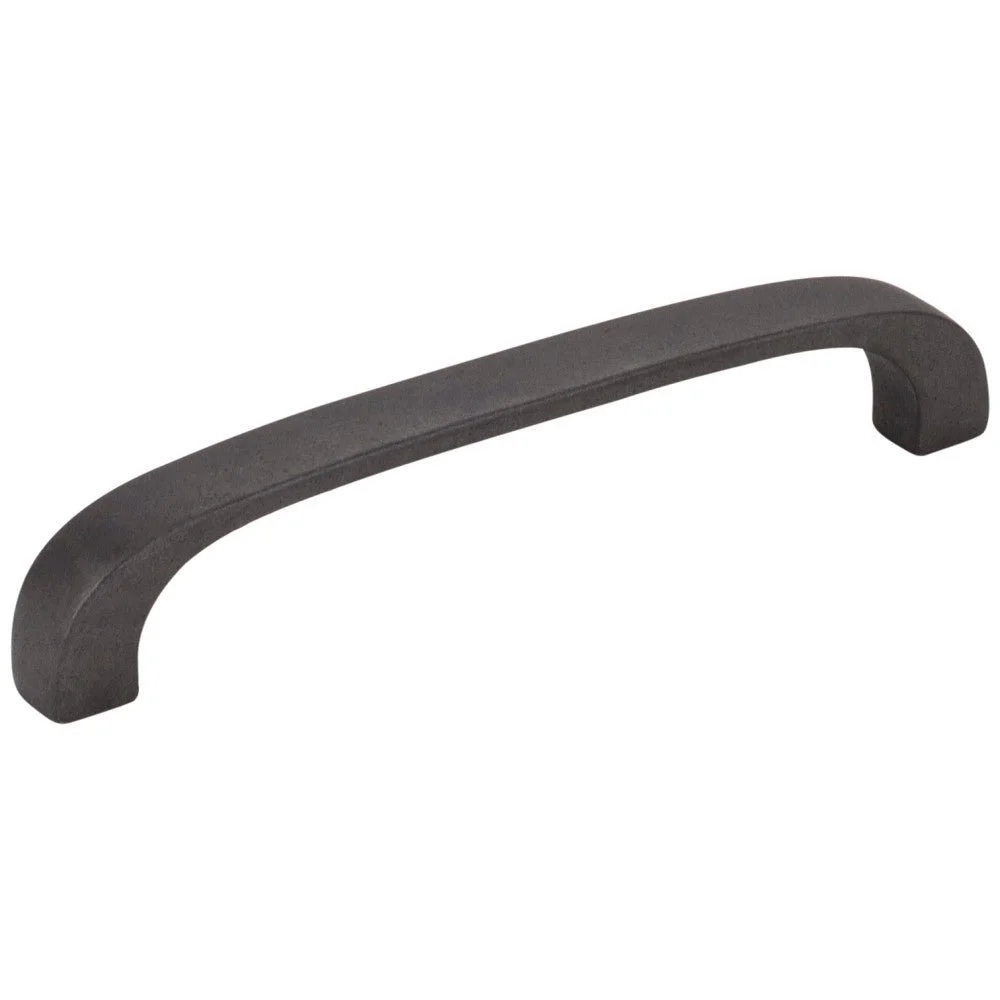

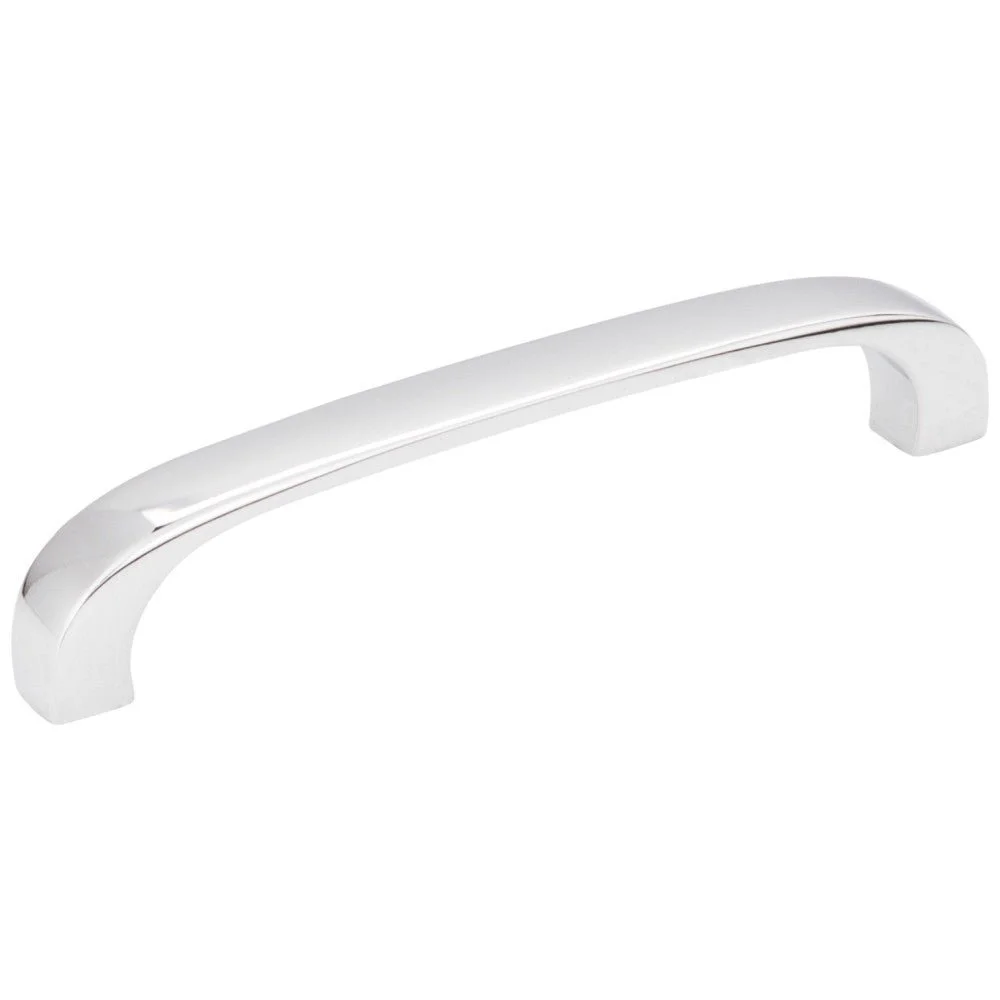

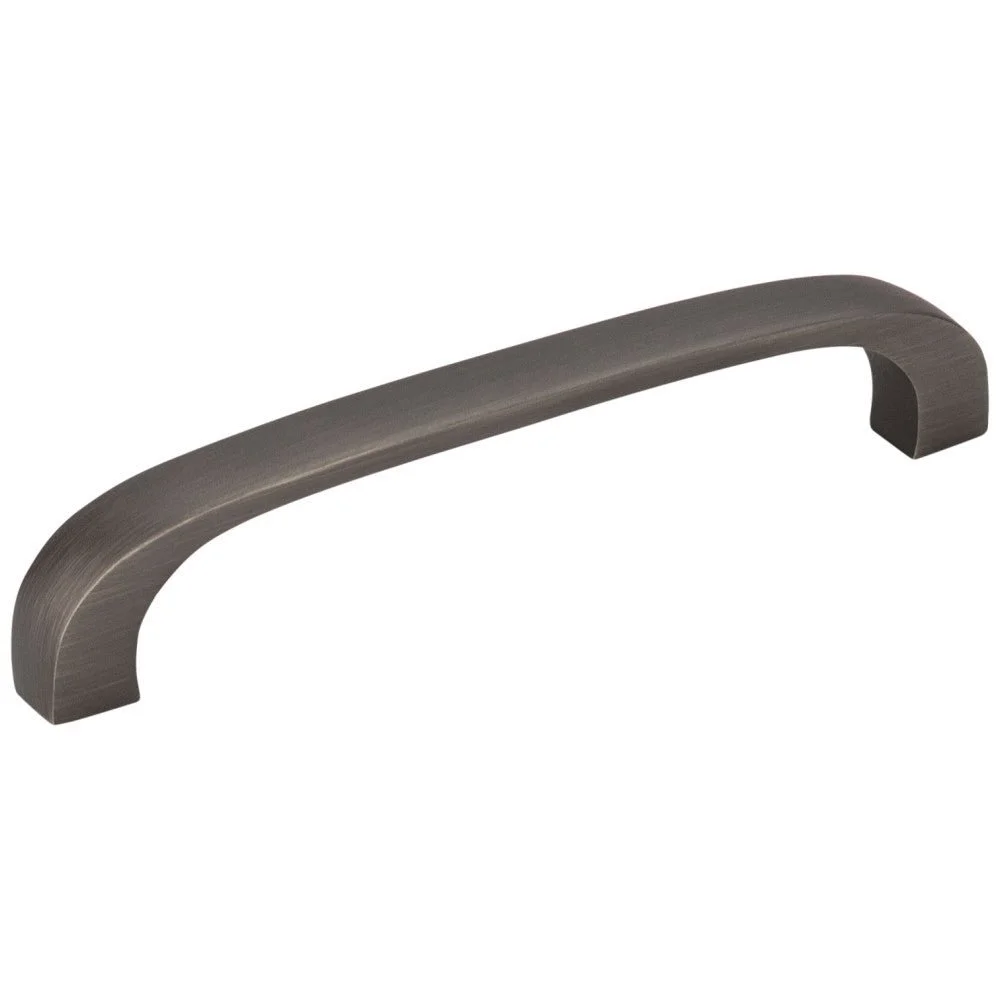

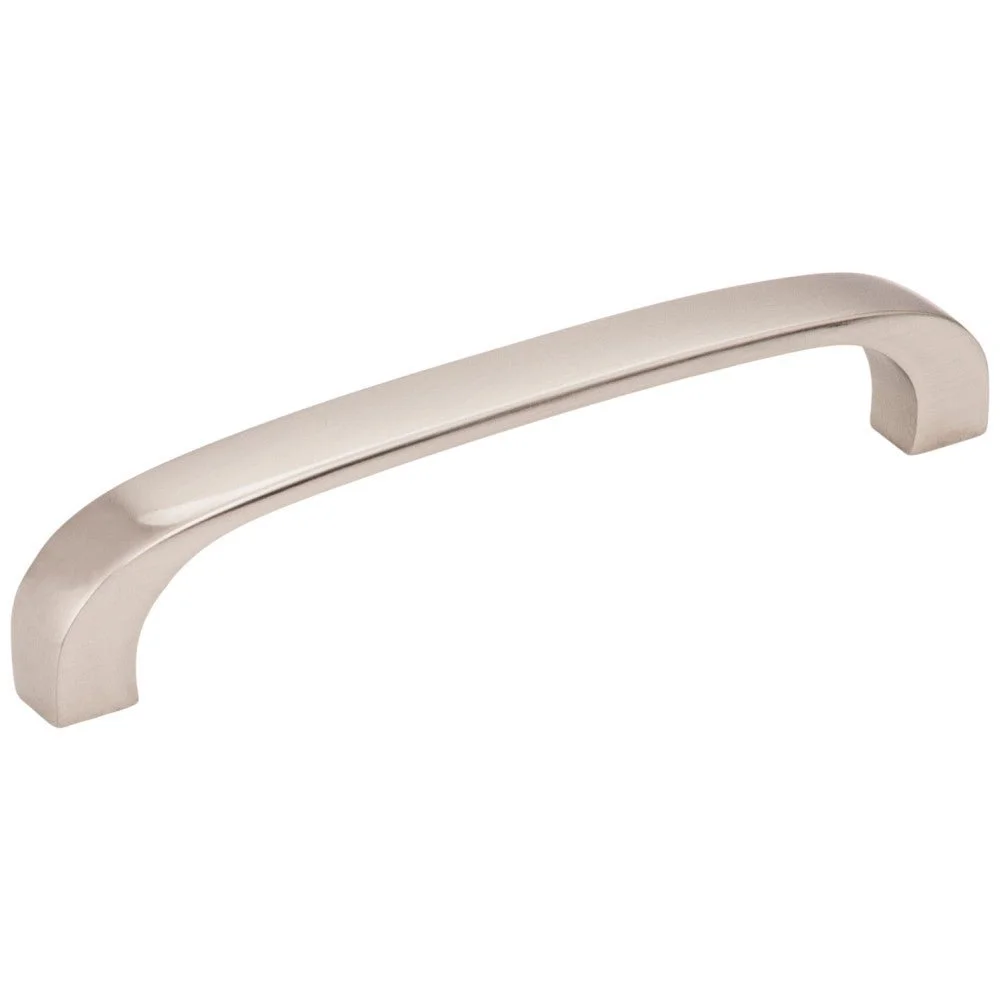

Gallery shows representative 96 mm pulls in each finish; proportions vary by size. Optional decorative hardware, sold separately from cabinetry. Use the drawing before drilling.
