Torino’s slender wire-pull design keeps cabinetry looking clean and uncomplicated. This steel S271 series offers five mounting sizes and six finishes, including Matte Black, Polished Brass, and Brushed Chrome.
Select size and finish above. Sold individually with attachment hardware included.
3" · Satin Nickel · model S271-3SN — MDI $2.50 · Factory list $3.62
3-1/2" · Satin Nickel · model S271-3.5SN — MDI $2.63 · Factory list $3.80

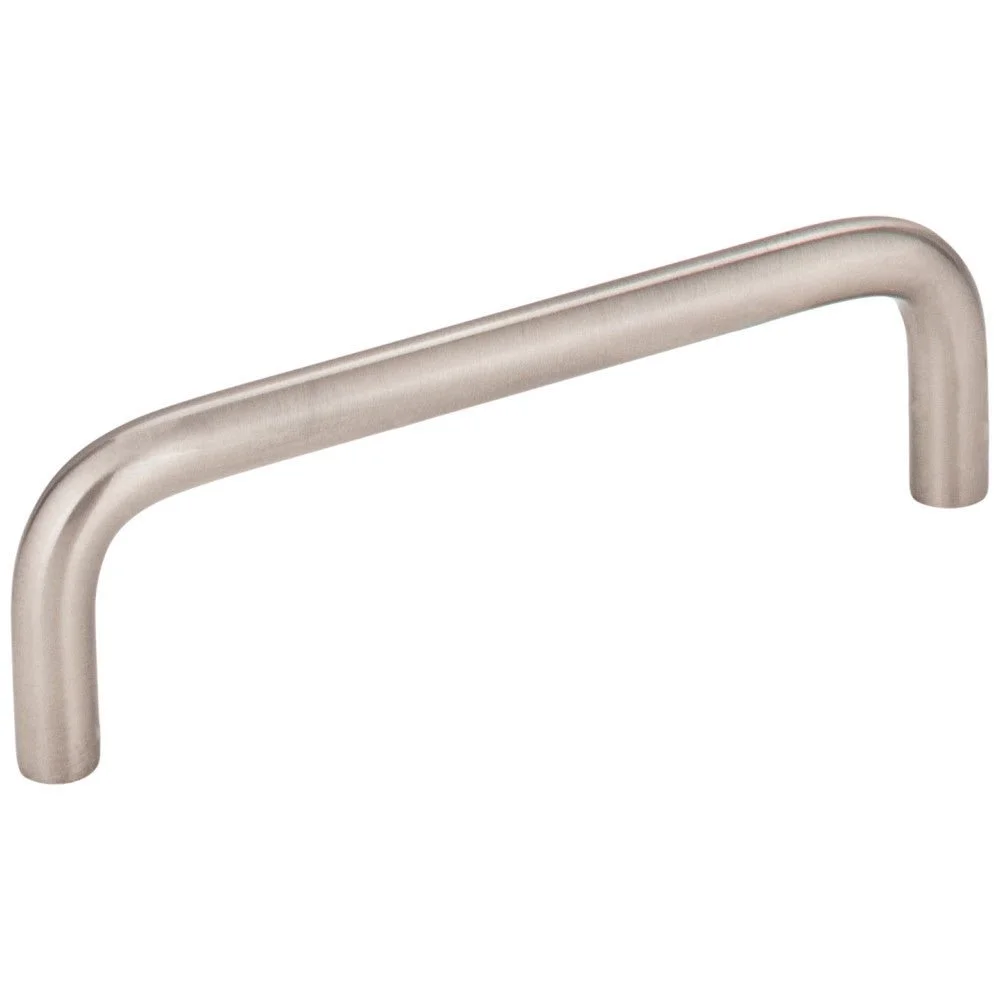

96 mm · Satin Nickel · model S271-96SN — MDI $2.68 · Factory list $3.88
4" · Satin Nickel · model S271-4SN — MDI $2.79 · Factory list $4.04
128 mm · Satin Nickel · model S271-128SN — MDI $2.79 · Factory list $4.04
3" · Matte Black · model S271-3MB — MDI $2.50 · Factory list $3.62
3-1/2" · Matte Black · model S271-3.5MB — MDI $2.63 · Factory list $3.80

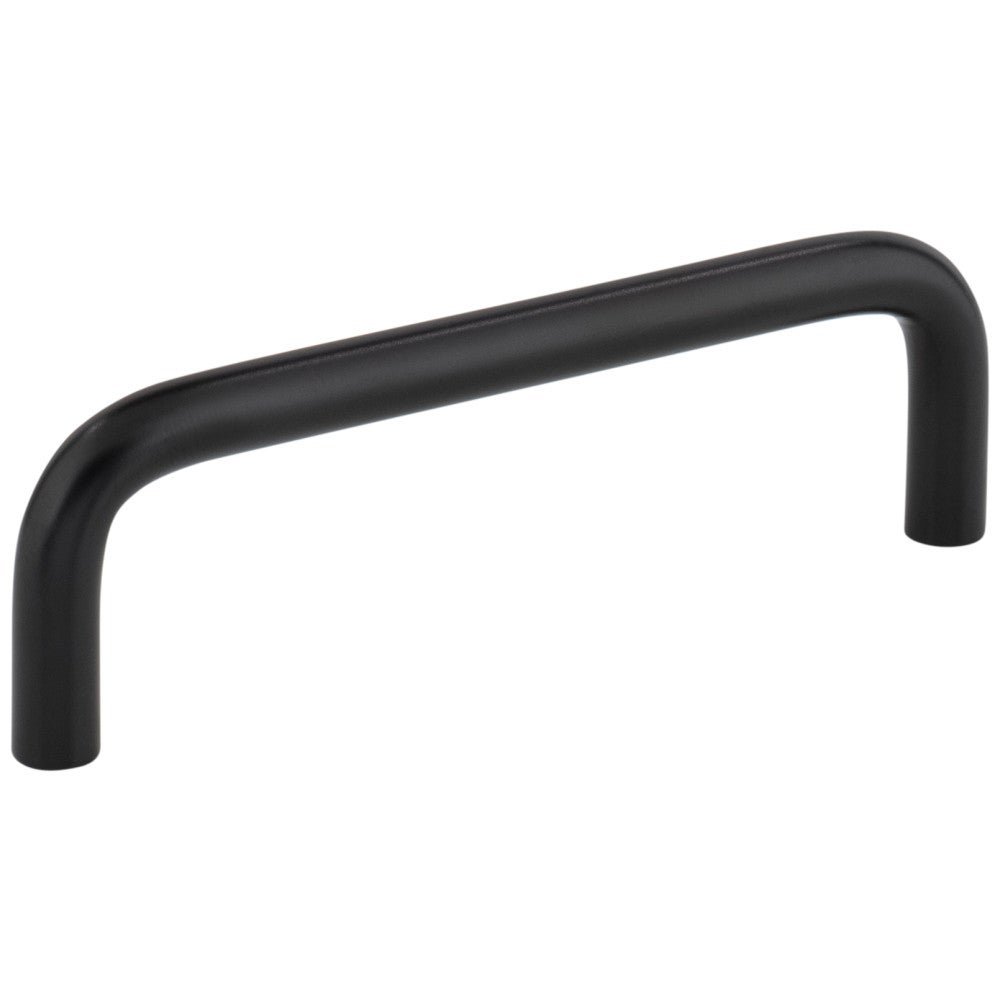

96 mm · Matte Black · model S271-96MB — MDI $2.68 · Factory list $3.88
4" · Matte Black · model S271-4MB — MDI $2.79 · Factory list $4.04
128 mm · Matte Black · model S271-128MB — MDI $2.79 · Factory list $4.04
3" · Polished Chrome · model S271-3PC — MDI $2.50 · Factory list $3.62
3-1/2" · Polished Chrome · model S271-3.5PC — MDI $2.63 · Factory list $3.80

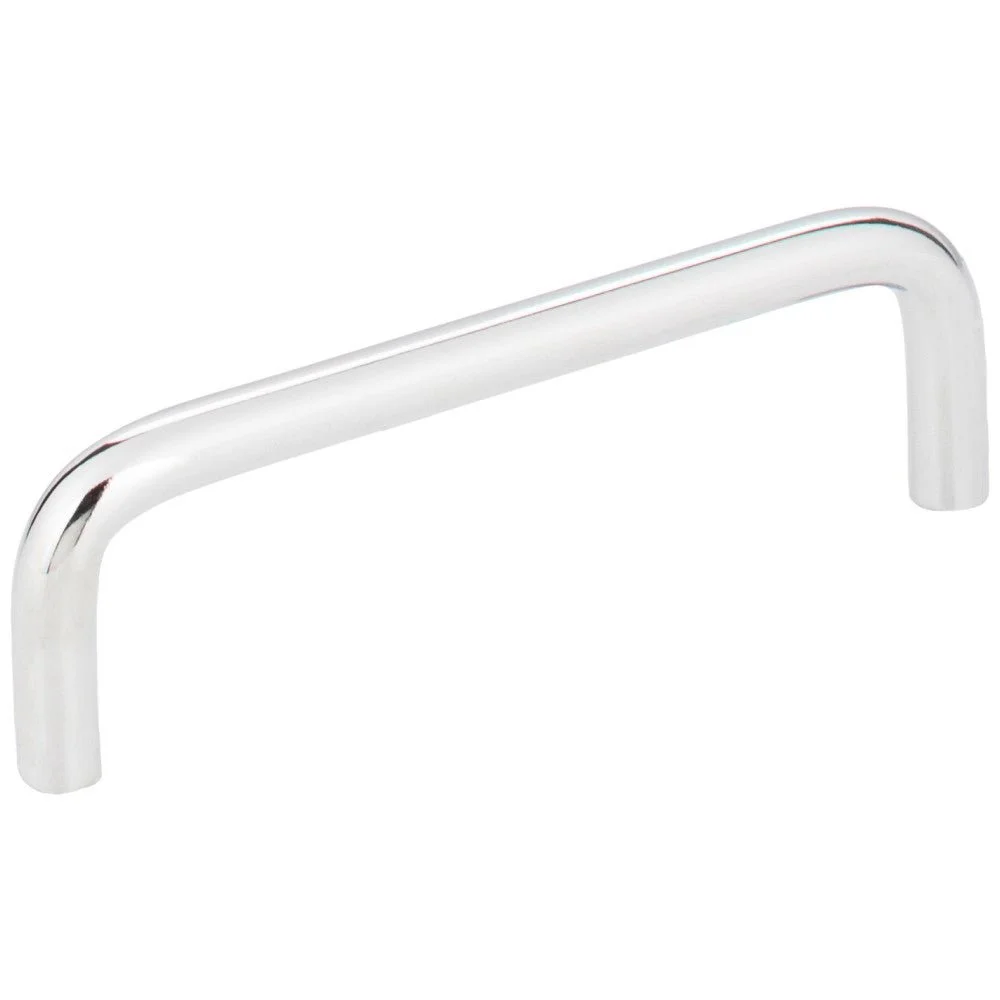

96 mm · Polished Chrome · model S271-96PC — MDI $2.68 · Factory list $3.88
4" · Polished Chrome · model S271-4PC — MDI $2.79 · Factory list $4.04
128 mm · Polished Chrome · model S271-128PC — MDI $2.79 · Factory list $4.04
3" · Brushed Oil Rubbed Bronze · model S271-3DBAC — MDI $2.50 · Factory list $3.62
3-1/2" · Brushed Oil Rubbed Bronze · model S271-3.5DBAC — MDI $2.63 · Factory list $3.80

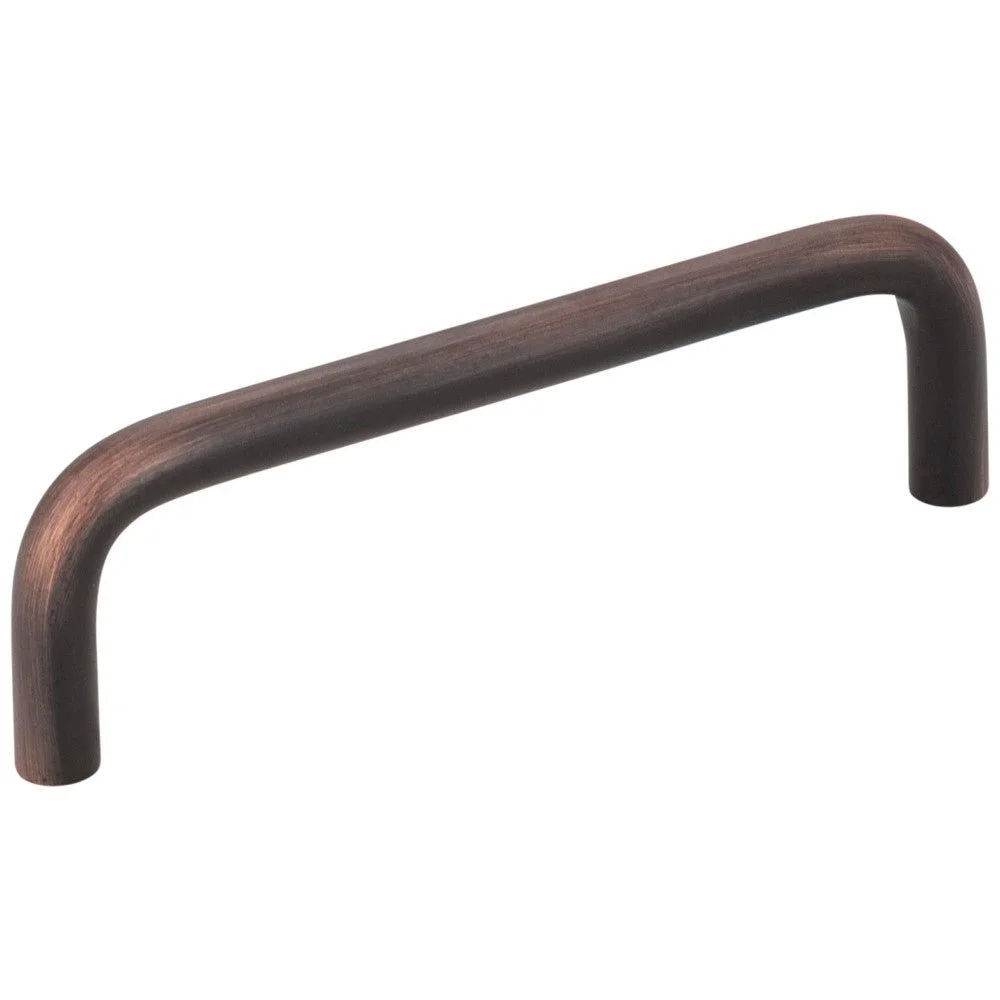

96 mm · Brushed Oil Rubbed Bronze · model S271-96DBAC — MDI $2.68 · Factory list $3.88
4" · Brushed Oil Rubbed Bronze · model S271-4DBAC — MDI $2.79 · Factory list $4.04
128 mm · Brushed Oil Rubbed Bronze · model S271-128DBAC — MDI $2.79 · Factory list $4.04
3" · Brushed Chrome · model S271-3BC — MDI $2.50 · Factory list $3.62
3-1/2" · Brushed Chrome · model S271-3.5BC — MDI $2.63 · Factory list $3.80

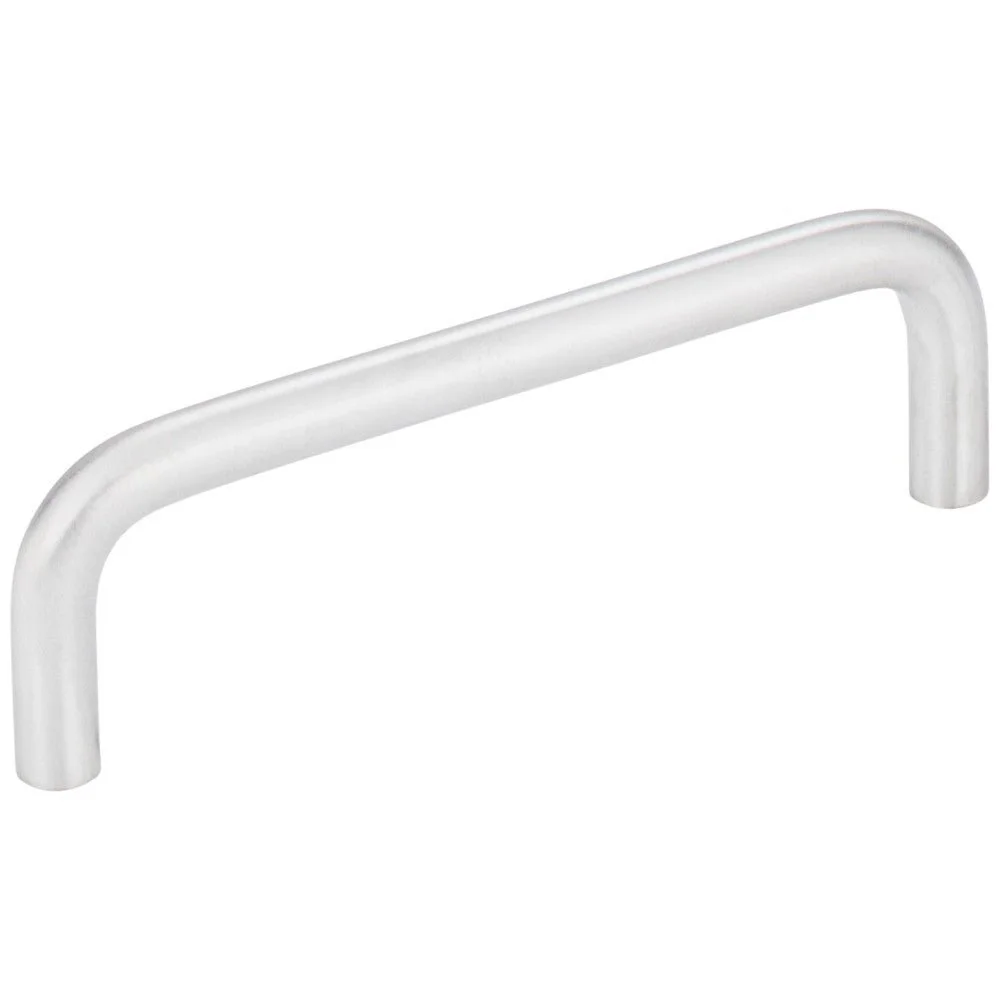

96 mm · Brushed Chrome · model S271-96BC — MDI $2.68 · Factory list $3.88
4" · Brushed Chrome · model S271-4BC — MDI $2.79 · Factory list $4.04
128 mm · Brushed Chrome · model S271-128BC — MDI $2.79 · Factory list $4.04
3" · Polished Brass · model S271-3PB — MDI $2.50 · Factory list $3.62
3-1/2" · Polished Brass · model S271-3.5PB — MDI $2.63 · Factory list $3.80

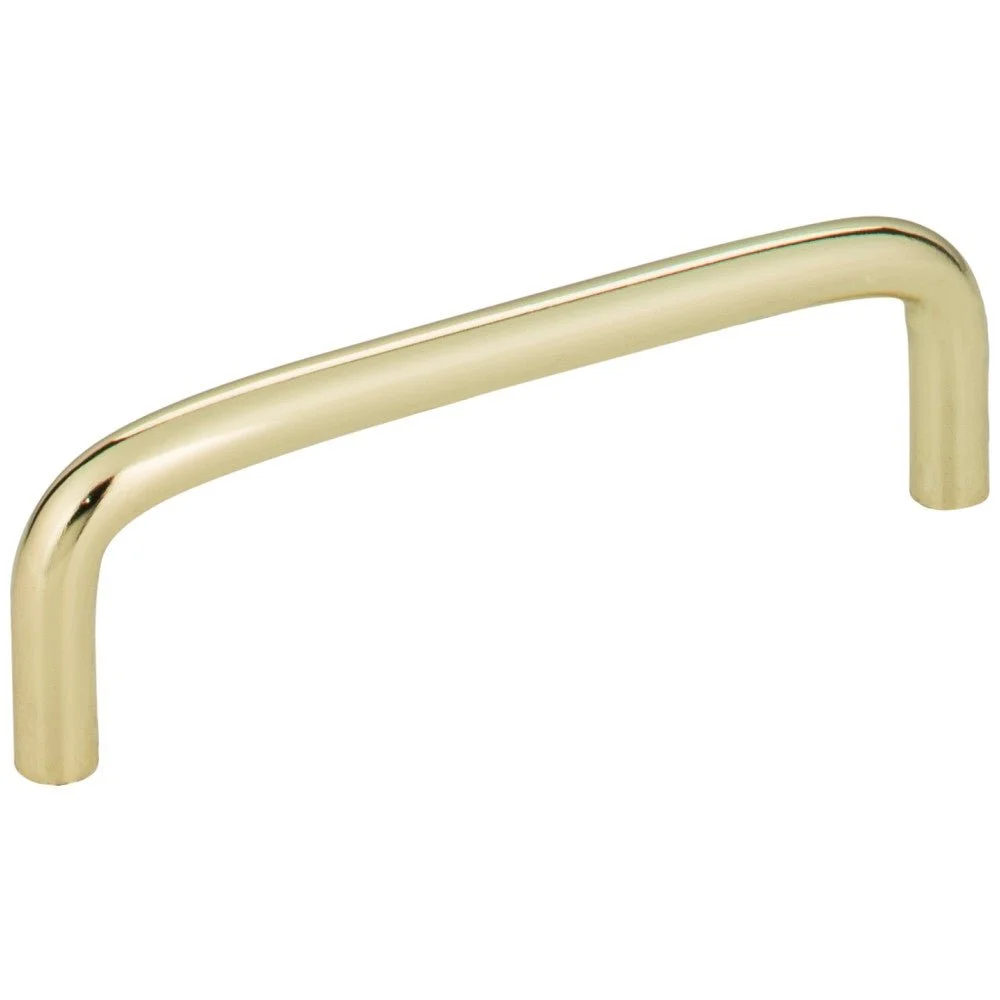

96 mm · Polished Brass · model S271-96PB — MDI $2.68 · Factory list $3.88
4" · Polished Brass · model S271-4PB — MDI $2.79 · Factory list $4.04
128 mm · Polished Brass · model S271-128PB — MDI $2.79 · Factory list $4.04
3" centers: 3-5/16" overall length; 5/16" width; 1-1/4" projection; 15/16" clearance; foot 5/16" × 5/16"
3-1/2" centers: 3-13/16" overall length; 5/16" width; 1-1/4" projection; 15/16" clearance; foot 5/16" × 5/16"
96 mm centers: 4-1/16" overall length; 5/16" width; 1-1/4" projection; 15/16" clearance; foot 5/16" × 5/16"
4" centers: 4-5/16" overall length; 5/16" width; 1-1/4" projection; 15/16" clearance; foot 5/16" × 5/16"
128 mm centers: 5-5/16" overall length; 5/16" width; 1-1/4" projection; 15/16" clearance; foot 5/16" × 5/16"
Steel construction. For stainless steel construction, choose the separate Torino K271 series. Center-to-center measures mounting-hole spacing, not overall length.
torino S271 3 drawing · torino S271 3.5 drawing · torino S271 96 drawing · torino S271 4 drawing · torino S271 128 drawing · Factory warranty · Finish & selection guide
Gallery shows representative 96 mm pulls in each finish; proportions vary by size. Optional decorative hardware, sold separately from cabinetry. Consult the drawing before drilling.
