Watervale combines a gently arched grip with rounded, button-like feet for a classic transitional detail. Choose a 3-inch or 96 mm mounting pattern in four finishes, and coordinate smaller doors with the matching Watervale knob.
Select size and finish above. Sold individually with attachment hardware included.
3" · Satin Nickel · model 647-3SN — MDI $3.42 · Factory list $4.94
96 mm · Satin Nickel · model 647-96SN — MDI $4.99 · Factory list $7.20
3" · Polished Chrome · model 647-3PC — MDI $3.42 · Factory list $4.94
96 mm · Polished Chrome · model 647-96PC — MDI $4.99 · Factory list $7.20
3" · Brushed Pewter · model 647-3BNBDL — MDI $3.42 · Factory list $4.94
96 mm · Brushed Pewter · model 647-96BNBDL — MDI $4.99 · Factory list $7.20
3" · Brushed Oil Rubbed Bronze · model 647-3DBAC — MDI $3.42 · Factory list $4.94
96 mm · Brushed Oil Rubbed Bronze · model 647-96DBAC — MDI $4.99 · Factory list $7.20
3" centers: 4-5/8" overall length; 1/2" width; 1" projection; 3/4" clearance; foot 15/16" × 7/8"
96 mm centers: 5-3/8" overall length; 1/2" width; 1" projection; 3/4" clearance; foot 15/16" × 7/8"
Zinc construction. The feet are wider than the grip; consult the drawing for the full footprint. Center-to-center is the spacing between mounting holes, not overall length.
watervale 647 3 drawing · watervale 647 96 drawing · Factory warranty · Finish & selection guide

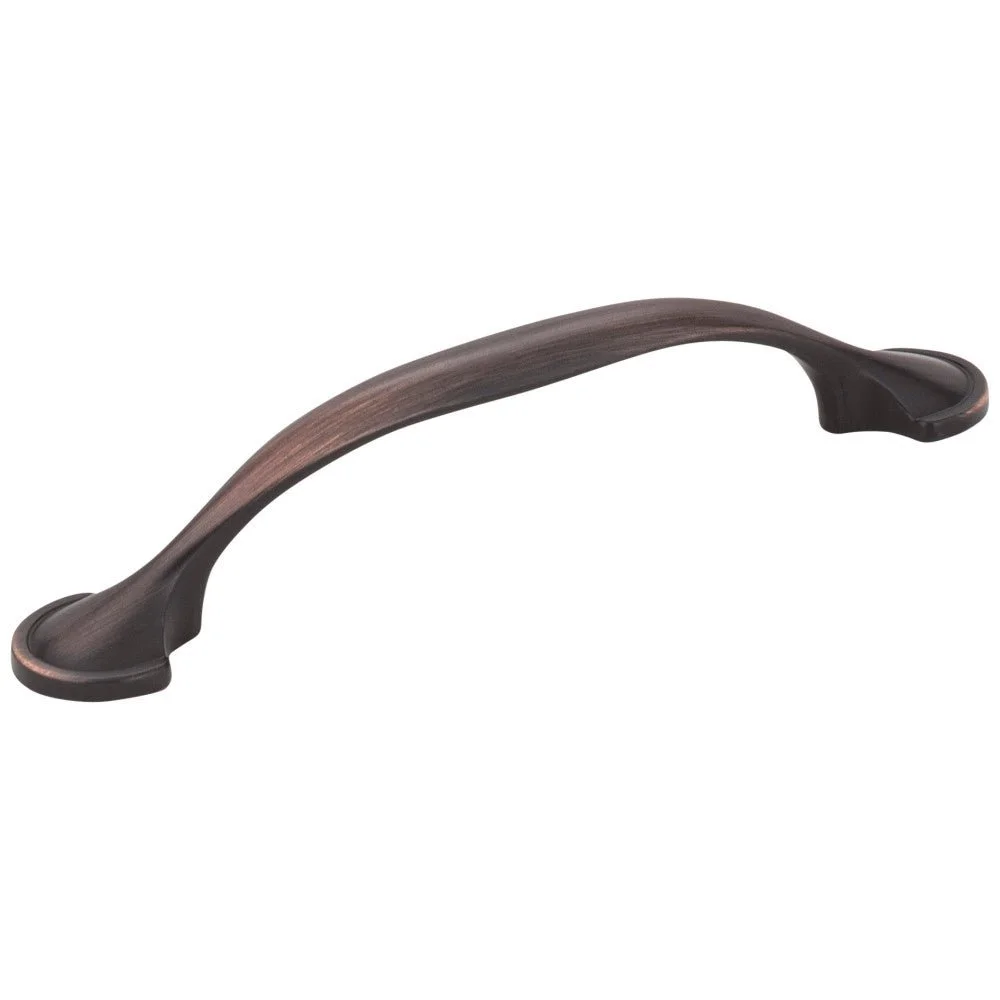

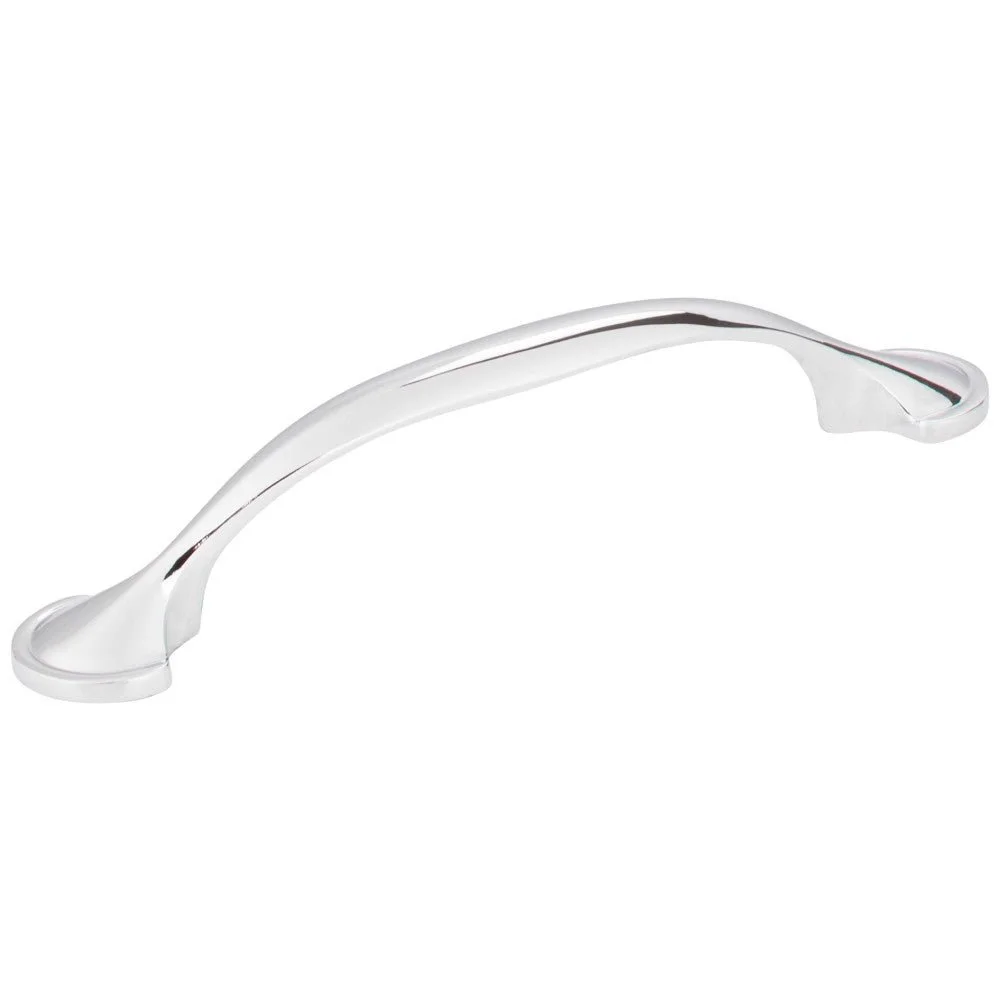

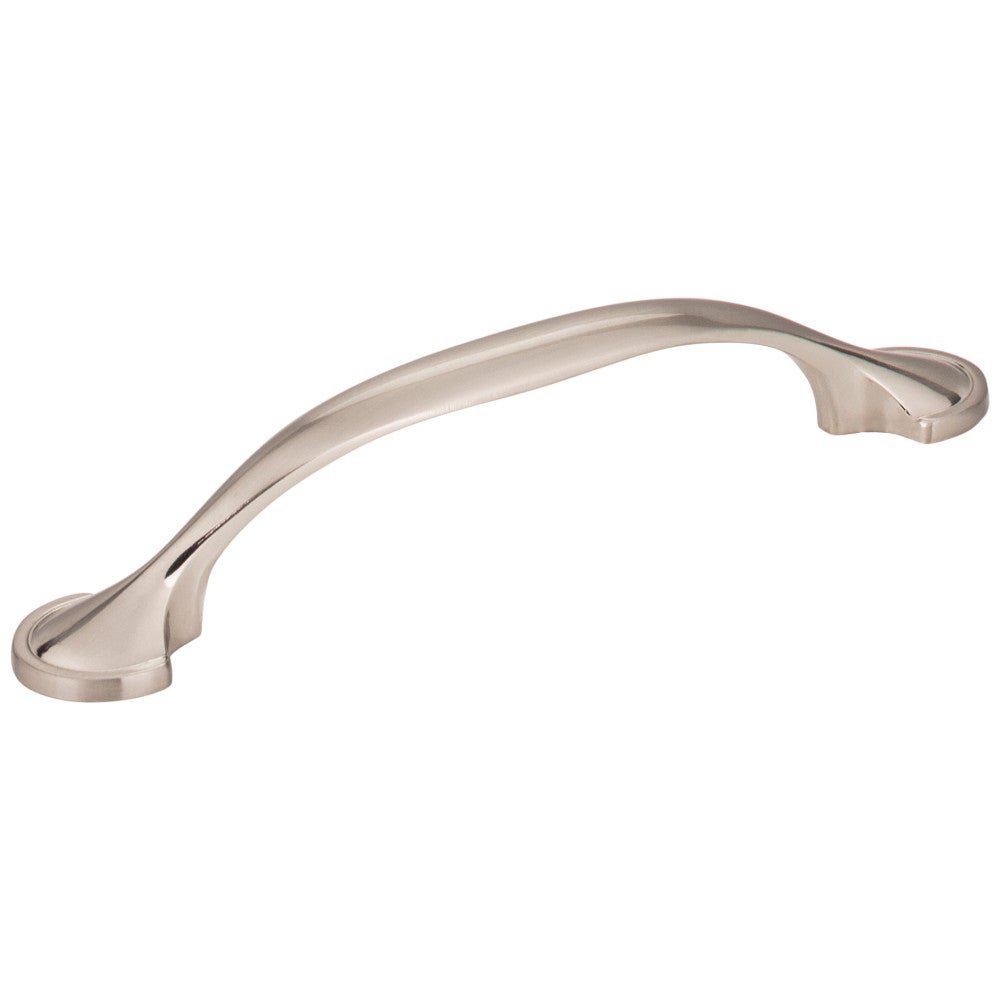

Gallery shows representative 96 mm pulls in each finish; proportions vary by size. Optional decorative hardware, sold separately from cabinetry. Consult the drawing before drilling.
