Give cabinet doors a controlled, quiet close with a heavy-duty European hinge whose closing speed can be adjusted to suit the door. The 1750 series combines a durable spring and linkage system with cam adjustment for a precise fit.
Sold individually. Compatible 600 Series mounting plates are required and sold separately. Choose the overlay and mounting method that match your cabinet construction.
Full overlay: straight arm, 0 mm crank.
Half overlay: half-cranked arm, 9 mm crank.
Inset: fully cranked arm, 15 mm crank.
Press-in versions include 8 mm dowels; screw-mount versions have no dowels.
Opening angle: 110°.
Cup diameter: 35 mm; cup bore depth: 11.2 mm; mounting centers: 45 mm.
Cold-rolled steel with a polished nickel finish.
Hinge and compatible plate provide six-way adjustment; overlay adjustment ±2 mm, depth adjustment +3/−2 mm.
Suitable for face-frame or frameless cabinetry with the correctly selected mounting plate.
Grade 2 ANSI/BHMA certification; tested to 100,000 cycles. Limited lifetime factory warranty.

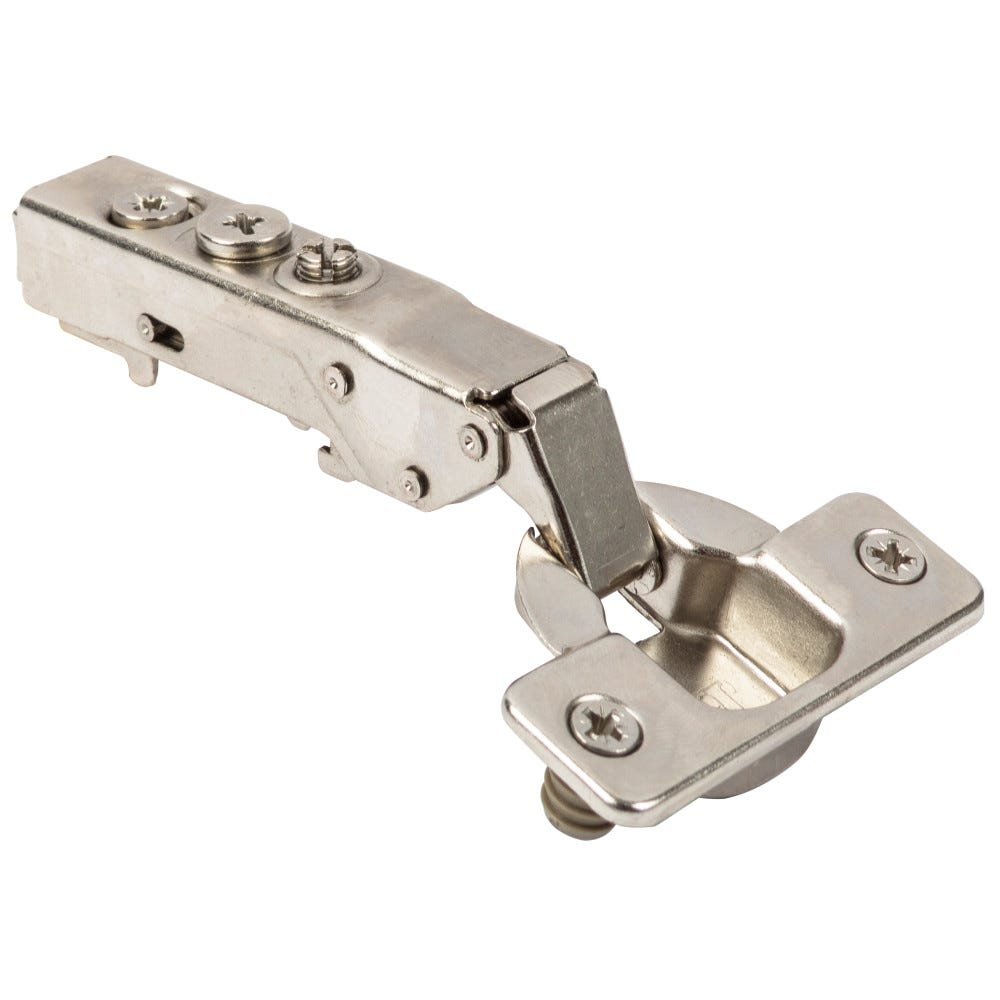

Full Overlay · 0 mm crank · 8 mm press-in dowels — 1750.0181.25 — $6.28 each

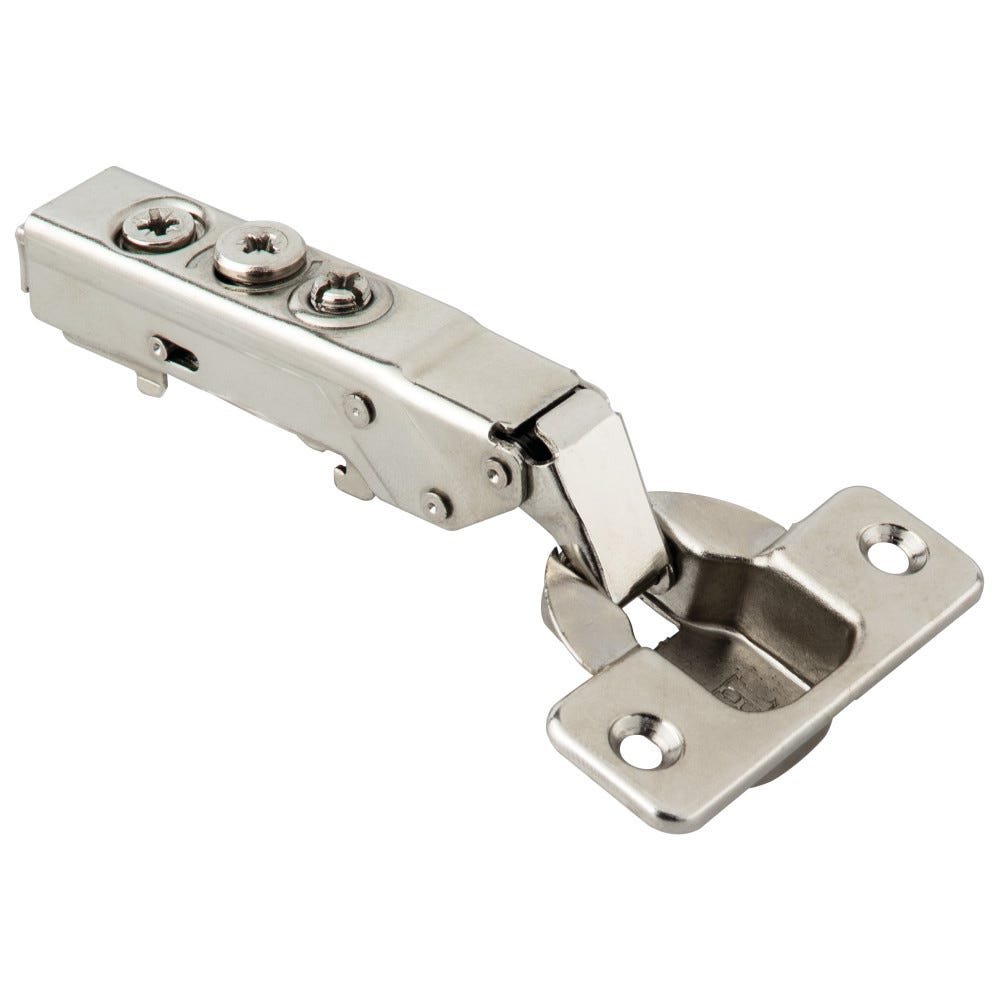

Full Overlay · 0 mm crank · screw mount, no dowels — 1750.0535.25 — $6.61 each

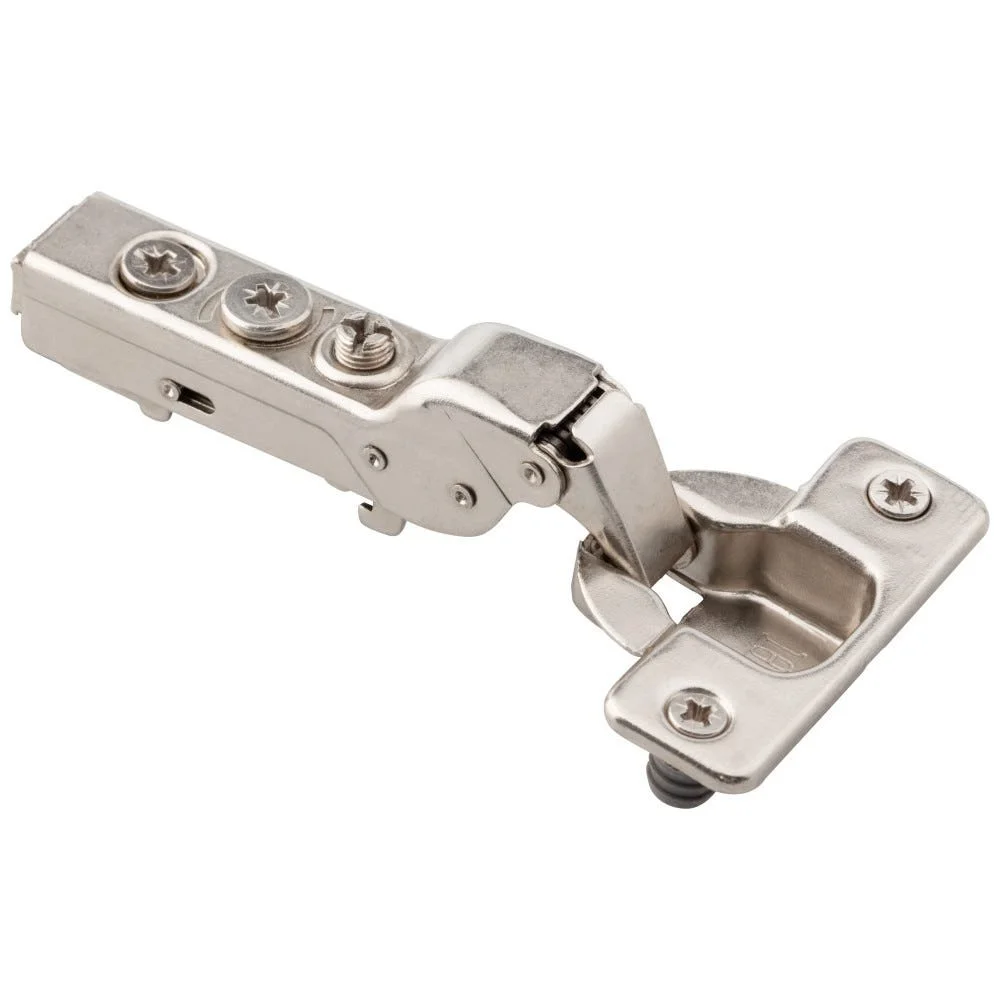

Half Overlay · 9 mm crank · 8 mm press-in dowels — 1750.0179.25 — $6.64 each

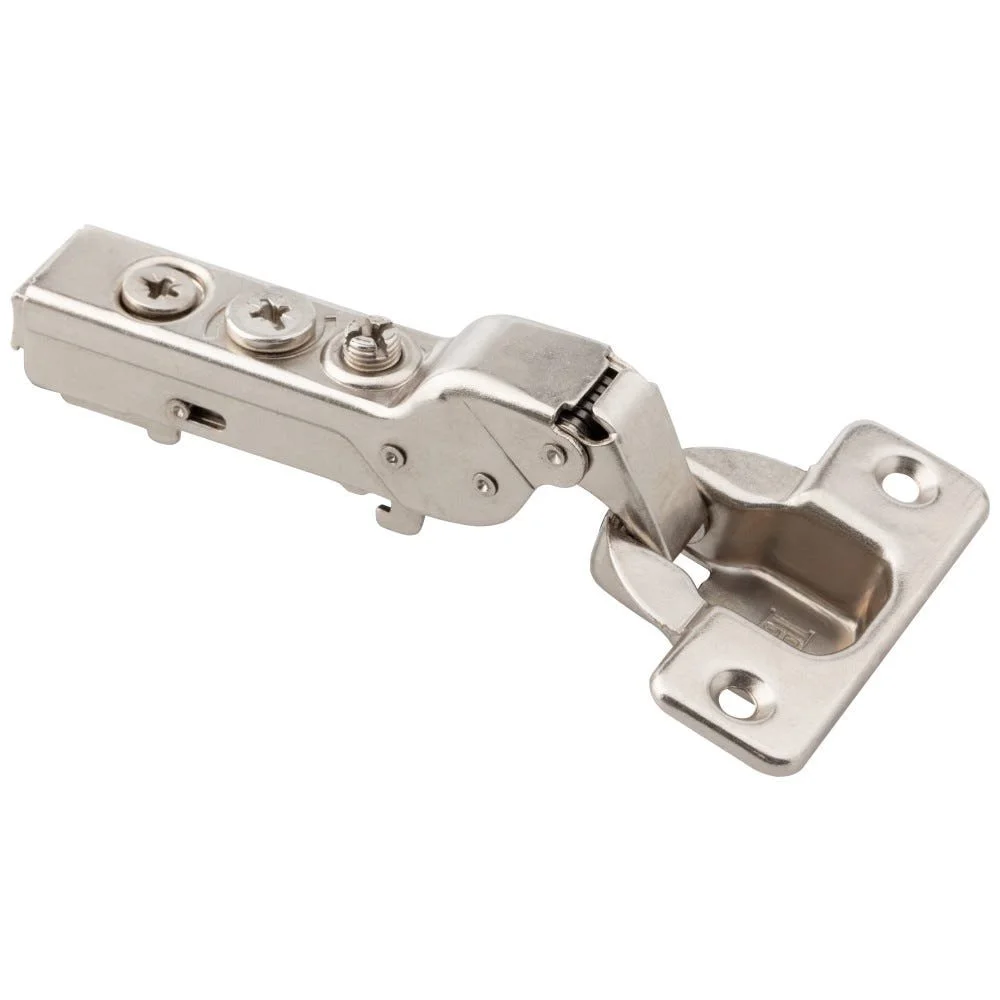

Half Overlay · 9 mm crank · screw mount, no dowels — 1750.0536.25 — $6.61 each

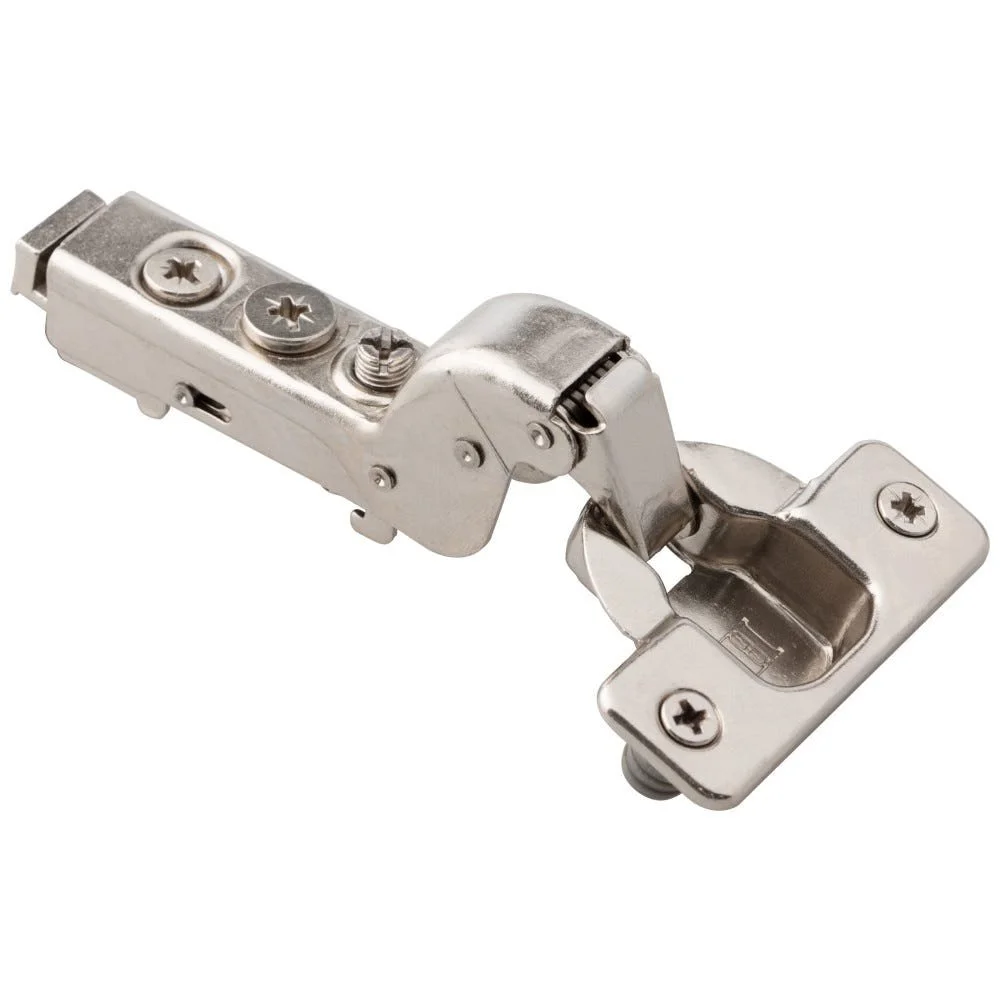

Inset · 15 mm crank · 8 mm press-in dowels — 1750.0280.25 — $6.84 each

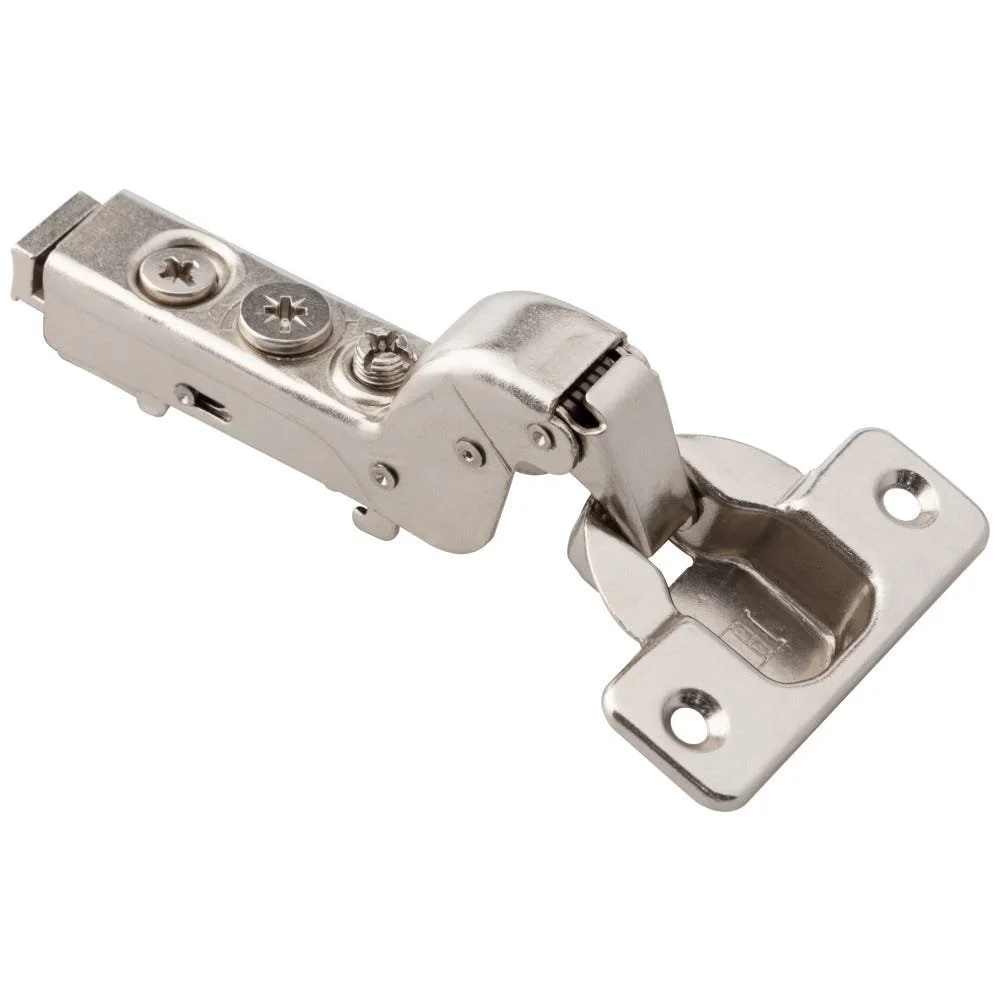

Inset · 15 mm crank · screw mount, no dowels — 1750.0537.25 — $6.61 each
Confirm the cup drilling, overlay, mounting plate height and door clearances before installation. Hinges and mounting plates are optional hardware sold separately from cabinetry.
Give cabinet doors a controlled, quiet close with a heavy-duty European hinge whose closing speed can be adjusted to suit the door. The 1750 series combines a durable spring and linkage system with cam adjustment for a precise fit.
Sold individually. Compatible 600 Series mounting plates are required and sold separately. Choose the overlay and mounting method that match your cabinet construction.
Full overlay: straight arm, 0 mm crank.
Half overlay: half-cranked arm, 9 mm crank.
Inset: fully cranked arm, 15 mm crank.
Press-in versions include 8 mm dowels; screw-mount versions have no dowels.
Opening angle: 110°.
Cup diameter: 35 mm; cup bore depth: 11.2 mm; mounting centers: 45 mm.
Cold-rolled steel with a polished nickel finish.
Hinge and compatible plate provide six-way adjustment; overlay adjustment ±2 mm, depth adjustment +3/−2 mm.
Suitable for face-frame or frameless cabinetry with the correctly selected mounting plate.
Grade 2 ANSI/BHMA certification; tested to 100,000 cycles. Limited lifetime factory warranty.
Full Overlay · 0 mm crank · 8 mm press-in dowels — 1750.0181.25 — $6.28 each
Full Overlay · 0 mm crank · screw mount, no dowels — 1750.0535.25 — $6.61 each
Half Overlay · 9 mm crank · 8 mm press-in dowels — 1750.0179.25 — $6.64 each
Half Overlay · 9 mm crank · screw mount, no dowels — 1750.0536.25 — $6.61 each
Inset · 15 mm crank · 8 mm press-in dowels — 1750.0280.25 — $6.84 each
Inset · 15 mm crank · screw mount, no dowels — 1750.0537.25 — $6.61 each
Confirm the cup drilling, overlay, mounting plate height and door clearances before installation. Hinges and mounting plates are optional hardware sold separately from cabinetry.
