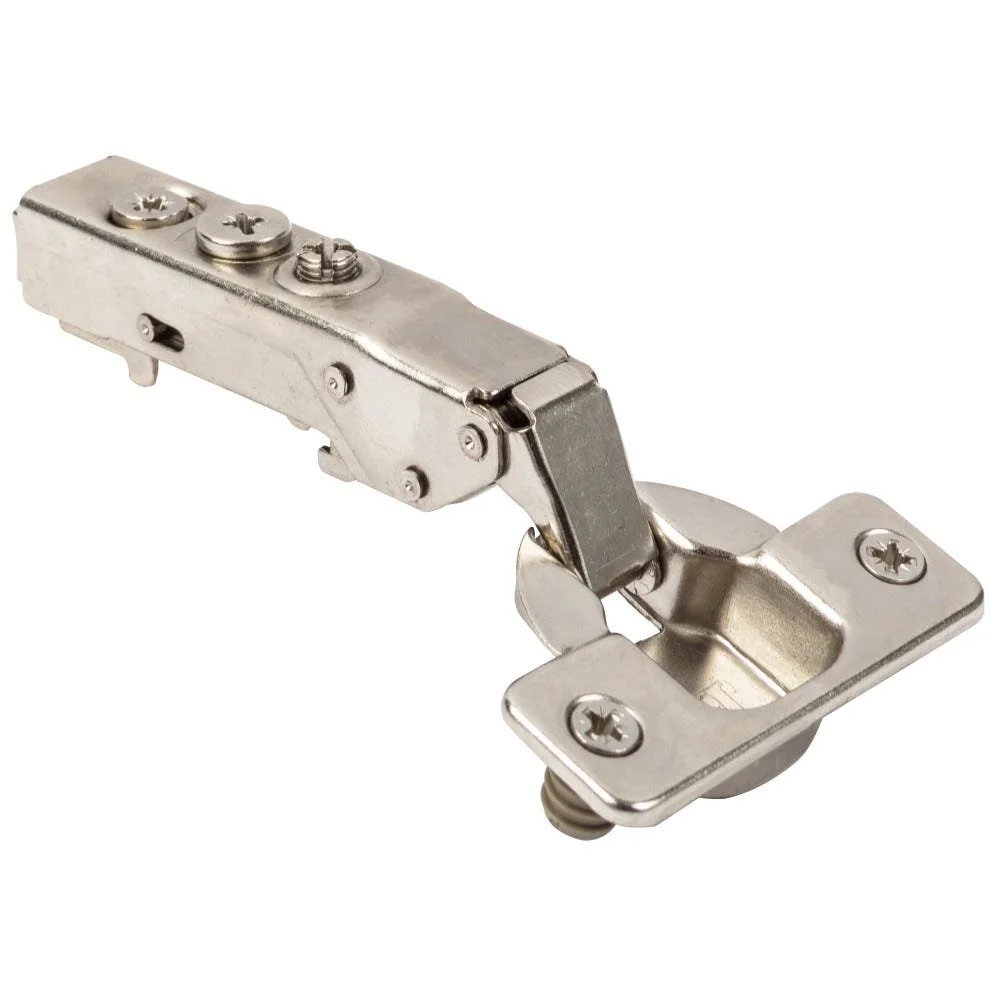

1750 Series 90° Full-Overlay Adjustable Soft-Close Hinge

$5.26

A controlled, quiet close for cabinet doors that need a 90° opening. This heavy-duty concealed hinge offers adjustable soft-close action and cam adjustments to help align the door precisely.

Sold individually. Compatible 600 Series mounting plate required and sold separately.

Specifications

Model: 1750.0161.25.
Full overlay; straight arm with 0 mm crank.
90° opening; press-in installation with 8 mm dowels.
11.2 mm cup bore depth; 45 mm mounting centers; 72 mm overall length.
Cold-rolled steel with polished nickel finish.
Hinge and compatible mounting plate provide six-way adjustment: overlay ±2 mm and depth +3/−2 mm.
Suitable for face-frame or frameless construction with the appropriate mounting plate.
Grade 2 ANSI/BHMA certified; tested to 100,000 cycles. Limited lifetime factory warranty.

Check your door drilling, overlay and selected mounting plate before installation. This optional hardware is sold separately from cabinetry.
