500 Series 110° Full-Overlay Free-Swinging Cabinet Hinge

$2.02

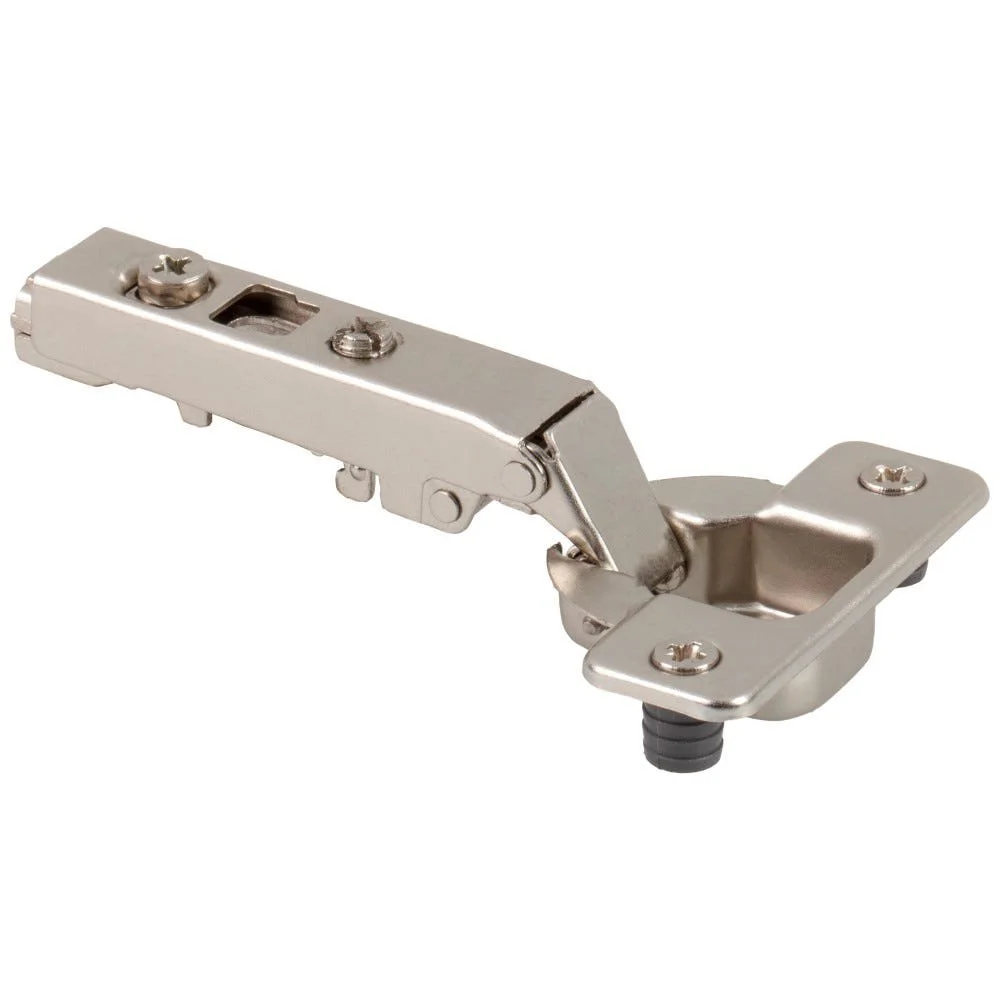

Let the cabinet door move freely without spring-assisted closing. This free-swinging concealed hinge is suited to compatible full-overlay applications where the closing mechanism is provided separately.

Exact model: 500.0141.75; 110° opening, full overlay and 0 mm crank.
Free-swinging action confirmed in the factory specification drawing.
Press-in installation with 8 mm dowels.
35 mm cup bore, 11.2 mm cup-bore depth and 45 mm mounting centers.
Factory drawing length 68.3 mm; height 15.7 mm.
Overlay adjustment ±2 mm; depth adjustment +3 / −2 mm.
Polished nickel steel; compatible with 400 Series mounting plates.
Limited lifetime manufacturer warranty.

Sold individually. Mounting plates and optional door catches are sold separately. Check the door boring and application before ordering.
